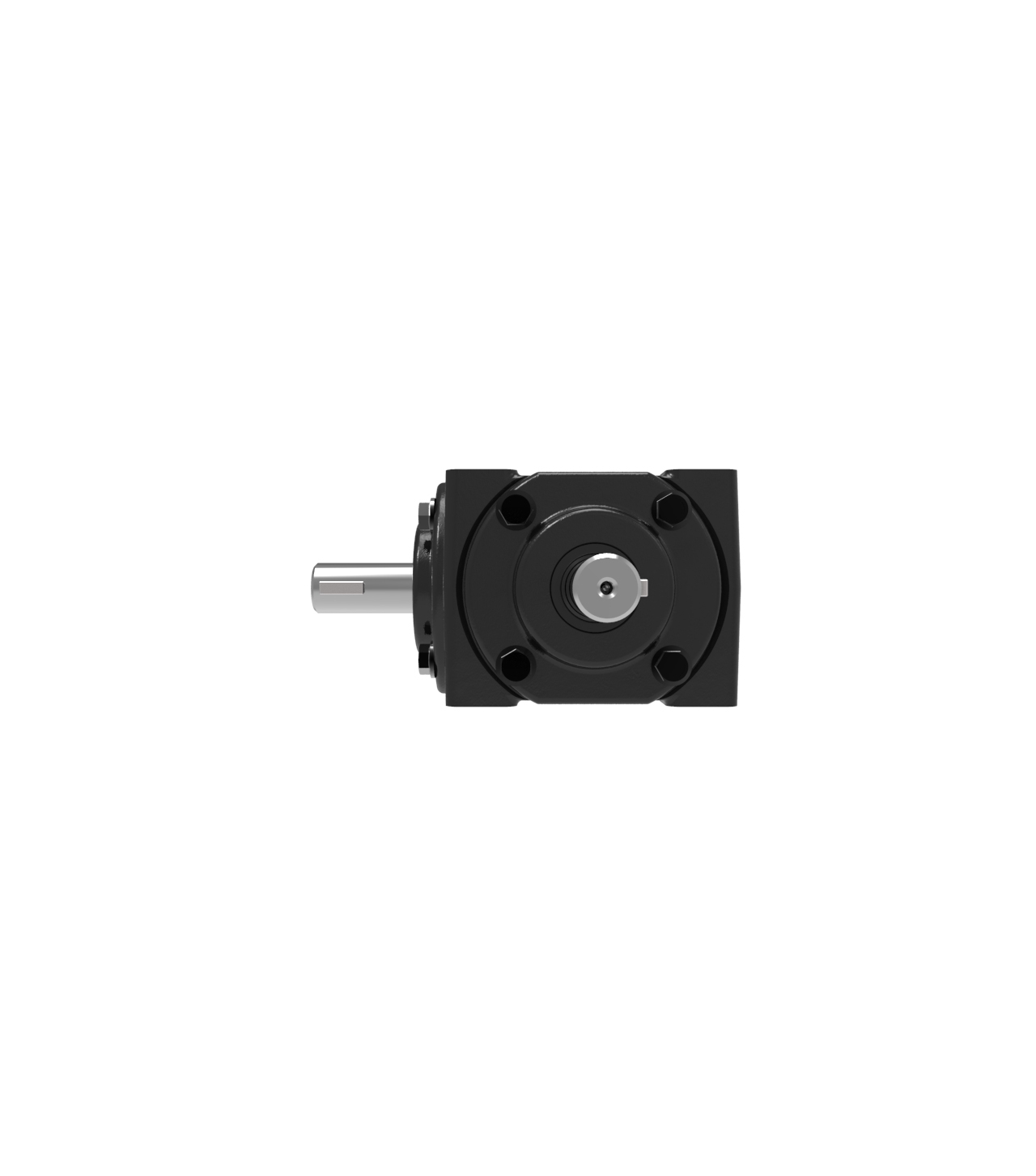

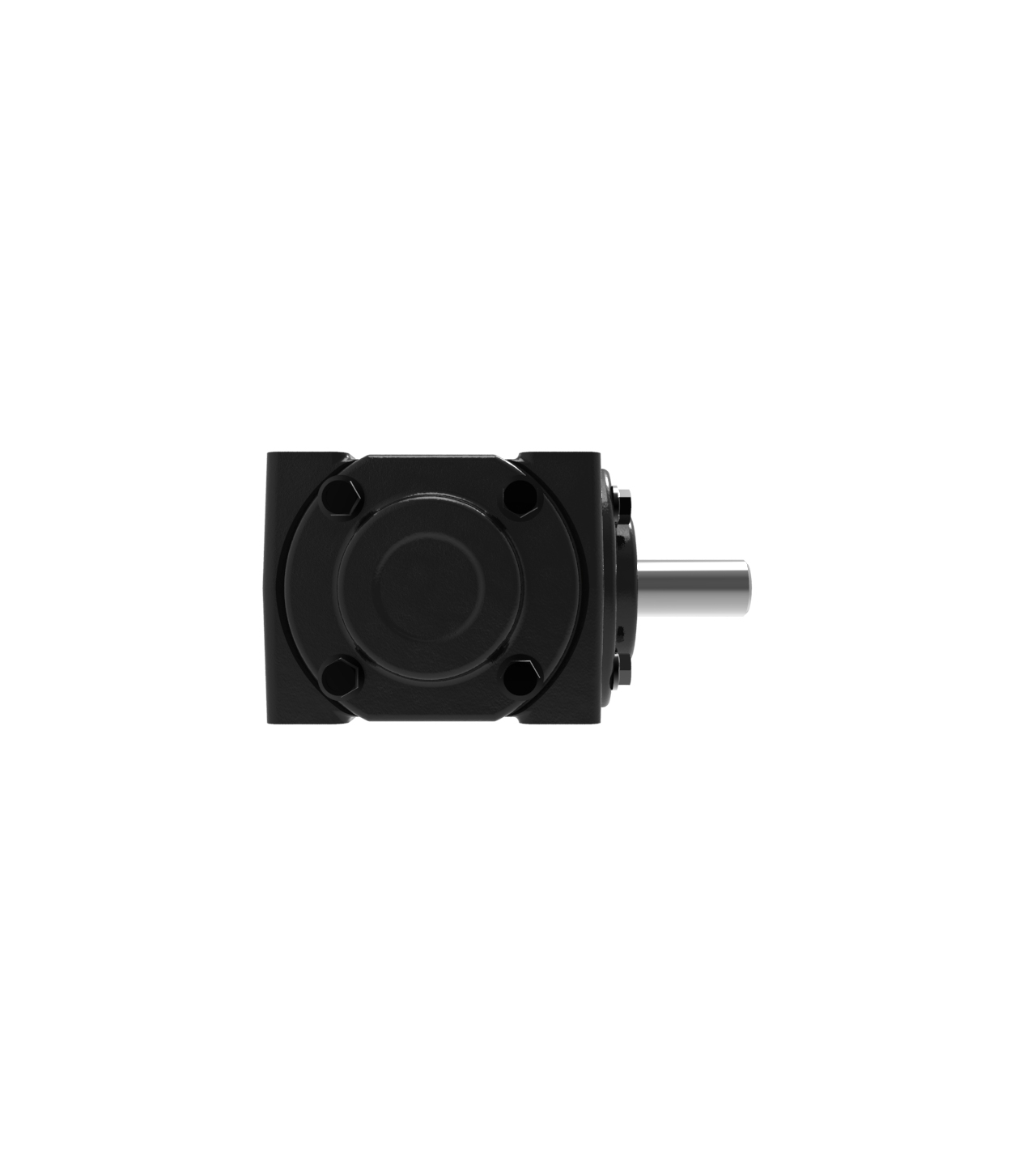

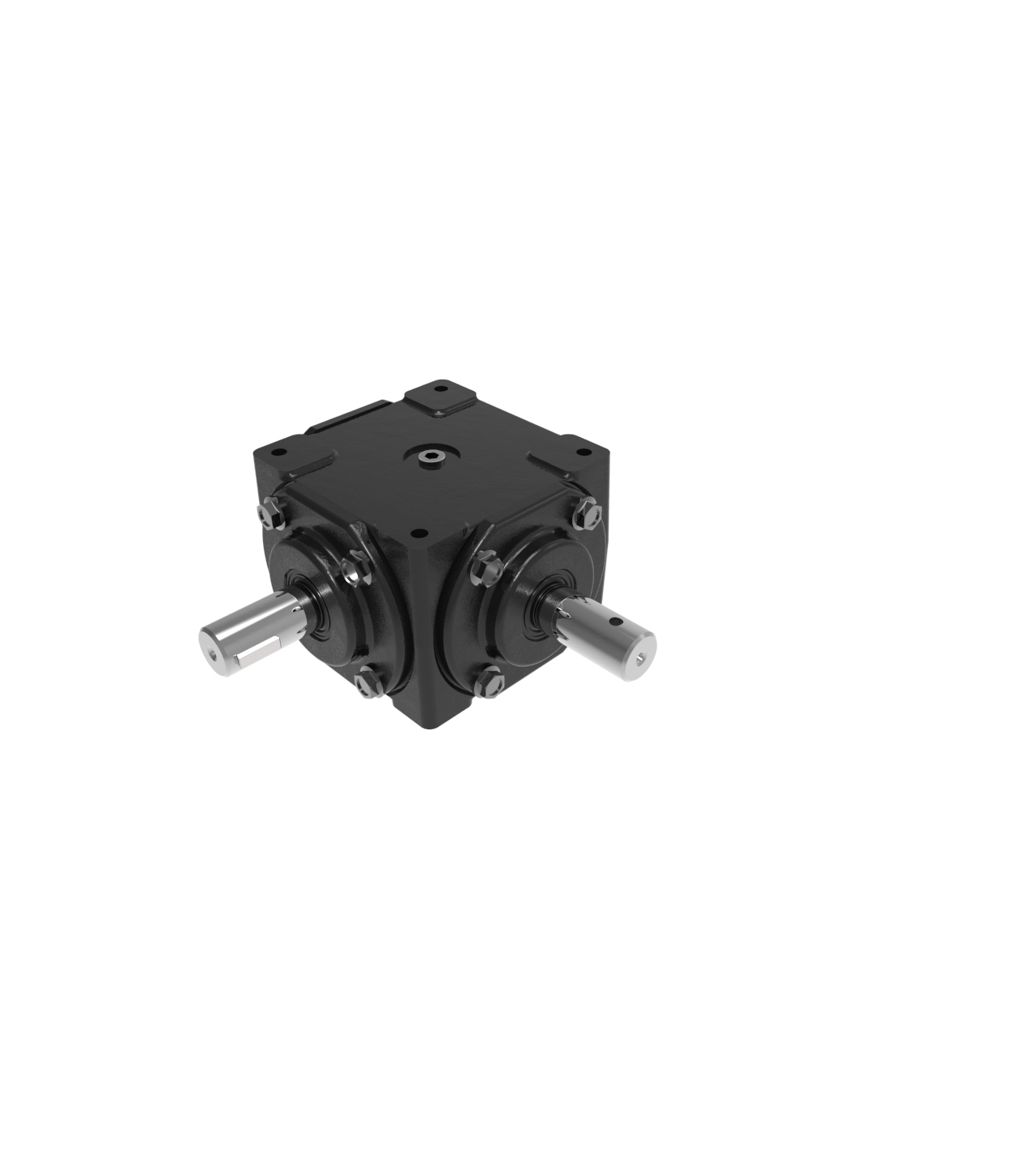

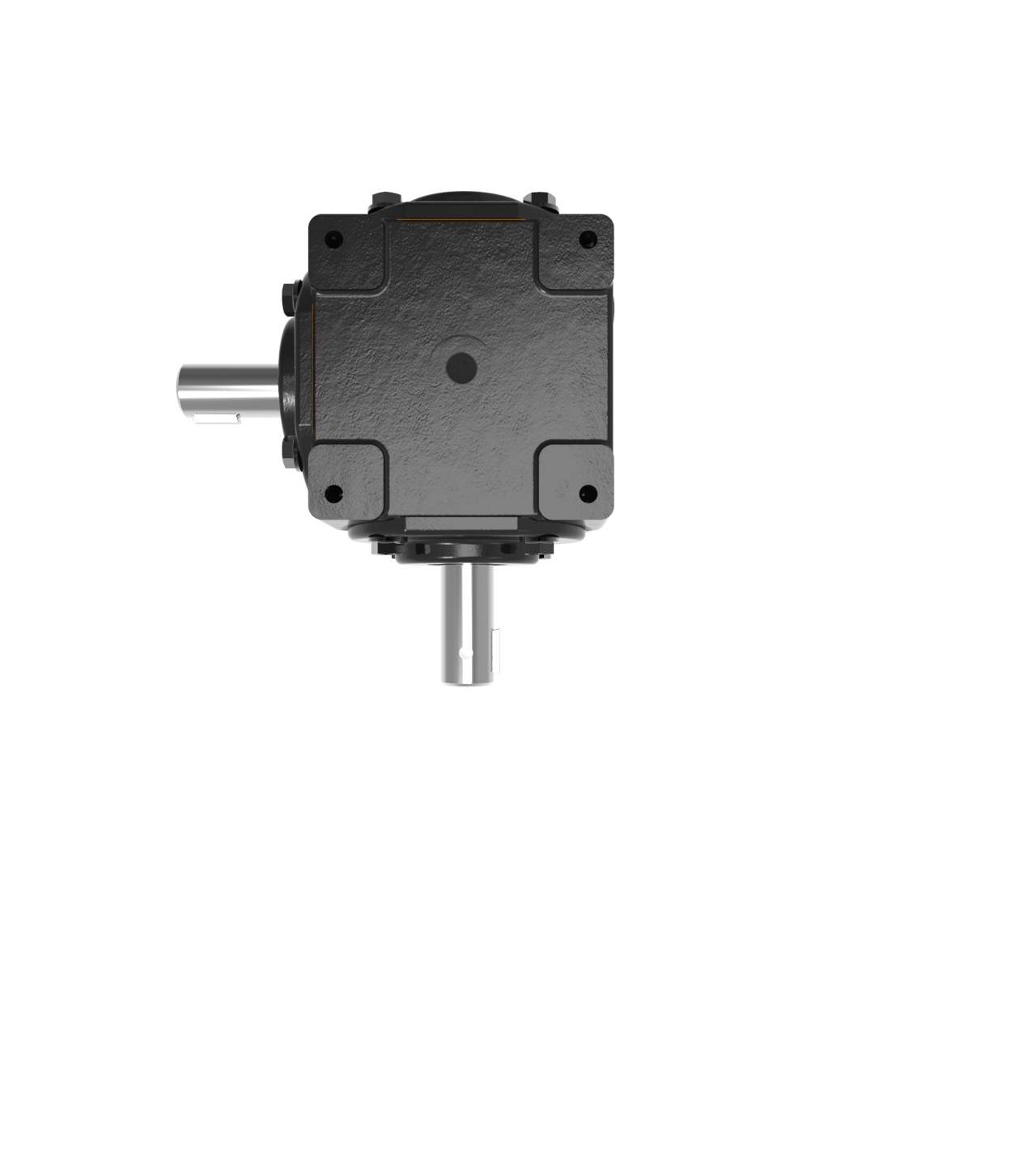

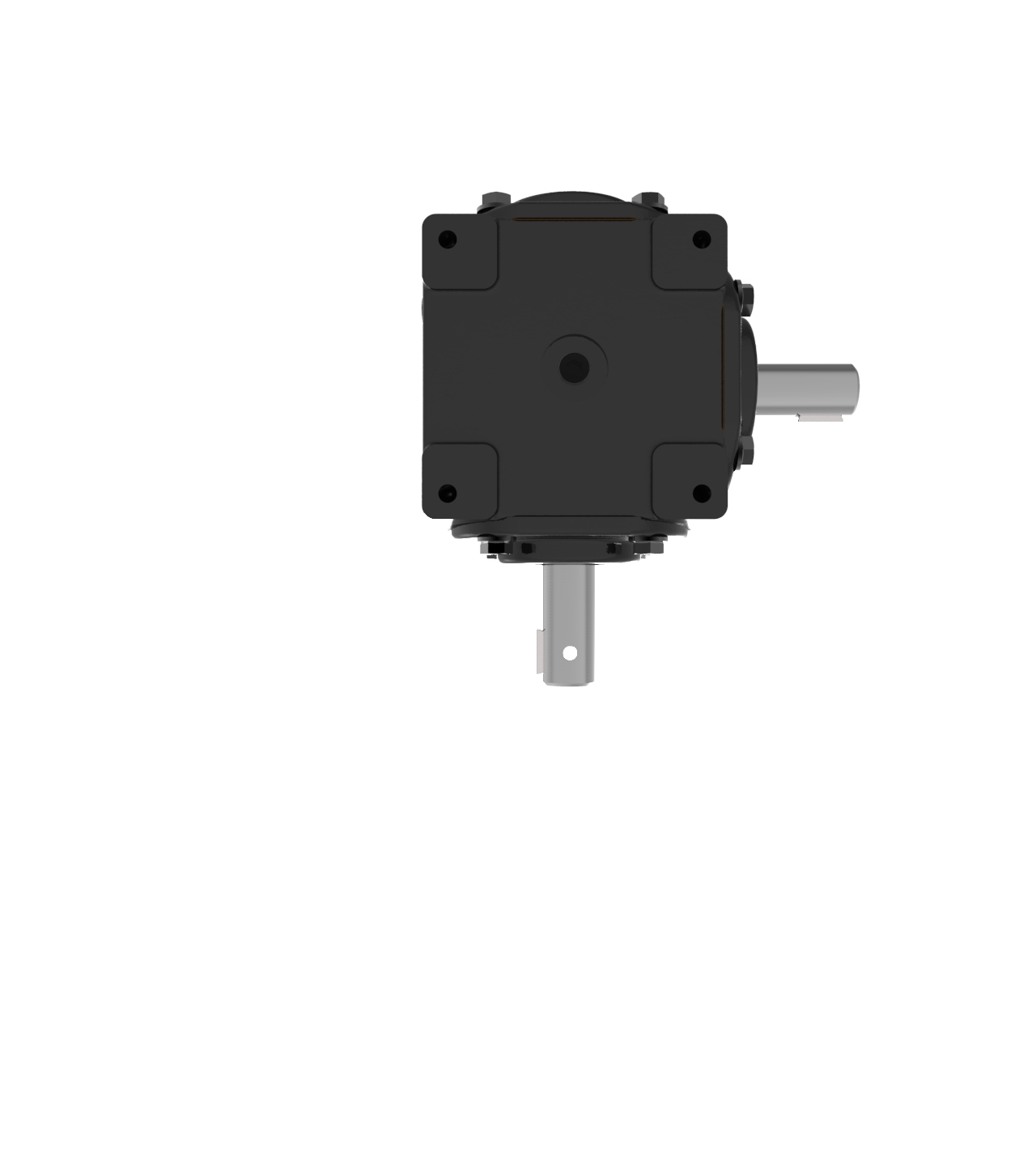

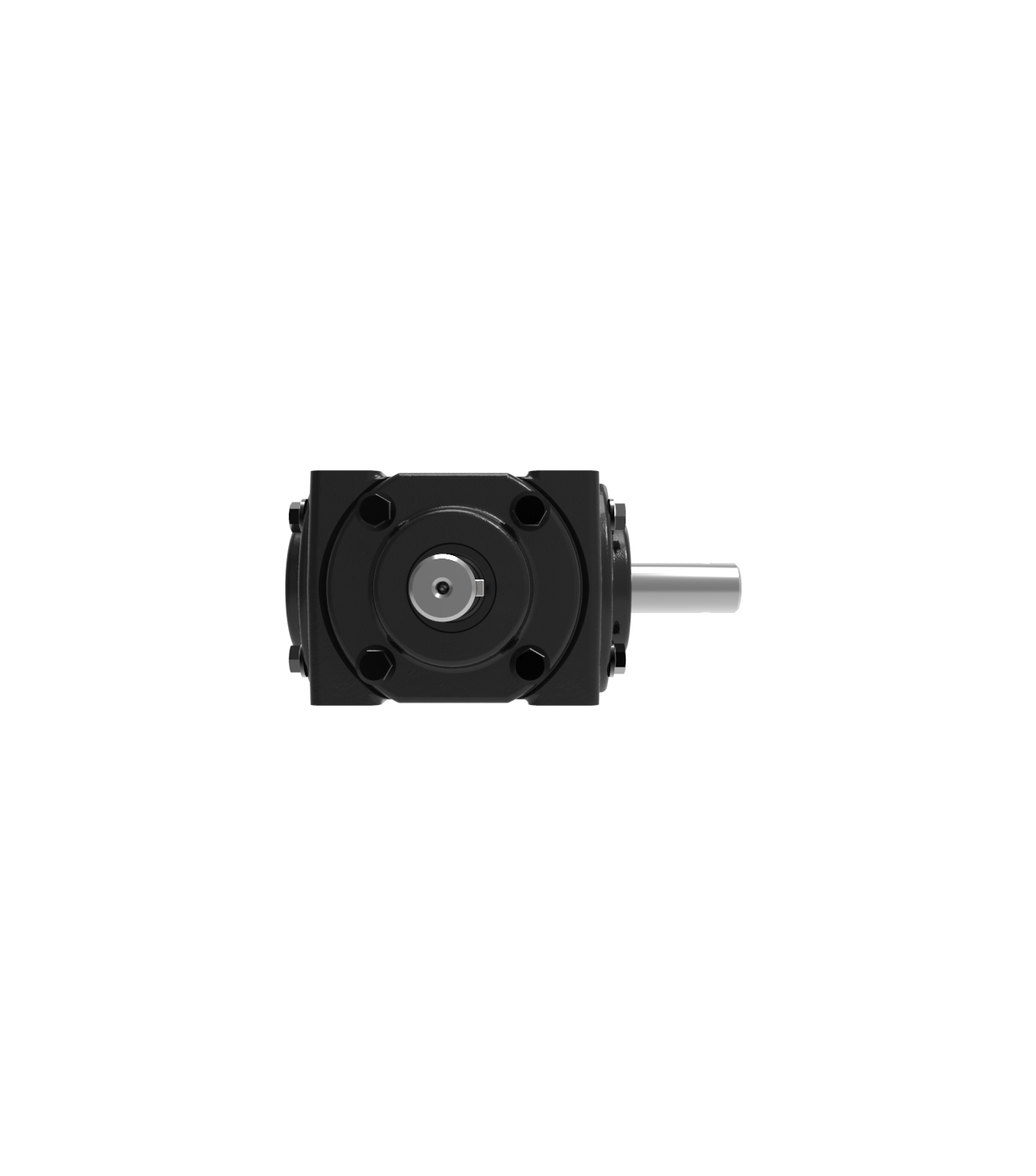

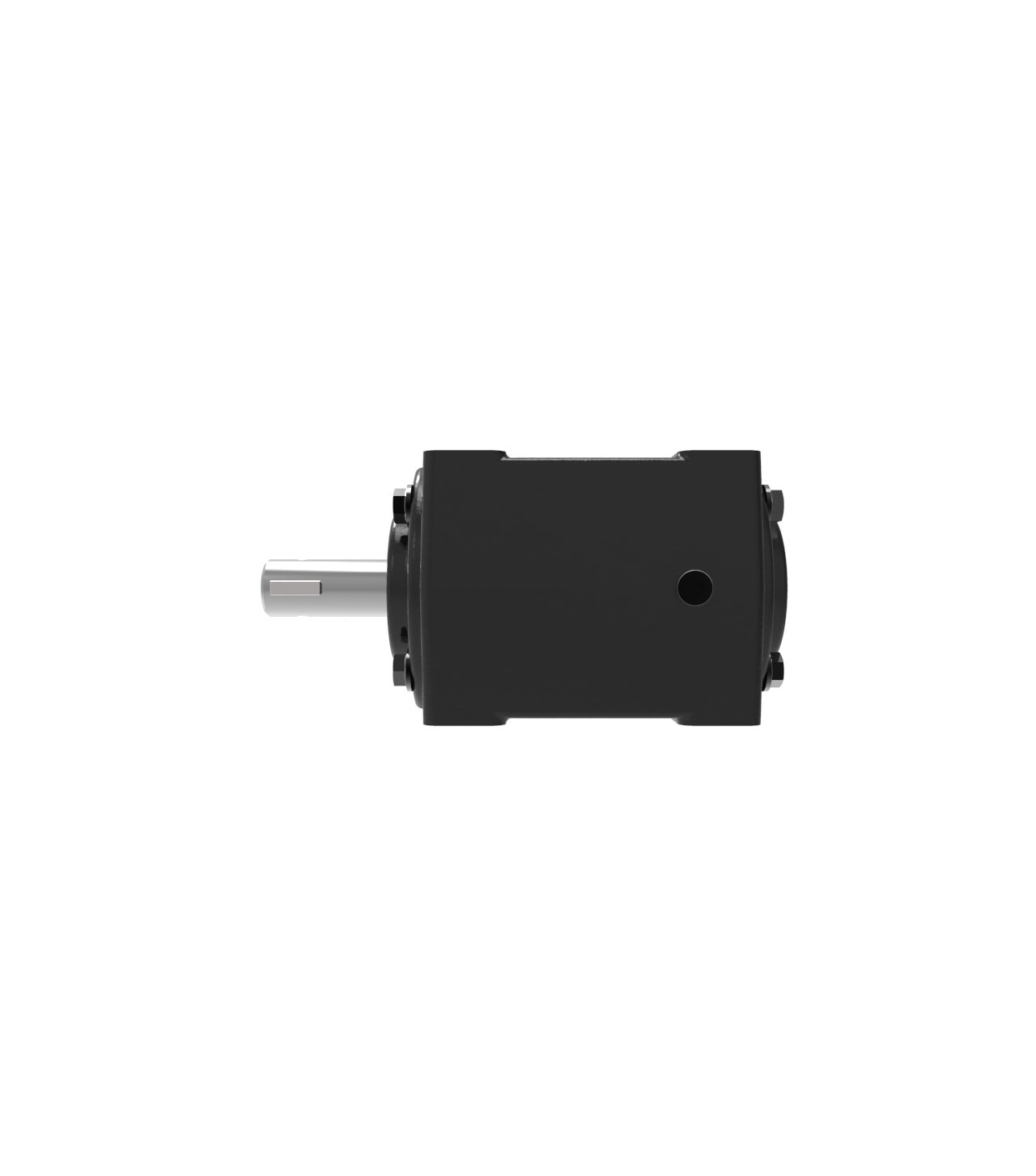

STANDARD BEVEL GEARBOX – 2390 SERIES

2390 series low ratio cast iron bevel gearbox with 1” max shaft diameter. Available in ratios up to 2:1

Weasler Engineering’s bevel gearboxes come in a wide range of HP capacities. Choose from existing ratios and shaft configurations or customize them to meet your application needs. Our Application Engineers will work with you to understand your application requirements and size the appropriate gearbox for your application. If your application requires a custom drive solution, our engineers will work you to design a bevel gearbox that meets your exact application to minimize stress and wear on your equipment and extend service life.

DESIGN FEATURES:
• Customizable shaft configurations up to 1” [25 mm] diameters
• Available ratios (other ratios available upon request)
• Straight bevel – 1:1, 1.05:1, 1.3:1, 1.5:1
• Spiral bevel – 1:1, 1.05:1, 1.3:1, 1.5:1
• Max HP rating
• 540 rpm = 18 HP
• 1000 rpm = 32 HP
• Rugged cast iron design
• Tapered roller bearings
• Double lip spring loaded seals

Available Options:
• Left/Right/T shaft configurations
• Double gearbox arrangements
• Internal shifting – (forward – neutral)
• Low profile nose cone
• Viton seals
• Dust/trash shield
• Pressure relief

Application examples:
• Grain Bin Sweeps
• Grain Dryers
• Fertilizer Spreaders
• Mower Decks
• Mower Attachments
