604-4400

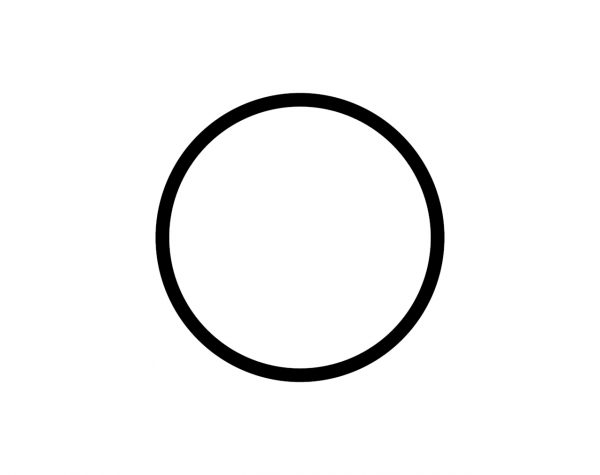

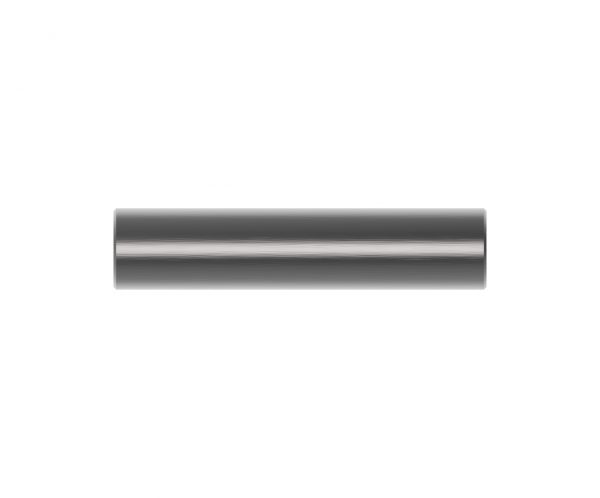

ROUND TUBERound Tube
44,55 series round tube, round
Tubes serve as a metal cylindrical encasement for a shaft within a given PTO drive shaft, and provides supplemental reinfocement to the drive shaft. Tubing is available in both domestic (North American) and metric profile shapes. Domestic tubing is provided as square, rectangle, or round. The Weasler Profile product line includes metric and tubing available in both German and Italian styling: German style provided as lemon or star in shape and Italian as trilobed in shape.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 2.25 inches | 57 mm |
| Bore 1 | ROUND | |
| Connection 1 | WELD | |
| Height | 2.50 inches | 64 mm |
| Length | 36.00 inches | 914 mm |
| Outside Diameter | 2.50 inches | 64 mm |
| Shipping Dimensions | 36" L × 2.5" H × 2.5" W | 91cm L × 6cm H × 6cm W |
| Shipping Volume | 225.00 in3 | 3687 cm3 |
| Shipping Weight | 9.10 pounds | 4 kilograms |
| Tube Size | 2.50 inches | 64 mm |
| Weight | 9.10 pounds | 4 kilograms |
| Weld Diameter | 2.25 inches | 57 mm |
| Width | 2.50 inches | 64 mm |
