902-3548

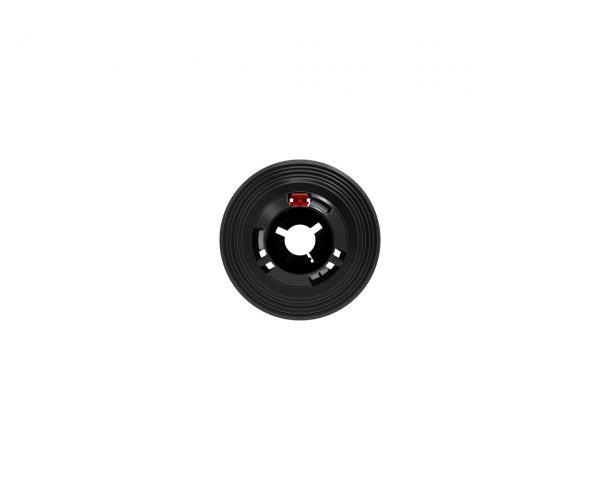

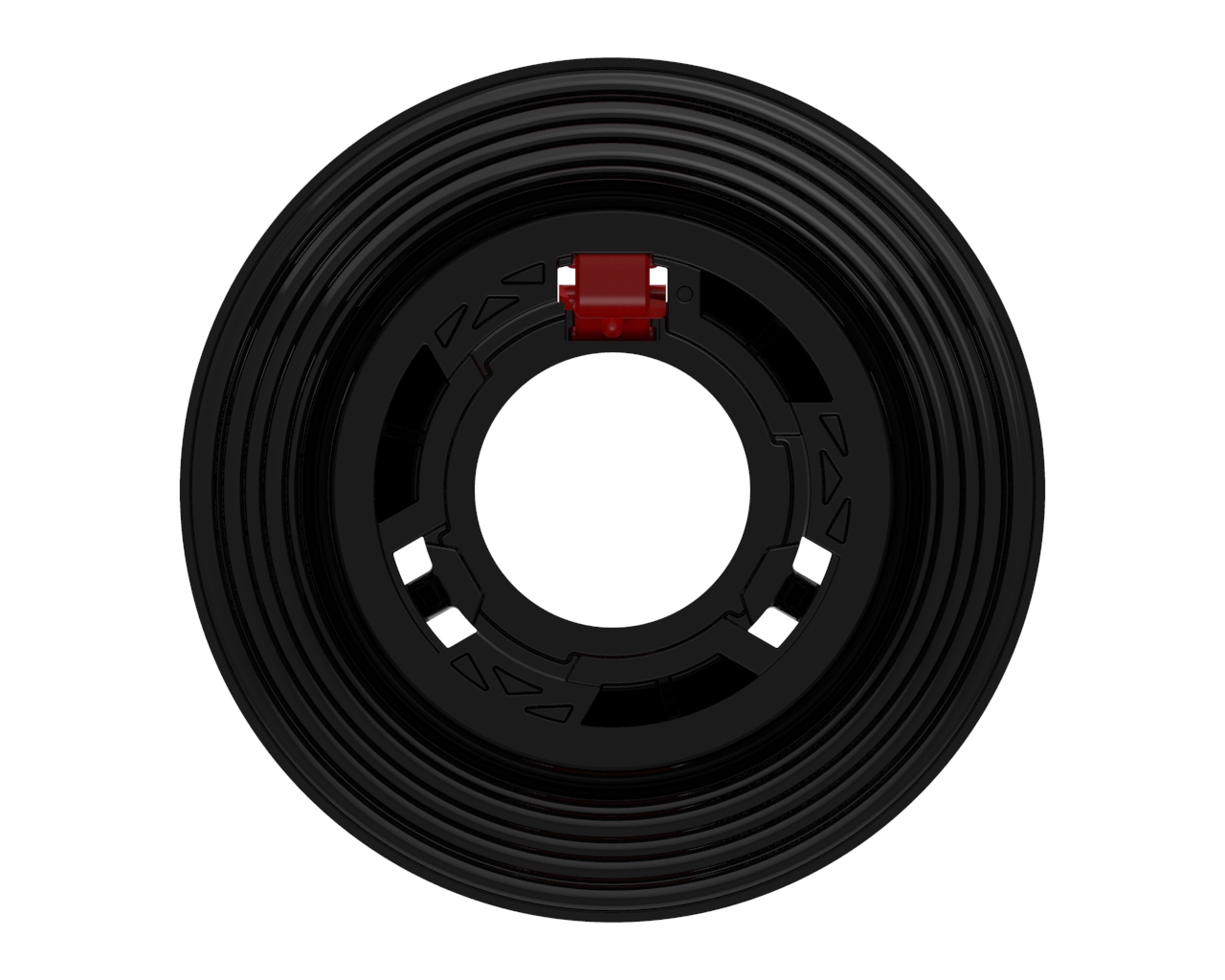

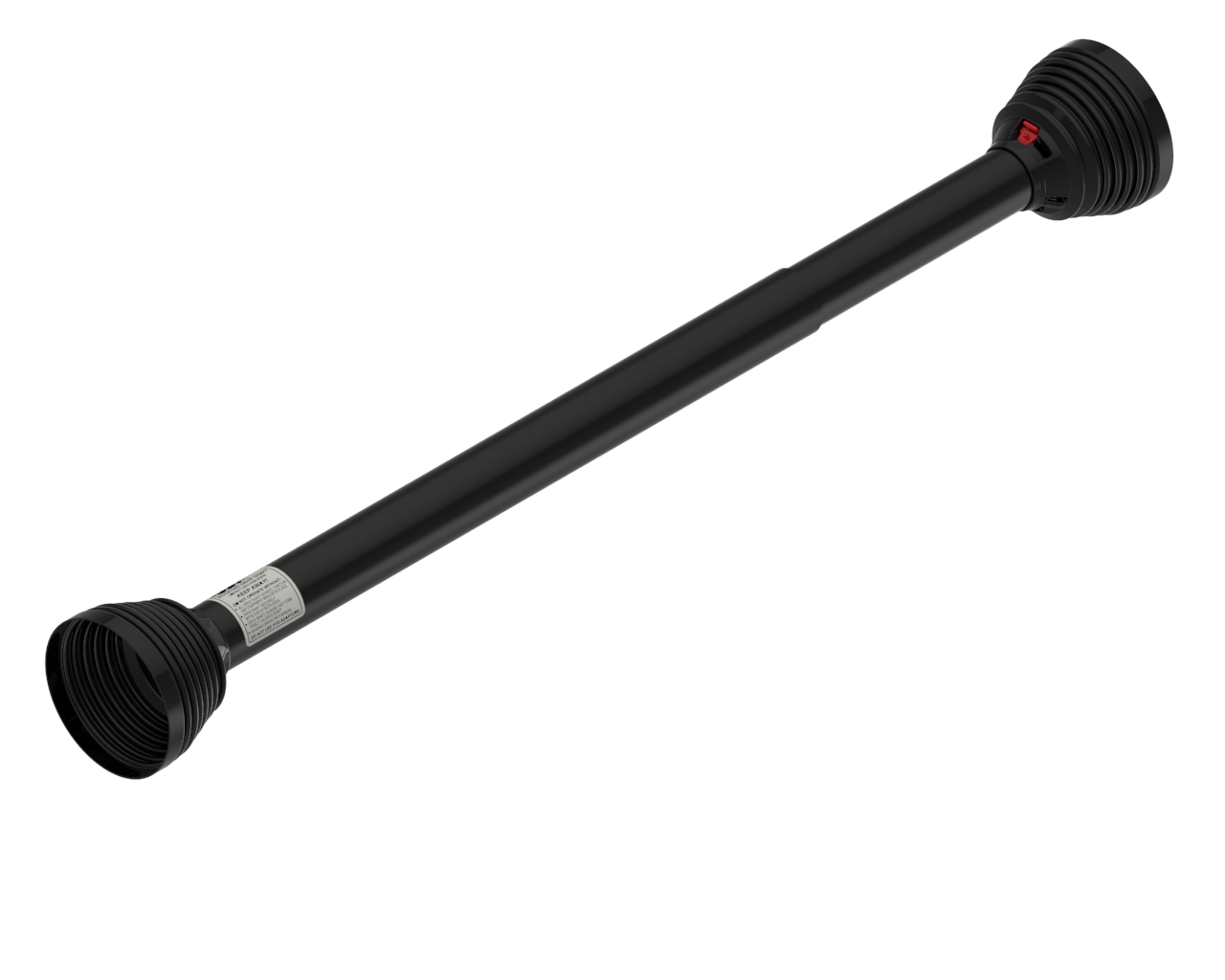

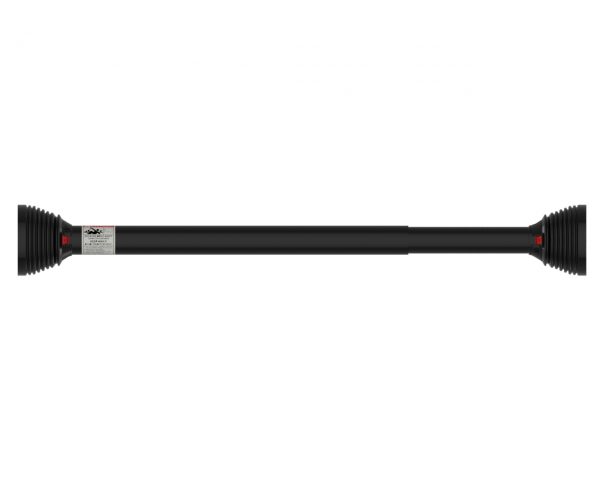

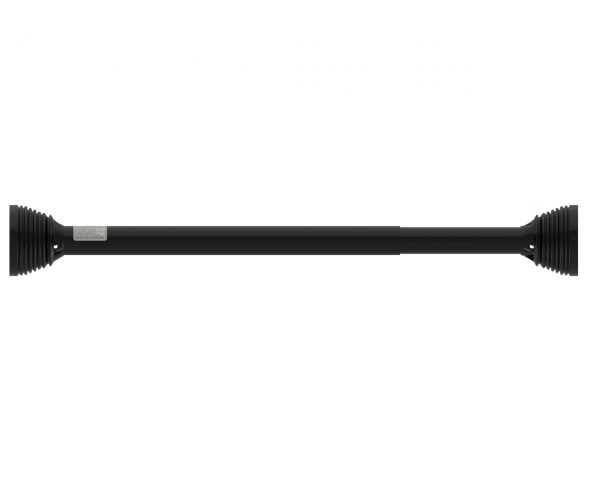

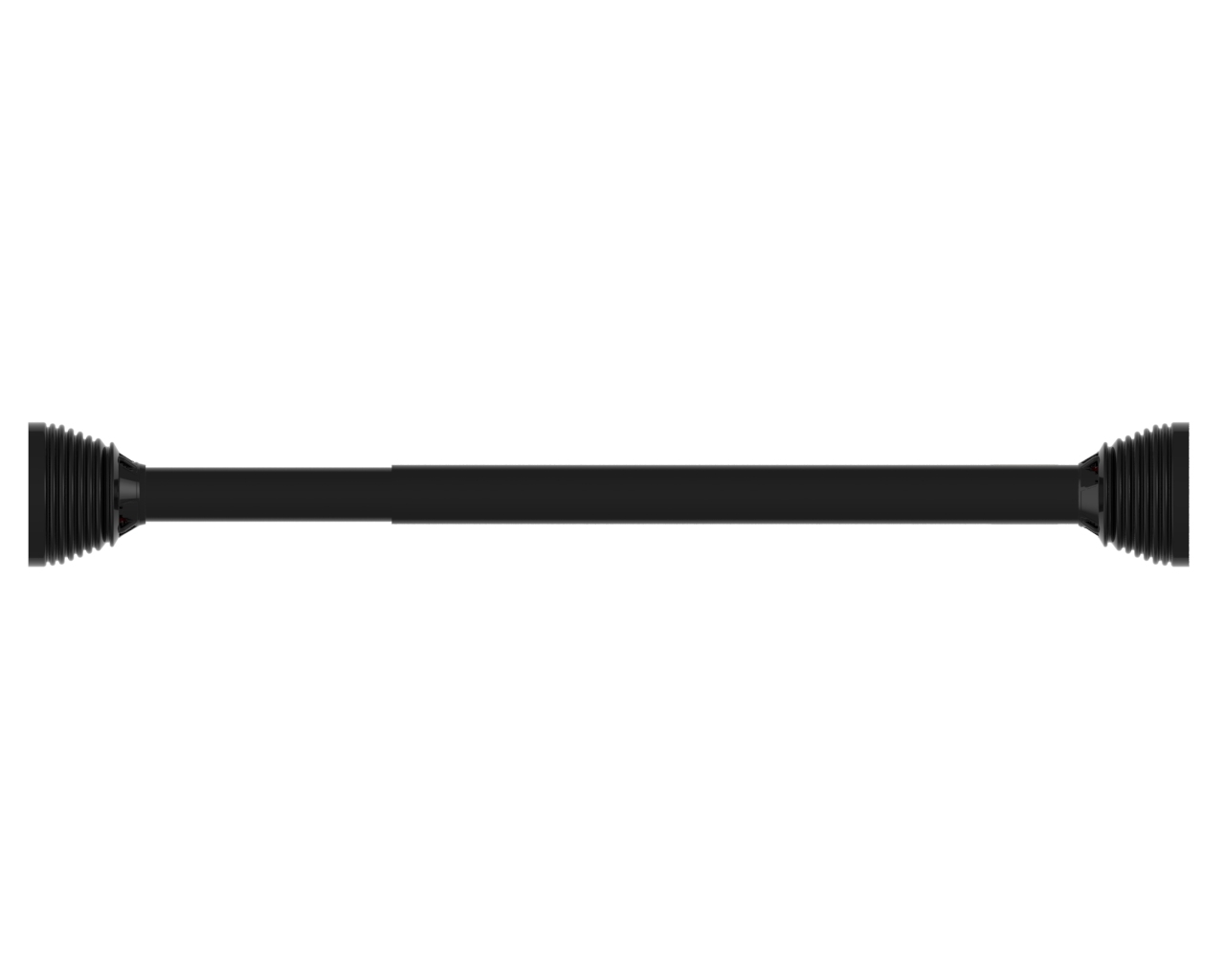

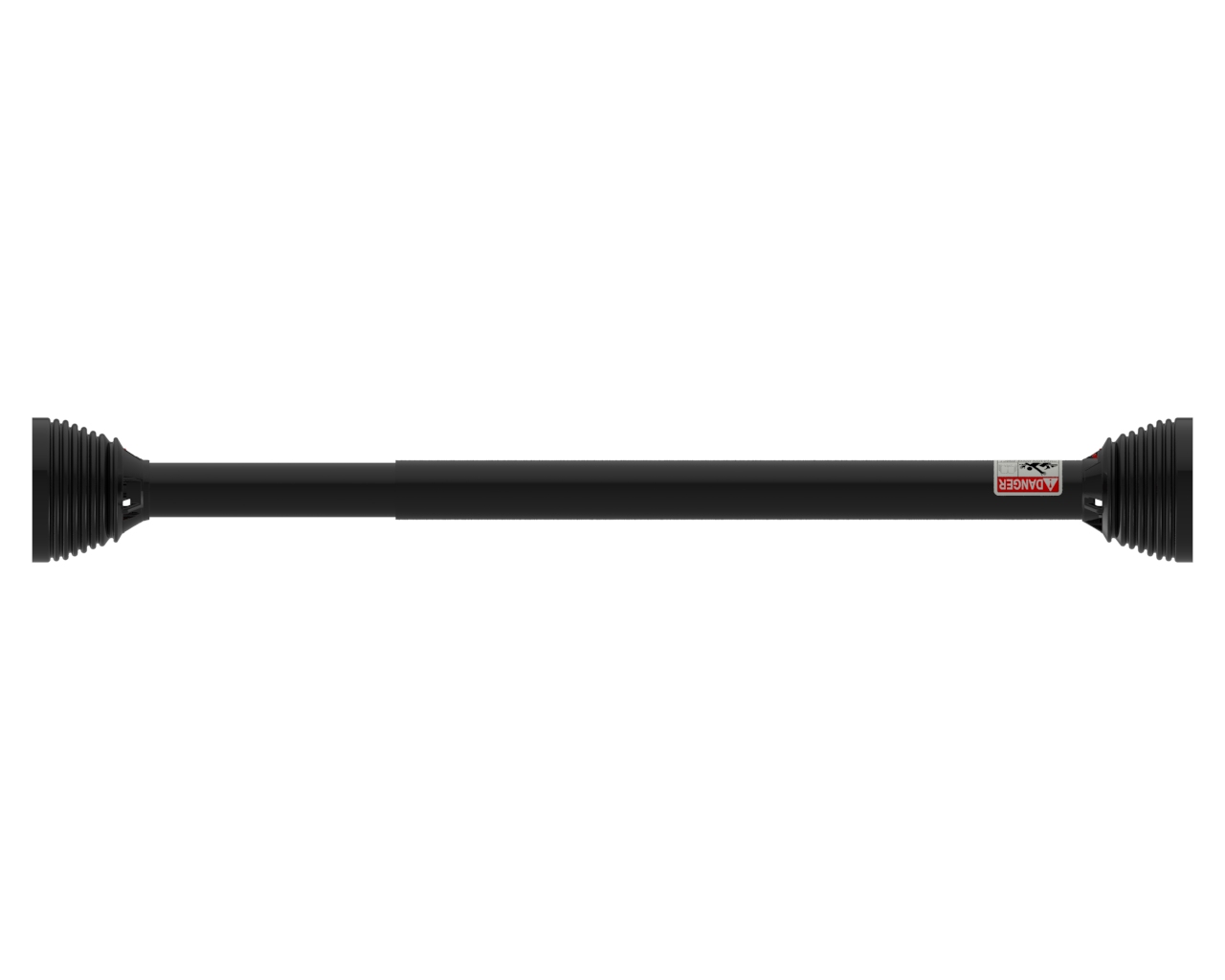

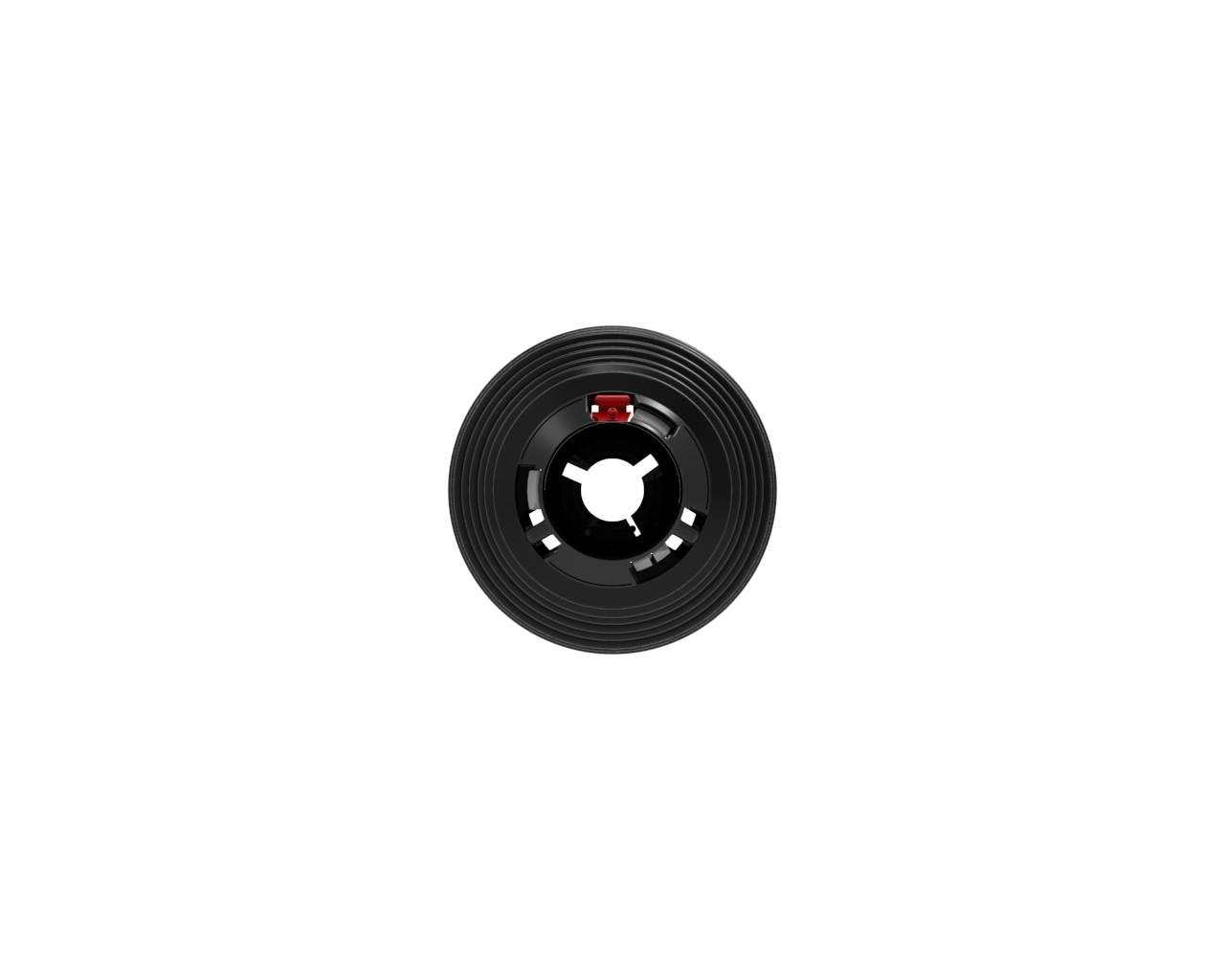

Easy Lock Guard Set

Multiple series easy lock guard set

View My List

Weasler guard sets are composed of two guard halves that encase a PTO drive shaft from tractor to implement. The Weasler black guarding is durable against harsh conditions, ultraviolet light, and ozone. All of the Weasler guard systems include the patented Easy Lock system which allows for easy guard removal and replacement in servicing is required. All Weasler guards are designed according to ANSI/ASABE AD5673 and meet strength and wear requirements of ANSI/ASABE AD 5674. Guards can be certified to CE requirements as an option.

PERFORMANCE BENEFITS
• Easy Lock system allows for quick and easy assembly without tools; A simple tool such as a key, coin or screwdrive can be used to remove the guard.
• Easy Lock clip includes a zerk for ease of lubrication.
• Easier lubrication of the PTO drive shaft through grease access holes so the guard does not need to be removed for lubrication.
• Black guard color is durable against ultraviolet light and ozone.

DESIGN FEATURES
• Easy Lock Guard System: Provides full coverage at maximum angles.
• Full 360° friction weld on guard bell.
• Black coloring that is durable against ultraviolet light and ozone.
• Cold weather impact rated to -35°C.
• Meets and exceeds all applicable safety standards.
• Quick and easy process for removal and installation.

Specifications

Spec. Imperial Metric
Length48.00 inches1219 mm
Outside Diameter7.28 inches185 mm
Shipping Dimensions48" L  ×  7.28" H  ×  7.28" W122cm L  ×  18cm H  ×  18cm W
Shipping Volume2543.92 in341687 cm3
Shipping Weight3.22 pounds1 kilograms
Weight3.22 pounds1 kilograms

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Easy Lock Guards.pdf Service Document English
WE0101011_0817_USL_EasyLockGuard.pdf Performance Benefits Document English

Support Videos

Service Video
Performance Benefits Video
