Part Number: 11007920
YOKE AND TUBE

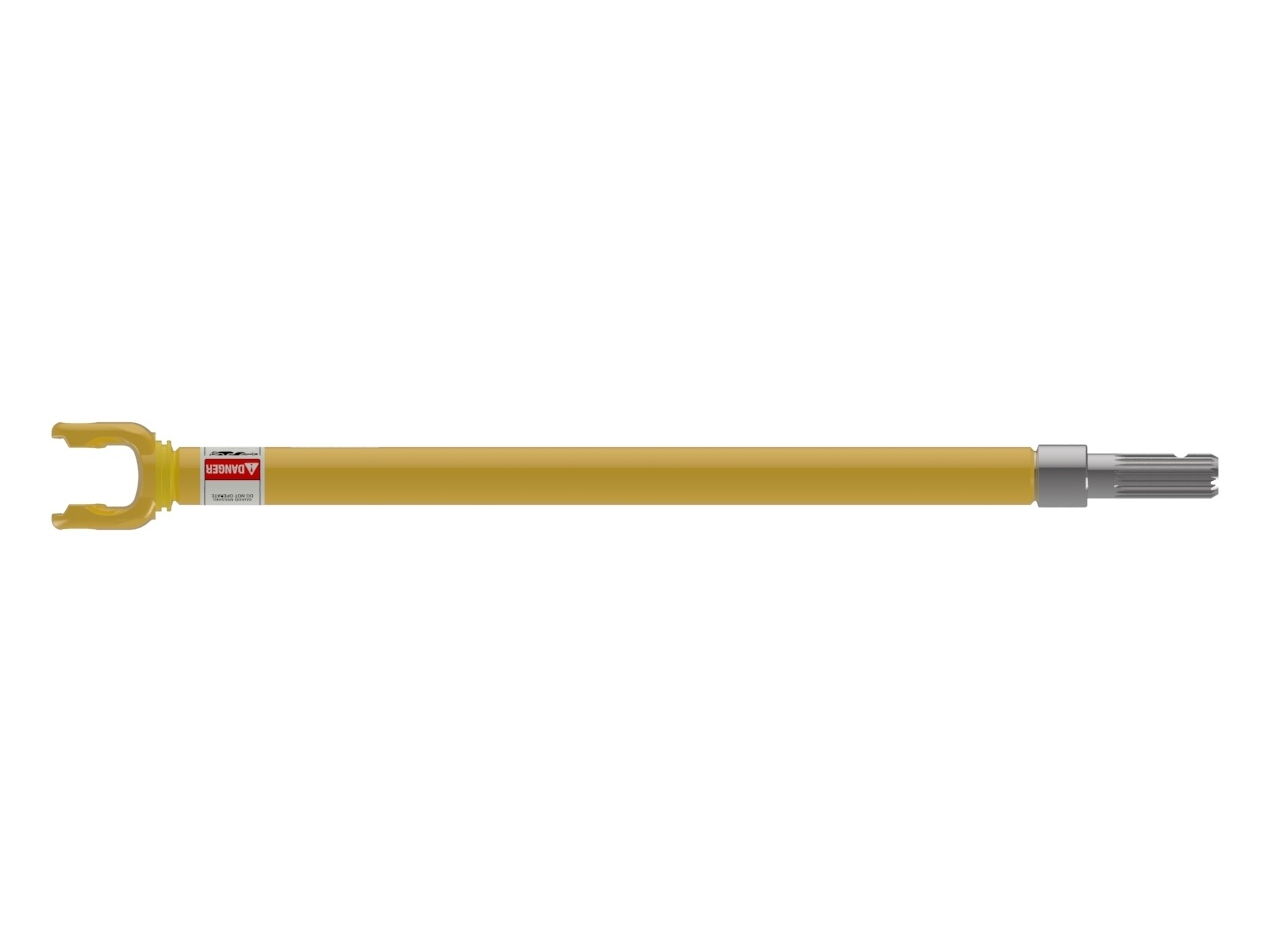

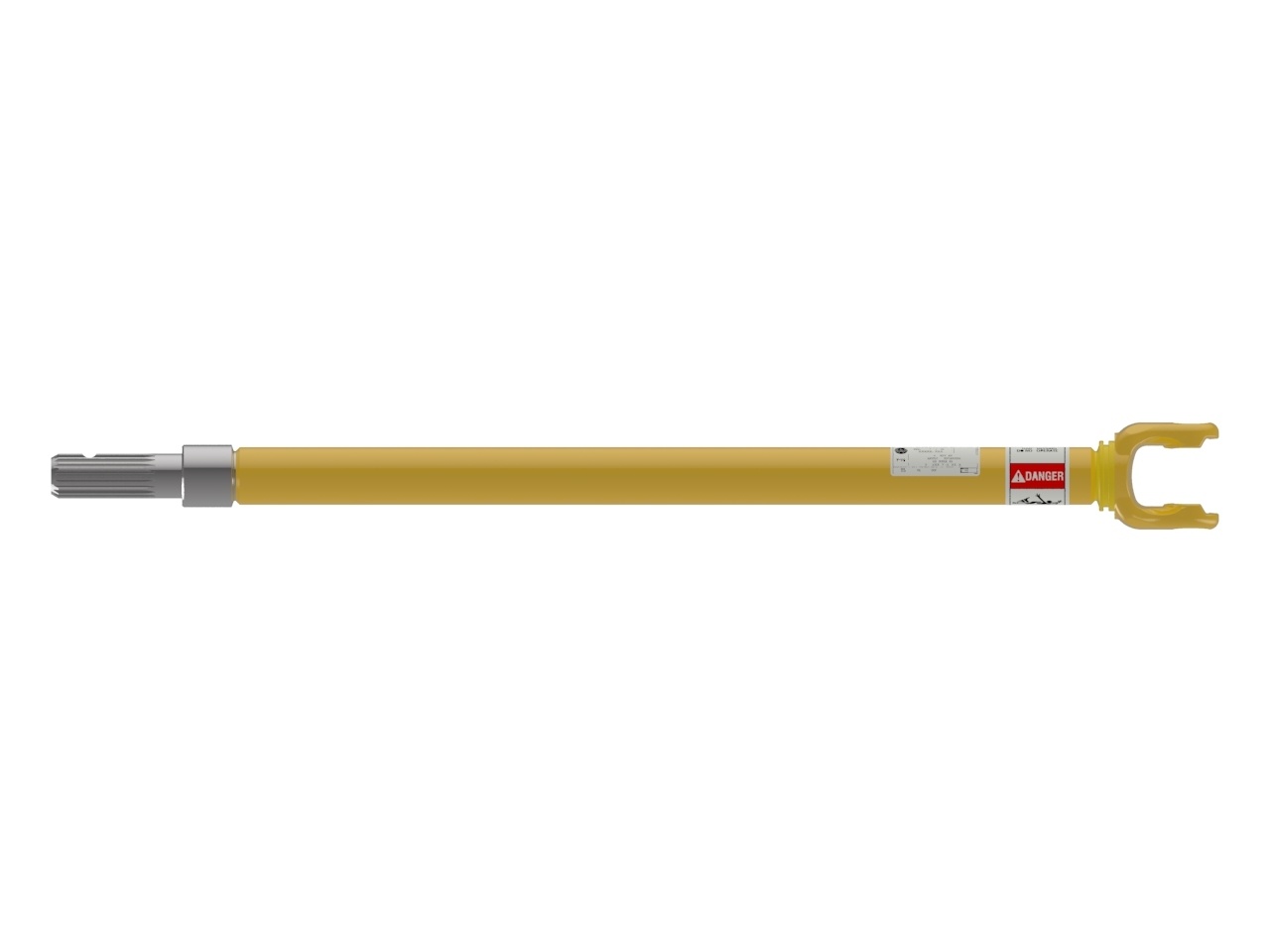

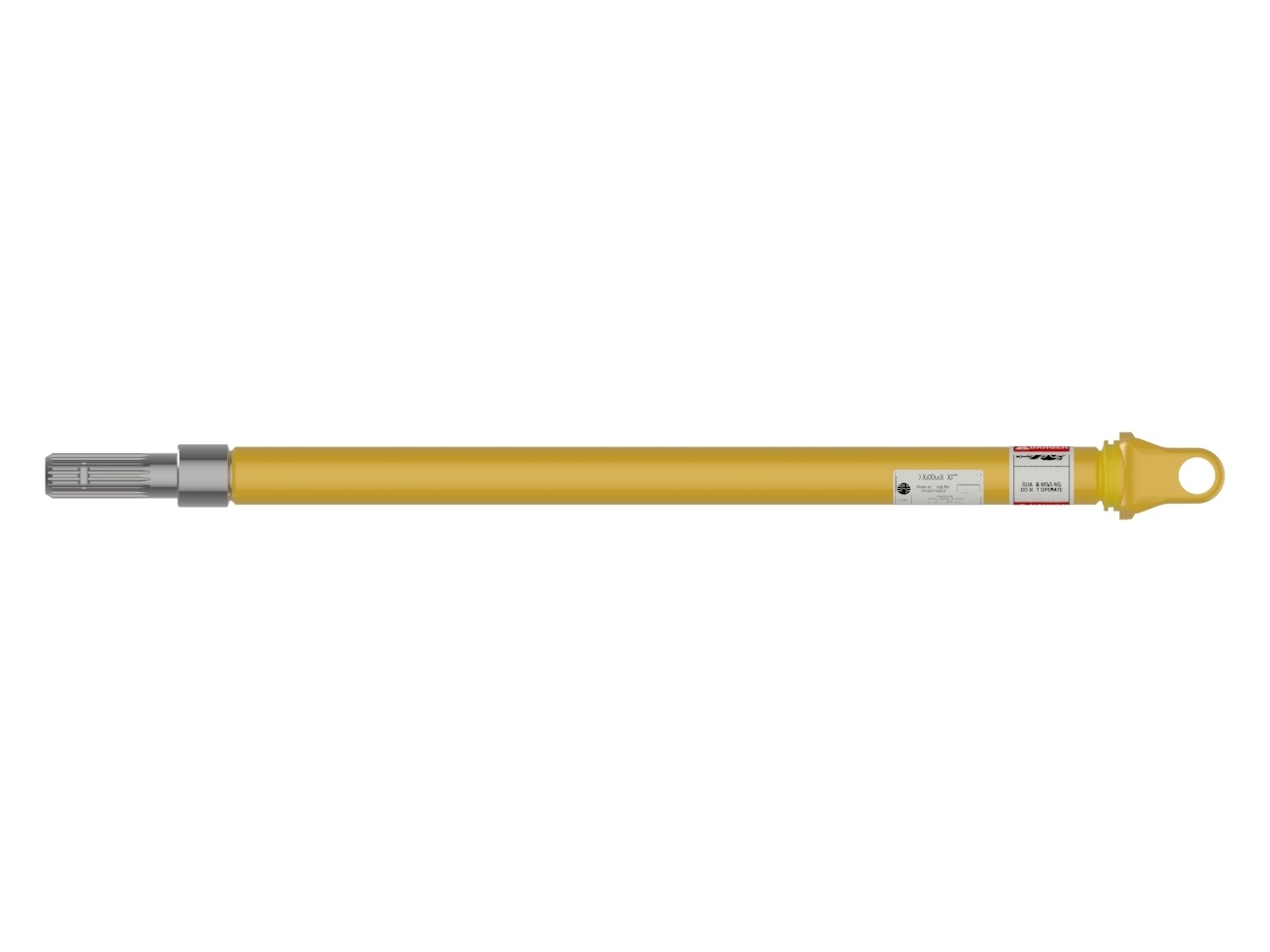

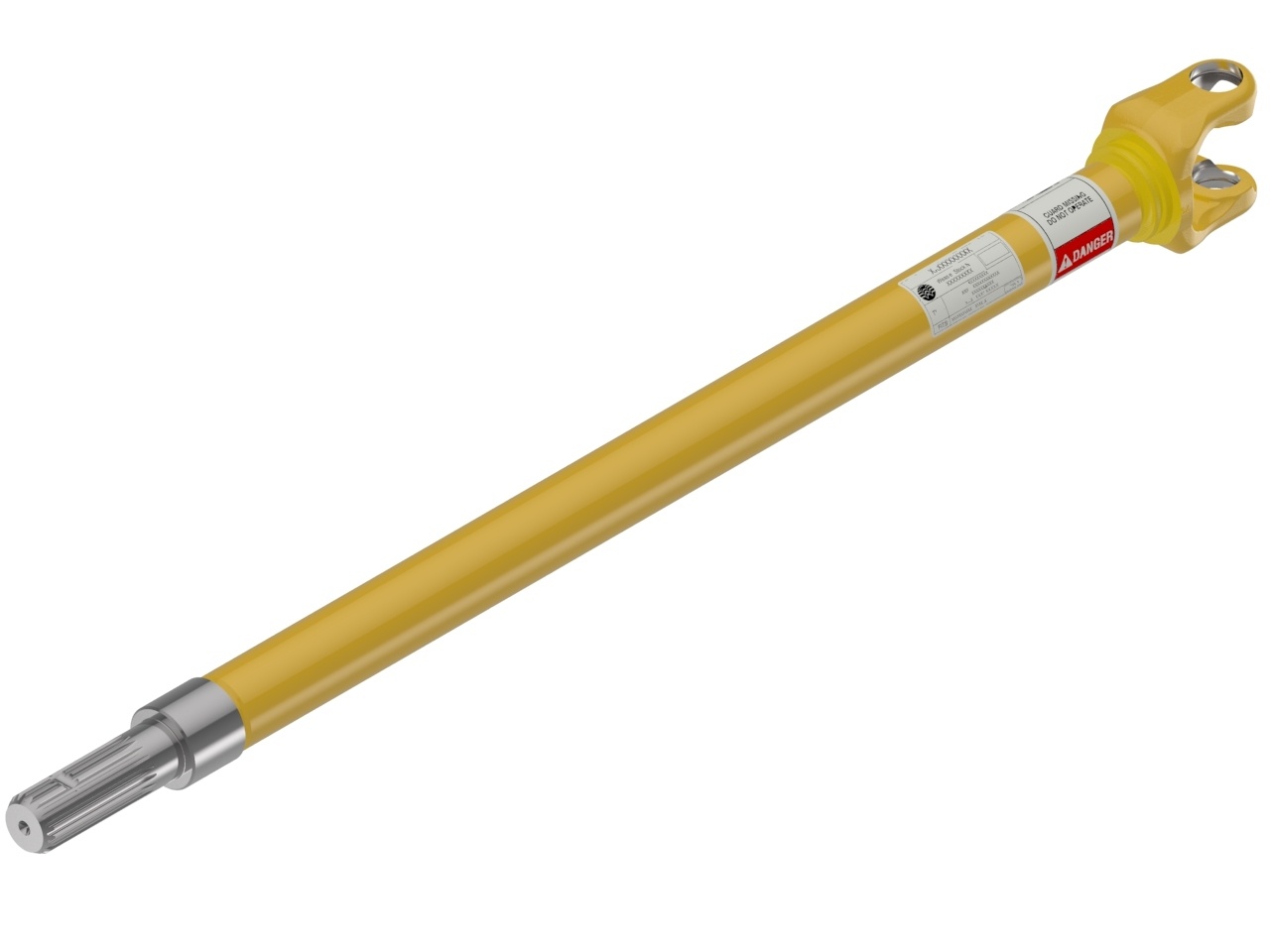

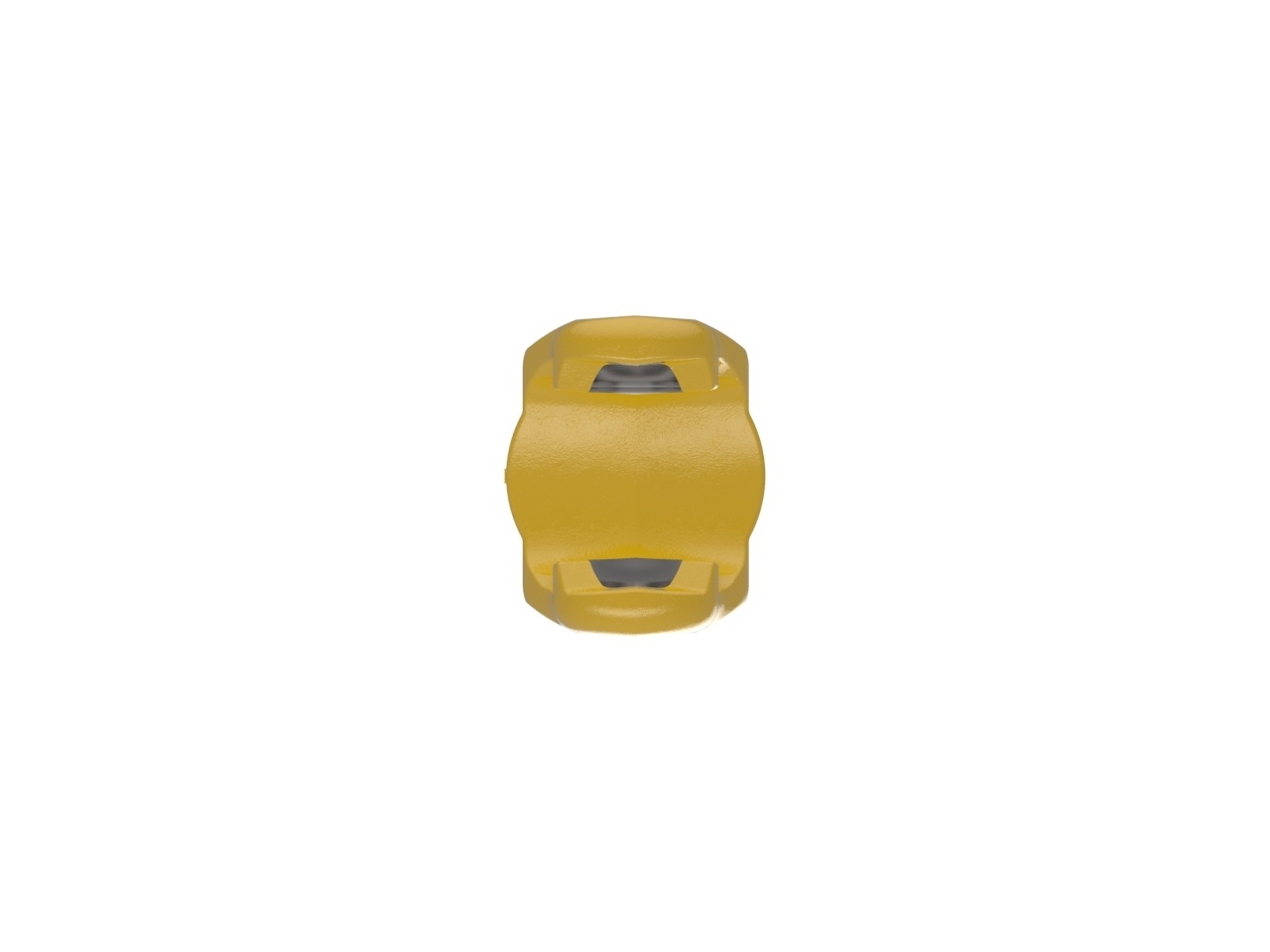

AW36 Series Yoke And Tube
AW36 series yoke and tube, 1 3/4-20 spline. Note: Image color may not represent actual part.
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube shapes.
PERFORMANCE BENEFITS
Specifications
Product Series: AW36
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.41 (1 13/32) in | 36 mm |
| Bearing Cap to Cap Span | 3.49 (3 31/64) in | 89 mm |
| Bore Dimension | 1 3/4-20 SPLINE | |
| Connection 1 Type | YOKE ARMS | |
| Connection 2 Type | 1 3/4-20 SPLINE SPINDLE | |
| HP@1000RPM | 144 HP | 107 kilowatts |
| HP@540RPM | 94 HP | 70 kilowatts |
| Centerline to End Dim | 44.63 (44 5/8) in | 1134 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-PTO-Drive-Shaft | Maintenance Document | English |
| Service-Instructions-Universal-Joint | Service Document | English |
| Lack-of-Grease-Cross-Brg-Kit | Troubleshooting Document | English |
