700-7961
PROFILE YOKEAW36 Series Roll Pin Yoke

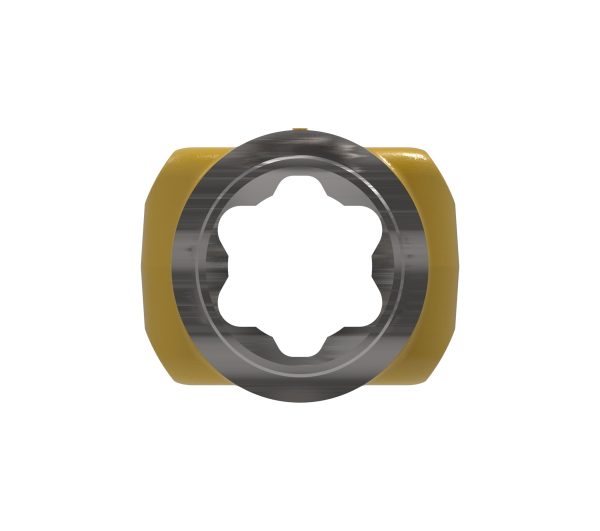

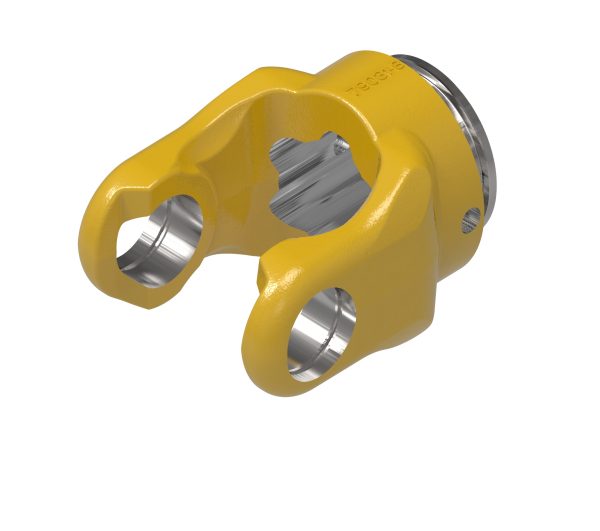

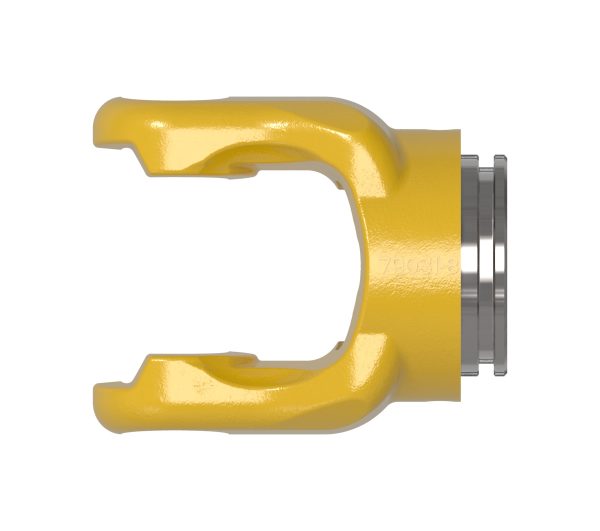

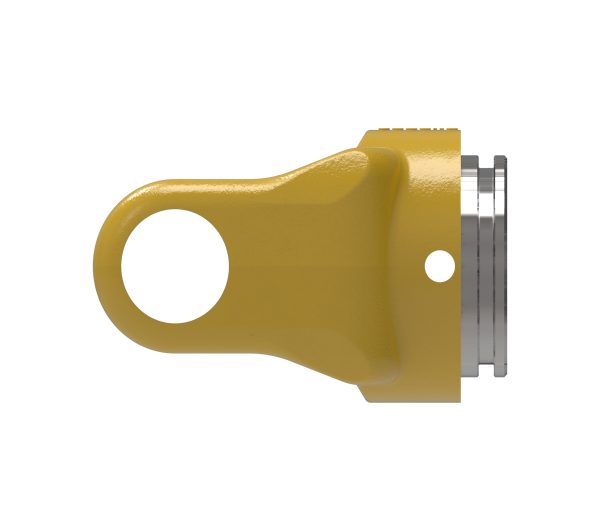

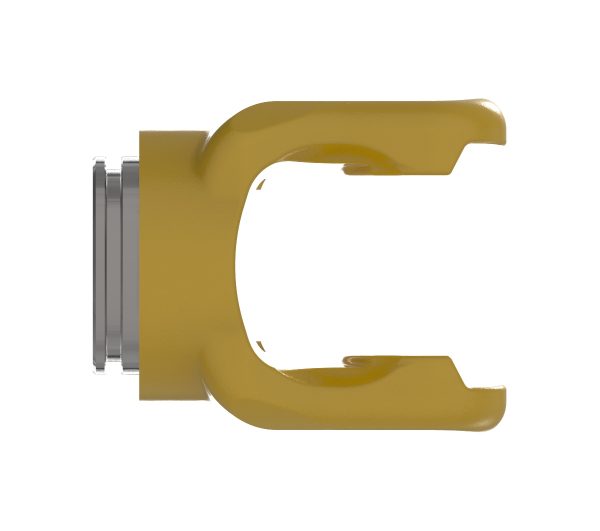

AW36 series yoke with 61 mm star bore and roll pin connection. Note: Image color may not represent actual part.
Shaft yokes (or inner profile yokes) connect the cross and bearing kits to the telescoping shaft or inner tube. Tube yokes (or outer profile yokes), connect the other cross and bearing kits to the opposite side of the telescoping shaft or outer tube. Weasler provides both domestic (North American) and Weasler Profile metric shaft and tube yoke connection options. Domestic yokes are provided as square, rectangle, hexagon or splined in shape. Weasler Profile metric yokes are provided as lemon, star, or trilobe in shape.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 2.40 inches | 61 mm |
| Bore 1 | 61 MM STAR | |
| Connection 1 | ROLL PIN | |
| Height | 4.72 inches | 120 mm |
| HP@1000RPM | 144 HP | 107 kilowatts |
| HP@540RPM | 94 HP | 70 kilowatts |
| Length | 4.37 inches | 111 mm |
| Shipping Dimensions | 5.45" L × 4.72" H × 2.95" W | 14cm L × 12cm H × 7cm W |
| Shipping Volume | 75.89 in3 | 1244 cm3 |
| Shipping Weight | 4.70 pounds | 2 kilograms |
| Weight | 4.70 pounds | 2 kilograms |
| Width | 2.95 inches | 75 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
