AW36 Series Pin Yoke

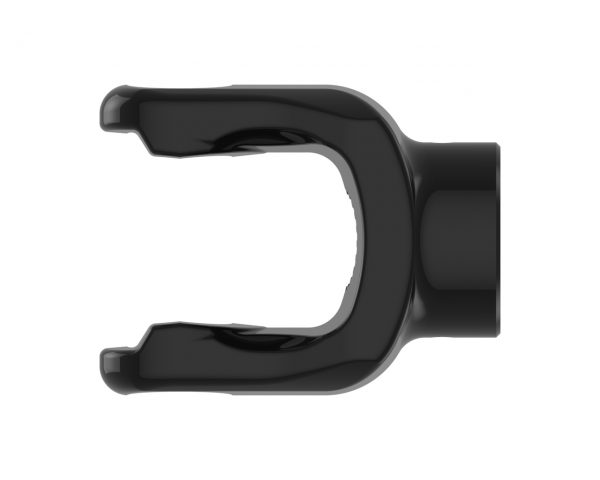

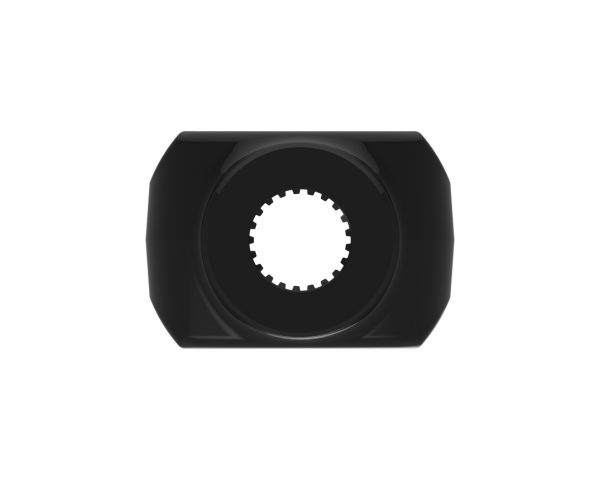

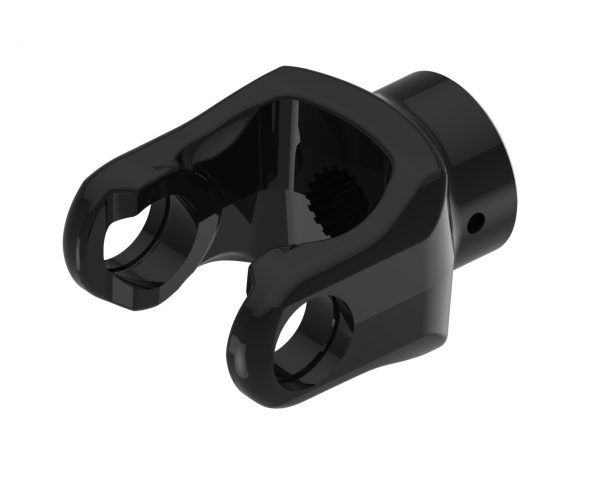

AW36 series yoke with 1 3/8-21 spline bore and pin connection. Note: Image color may not represent actual part.
PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.
PERFORMANCE BENEFITS
Specifications
Part Number: 801-7921
Product Series: AW36
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.41 (1 13/32) in | 36 mm |
| Bearing Cap to Cap Span | 3.49 (3 31/64) in | 89 mm |
| Bore | 1.37 (1 3/8) in | 35 mm |
| Bore Description | 1 3/8-21 SPLINE | |
| Connection 1 Type | PIN | |
| HP@1000RPM | 144 HP | 107 kilowatts |
| HP@540RPM | 94 HP | 70 kilowatts |
| Centerline to End Dim | 4.33 (4 21/64) in | 110 mm |
| Weight | 5.30 pounds | 2 kilograms |
