1559-7906-00

AW36-80 Series CV Wide Angle Universal Joint

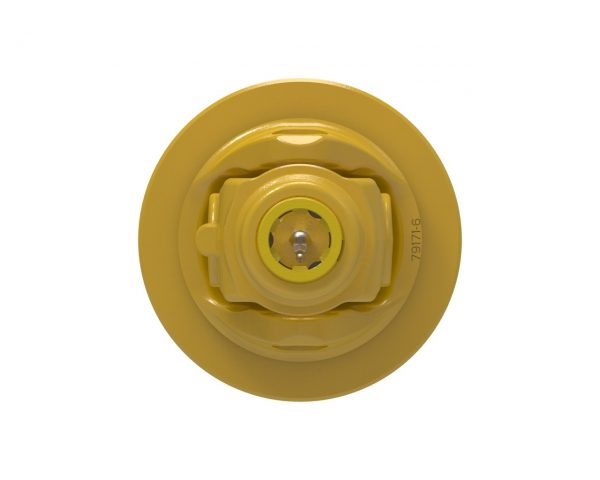

AW36-80 series CV wide angle universal joint with 1 3/8-6 spline, safety slide lock connection and 51 mm star, roll pin connection. Note: Image color may not represent actual part.

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

The CV Wide Angle Universal Joint is a component of the Weasler high performance CV Wide Angle PTO drive shafts, which are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler CV Wide Angle PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.

PERFORMANCE BENEFITS

DESIGN FEATURES
• Fits Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
• Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
• Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
• Same component designs used for Weasler’s domestic and metric product lines.

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Bore 22.08 inches53 mm
Bore 2 51 MM STAR
Compressed (Closed) Length4.65 inches118 mm
Compressed Overall Length14.01 inches356 mm
Connection 1 SAFETY SLIDE LOCK
Connection 2 ROLL PIN
Extended Length4.65 inches118 mm
Extended Overall Length14.01 inches356 mm
HP@1000RPM119 HP89 kilowatts
HP@540RPM77 HP57 kilowatts
Length14.01 inches356 mm
Outside Diameter6.65 inches169 mm
Shipping Dimensions14.01" L  ×  6.65" H  ×  6.65" W36cm L  ×  17cm H  ×  17cm W
Shipping Volume619.56 in310153 cm3
Shipping Weight31.42 pounds14 kilograms
Weight31.42 pounds14 kilograms

Downloads

Document Name Type Language
Service Instructions - Lubricating 80 Deg CV.pdf Maintenance Document English
Service Instructions - CV Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle Operating.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle NonOperating.pdf Troubleshooting Document English
WE0101003_1019_USL_80DegConstantVelocityJoint.pdf Performance Benefits Document English
WE0101011_0817_USL_EasyLockGuard.pdf Performance Benefits Document English
