AW36-80 Series CV Wide Angle Profile PTO Drive Shaft

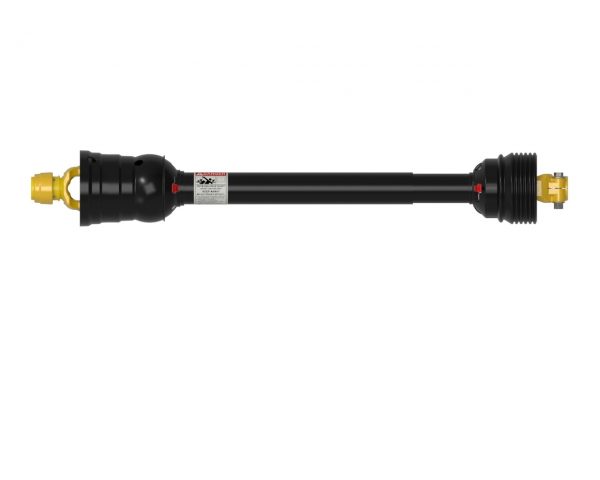

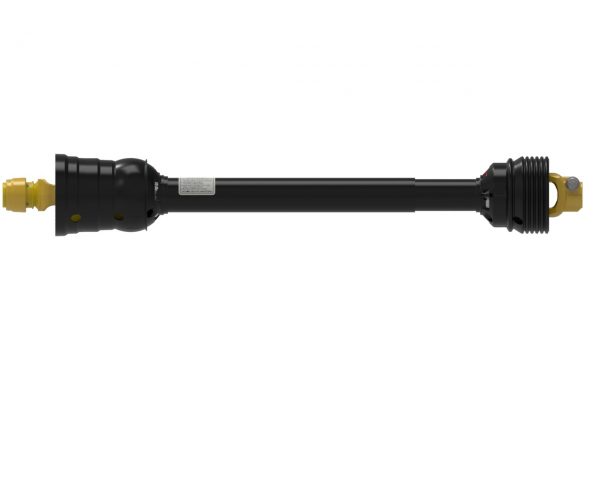

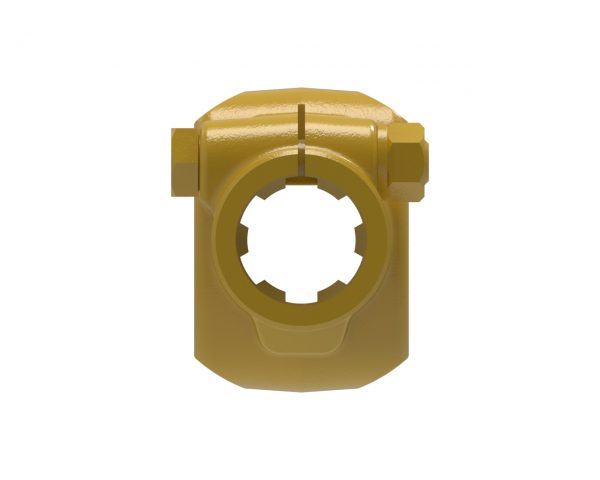

AW36-80 series CV wide angle profile PTO drive shaft with a 1 3/4-20 spline auto-lok tractor connection and 1 3/4-6 spline clamp implement connection

View My List

The Weasler high performance CV Wide Angle PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler CV Wide Angle PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.

PERFORMANCE BENEFITS
• Design adjustability (cut-to-length) capabilities.
• Interchangeability to fit with most competitor models.
• Tri-lobe, lemon, and star shaft profiles available.
• Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
• Available Extended lubrication E-kits reduce downtime with lubrication intervals of 50-250
hours and the high temperature triple lip seal retains grease better.
• Customer dedicated engineering and sales support.

DESIGN FEATURES
• Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
• Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
• Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
• Same component designs used for Weasler’s domestic and metric product lines.

Specifications

Spec. Imperial Metric
Bore 11.75 inches44 mm
Bore 1 1 3/4-20 SPLINE
Bore 21.75 inches44 mm
Bore 2 1 3/4-6 SPLINE
Compressed (Closed) Length43.70 inches1110 mm
Compressed Overall Length54.46 inches1383 mm
Connection 1 AUTO-LOK
Connection 2 CLAMP
Extended Length60.20 inches1529 mm
Extended Overall Length68.83 inches1748 mm
HP@1000RPM119 HP89 kilowatts
HP@540RPM77 HP57 kilowatts
Length54.46 inches1383 mm
Outside Diameter7.75 inches197 mm
Shipping Dimensions54.46" L  ×  7.75" H  ×  7.75" W138cm L  ×  20cm H  ×  20cm W
Shipping Volume3271.00 in353602 cm3
Shipping Weight73.65 pounds33 kilograms
Weight0.00 pounds0 kilograms

Downloads

Document Name Type Language
Service Instructions - Lubricating 80 Deg CV.pdf Maintenance Document English
Service Instructions - CV Joint.pdf Service Document English
Service Instructions - Universal Joint.pdf Service Document English
Service Instructions - Easy Lock Guards.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle Operating.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle NonOperating.pdf Troubleshooting Document English
WE0101003_1019_USL_80DegConstantVelocityJoint.pdf Performance Benefits Document English
WE0101011_0817_USL_EasyLockGuard.pdf Performance Benefits Document English
