14007635PROFILE PTO DRIVE SHAFT
AW35 Series Profile PTO Drive Shaft

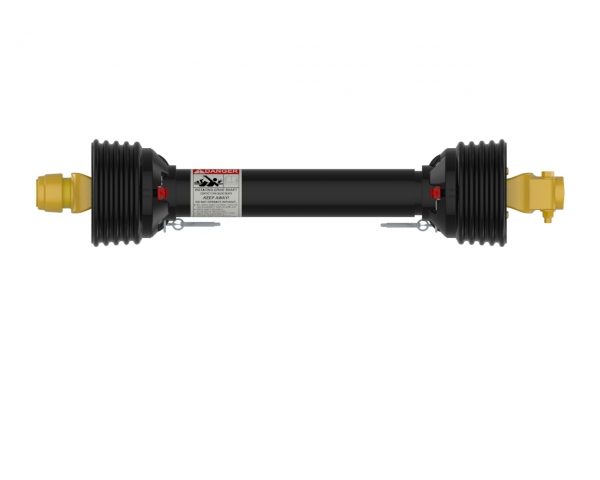

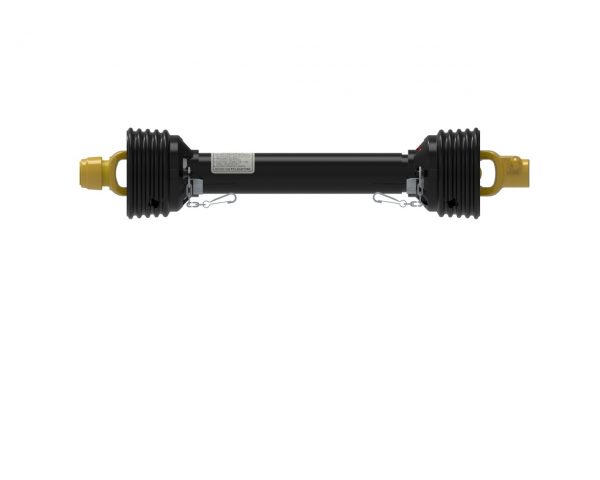

AW35 series profile PTO drive shaft with a 1 3/8-21 spline safety slide lock tractor connection and 1 1/8 hex clamp implement connection. Note: Image color may not represent actual part.
The Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
Design adjustability (cut-to-length) capabilities.
Interchangeability to fit with most competitor models.
Tri-lobe, lemon, and star shaft profiles available.
Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
Available Extended lubrication E-kits reduce downtime with lubrication intervals of 50-250
hours and the high temperature triple lip seal retains grease better.
Customer dedicated engineering and sales support.
Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
Same component designs used for Weasler’s domestic and metric product lines.
|Bore 1||1.37 inches||35 mm|
|Bore 1||1 3/8-21 SPLINE|
|Bore 2||1.12 inches||28 mm|
|Bore 2||1 1/8 HEX|
|Compressed (Closed) Length||25.98 inches||660 mm|
|Compressed Overall Length||35.51 inches||902 mm|
|Connection 1||SAFETY SLIDE LOCK|
|Extended Length||36.16 inches||918 mm|
|Extended Overall Length||44.69 inches||1135 mm|
|HP@1000RPM||80 HP||60 kilowatts|
|HP@540RPM||52 HP||39 kilowatts|
|Length||35.51 inches||902 mm|
|Outside Diameter||7.28 inches||185 mm|
|Shipping Dimensions||35.51" L × 7.28" H × 7.28" W||90cm L × 18cm H × 18cm W|
|Shipping Volume||1881.97 in3||30840 cm3|
|Shipping Weight||35.00 pounds||16 kilograms|
|Weight||35.00 pounds||16 kilograms|
