530-7606-07

AW35 Series Friction Overrunning Clutch Spring-lok Yoke

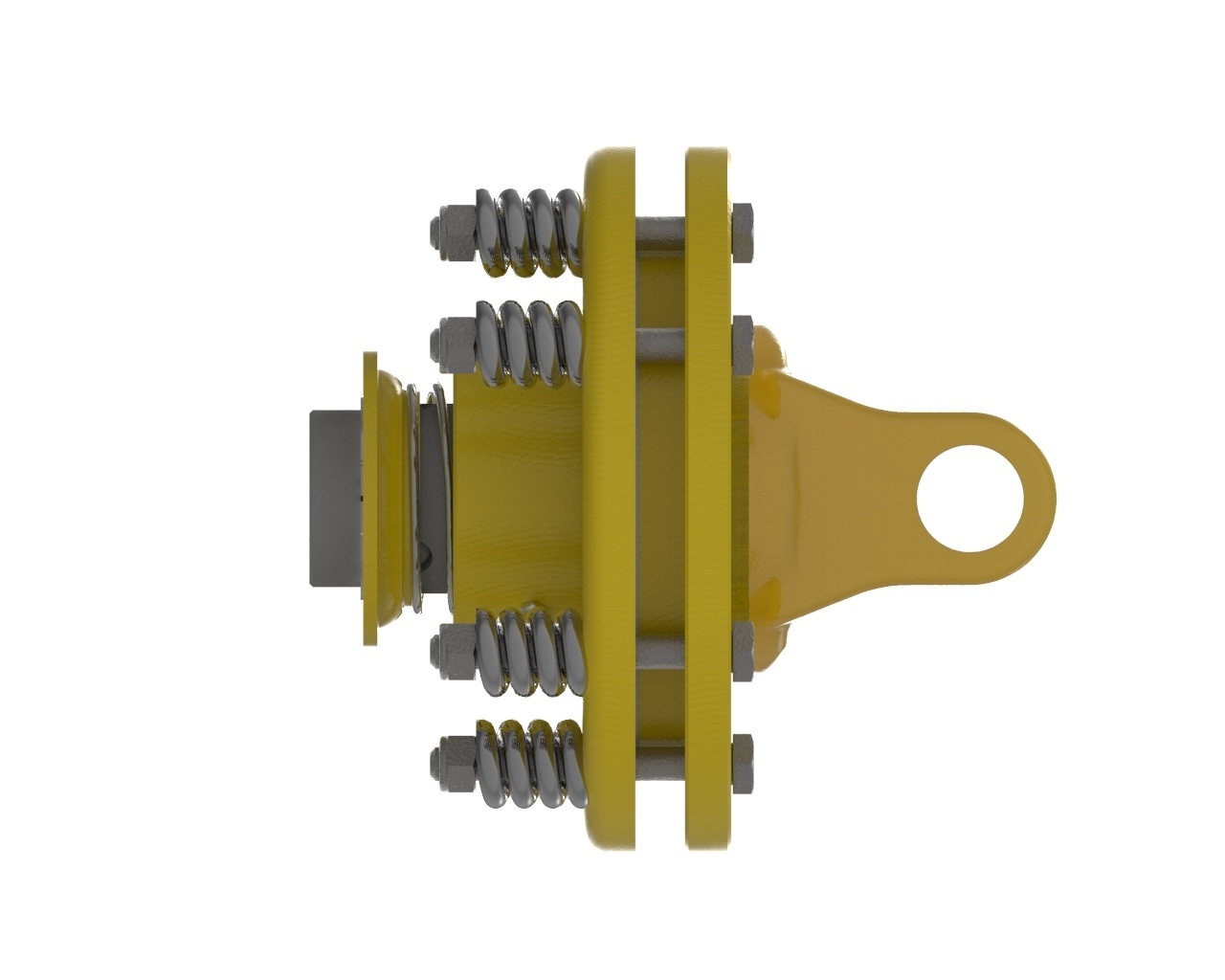

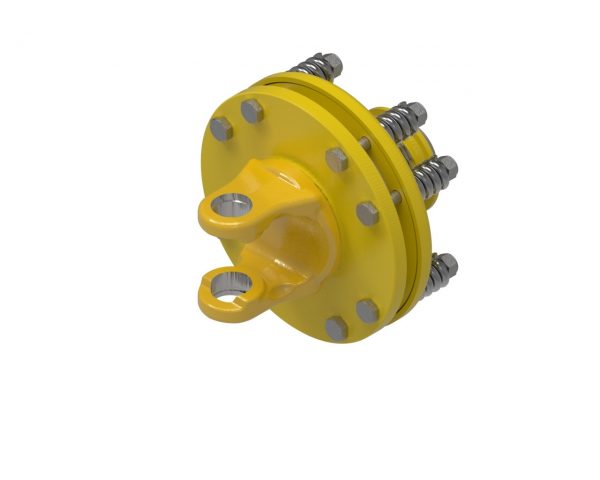

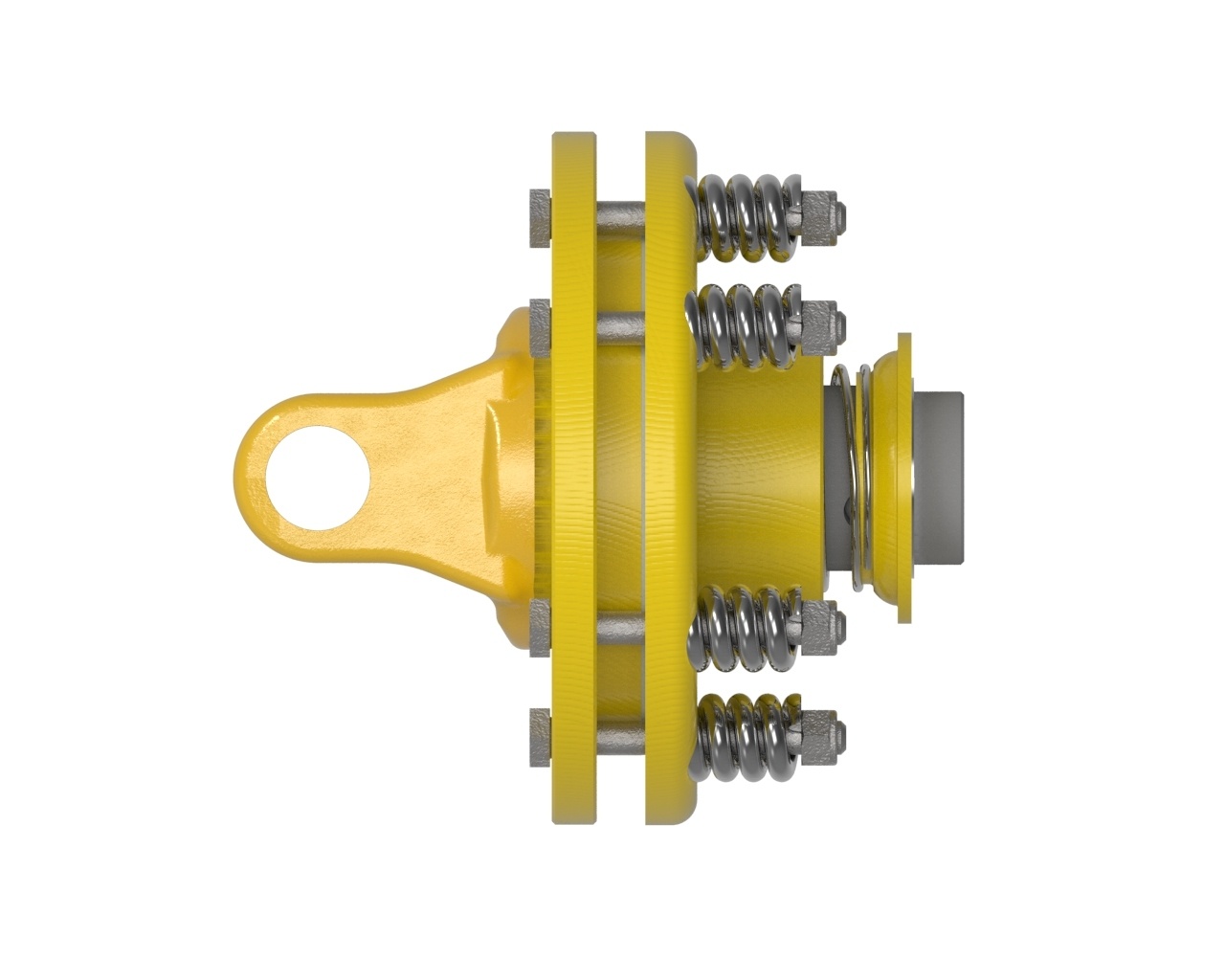

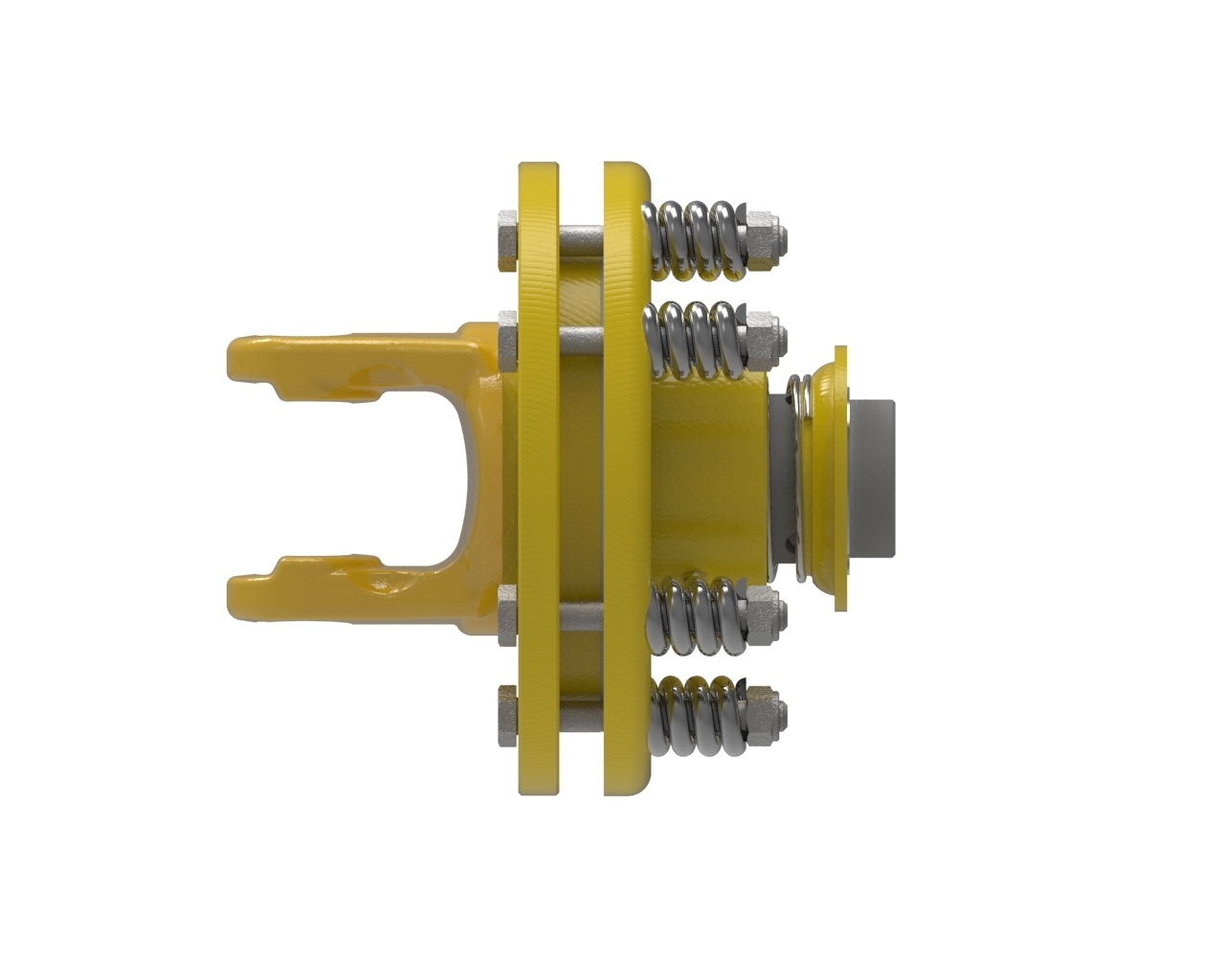

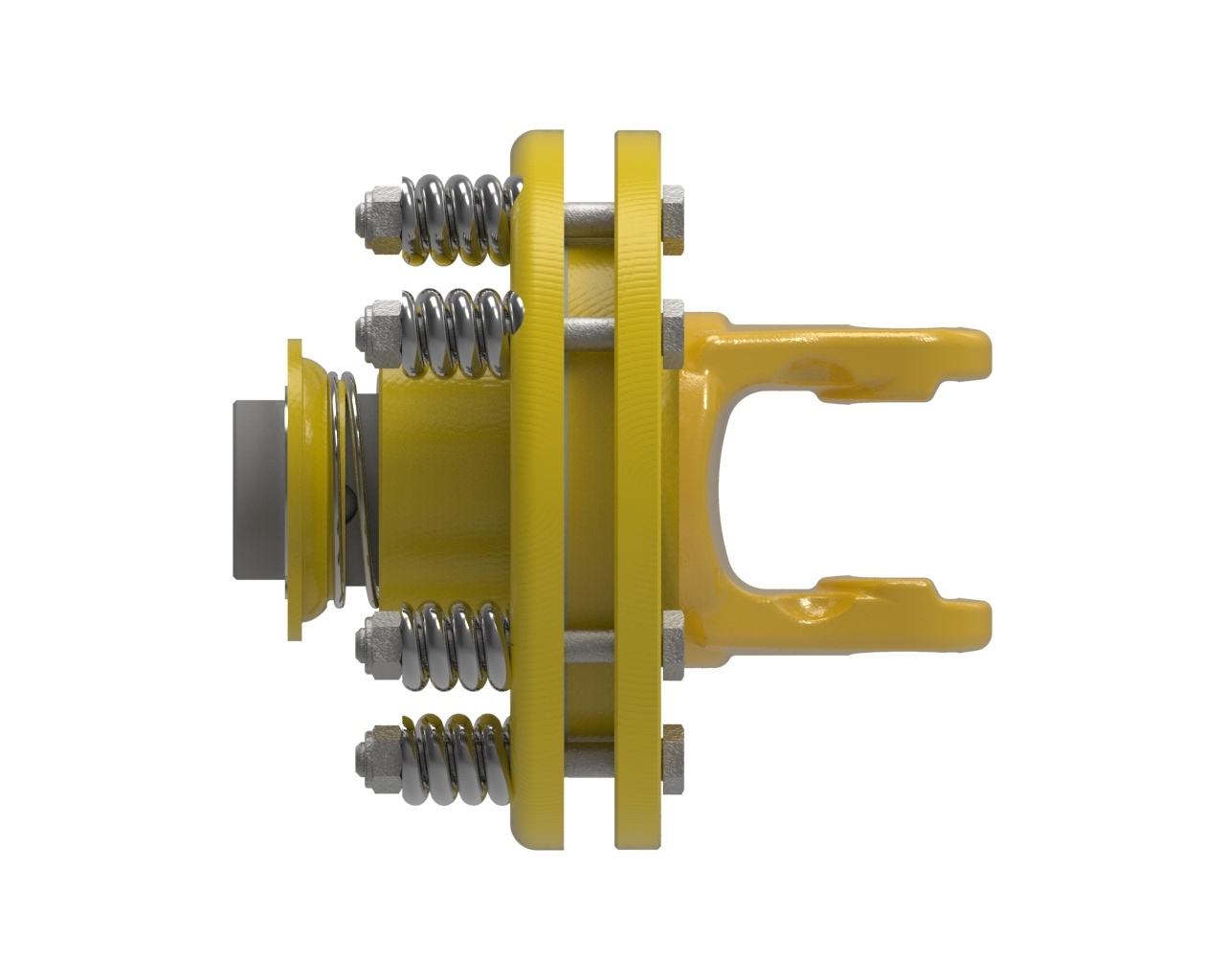

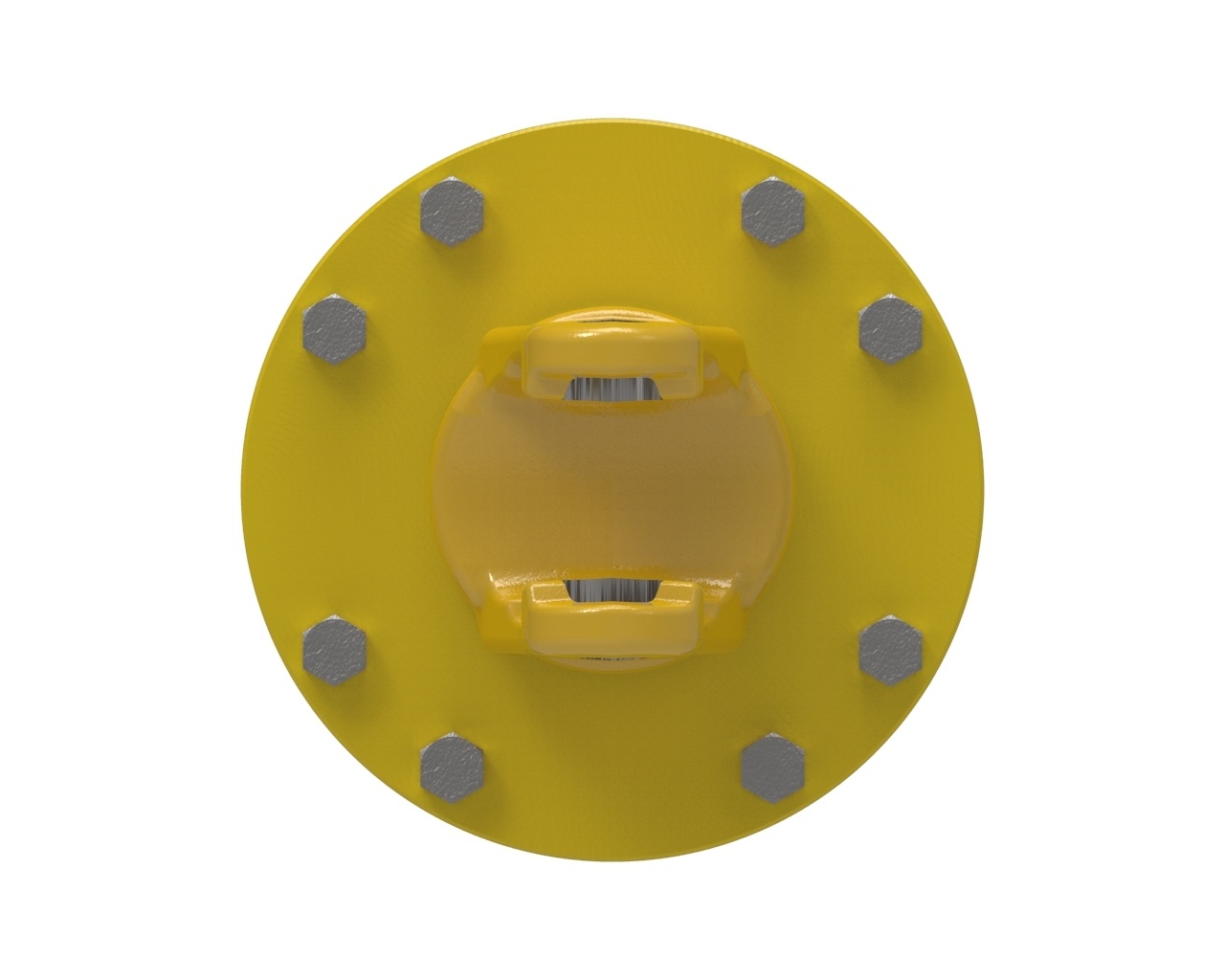

AW35 series friction overrunning clutch yoke with 1 3/8-6 spline bore and spring-lok connection. Note: Image color may not represent actual part.

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

The Friction clutch is indispensable in certain agricultural implement applications. The friction clutch is the only torque limiter that has the ability to continuously transmit power (at a reduced level) while overloaded. This is valuable during startup of high inertia machines, as well as for leveling out torsional fluctuations due to high cyclic loads. Our patented technology dissipates heat quickly, improving durability while protecting the machine. The standard friction clutch with coil springs can be set in the field to the desired overload protection and must be readjusted after slipping. The overruning clutch allows any implement to free-wheel to a stop. Any implement with a large rotating mass may need overload protection by allowing it to free-wheel to a stop. The clutch prevents the machine from driving the tractor when the PTO drive

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bearing Diameter1.26 inches32 mm
Bearing Span2.98 inches76 mm
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Connection 1 SPRING-LOK
HP@1000RPM102 HP76 kilowatts
HP@540RPM66 HP49 kilowatts
Length7.34 inches186 mm
Outside Diameter7.88 inches200 mm
Shipping Dimensions8.309" L  ×  7.886" H  ×  7.886" W21cm L  ×  20cm H  ×  20cm W
Shipping Volume516.73 in38468 cm3
Shipping Weight24.22 pounds11 kilograms
Torque1110011100
Weight24.22 pounds11 kilograms

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
