847-7630

AW35 Series Clamp Yoke

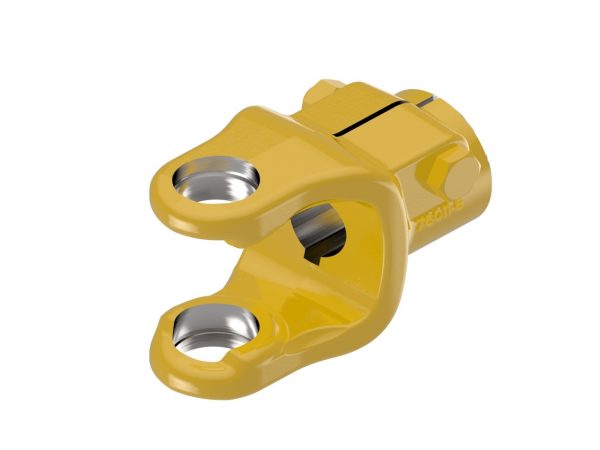

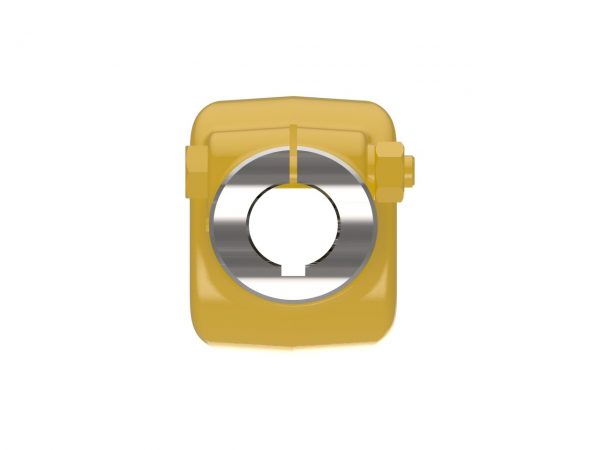

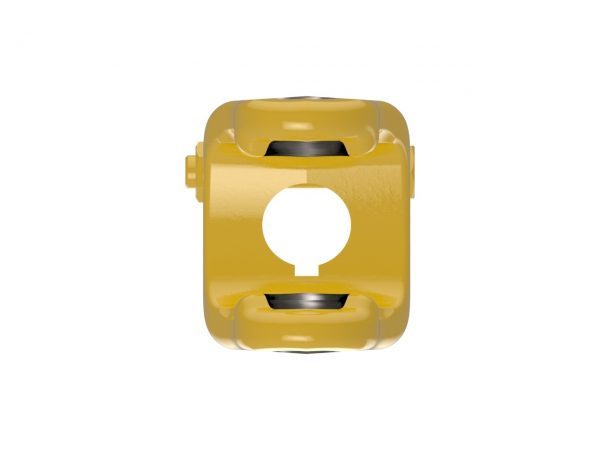

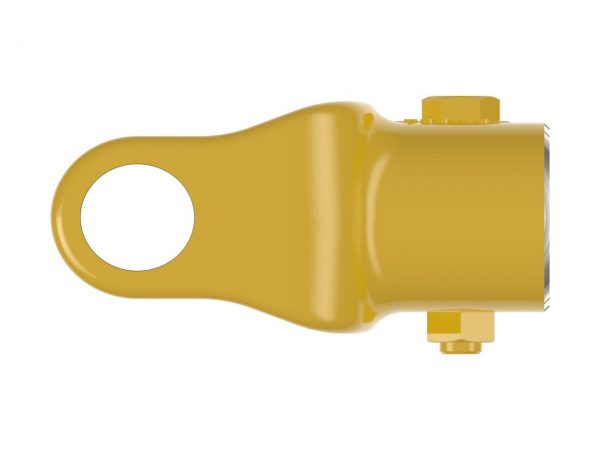

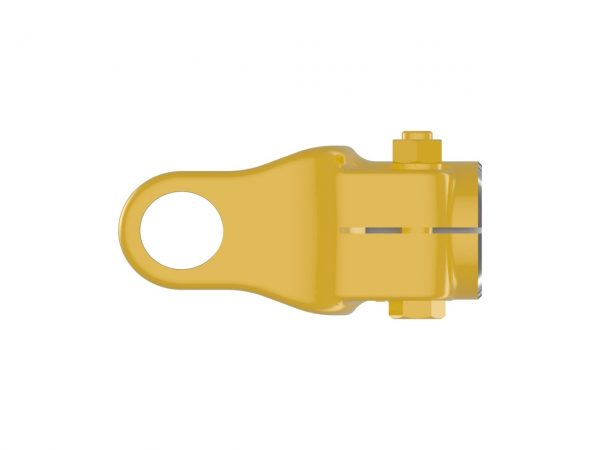

AW35 series yoke with round with keyway bore and clamp connection. Note: Image color may not represent actual part.

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.18 inches30 mm
Bore 1 ROUND WITH KEYWAY
Connection 1 CLAMP
Height4.09 inches104 mm
HP@1000RPM102 HP76 kilowatts
HP@540RPM66 HP49 kilowatts
Keyway 10.31 inches8 mm
Length4.57 inches116 mm
Shipping Dimensions5.53" L  ×  4.09" H  ×  2.76" W14cm L  ×  10cm H  ×  7cm W
Shipping Volume62.42 in31023 cm3
Shipping Weight4.92 pounds2 kilograms
Weight4.92 pounds2 kilograms
Width2.76 inches70 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
