807-7618

AW35 Series Clamp Yoke

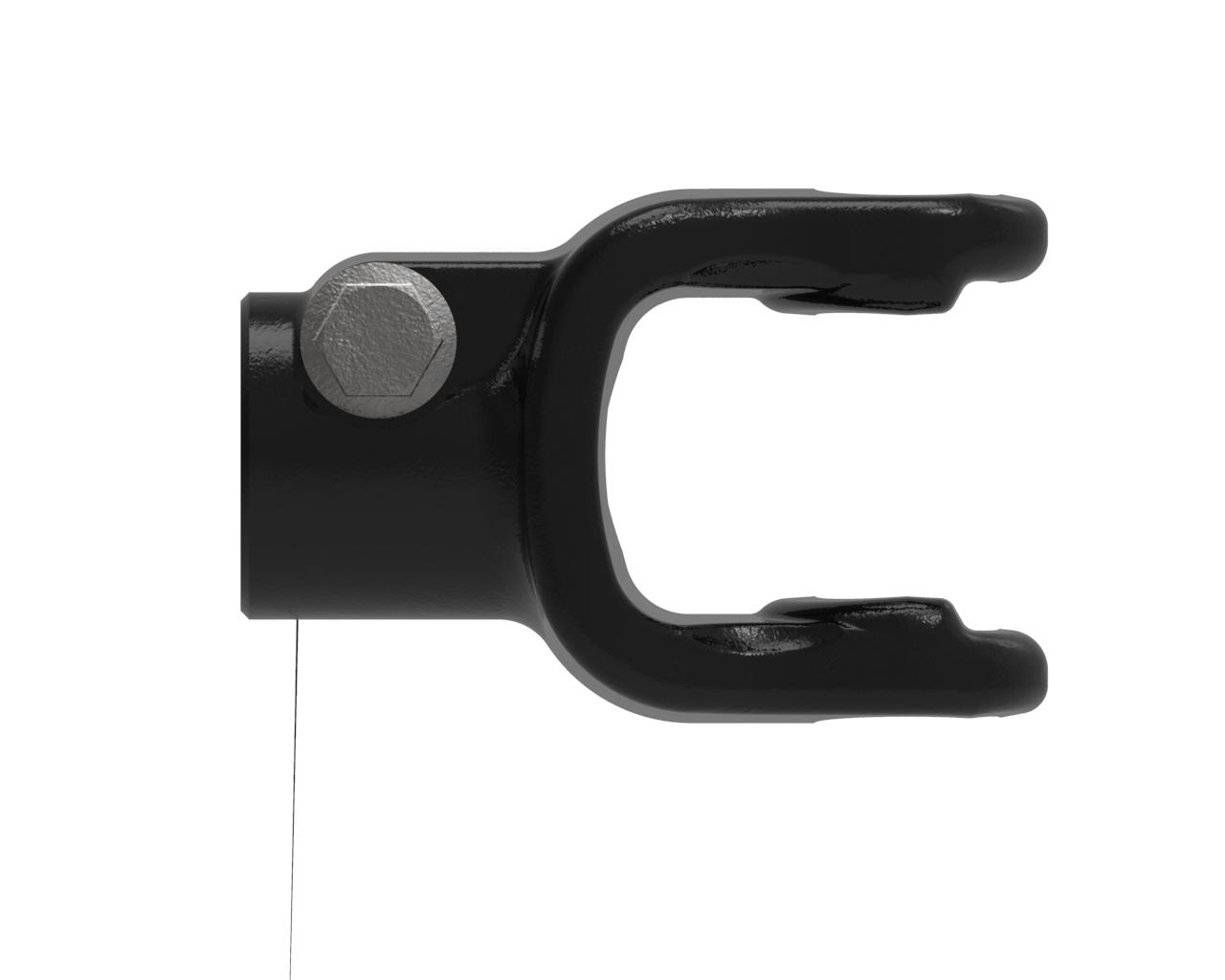

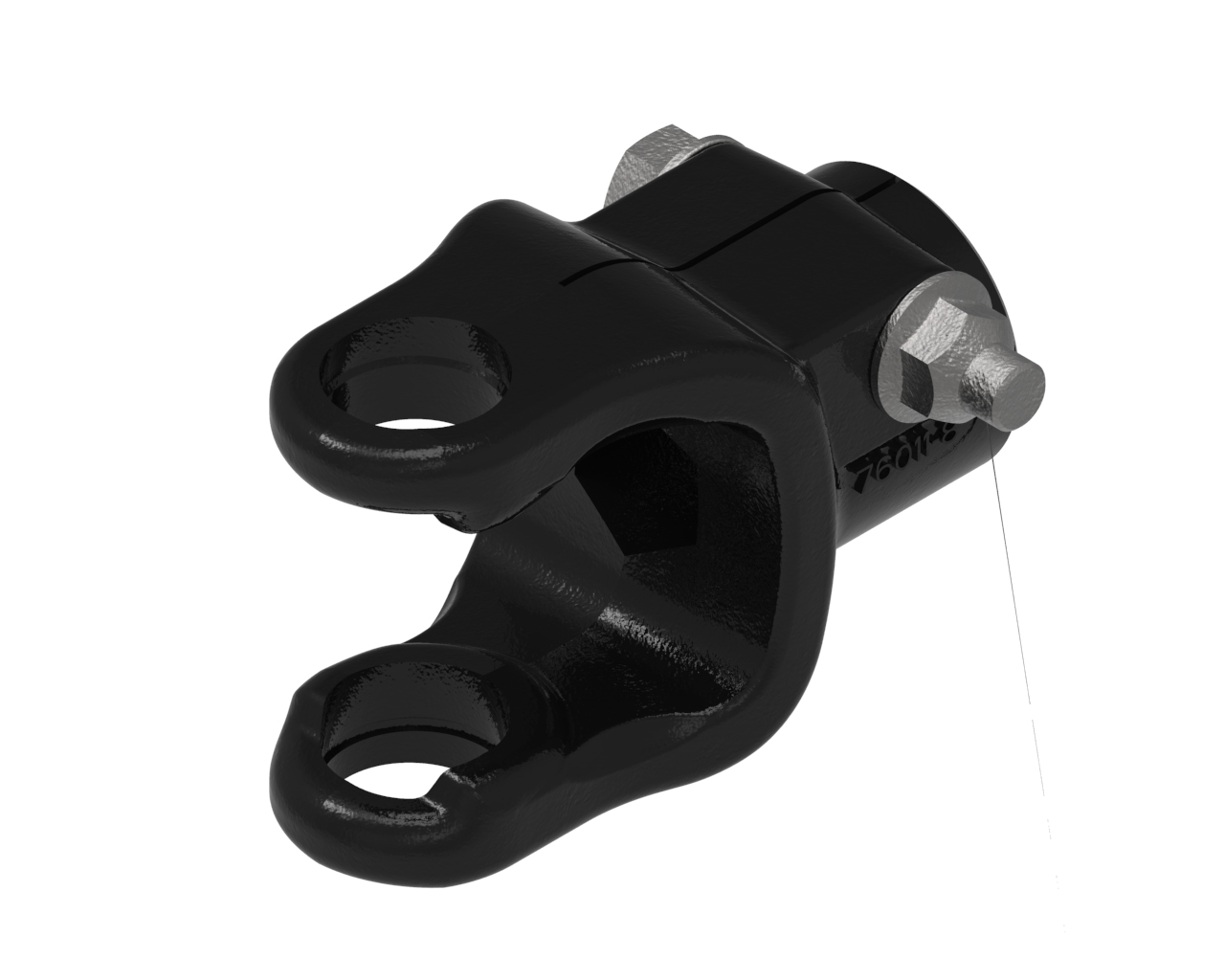

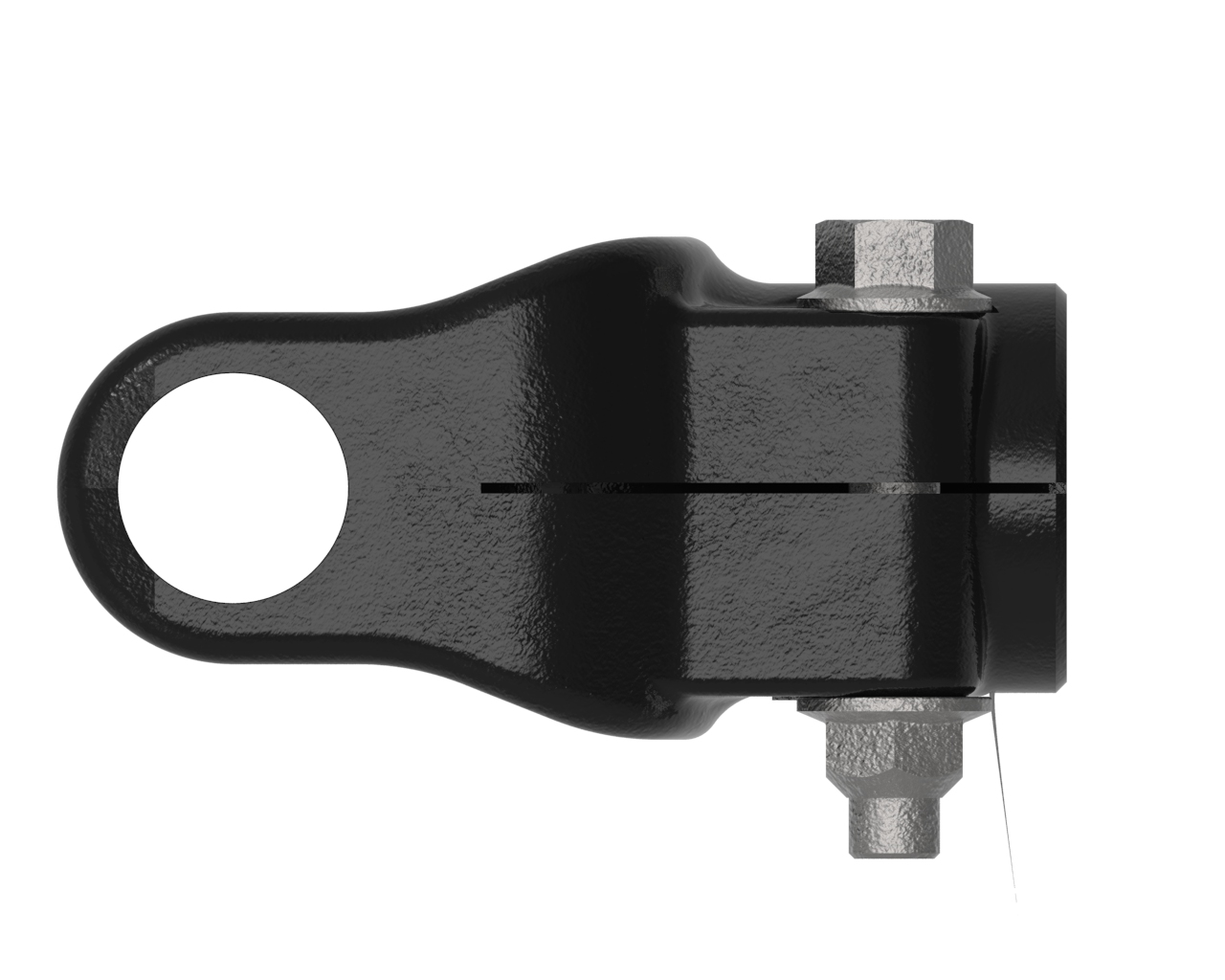

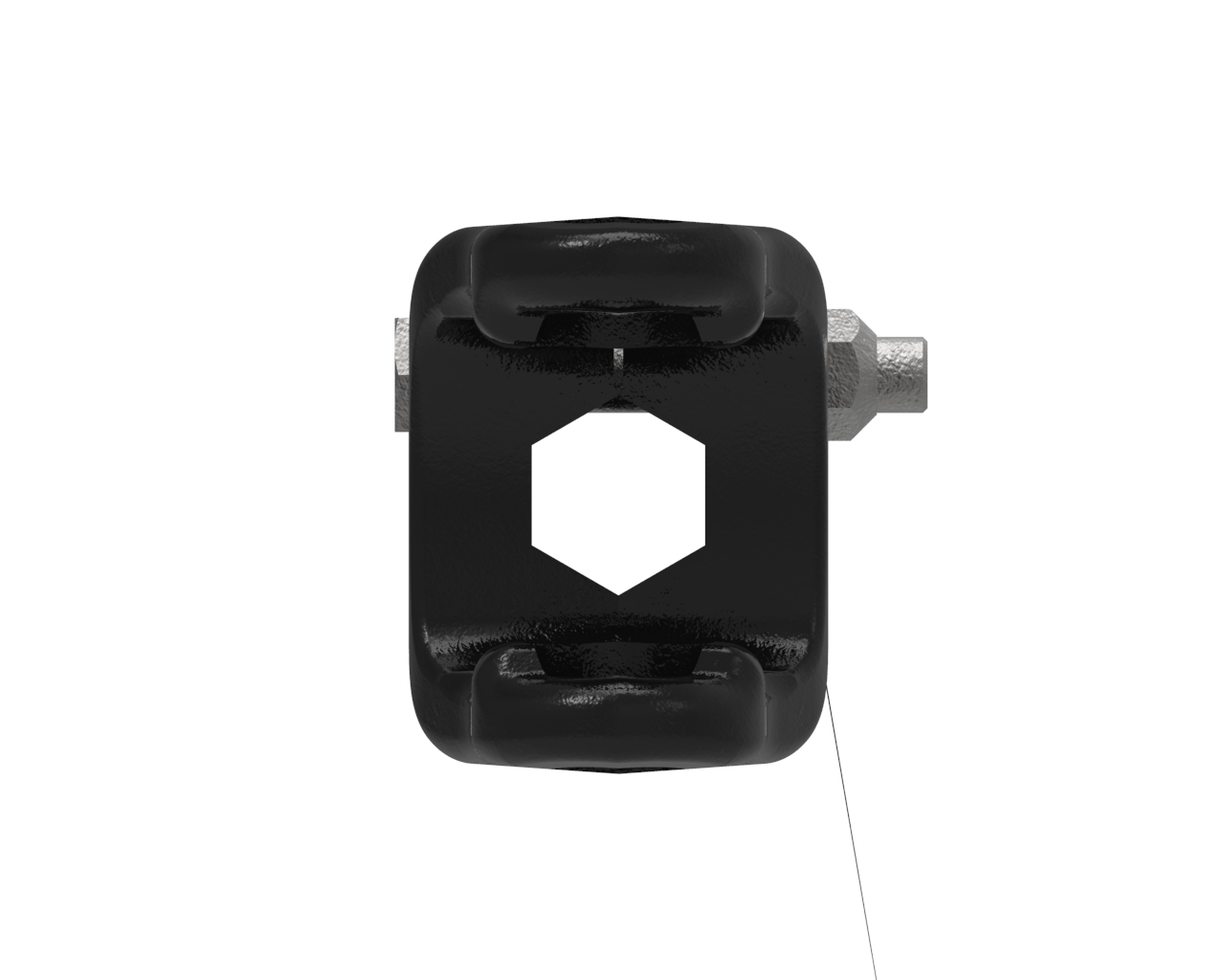

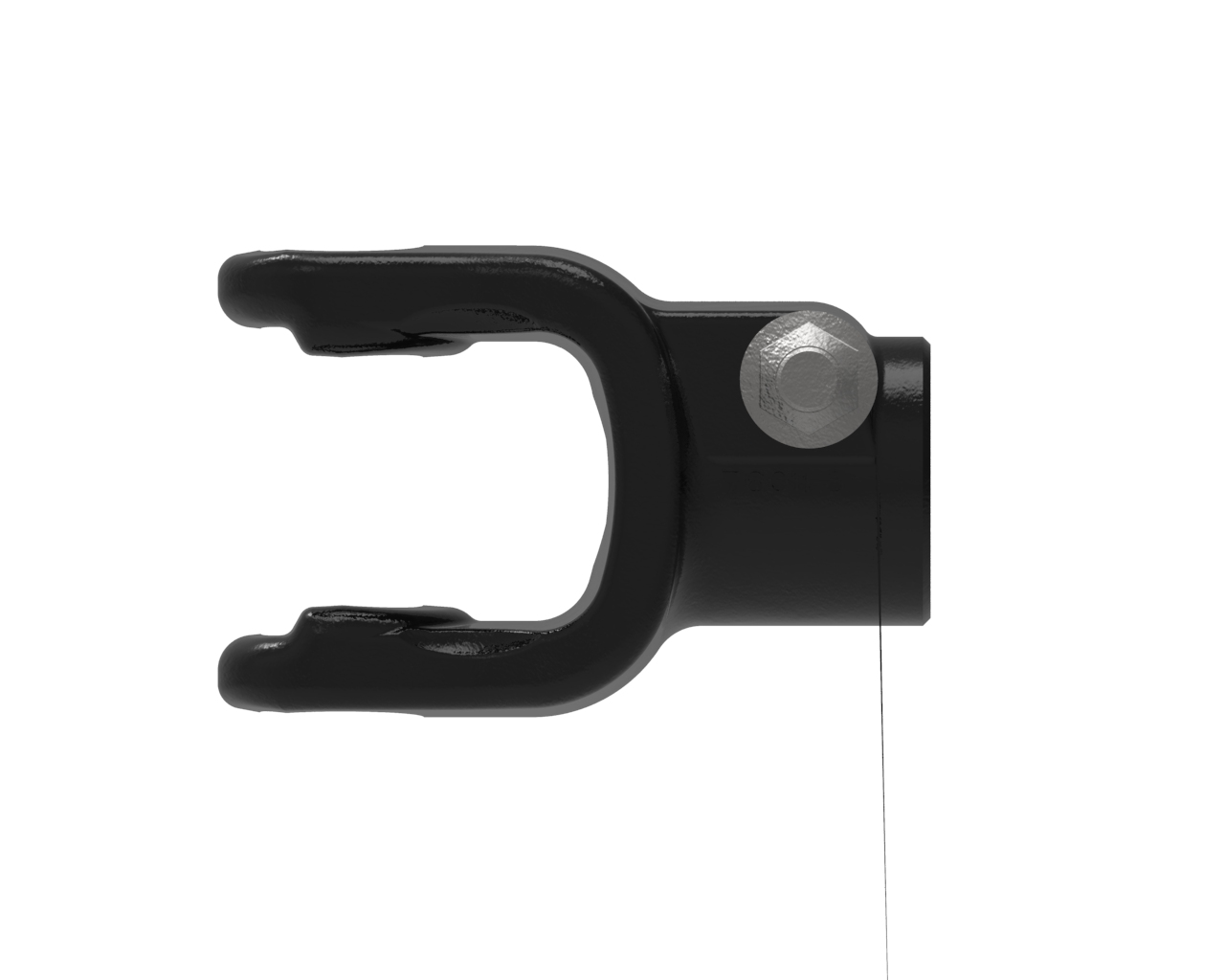

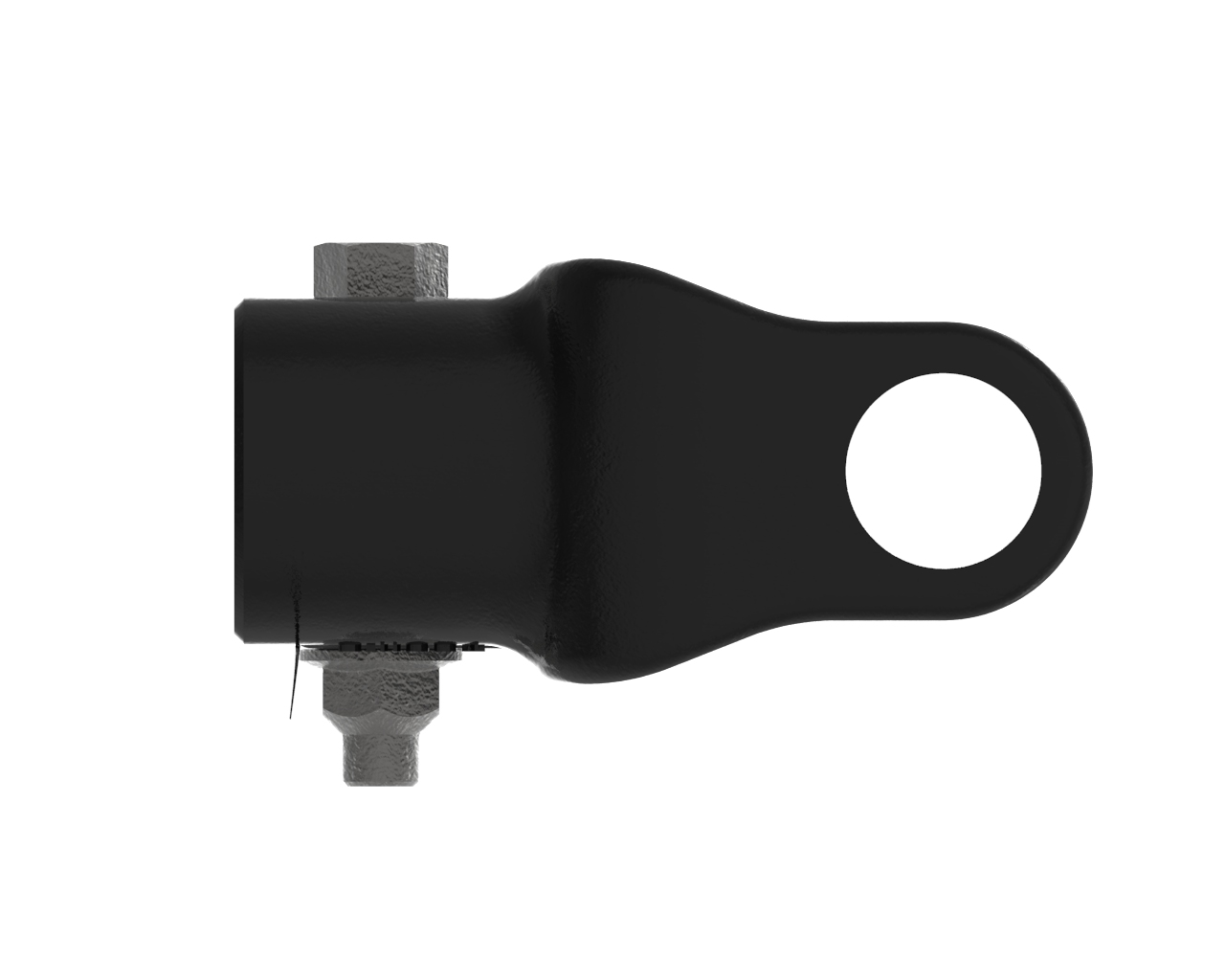

AW35 series yoke with 1 1/8 hex bore and clamp connection. Note: Image color may not represent actual part.

View My List

The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.12 inches28 mm
Bore 1 1 1/8 HEX
Connection 1 CLAMP
Height4.09 inches104 mm
HP@1000RPM102 HP76 kilowatts
HP@540RPM66 HP49 kilowatts
Length4.57 inches116 mm
Shipping Dimensions6.49" L  ×  4.09" H  ×  2.76" W16cm L  ×  10cm H  ×  7cm W
Shipping Volume73.26 in31201 cm3
Shipping Weight3.75 pounds2 kilograms
Weight3.75 pounds2 kilograms
Width2.76 inches70 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
Check out the new Aftermarket Make / Model Driveline FinderDOWNLOAD HERE
