CV WIDE ANGLE UNIVERSAL JOINTAW35-80 Series CV Wide Angle Universal Joint

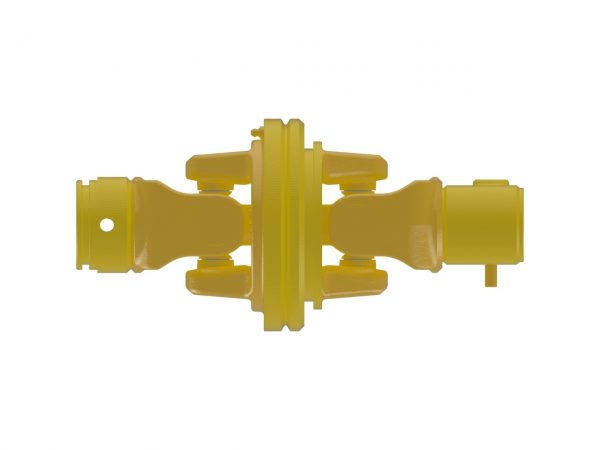

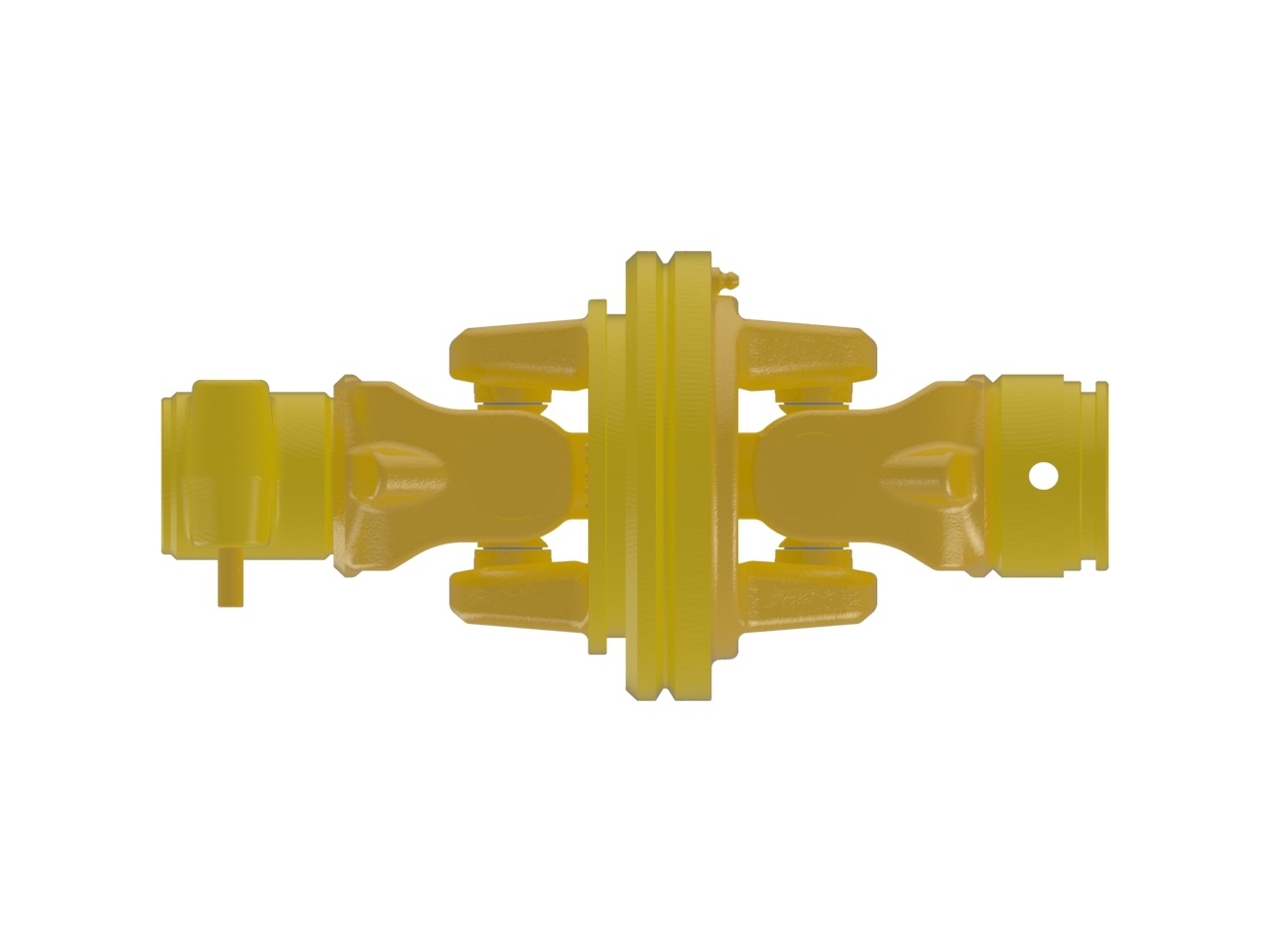

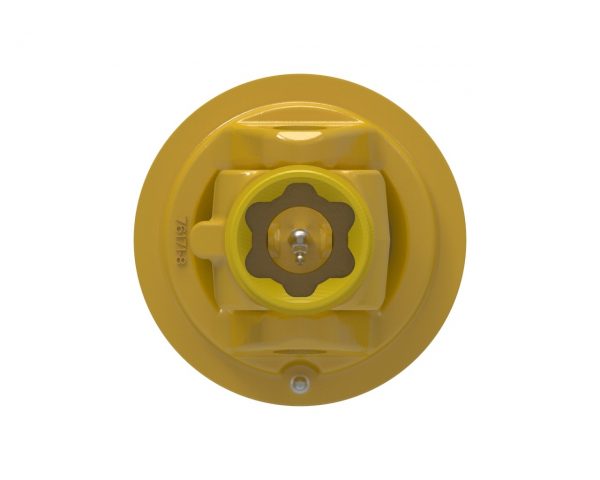

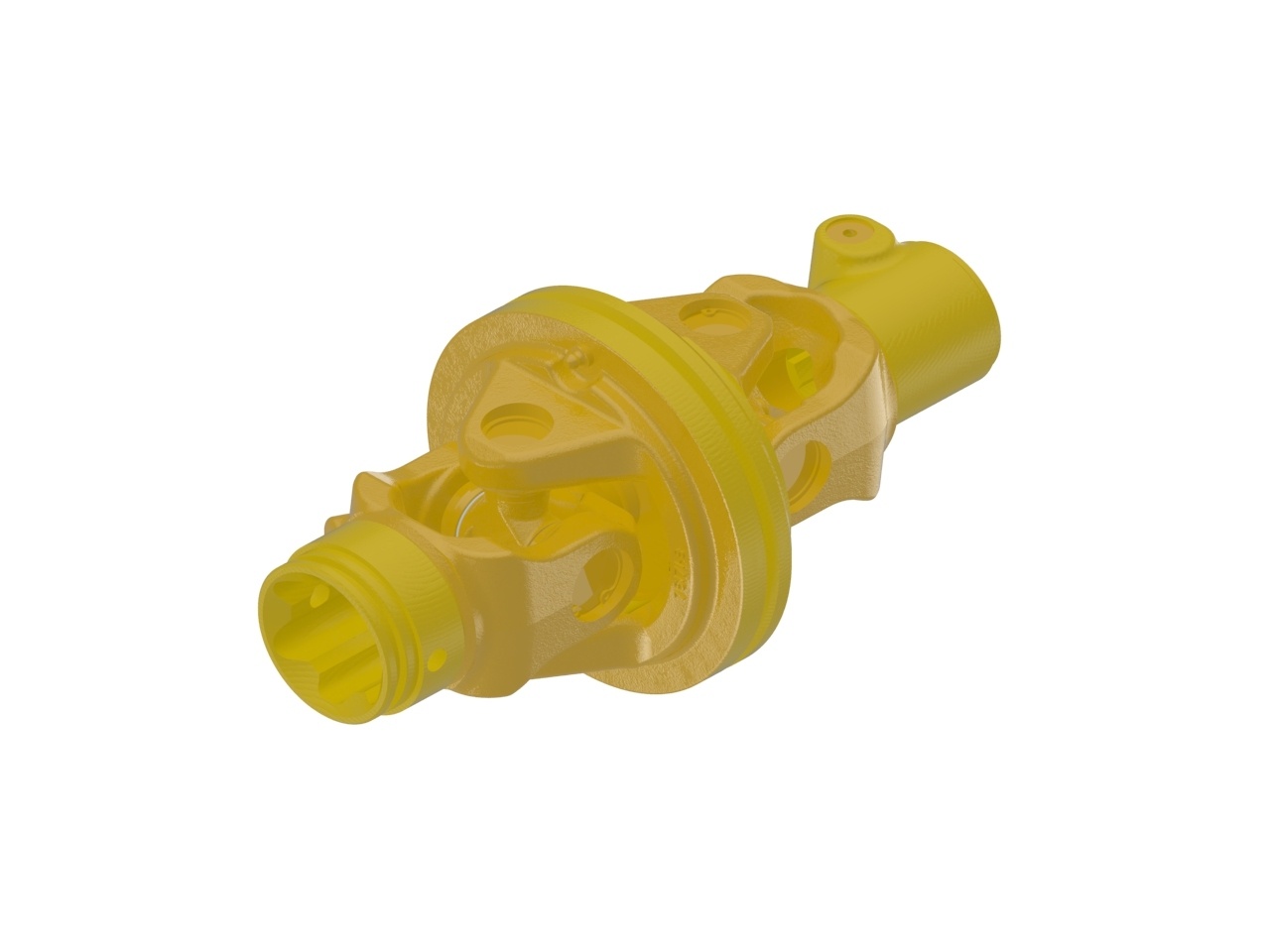

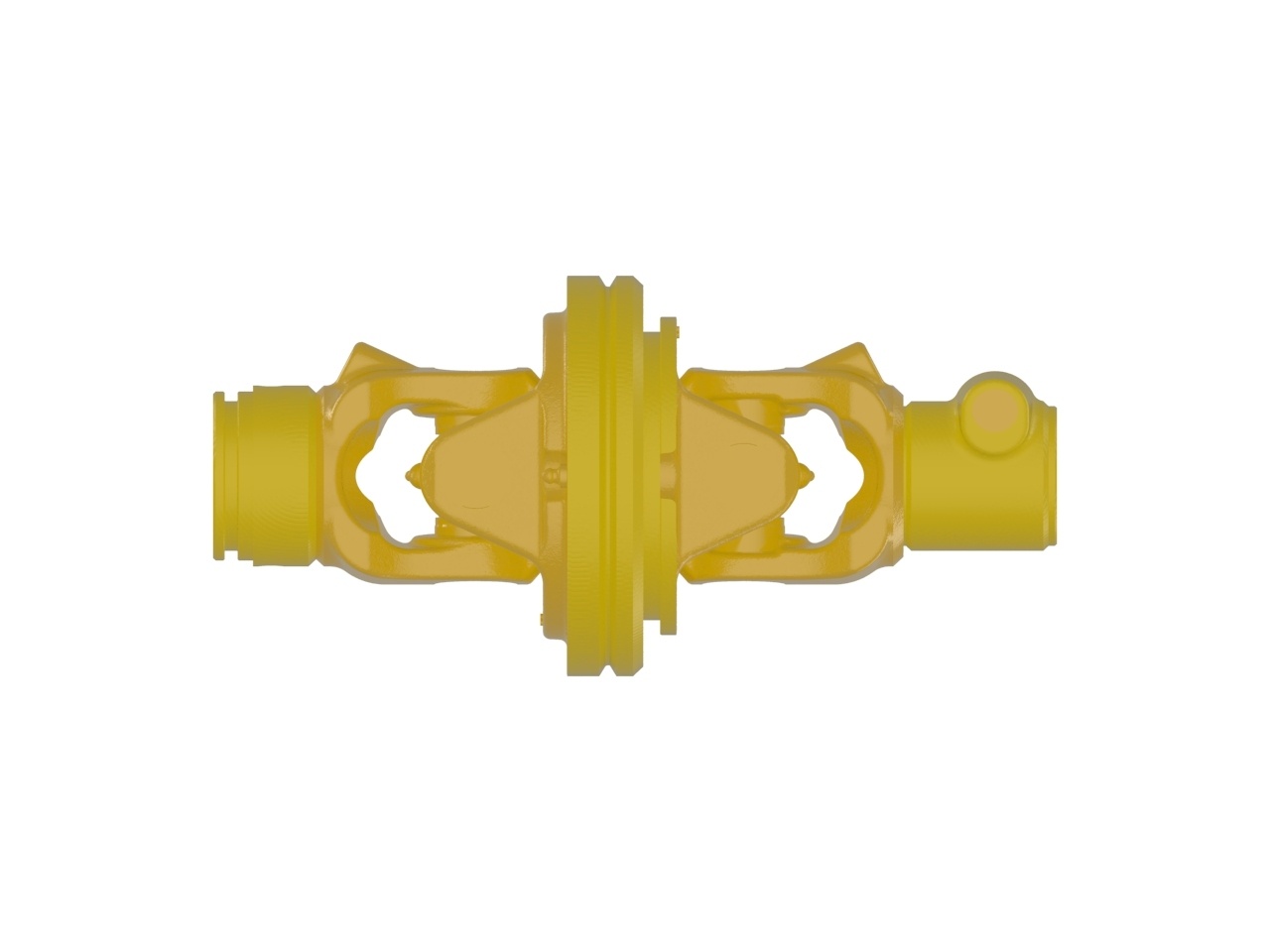

AW35-80 series CV wide angle universal joint with 1 3/4-6 spline, quick disconnect connection and 61 mm star, roll pin connection. Note: Image color may not represent actual part.
The CV Wide Angle Universal Joint is a component of the Weasler high performance CV Wide Angle PTO drive shafts, which are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler CV Wide Angle PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
PERFORMANCE BENEFITS
DESIGN FEATURES
Fits Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
Same component designs used for Weasler’s domestic and metric product lines.
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.75 inches | 44 mm |
Bore 1 | 1 3/4-6 SPLINE | |
Bore 2 | 2.49 inches | 63 mm |
Bore 2 | 61 MM STAR | |
Compressed (Closed) Length | 4.25 inches | 108 mm |
Compressed Overall Length | 13.34 inches | 339 mm |
Connection 1 | QUICK DISCONNECT | |
Connection 2 | ROLL PIN | |
Extended Length | 4.24 inches | 108 mm |
Extended Overall Length | 13.34 inches | 339 mm |
HP@1000RPM | 87 HP | 65 kilowatts |
HP@540RPM | 57 HP | 43 kilowatts |
Length | 13.34 inches | 339 mm |
Outside Diameter | 6.53 inches | 166 mm |
Shipping Dimensions | 13.347" L × 6.535" H × 6.535" W | 34cm L × 17cm H × 17cm W |
Shipping Volume | 570.00 in3 | 9341 cm3 |
Shipping Weight | 23.75 pounds | 11 kilograms |
Weight | 23.75 pounds | 11 kilograms |
Downloads
Document Name | Type | Language |
---|---|---|
Service Instructions - Lubricating 80 Deg CV.pdf | Maintenance Document | English |
Service Instructions - CV Joint.pdf | Service Document | English |
Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
80 deg CV Joint - Over Angle Operating.pdf | Troubleshooting Document | English |
80 deg CV Joint - Over Angle NonOperating.pdf | Troubleshooting Document | English |
WE0101003_1019_USL_80DegConstantVelocityJoint.pdf | Performance Benefits Document | English |
WE0101011_0817_USL_EasyLockGuard.pdf | Performance Benefits Document | English |
