100-7115

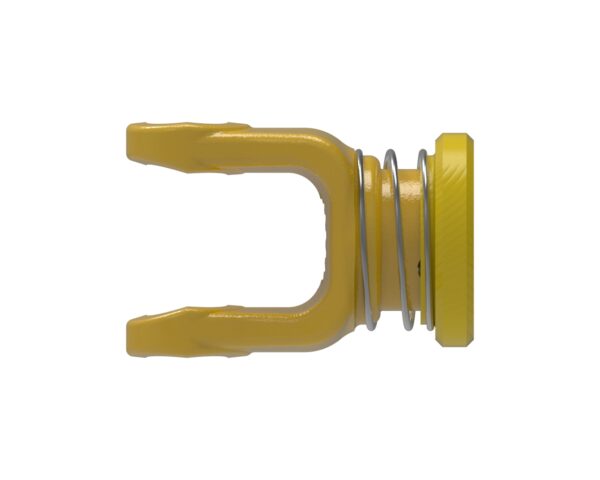

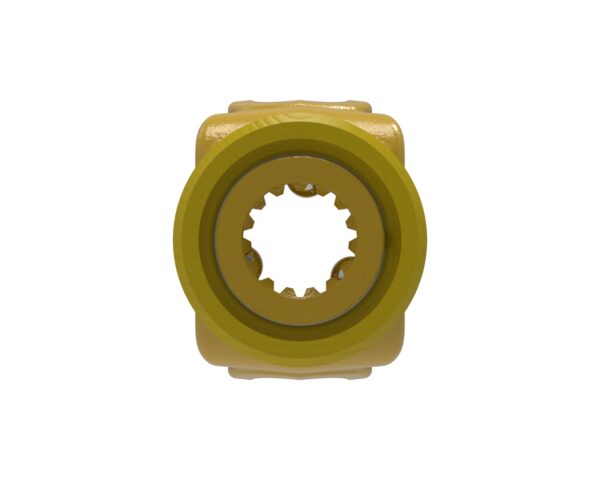

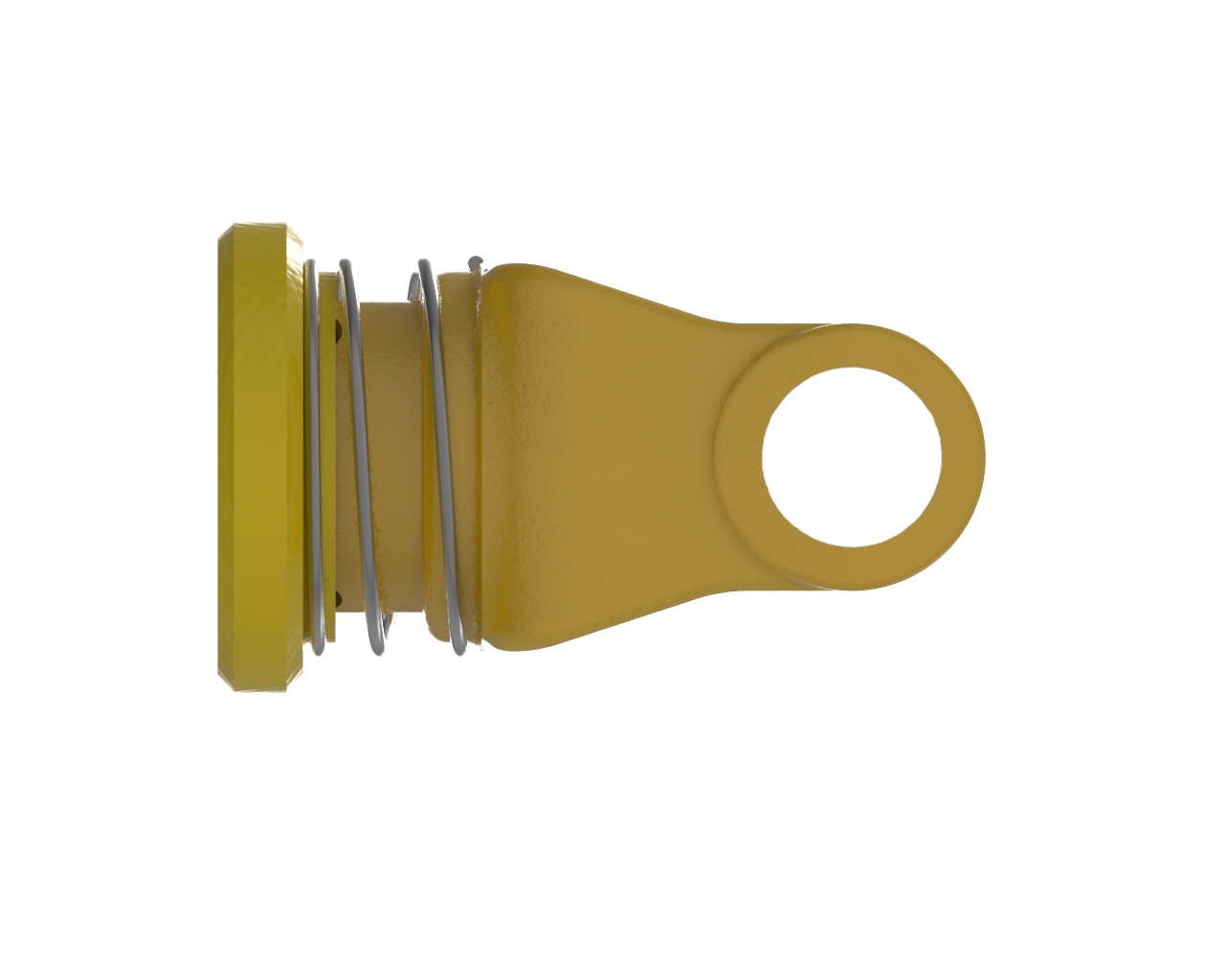

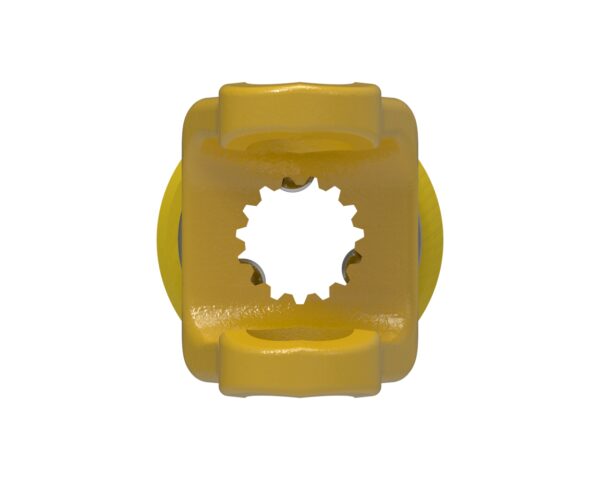

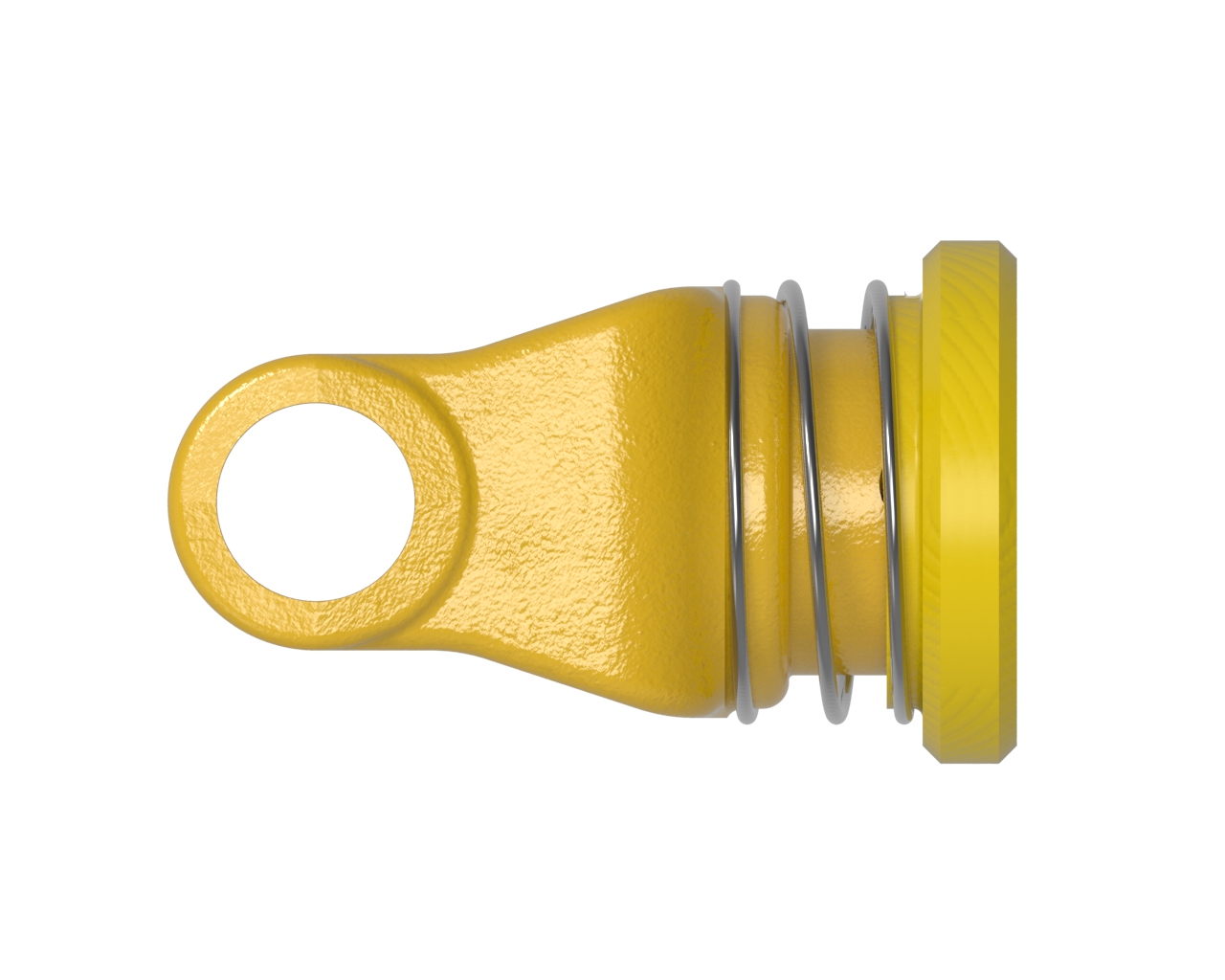

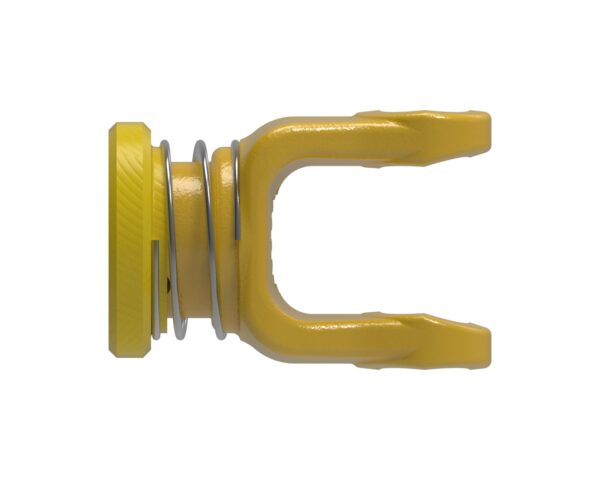

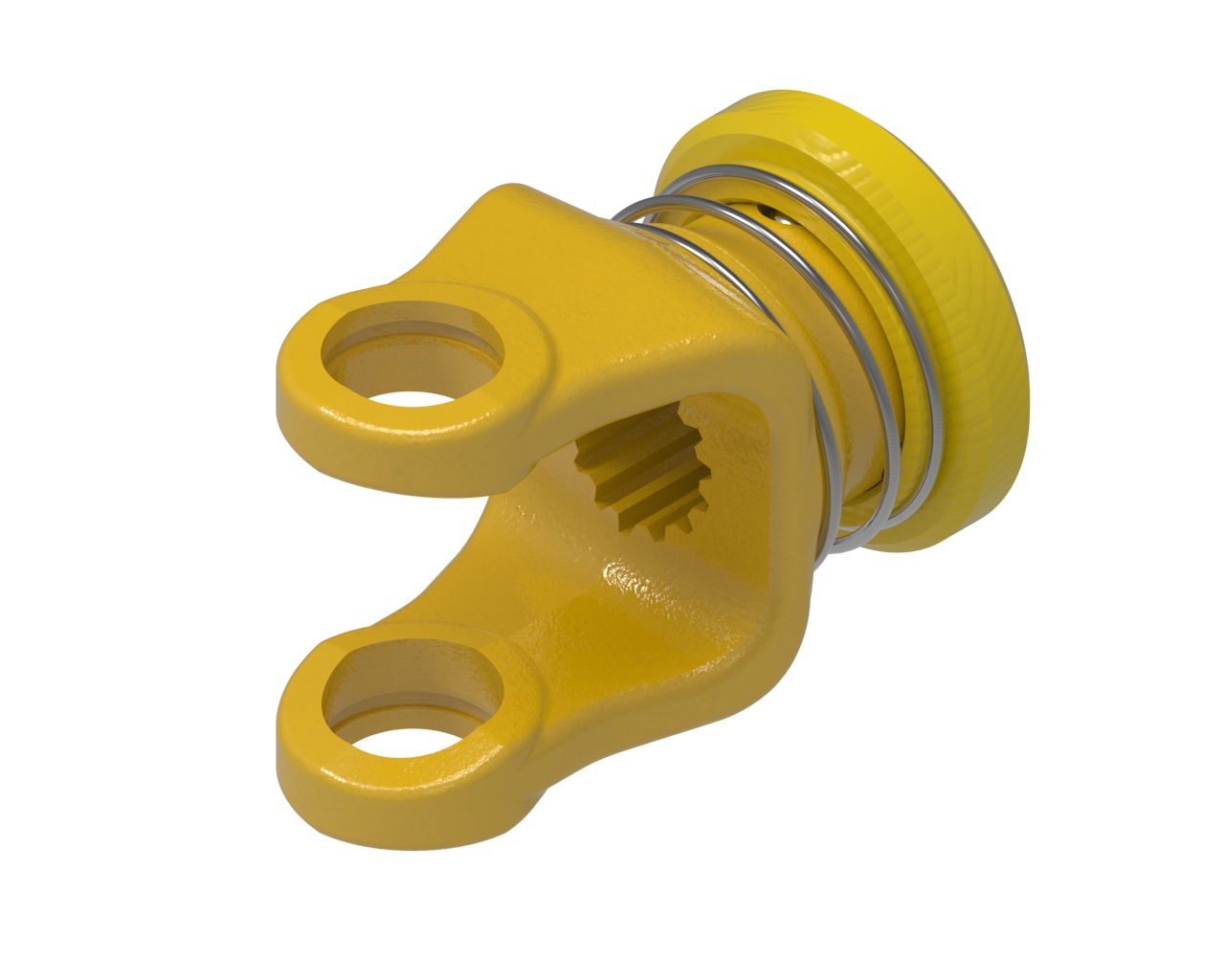

AW10 Series Spring-lok Yoke

AW10 series yoke with 1-15 spline bore and spring-lok connection

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2″ 8-spline and 1 3/4″ 6-spline options are available. Lawn & Turf tractor yokes are offered in 1″ 10-spline and 1″ 15-spline.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.00 inches25 mm
Bore 1 1-15 SPLINE
Connection 1 SPRING-LOK
Height2.80 inches71 mm
HP@1000RPM29 HP22 kilowatts
HP@540RPM19 HP14 kilowatts
Length3.07 inches78 mm
Shipping Dimensions3.7" L  ×  2.8" H  ×  2.32" W9cm L  ×  7cm H  ×  6cm W
Shipping Volume24.04 in3394 cm3
Shipping Weight1.64 pounds1 kilograms
Weight1.64 pounds1 kilograms
Width2.32 inches59 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
WE0101004_0817_USL_AutoLokYoke.pdf Performance Benefits Document English
