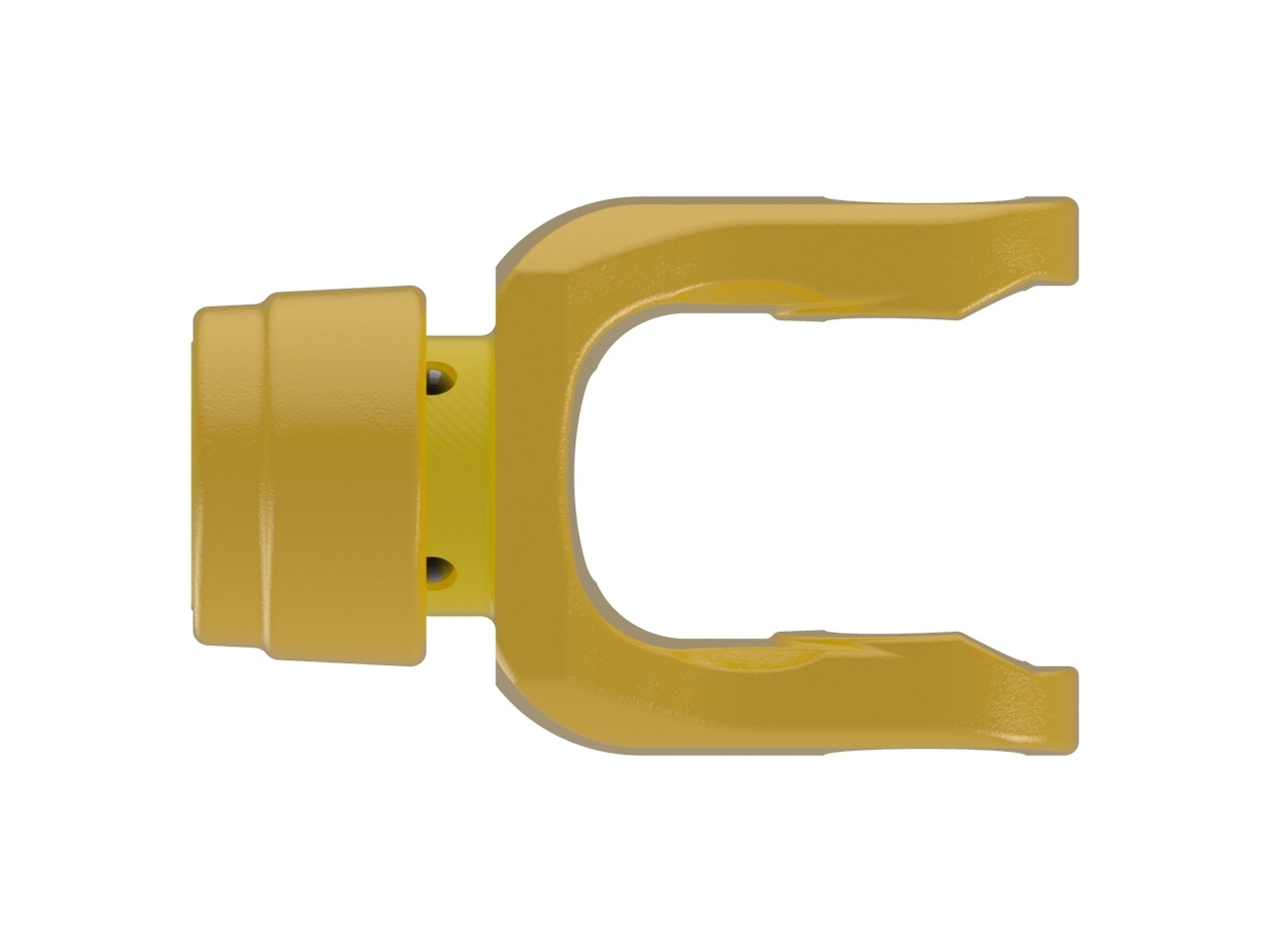

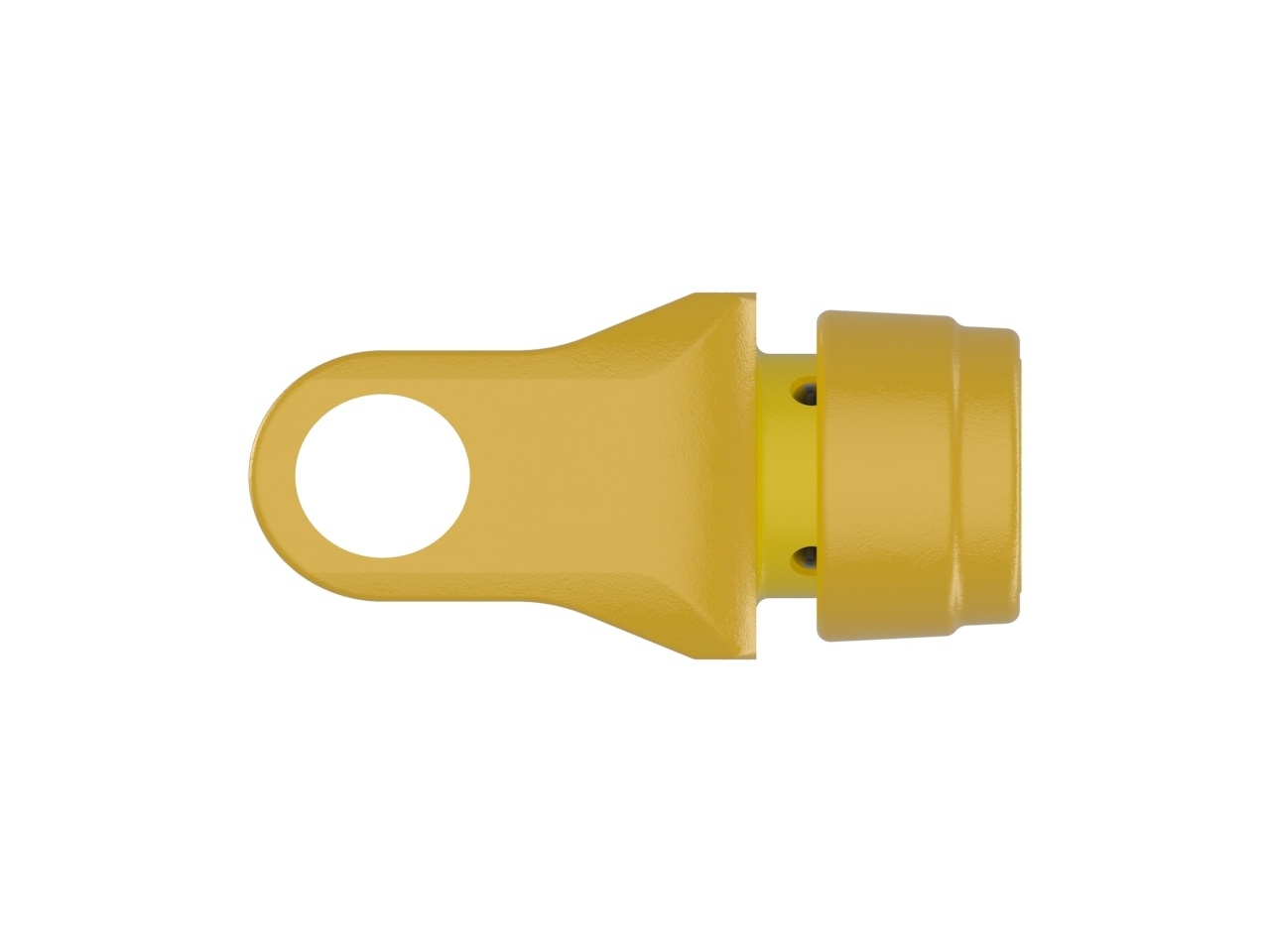

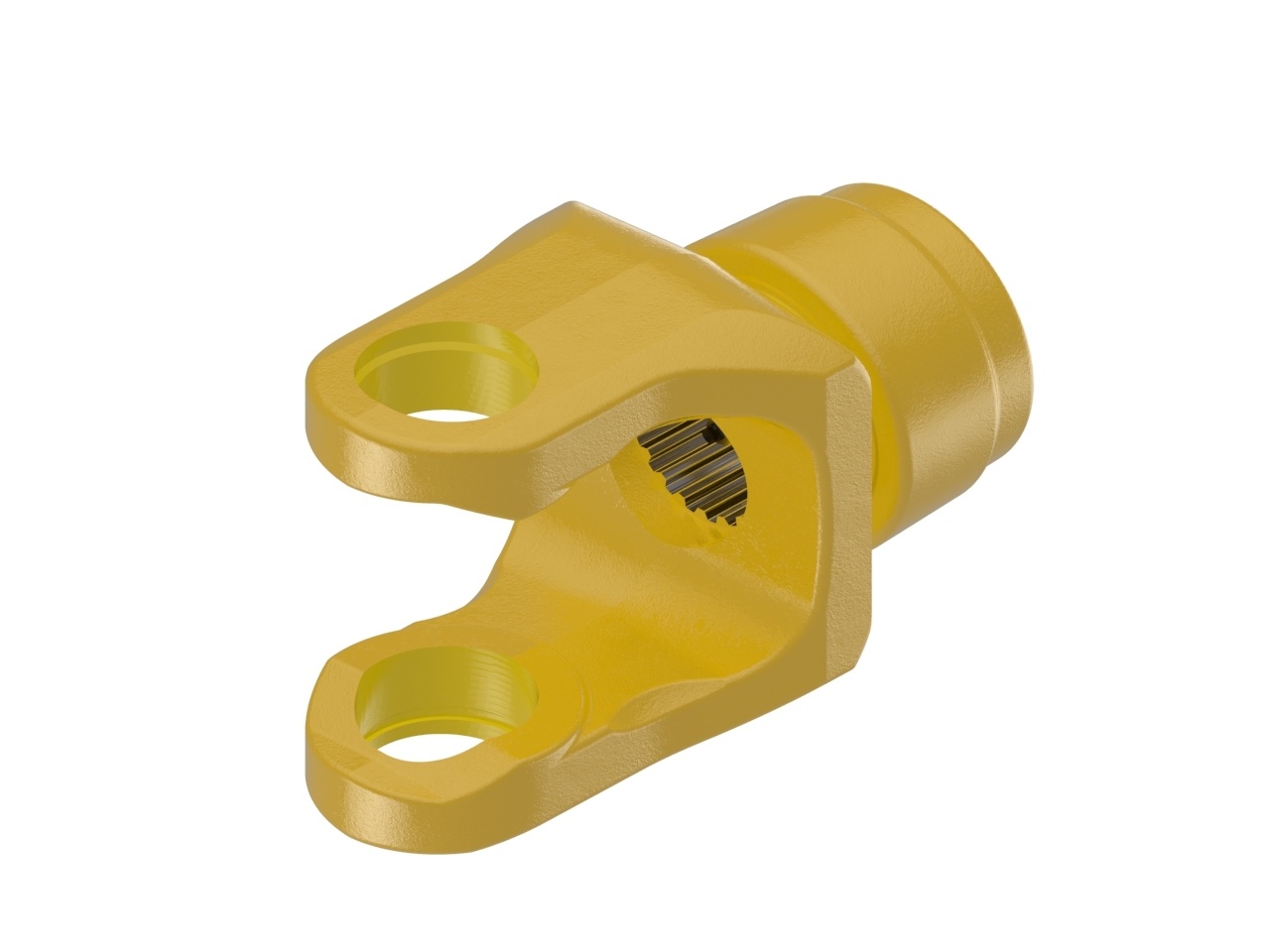

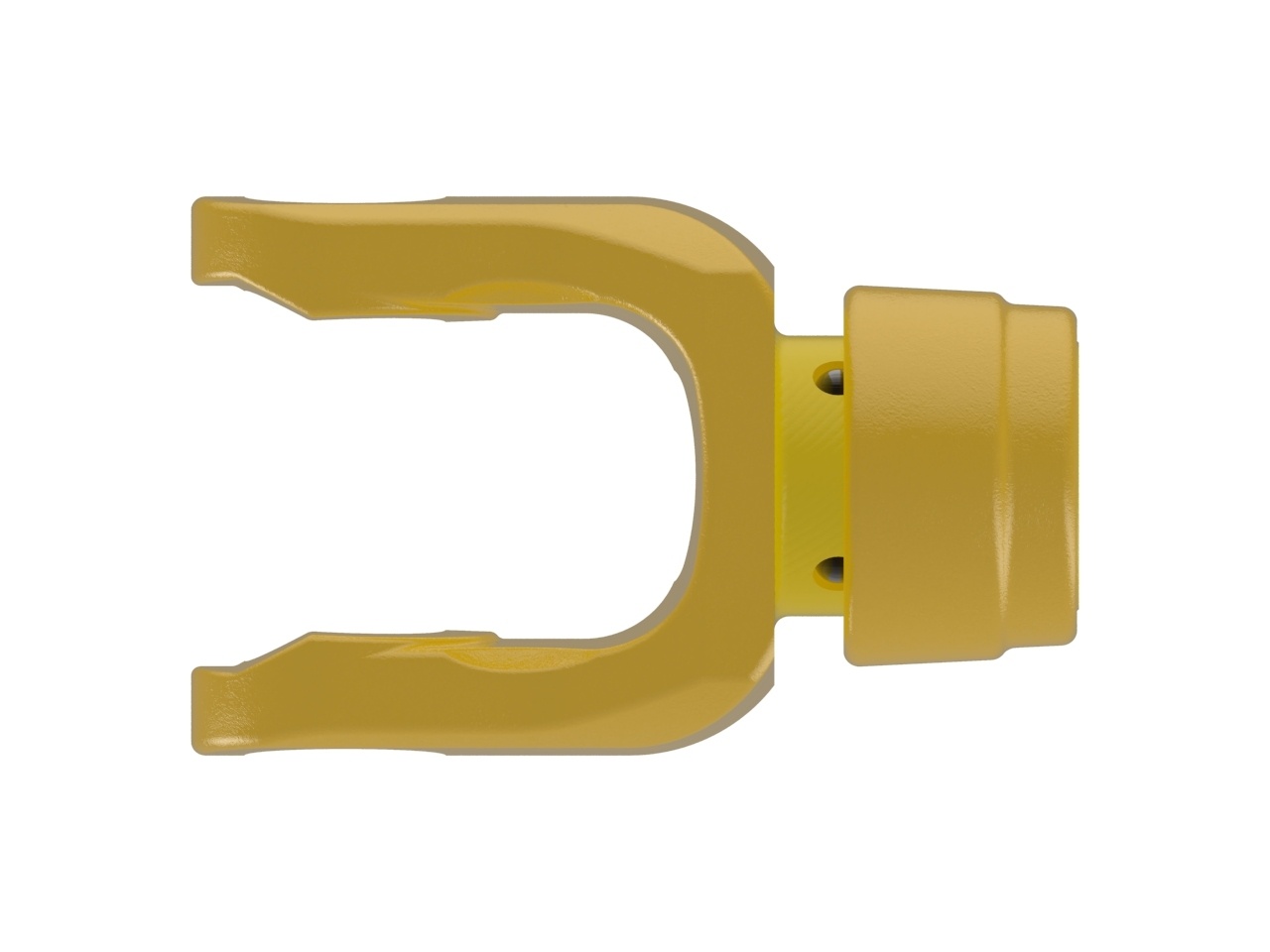

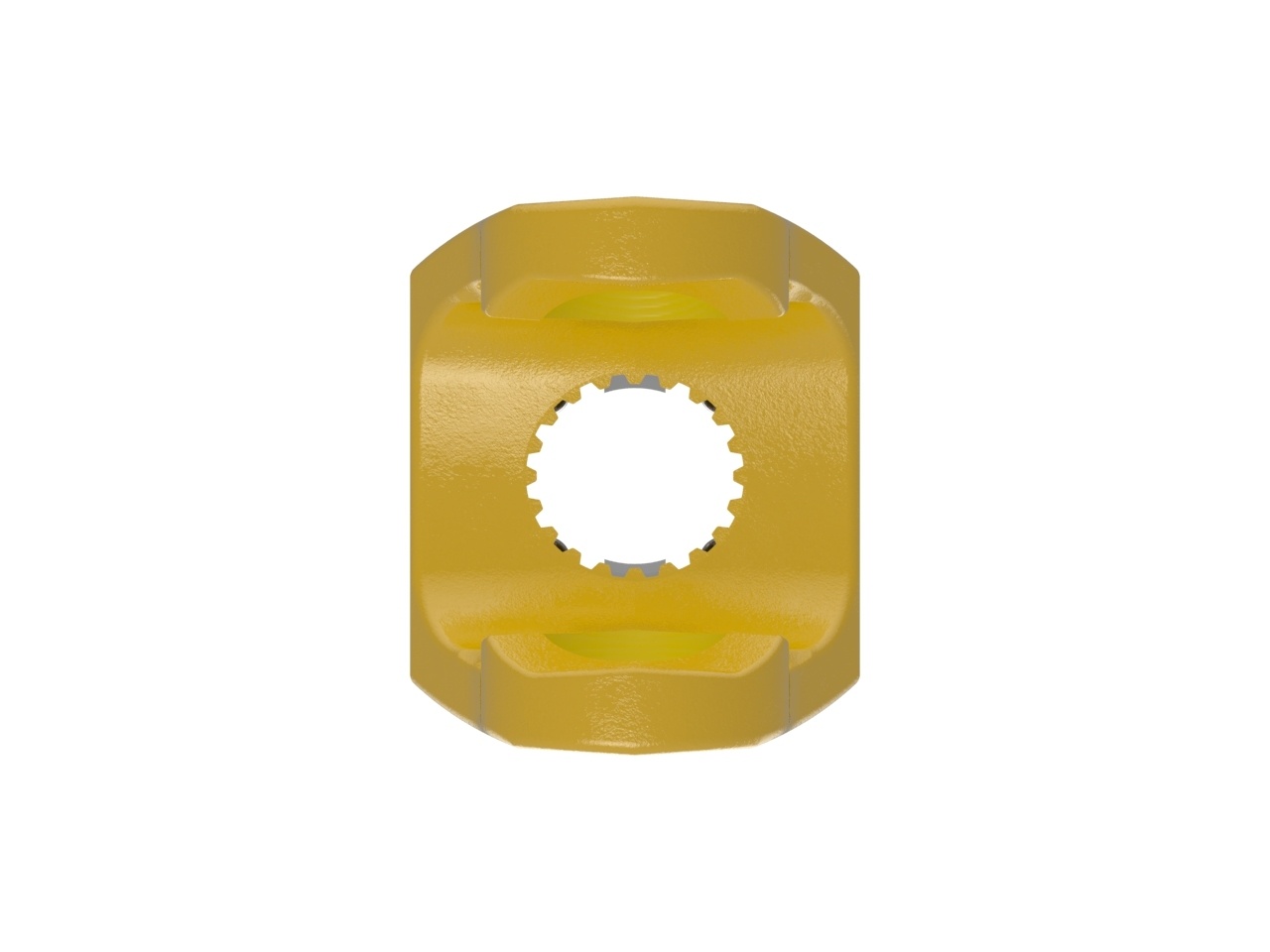

AB9 Series Auto-lok Yoke
AB9 series yoke with 1 3/4-20 spline bore and auto-lok connection. Note: Image color may not represent actual part.
PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2″ 8-spline and 1 3/4″ 6-spline options are available. Lawn & Turf tractor yokes are offered in 1″ 10-spline and 1″ 15-spline.
PERFORMANCE BENEFITS
Specifications
Part Number: 110-6920
Product Series: AB9
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.61 (1 39/64) in | 41 mm |
| Bearing Cap to Cap Span | 4.26 (4 17/64) in | 108 mm |
| Yoke Bore | 1 3/4-20 SPLINE | |
| Connection 1 Type | AUTO-LOK | |
| HP@1000RPM | 232 HP | 173 kilowatts |
| HP@540RPM | 151 HP | 113 kilowatts |
| Centerline to End Dim | 5.90 (5 29/32) in | 150 mm |
| Weight | 8.15 pounds | 4 kilograms |
