801-6806

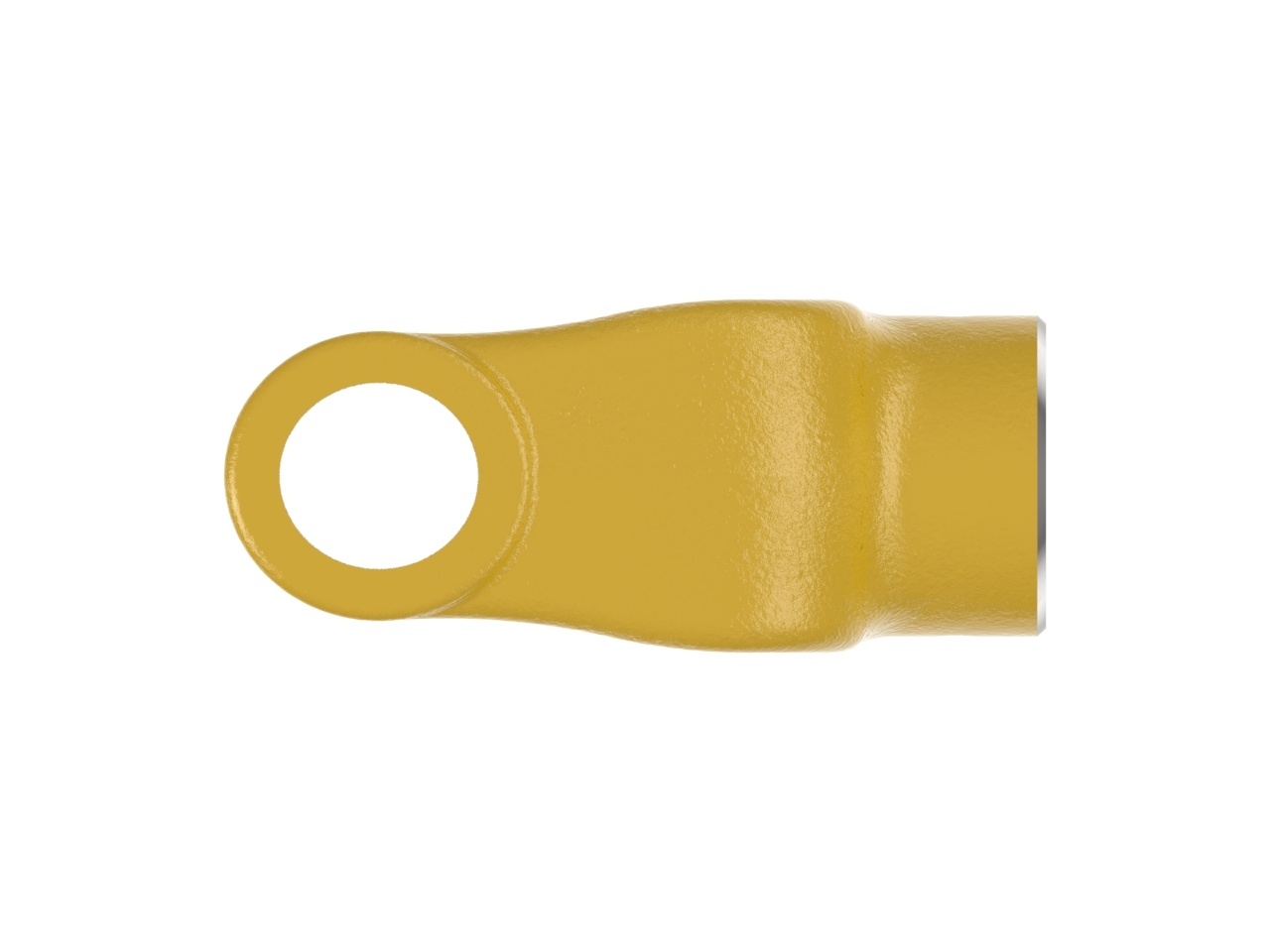

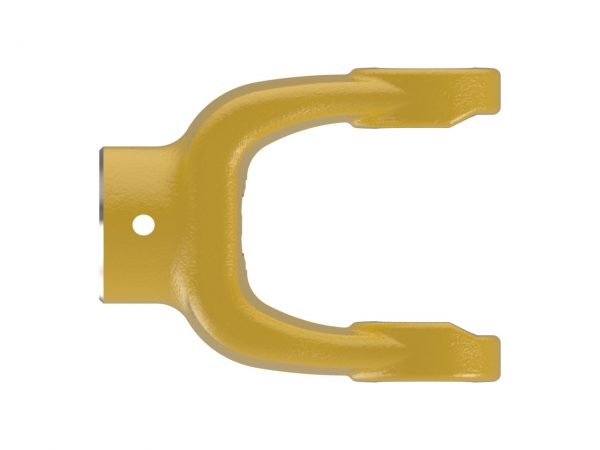

AB8,AW24 Series Pin Yoke

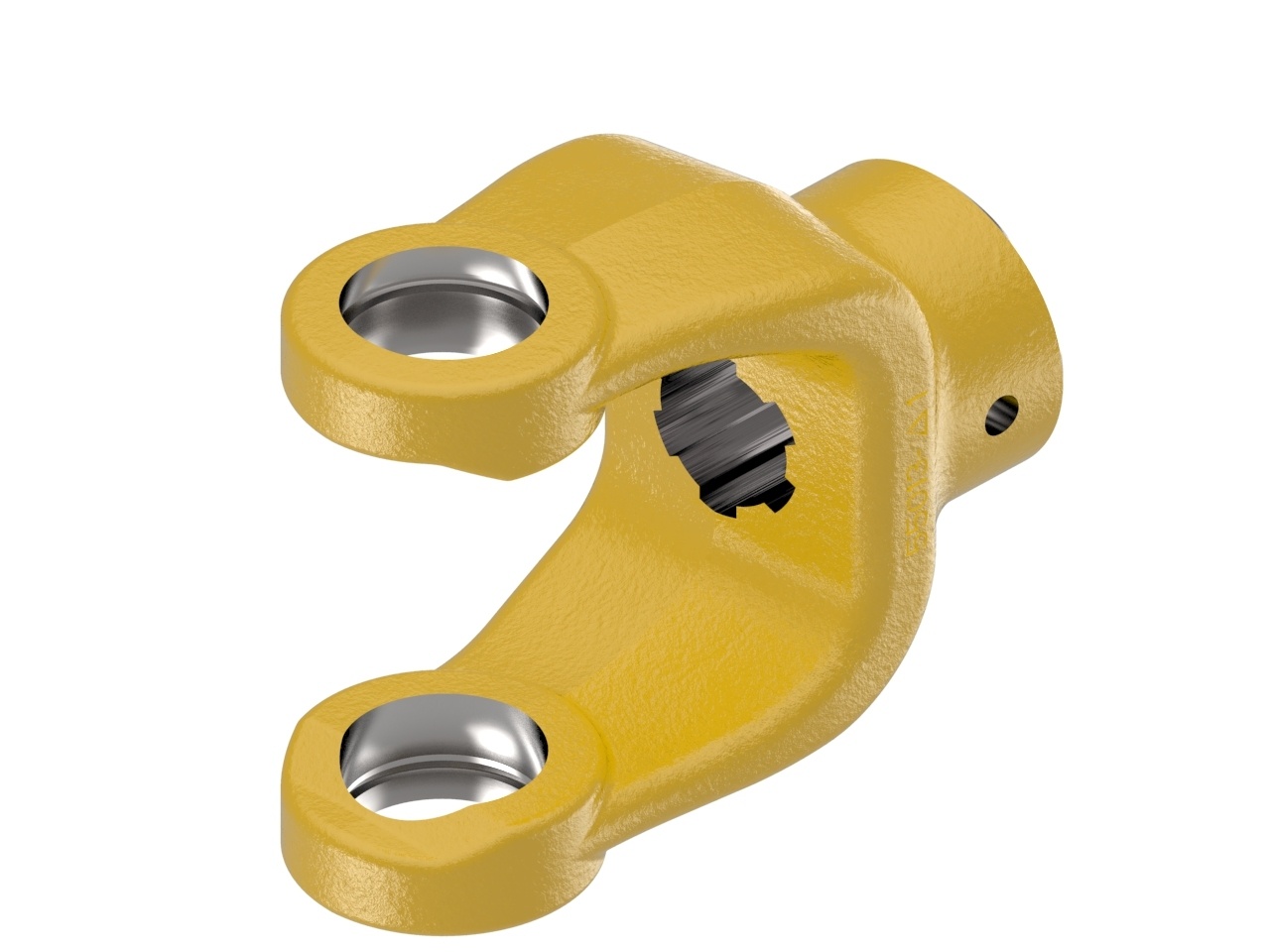

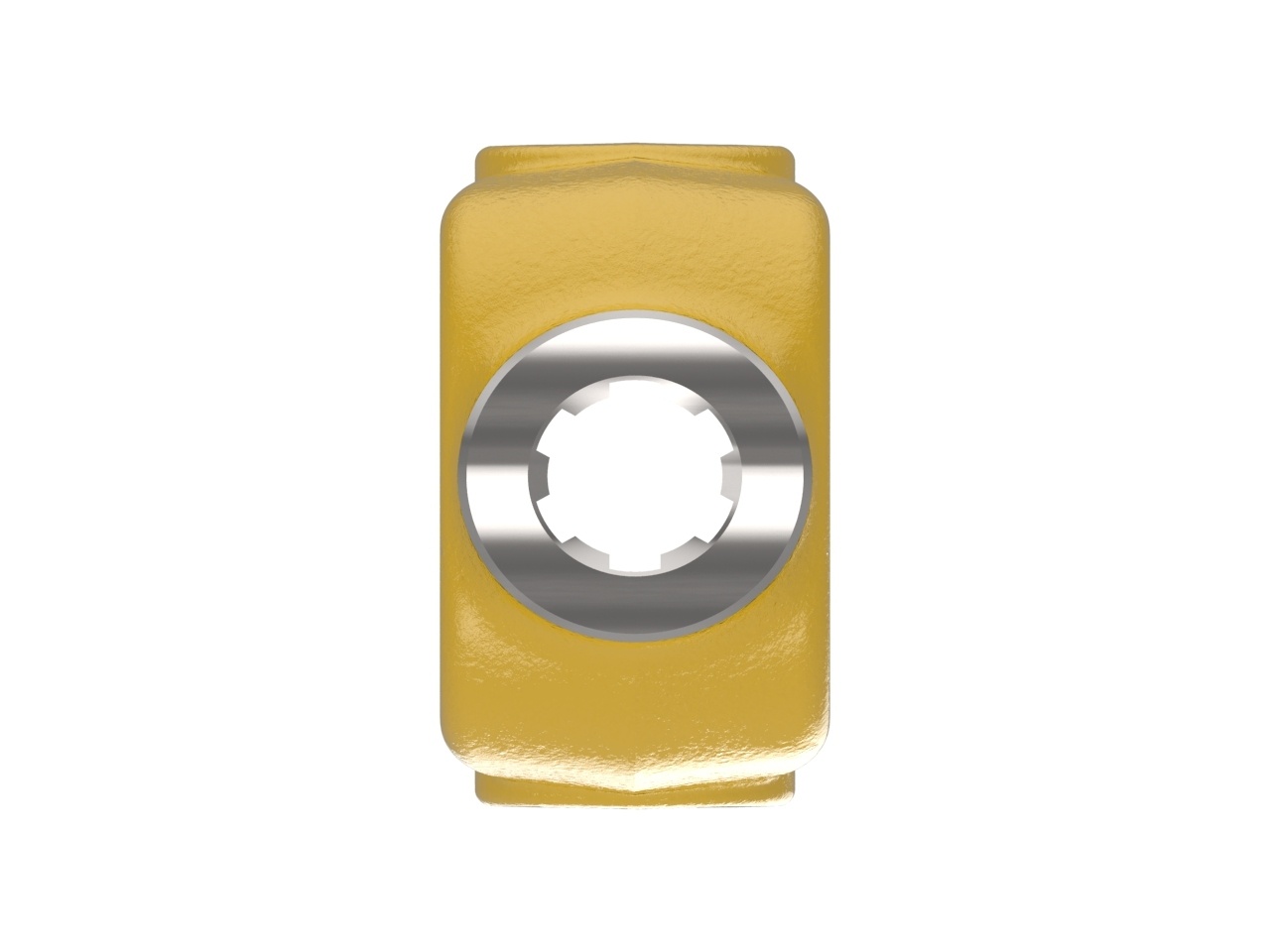

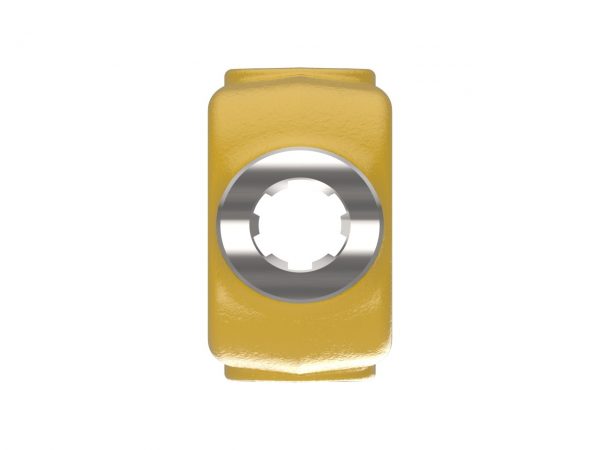

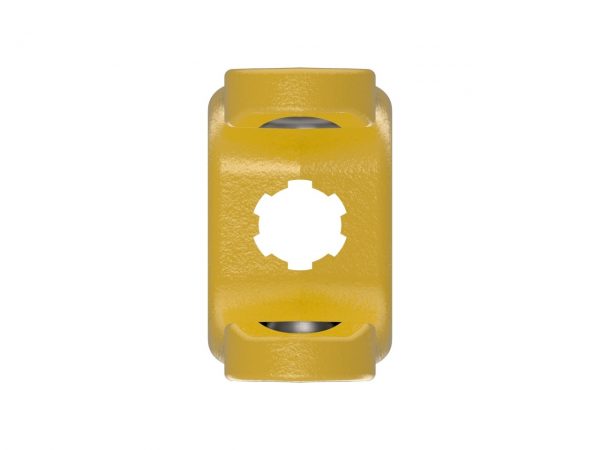

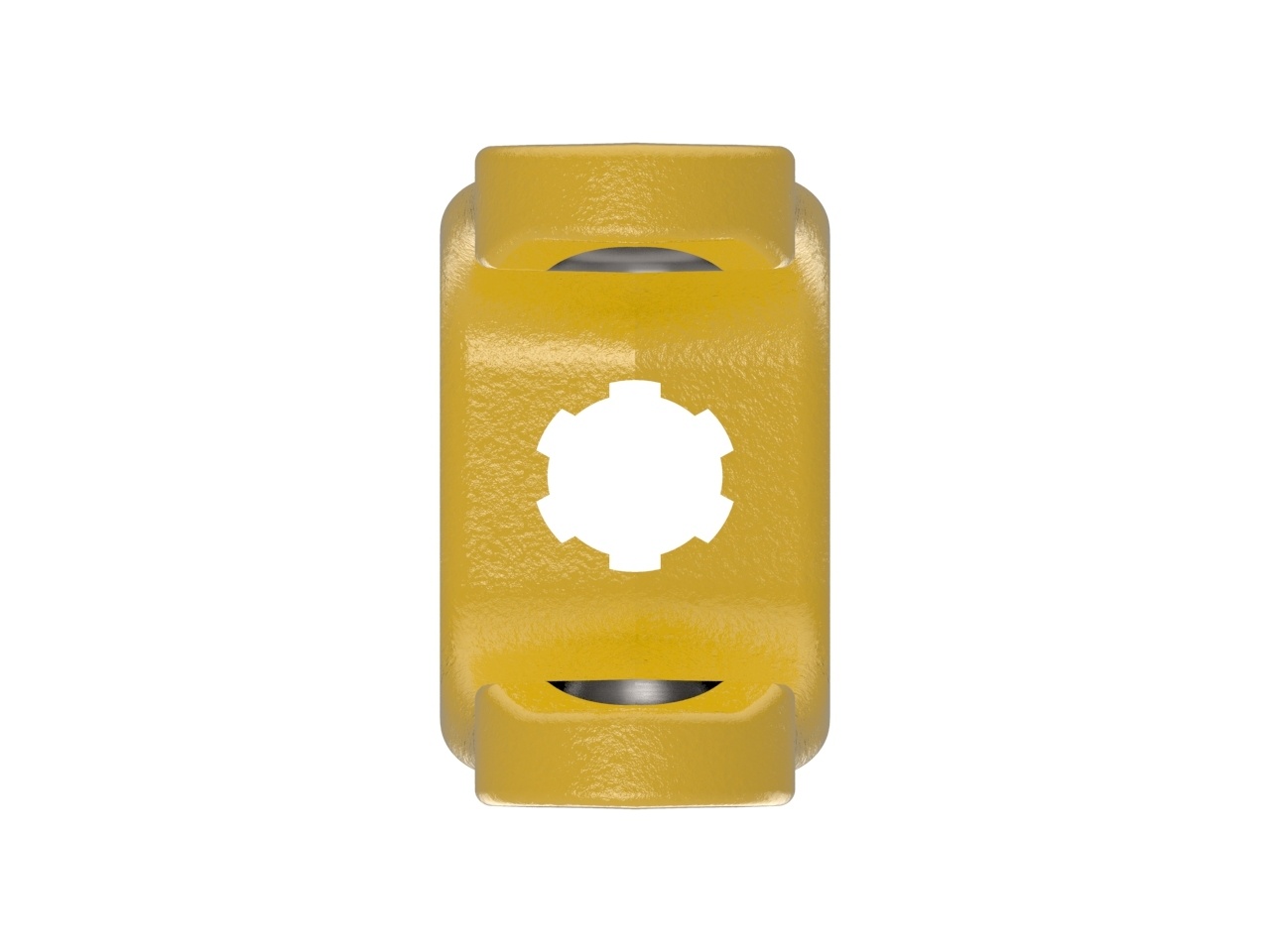

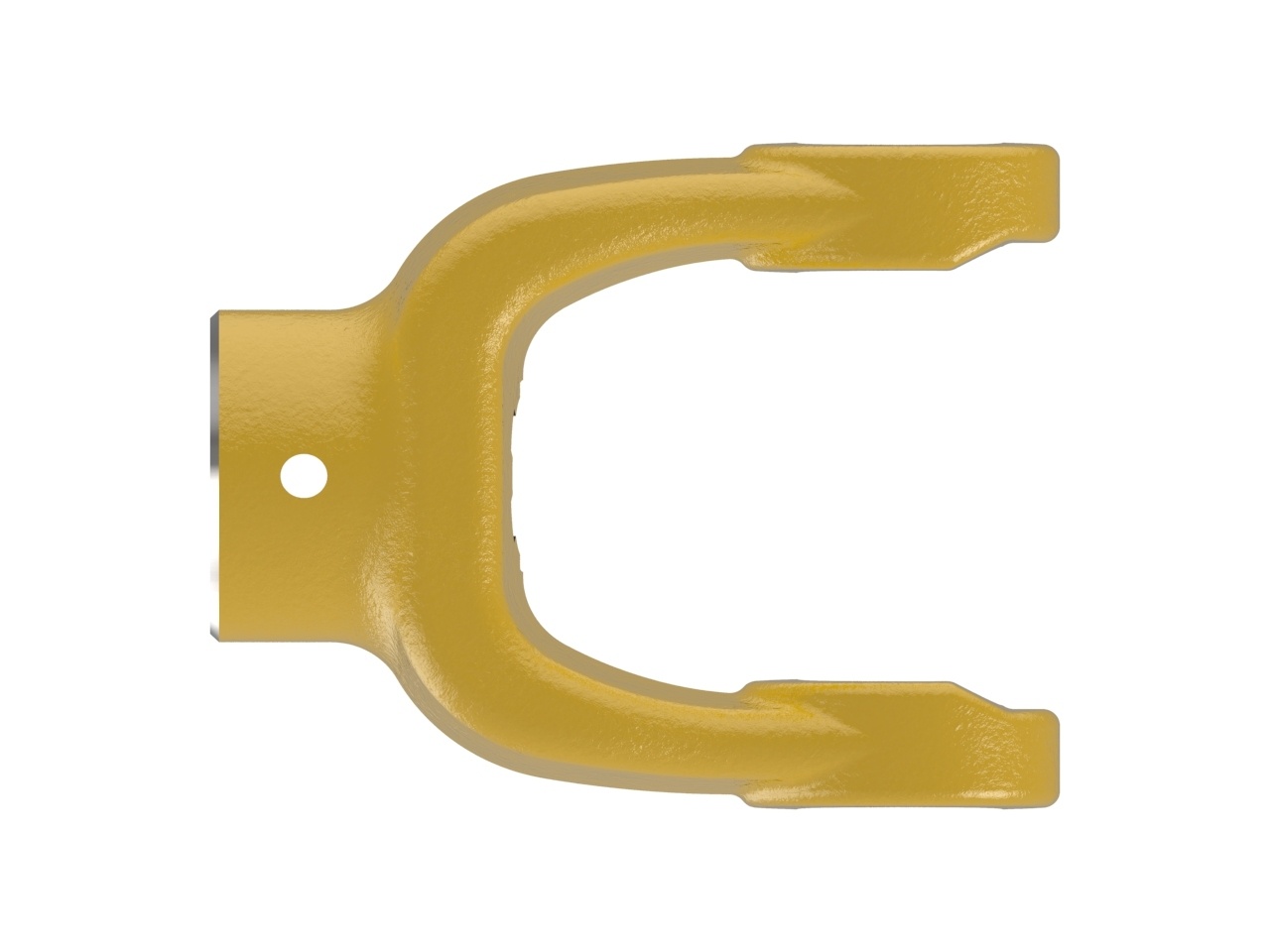

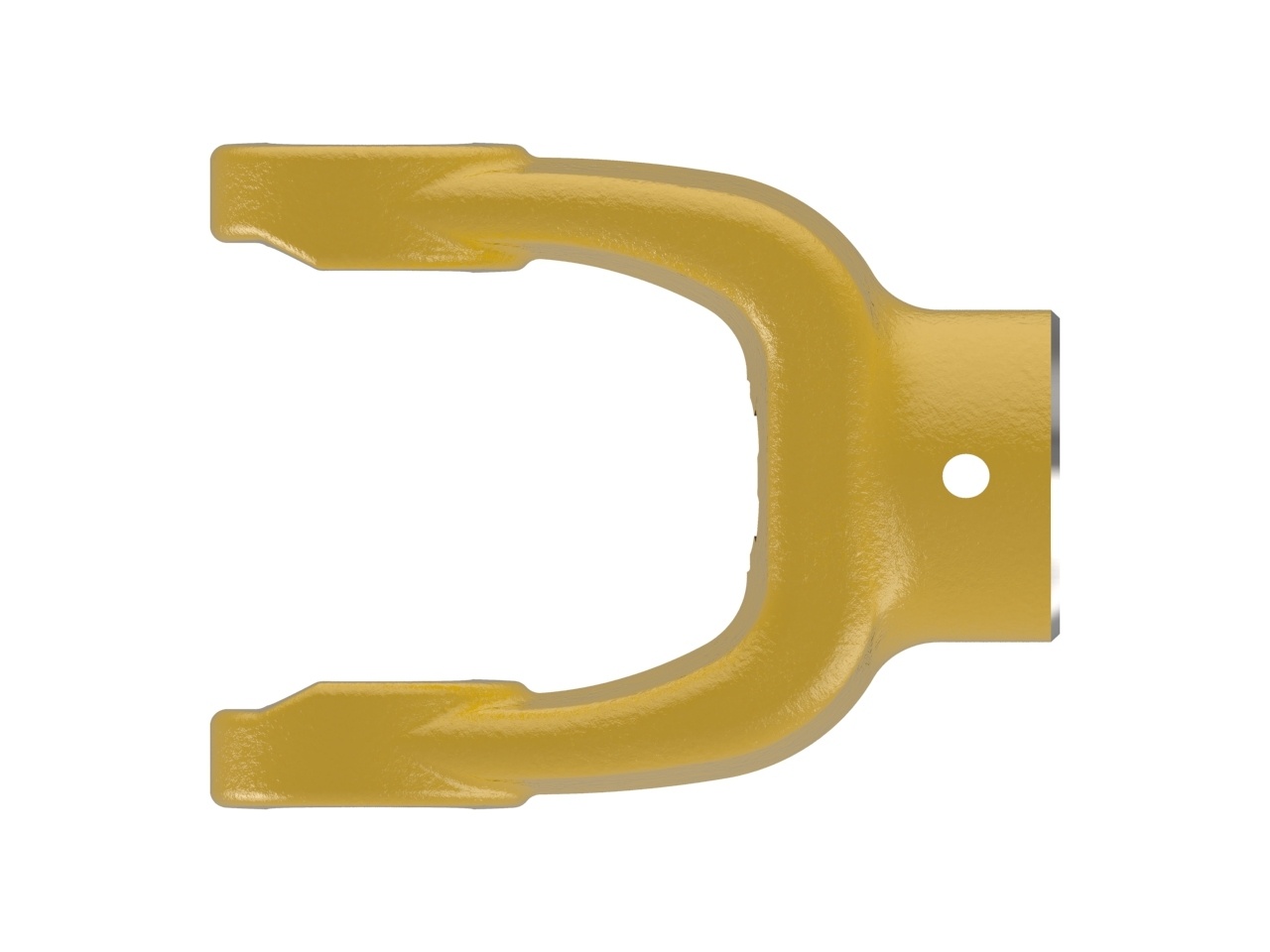

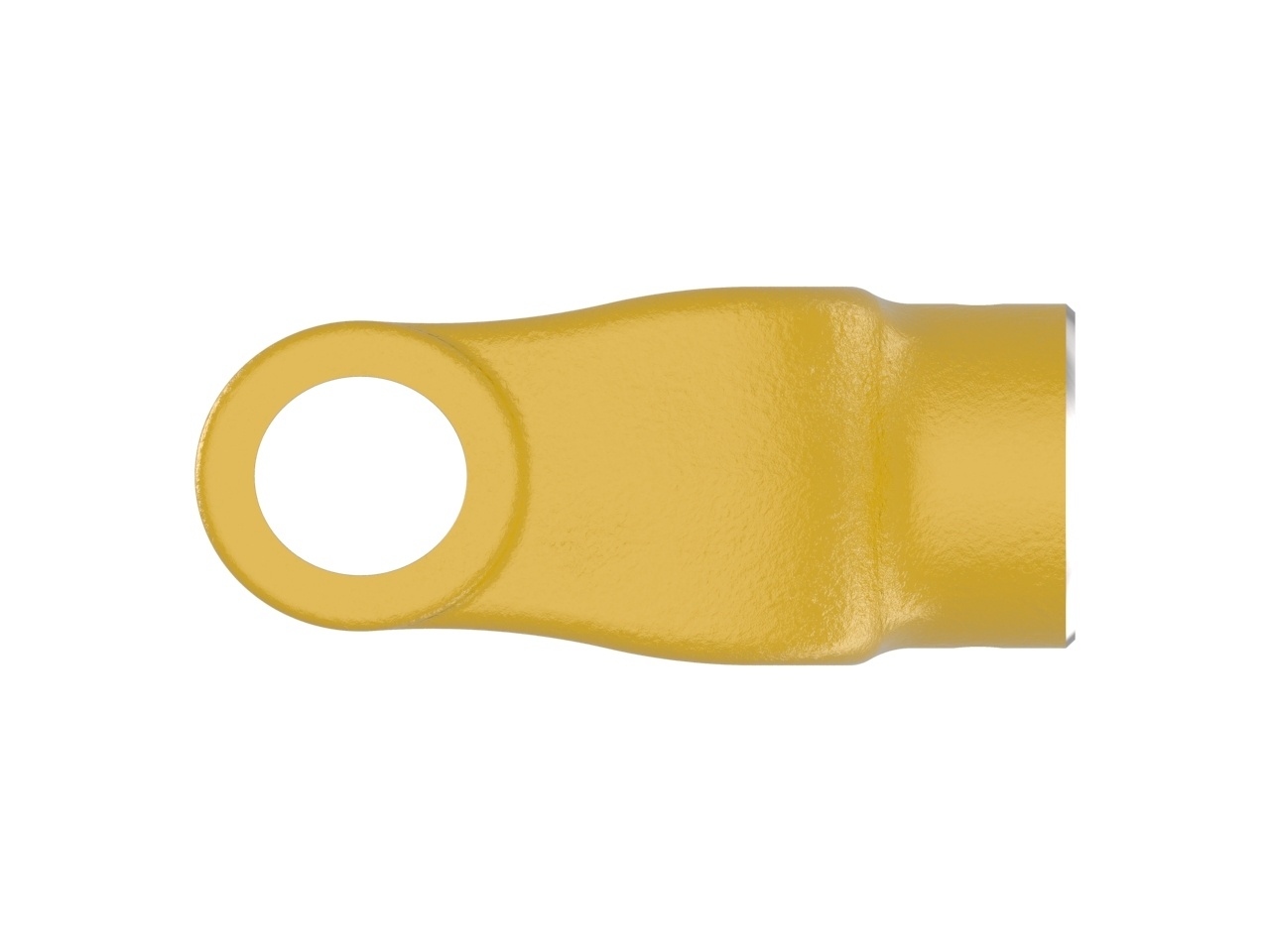

AB8,AW24 series yoke with 1 3/8-6 spline bore and pin connection

View My List

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Connection 1 PIN
Height5.13 inches130 mm
HP@1000RPM185 HP138 kilowatts
HP@540RPM120 HP89 kilowatts
Length4.63 inches118 mm
Pin Hole0.32 inches8 mm
Shipping Dimensions5.71" L  ×  5.13" H  ×  3.15" W15cm L  ×  13cm H  ×  8cm W
Shipping Volume92.27 in31512 cm3
Shipping Weight5.50 pounds2 kilograms
Weight5.50 pounds2 kilograms
Width3.15 inches80 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
