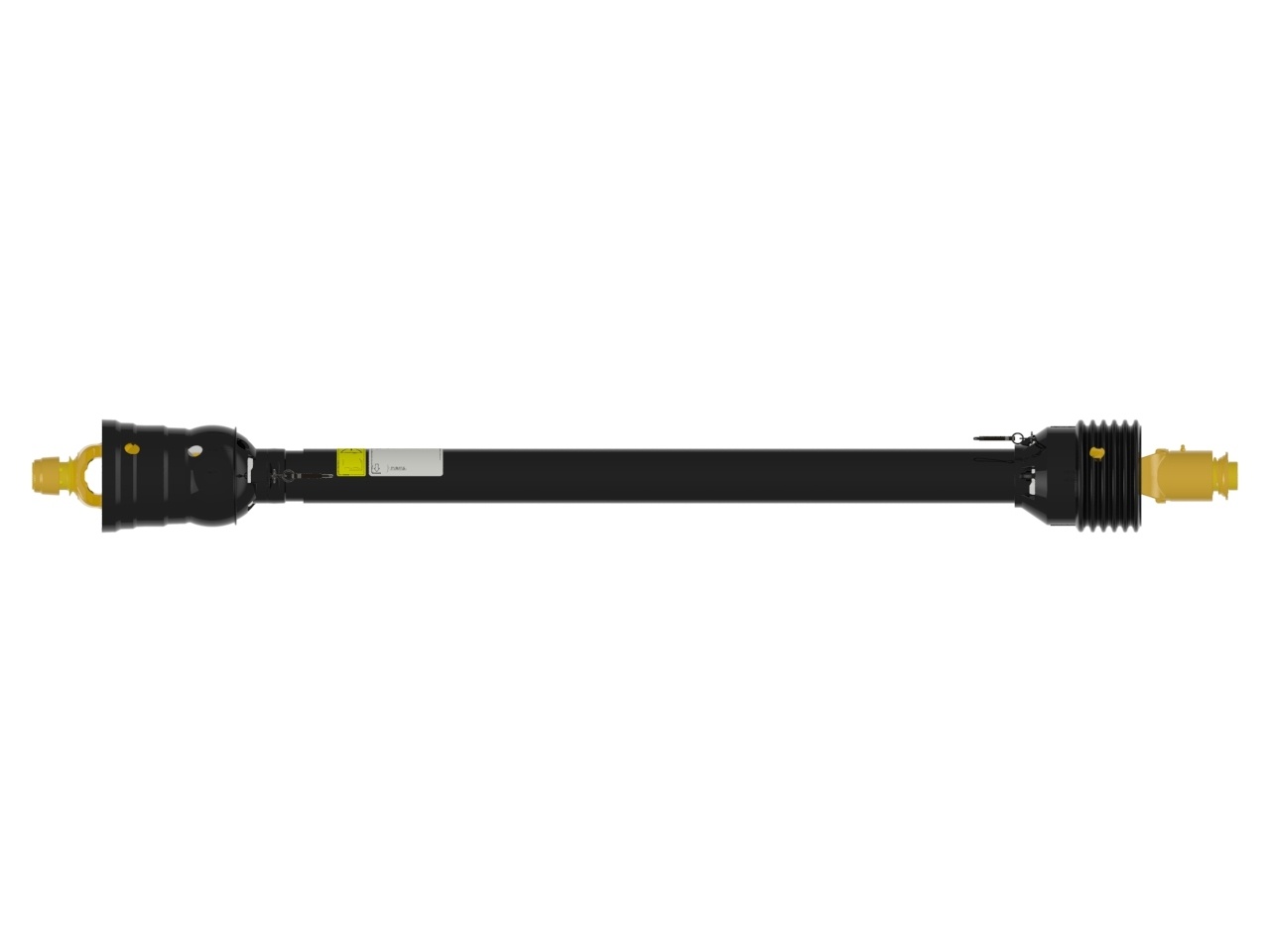

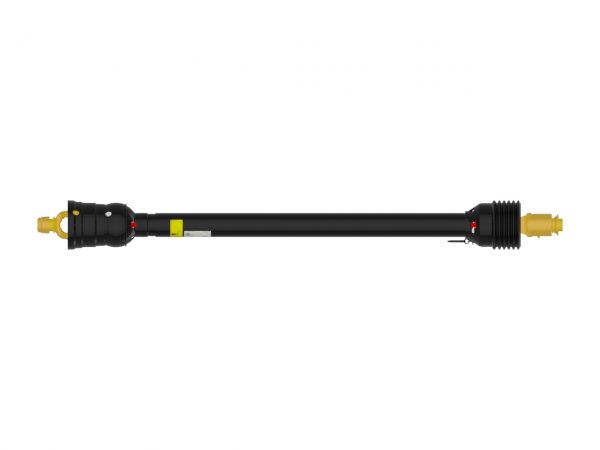

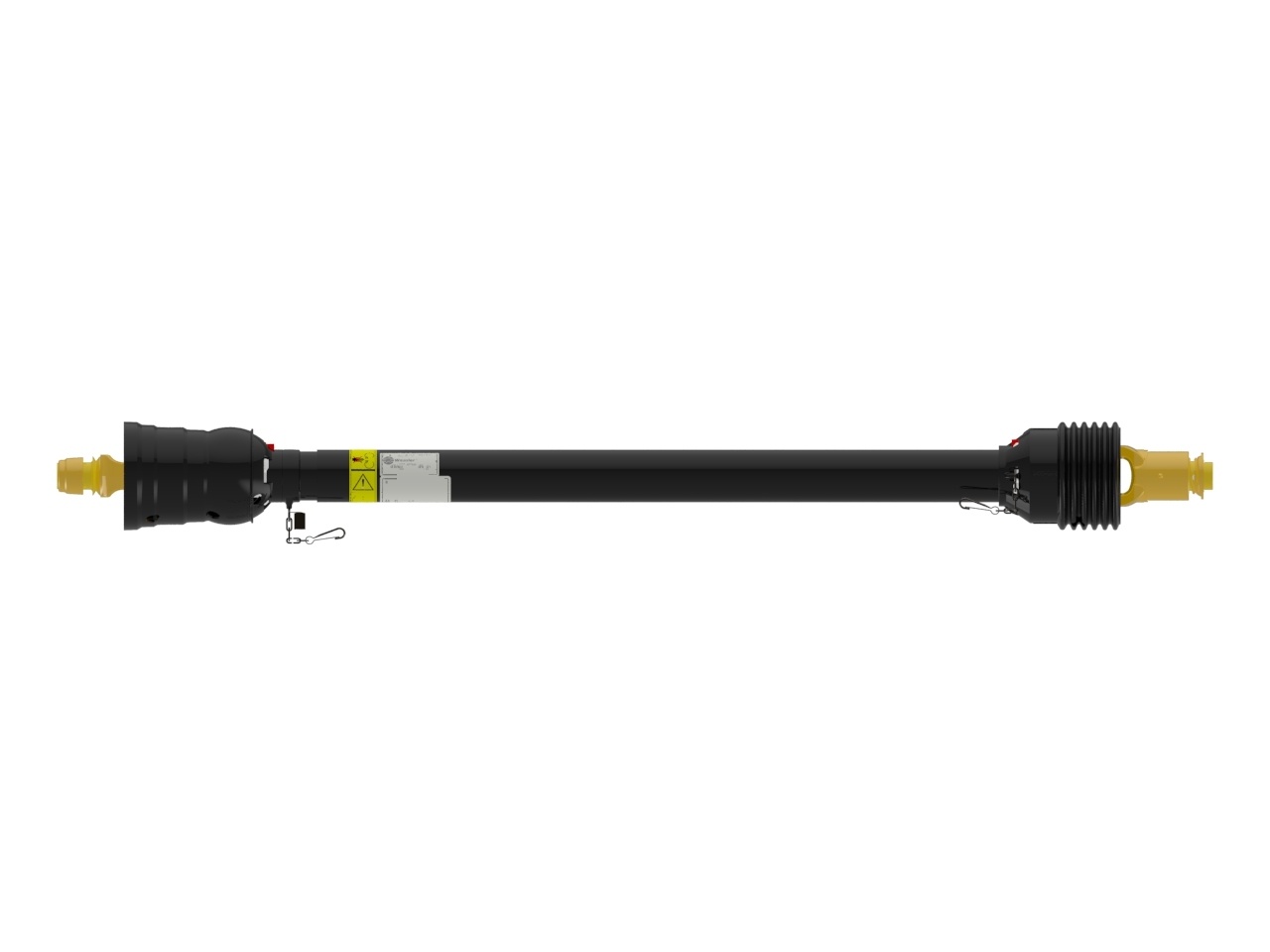

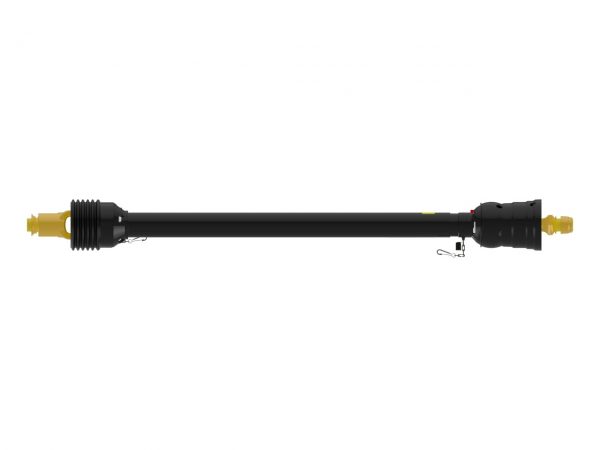

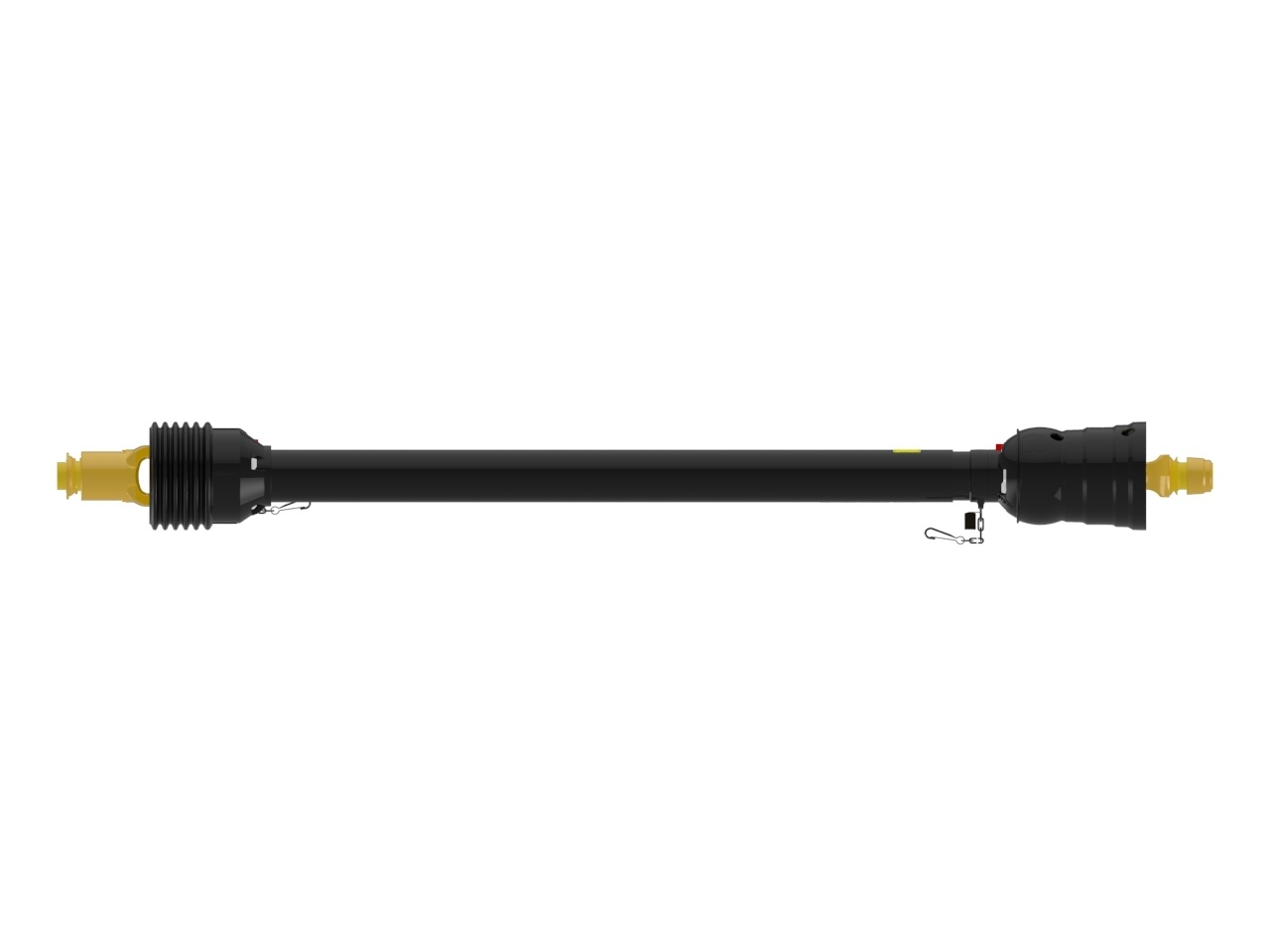

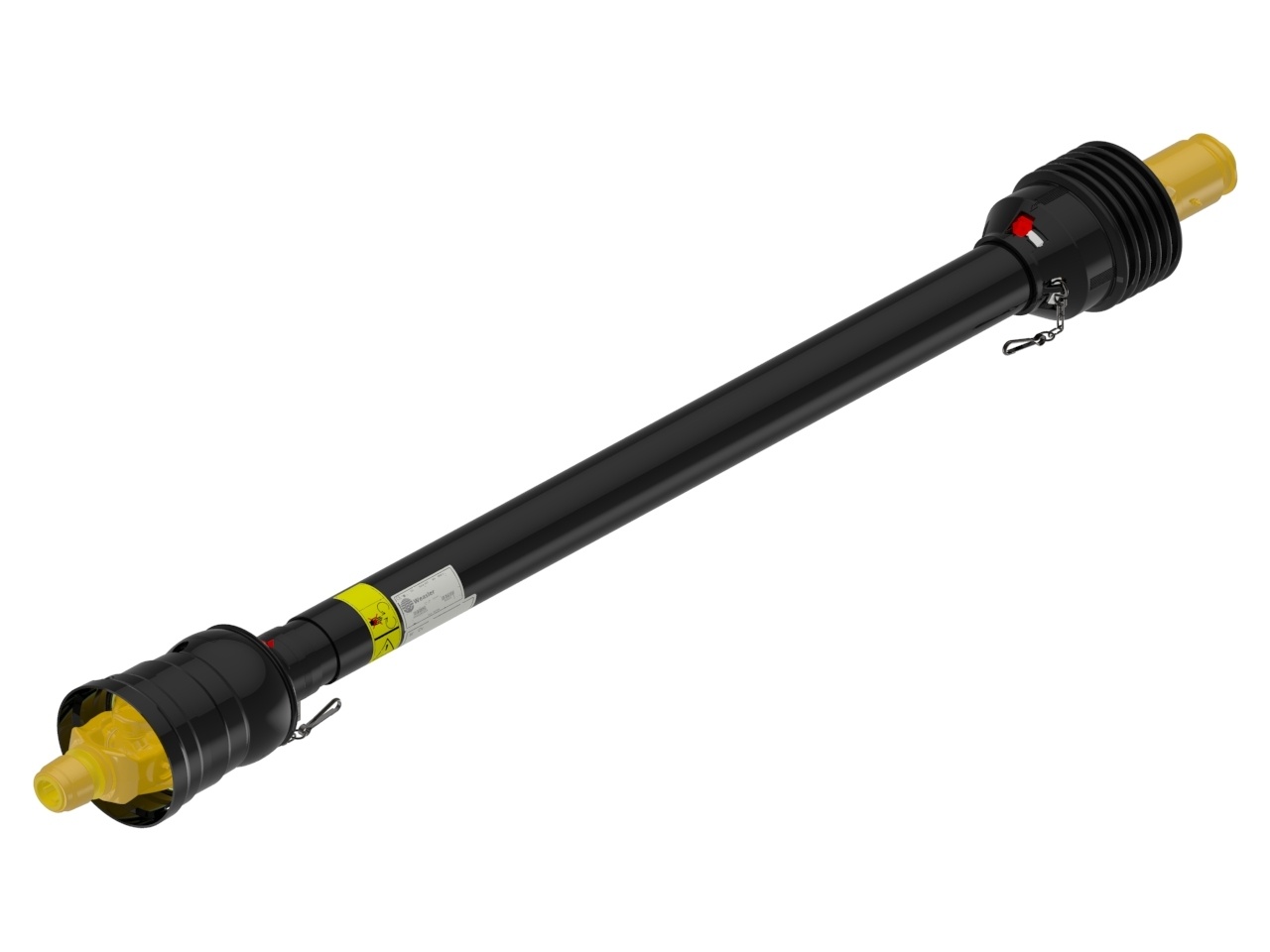

1803-6801-161CV WIDE ANGLE PROFILE PTO DRIVE SHAFT
AB8-80 Series CV Wide Angle Profile PTO Drive Shaft With Overrunning Clutch Yoke
AB8-80 Series CV Wide Angle Profile PTO Drive Shaft With A 1 3/8-6 Spline Auto-lok Tractor Connection And Overrunning Clutch Yoke With 1 3/8-6 Spline Quick Disconnect Implement Connection
The Weasler high performance CV Wide Angle PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler CV Wide Angle PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
Design adjustability (cut-to-length) capabilities.
Interchangeability to fit with most competitor models.
Tri-lobe, lemon, and star shaft profiles available.
Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
Available Extended lubrication E-kits reduce downtime with lubrication intervals of 50-250
hours and the high temperature triple lip seal retains grease better.
Customer dedicated engineering and sales support.
Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
Same component designs used for Weasler’s domestic and metric product lines.
|Bore 1||1.37 inches||35 mm|
|Bore 1||1 3/8-6 SPLINE|
|Bore 2||1.37 inches||35 mm|
|Bore 2||1 3/8-6 SPLINE|
|Compressed (Closed) Length||63.39 inches||1610 mm|
|Compressed Overall Length||77.09 inches||1958 mm|
|Connection 2||QUICK DISCONNECT|
|Extended Length||98.29 inches||2497 mm|
|Extended Overall Length||111.99 inches||2845 mm|
|HP@1000RPM||179 HP||133 kilowatts|
|HP@540RPM||117 HP||87 kilowatts|
|Length||77.09 inches||1958 mm|
|Outside Diameter||7.75 inches||197 mm|
|Shipping Dimensions||63.39" L × 7.75" H × 7.75" W||161cm L × 20cm H × 20cm W|
|Shipping Volume||3807.36 in3||62392 cm3|
|Shipping Weight||91.26 pounds||41 kilograms|
|Weight||91.26 pounds||41 kilograms|
|Service Instructions - Lubricating 80 Deg CV.pdf||Maintenance Document||English|
|Service Instructions - CV Joint.pdf||Service Document||English|
|Service Instructions - Universal Joint.pdf||Service Document||English|
|Service Instructions - Easy Lock Guards.pdf||Service Document||English|
|Lack of Grease - Cross & Brg Kit.pdf||Troubleshooting Document||English|
|80 deg CV Joint - Over Angle Operating.pdf||Troubleshooting Document||English|
|80 deg CV Joint - Over Angle NonOperating.pdf||Troubleshooting Document||English|
|WE0101003_1019_USL_80DegConstantVelocityJoint.pdf||Performance Benefits Document||English|
|WE0101011_0817_USL_EasyLockGuard.pdf||Performance Benefits Document||English|
