AB7N Series Setscrew Yoke

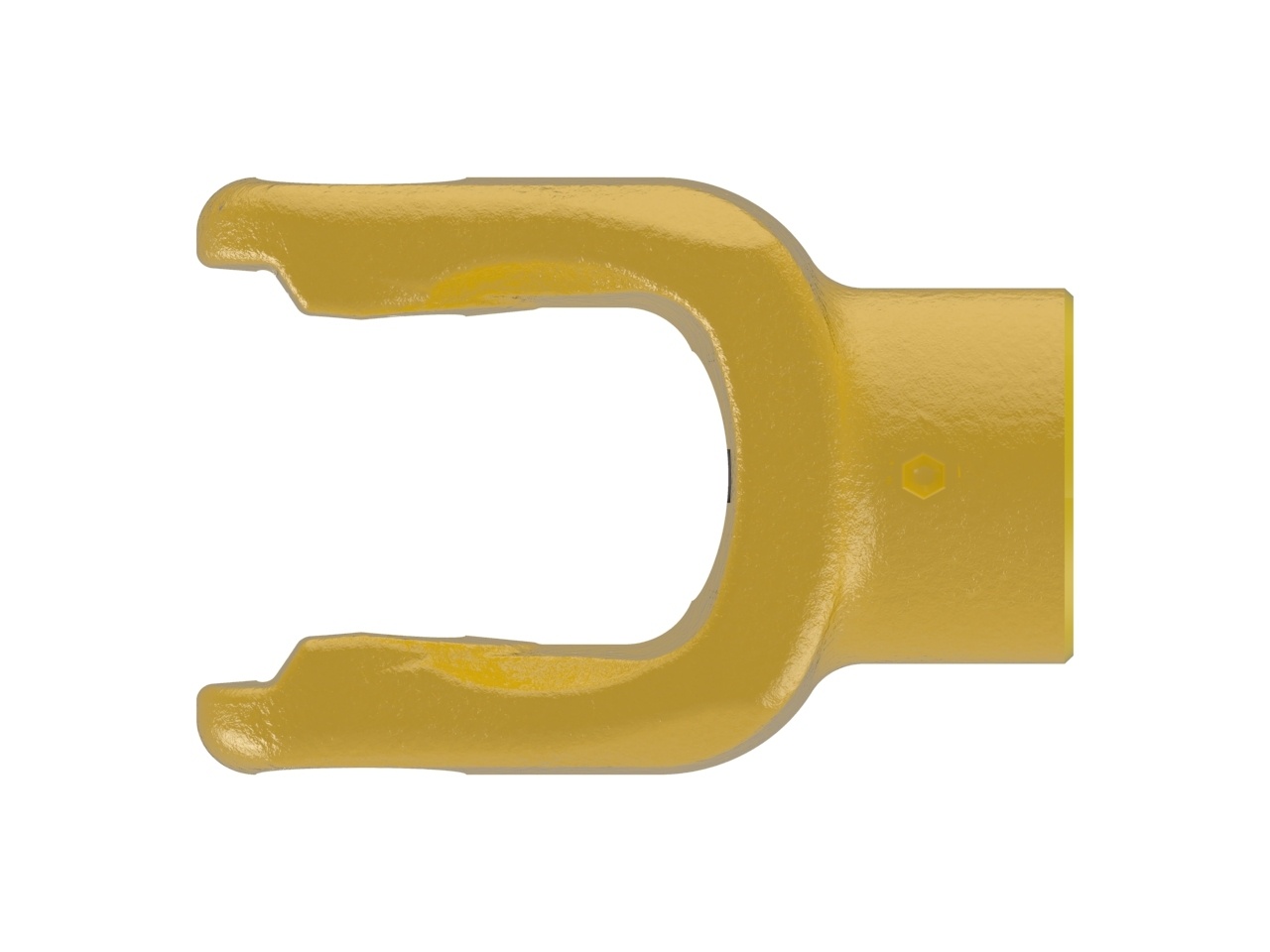

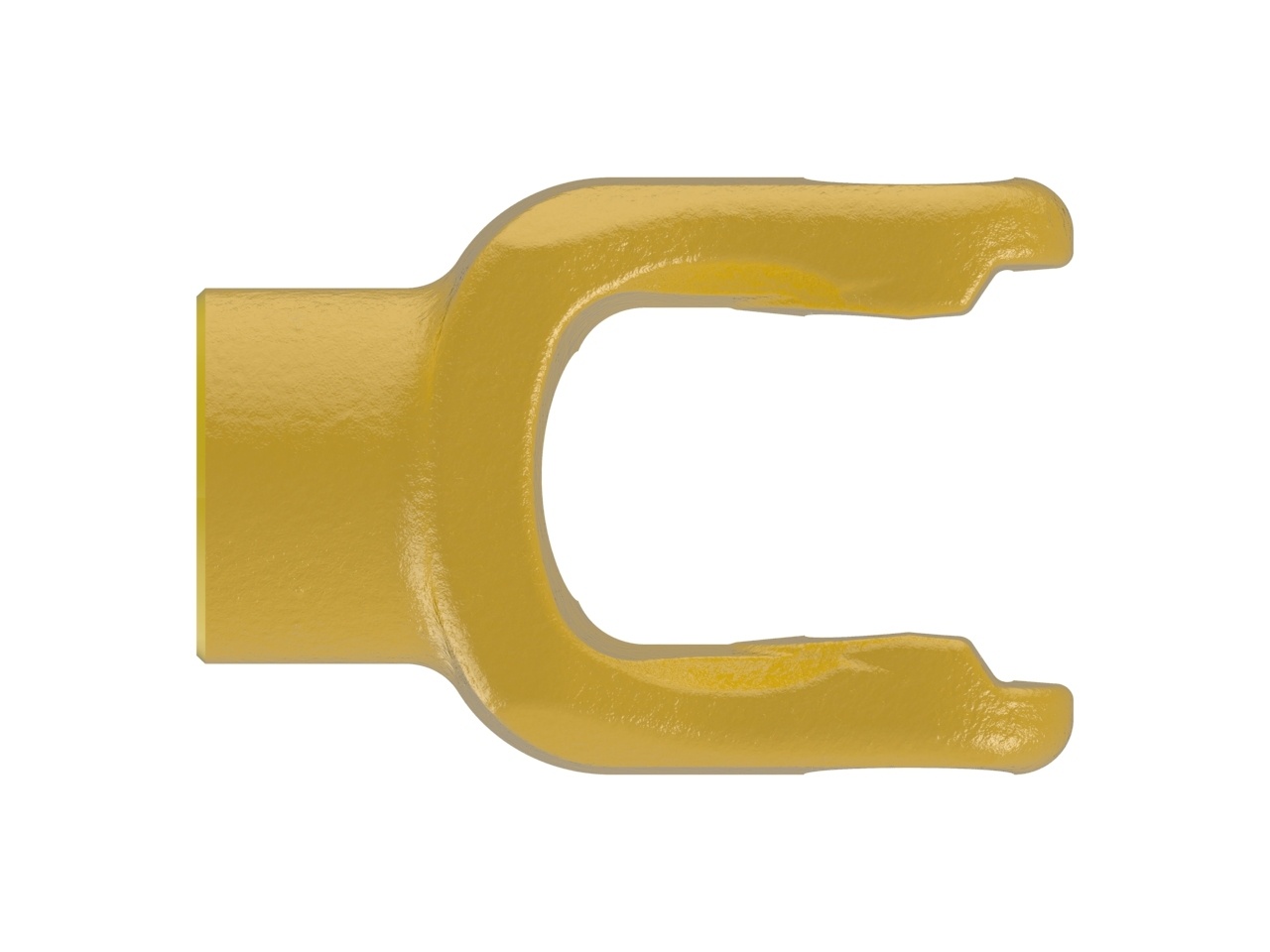

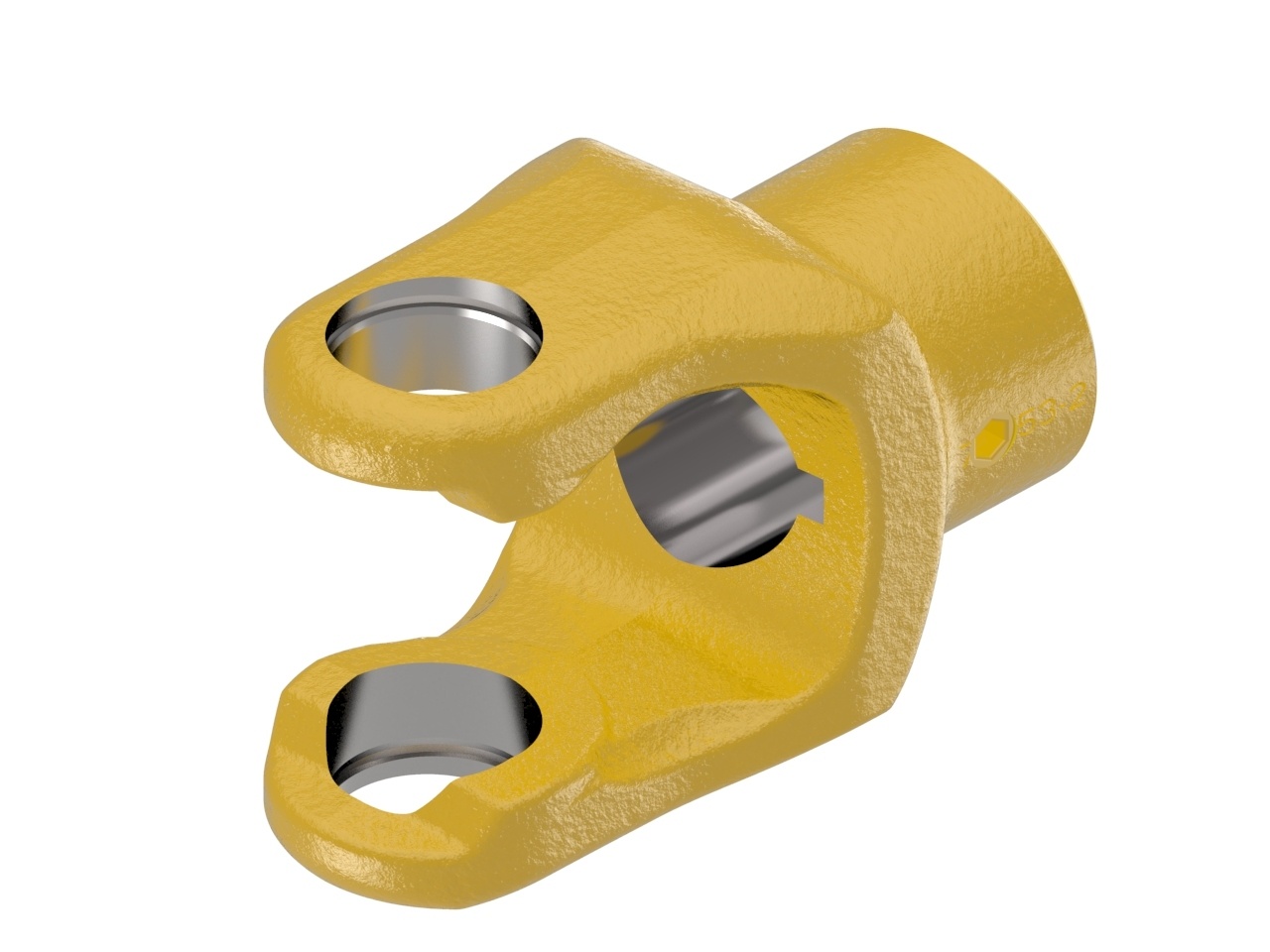

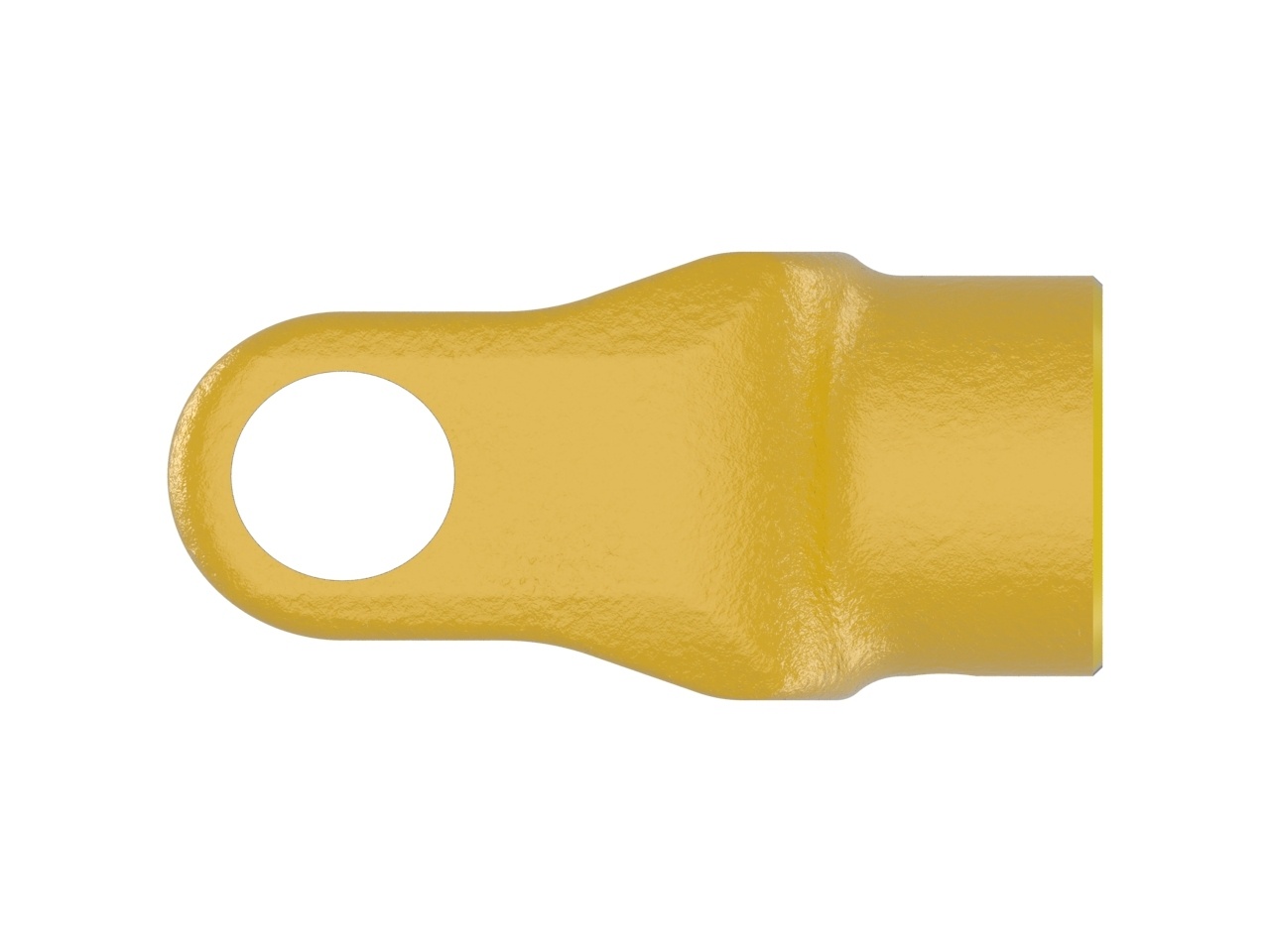

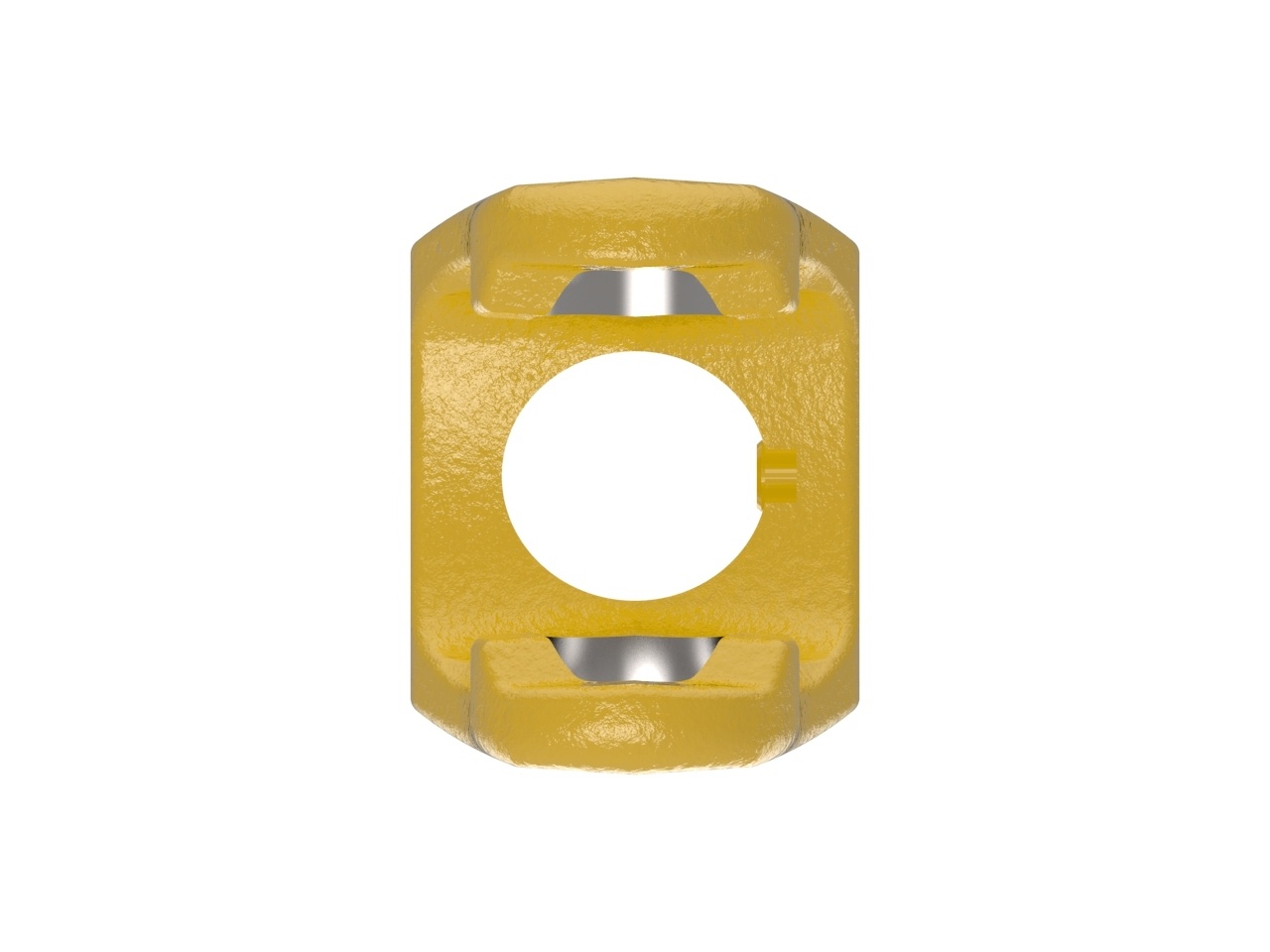

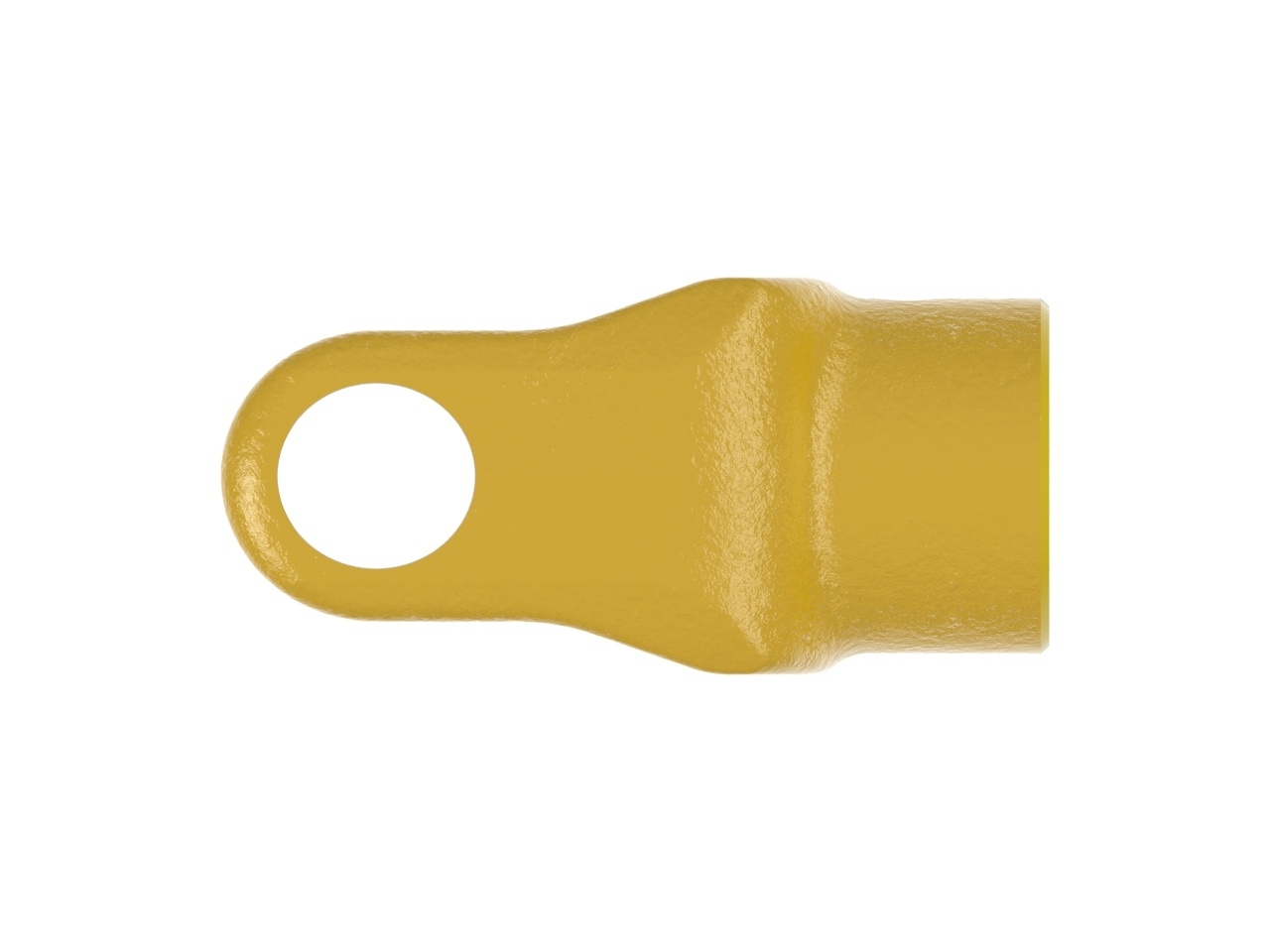

AB7N series yoke with round with keyway bore and setscrew connection. Note: Image color may not represent actual part.
PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.
PERFORMANCE BENEFITS
Specifications
Part Number: 800-6728
Product Series: AB7N
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.38 (1 3/8) in | 35 mm |
| Bearing Cap to Cap Span | 3.70 (3 45/64) in | 94 mm |
| Bore | 1.75 (1 3/4) in | 44 mm |
| Bore Description | ROUND WITH KEYWAY | |
| Connection 1 Type | SETSCREW | |
| HP@1000RPM | 145 HP | 108 kilowatts |
| HP@540RPM | 94 HP | 70 kilowatts |
| Keyway 1 | 0.37 (3/8) in | 9 mm |
| Centerline to End Dim | 4.68 (4 11/16) in | 119 mm |
| Setscrew | 1/2-13 | |
| Weight | 5.20 pounds | 2 kilograms |
Related Products
| Product | Part Number |
|---|---|
| Cross & Bearing Kit | 200-6794 |
| Setscrew | 1/2-13 |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-PTO-Drive-Shaft | Maintenance Document | English |
| Service-Instructions-Universal-Joint | Service Document | English |
| Lack-of-Grease-Cross-Brg-Kit | Troubleshooting Document | English |
