800-6728

AB7N Series Setscrew Yoke

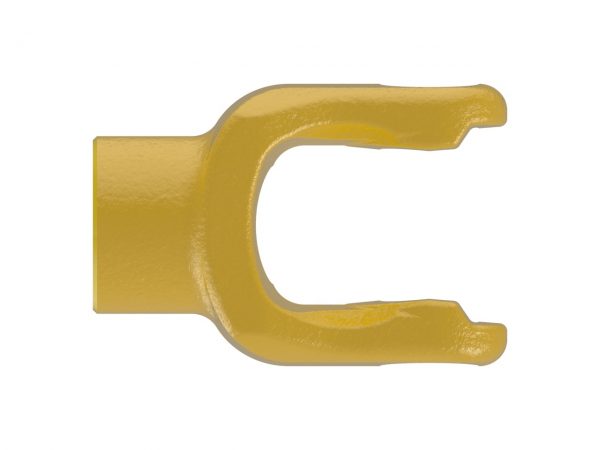

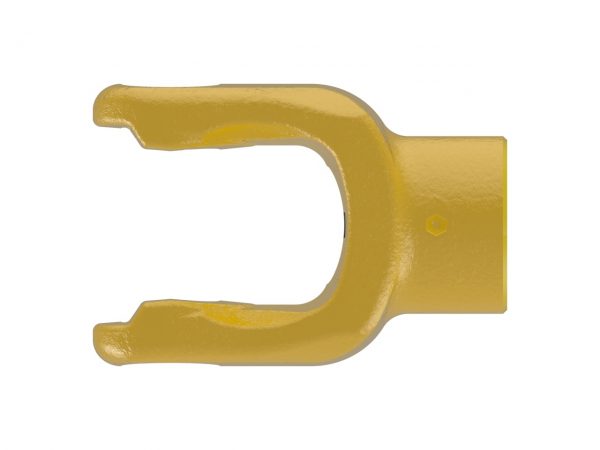

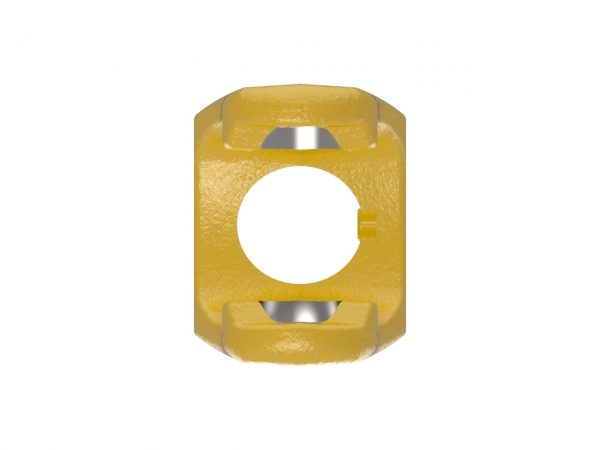

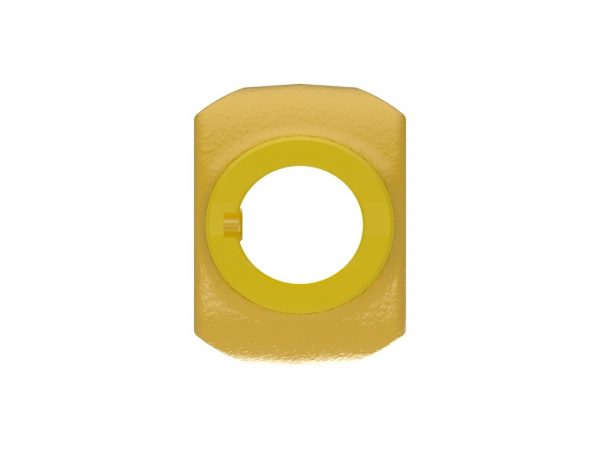

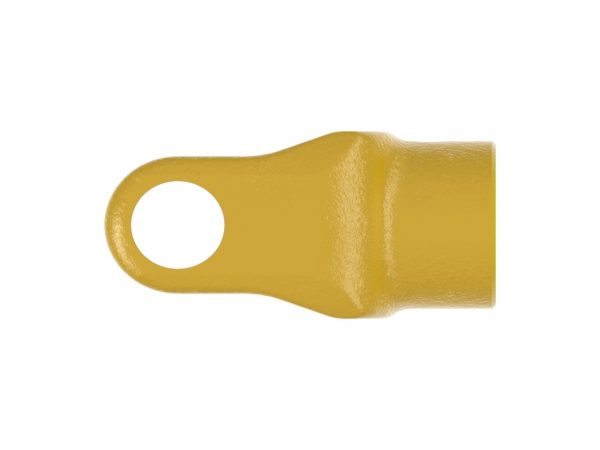

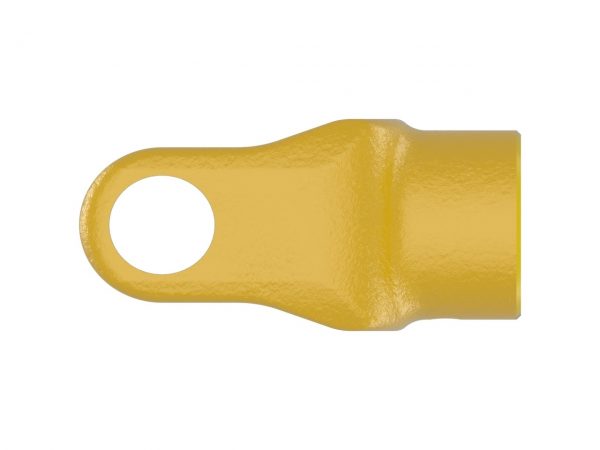

AB7N series yoke with round with keyway bore and setscrew connection. Note: Image color may not represent actual part.

View My List

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.75 inches44 mm
Bore 1 ROUND WITH KEYWAY
Connection 1 SETSCREW
Height4.72 inches120 mm
HP@1000RPM145 HP108 kilowatts
HP@540RPM94 HP70 kilowatts
Keyway 10.37 inches9 mm
Length4.68 inches119 mm
Setscrew 1/2-13
Shipping Dimensions5.77" L  ×  4.72" H  ×  2.95" W15cm L  ×  12cm H  ×  7cm W
Shipping Volume80.34 in31317 cm3
Shipping Weight5.20 pounds2 kilograms
Weight5.20 pounds2 kilograms
Width2.95 inches75 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
