AB7N-80,AW36-80 Series Safety Slide Lock Yoke

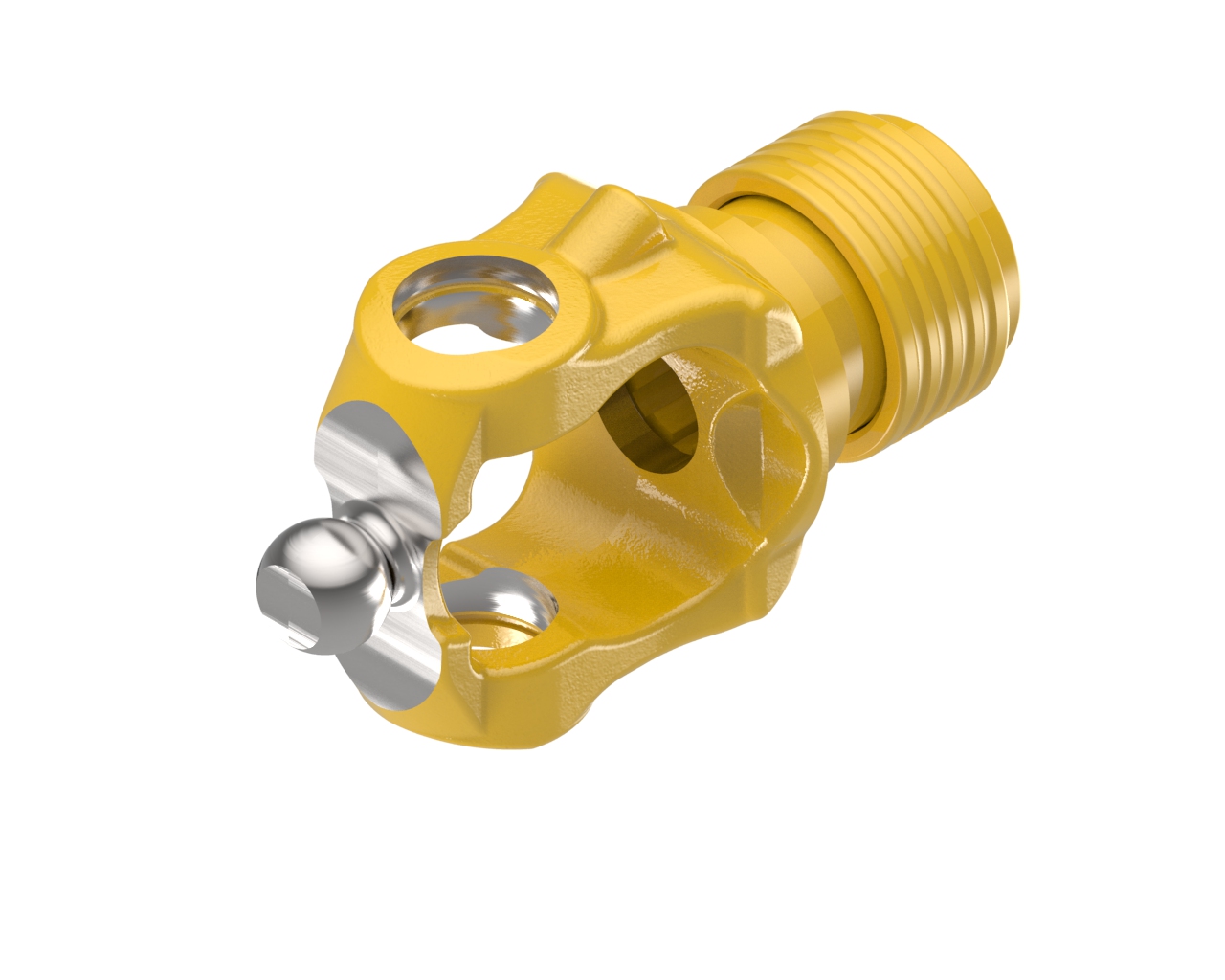

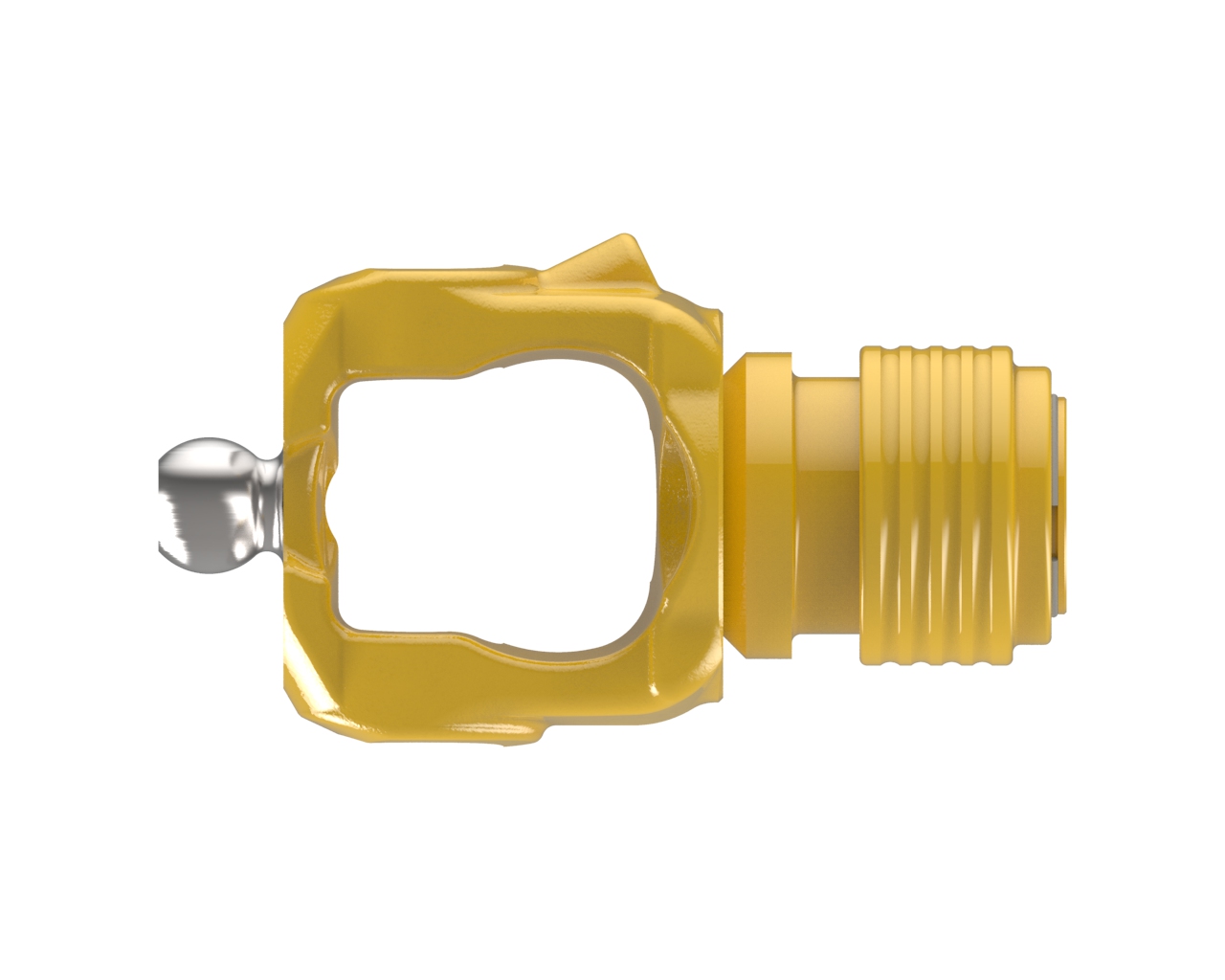

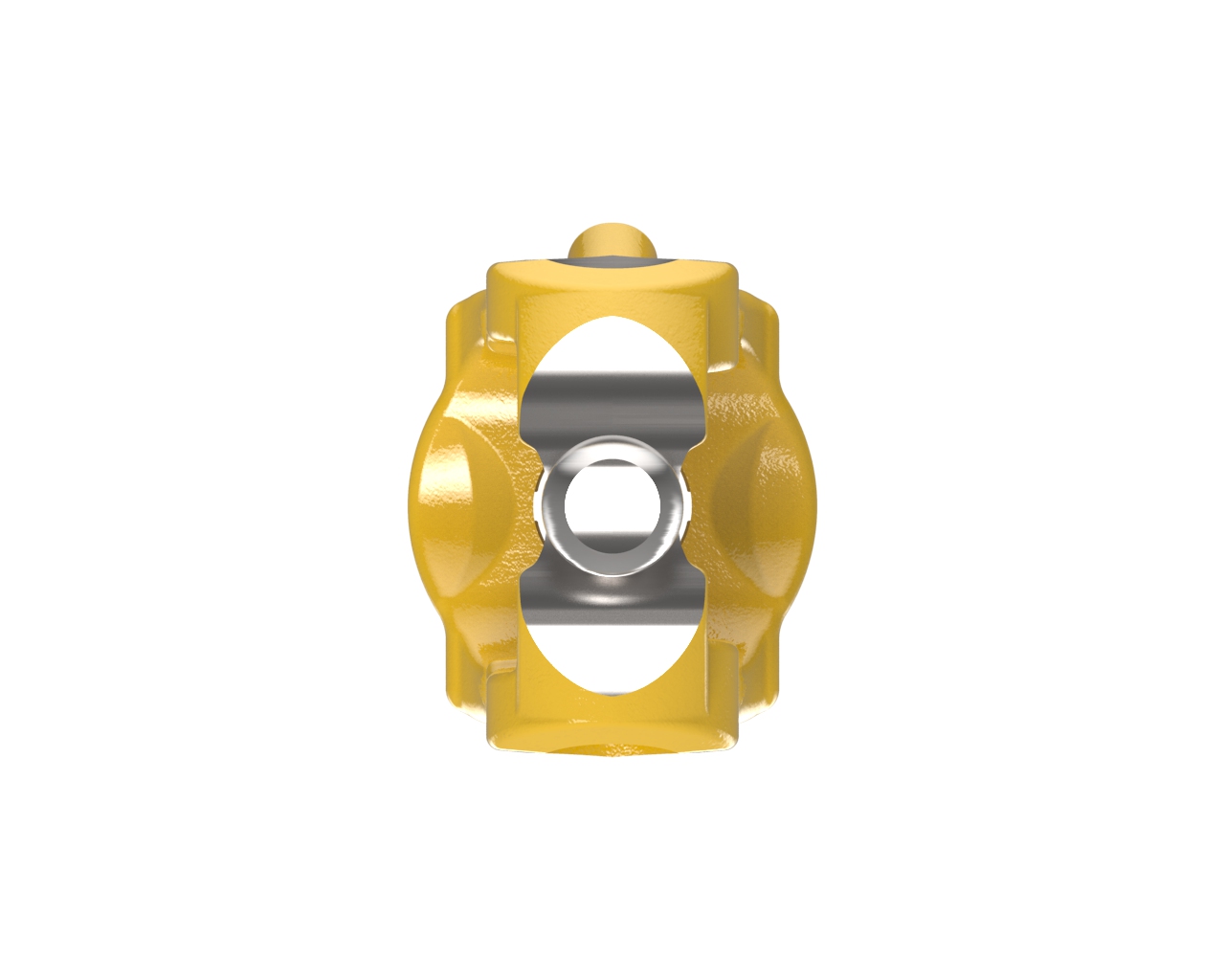

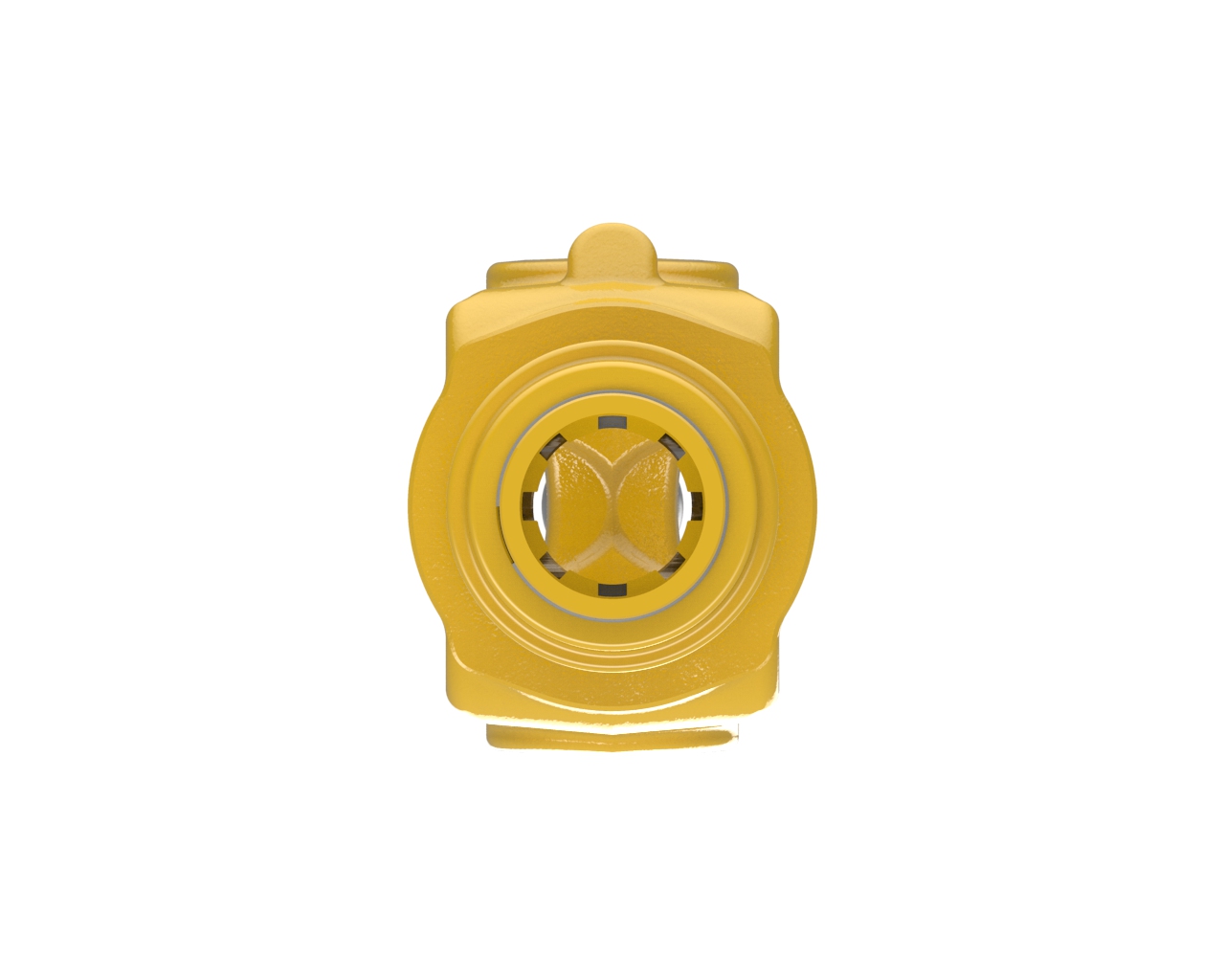

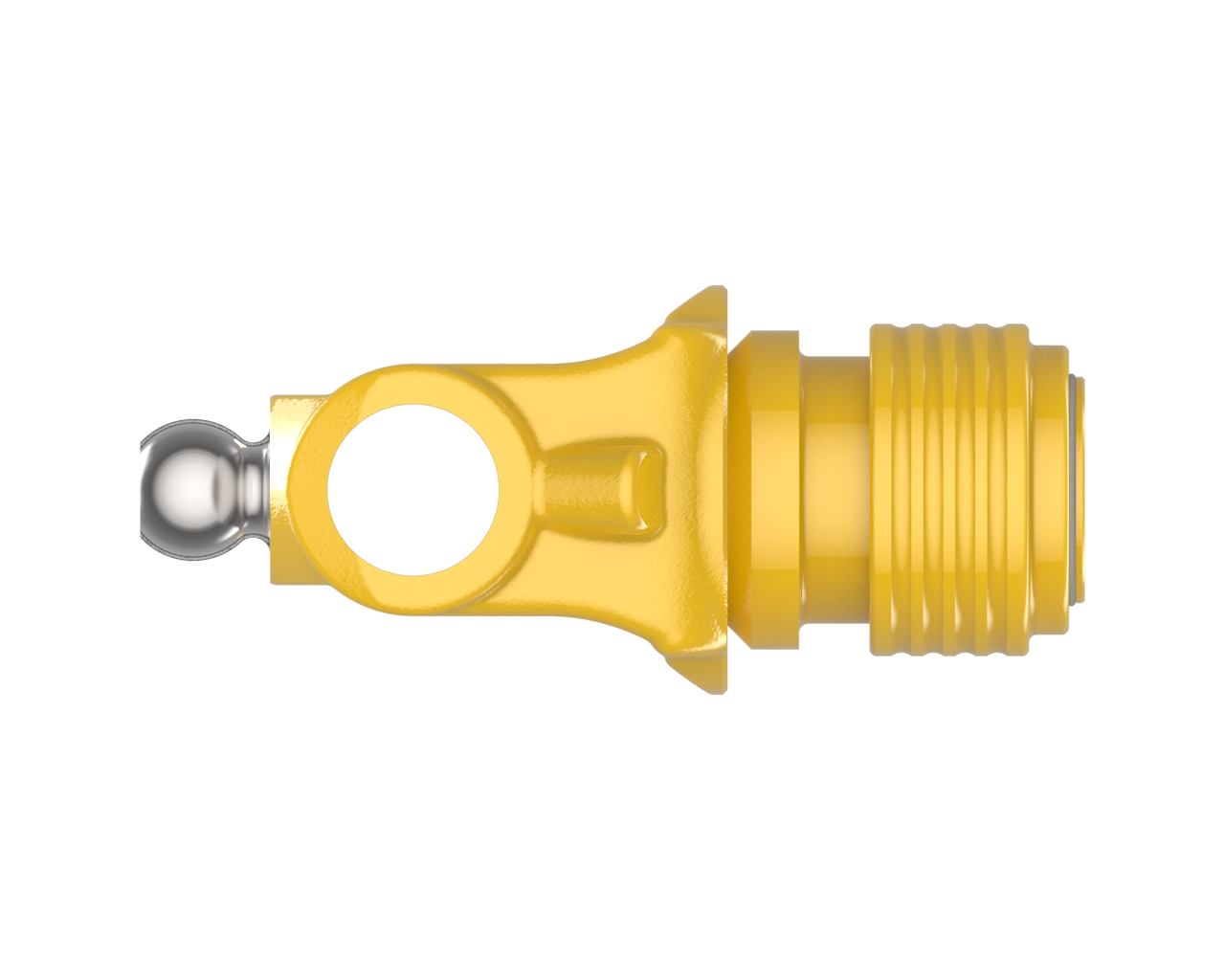

AB7N-80,AW36-80 series yoke with 1 1/2-8 spline bore and safety slide lock connection. Note: Image color may not represent actual part.
PTO drive shafts begin with a tractor yoke, it is the leading connection between the the tractor and the driveline. Weasler provides the CV wide angle tractor yokes with auto-lok or safety slide lock connections, and all connection types can be included on a 50° CV or 80° CV drive shaft or assembly. All yokes are compliant with, ANSI/ASABE AD5673, ANSI/ASABE S604 and EN1265. Agricultural CV wide angle tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed.
PERFORMANCE BENEFITS
Specifications
Part Number: 107-7932
Product Series: AB7N-80, AW36-80
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.41 (1 13/32) in | 36 mm |
| Bearing Cap to Cap Span | 3.49 (3 31/64) in | 89 mm |
| Bore | 1.50 (1 1/2) in | 38 mm |
| Bore Description | 1 1/2-8 SPLINE | |
| Centerline to End Dim. | 5.55 (5 35/64) in | 141 mm |
| Weight | 6.40 pounds | 3 kilograms |
| Width | 2.75 (2 3/4) in | 70 mm |
