563-8621-05

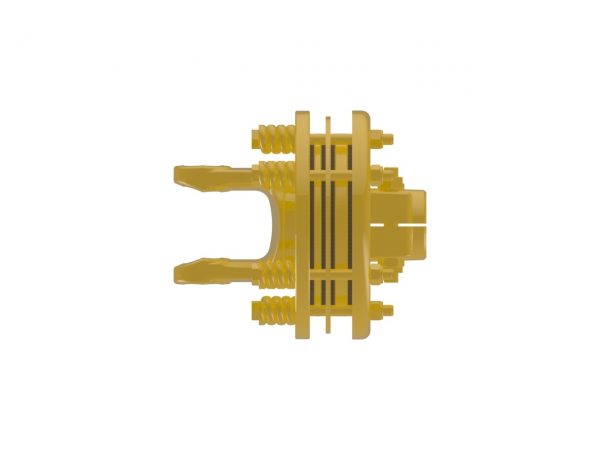

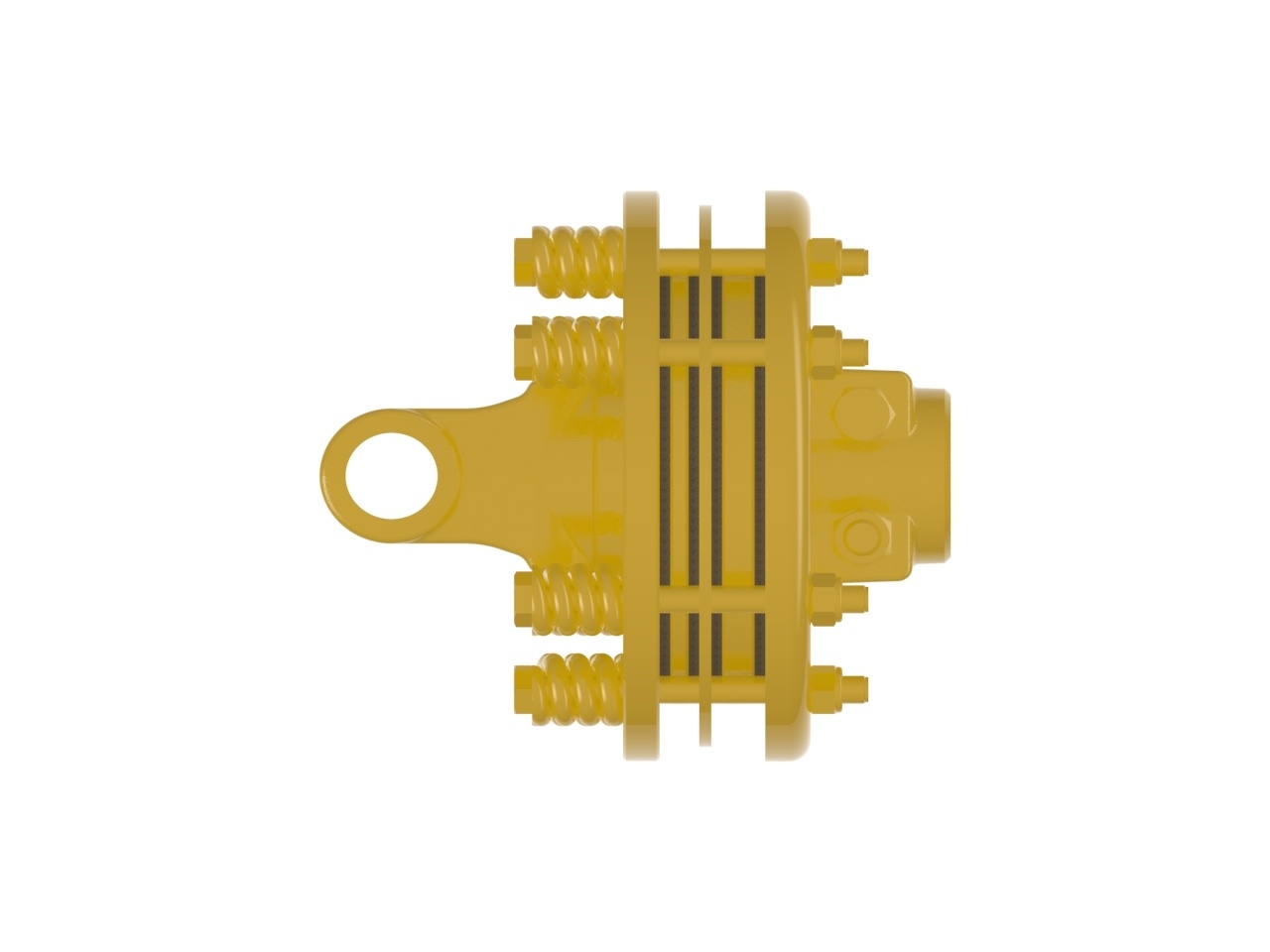

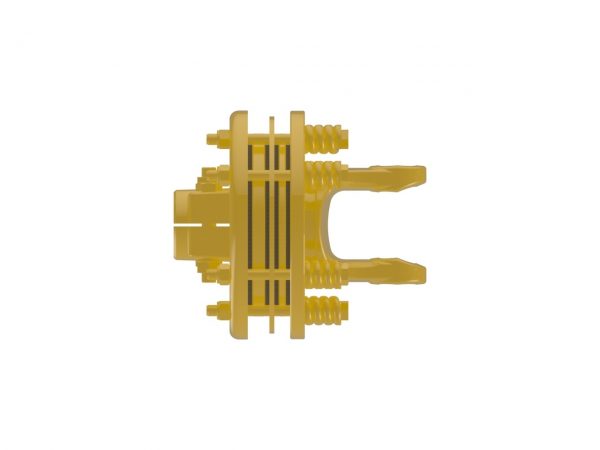

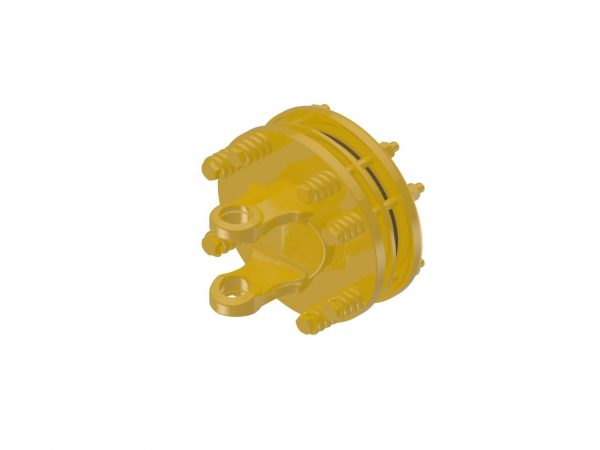

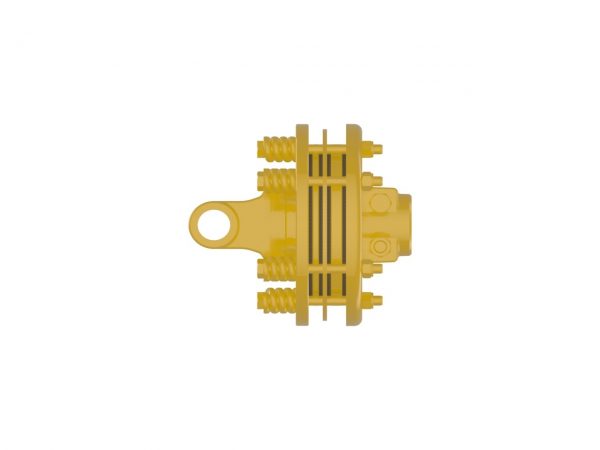

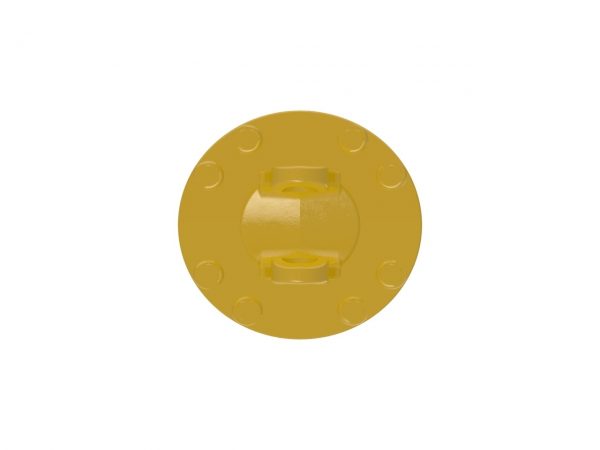

AB6,AW22 Series Friction Clutch Clamp Yoke

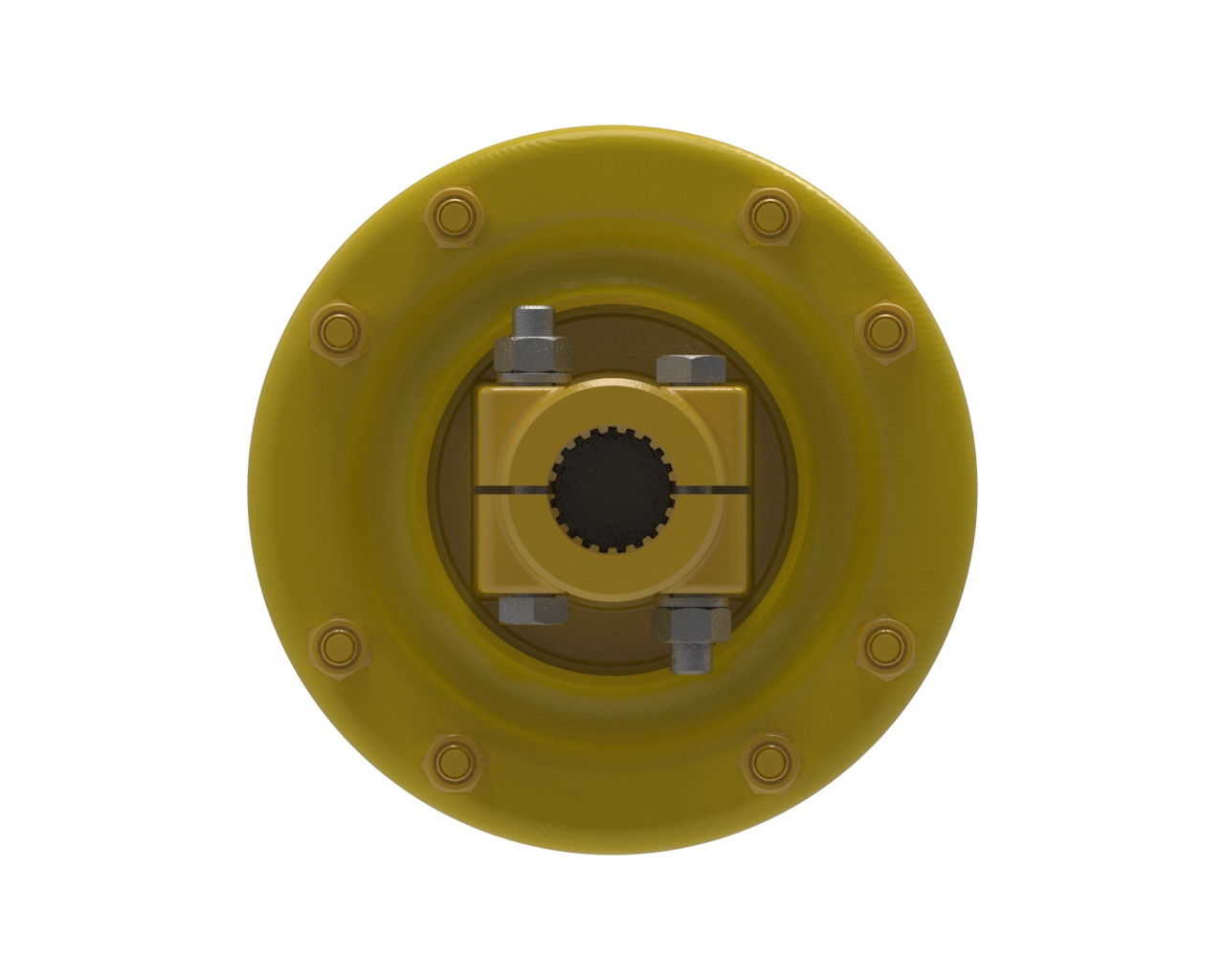

AB6,AW22 series friction clutch yoke with 1 3/8-21 spline bore and clamp connection

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

The Friction clutch is indispensable in certain agricultural implement applications. The friction clutch is the only torque limiter that has the ability to continuously transmit power (at a reduced level) while overloaded. This is valuable during startup of high inertia machines, as well as for leveling out torsional fluctuations due to high cyclic loads. The standard friction clutch with coil springs can be set in the field to the desired overload protection and must be readjusted after slipping.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bearing Diameter1.18 inches30 mm
Bearing Span3.61 inches92 mm
Bore 11.37 inches35 mm
Bore 1 1 3/8-21 SPLINE
Connection 1 CLAMP
HP@1000RPM122 HP91 kilowatts
HP@540RPM79 HP59 kilowatts
Length7.22 inches183 mm
Outside Diameter7.87 inches200 mm
Shipping Dimensions8.145" L  ×  7.874" H  ×  7.874" W21cm L  ×  20cm H  ×  20cm W
Shipping Volume504.99 in38275 cm3
Shipping Weight22.05 pounds10 kilograms
Torque1330013300
Weight22.05 pounds10 kilograms

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
