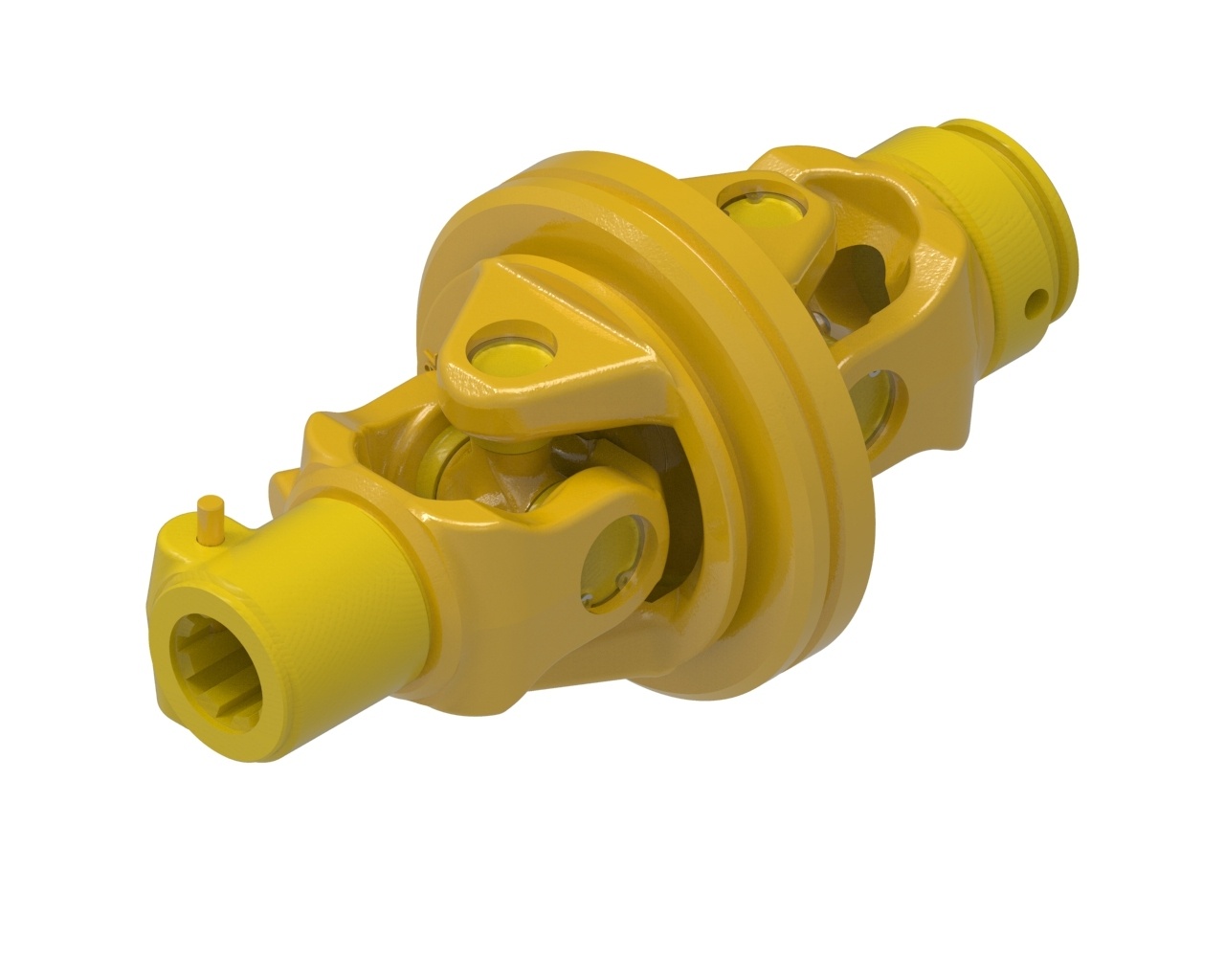

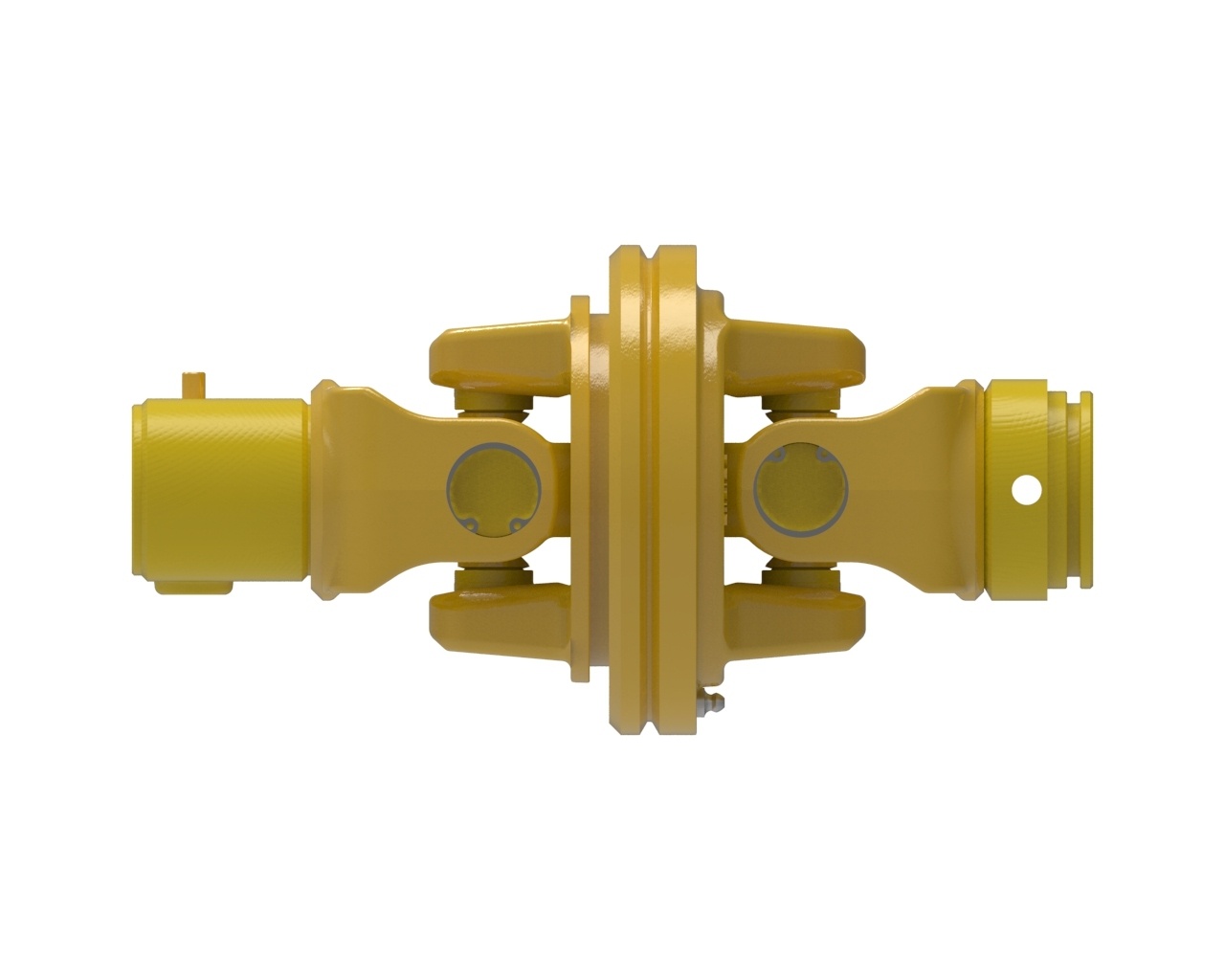

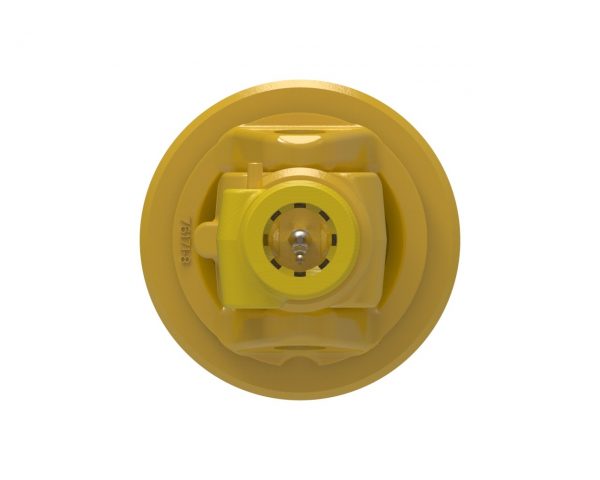

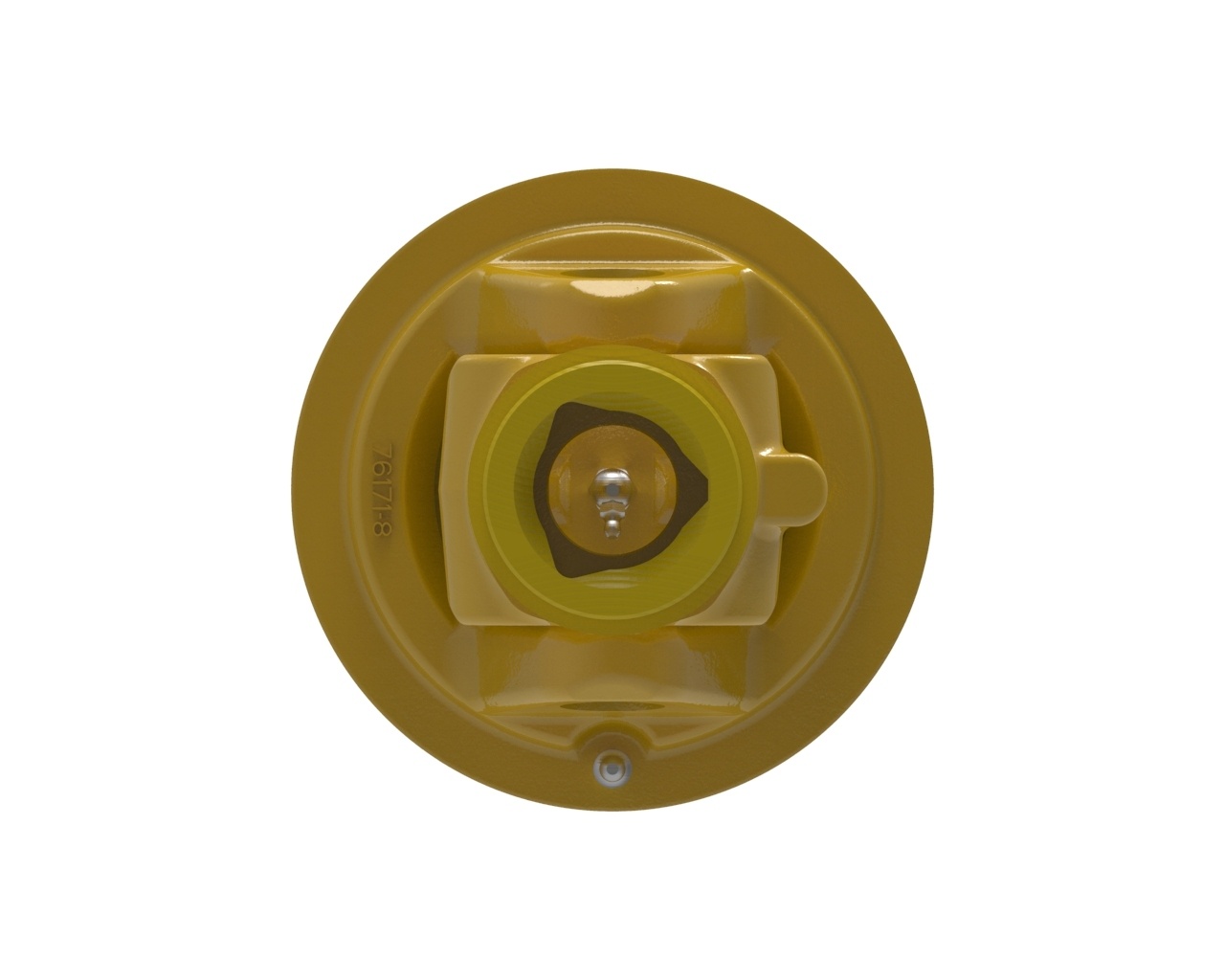

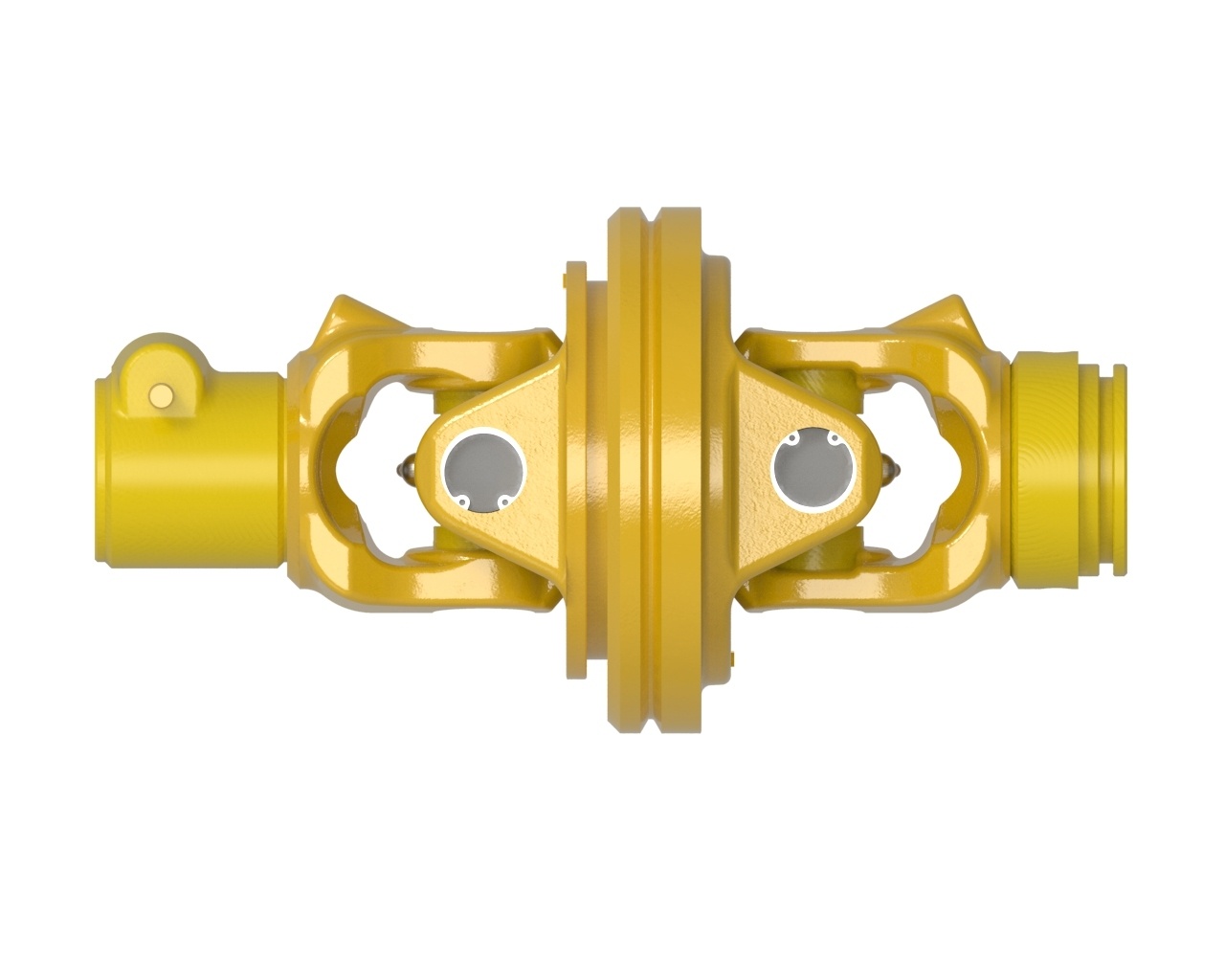

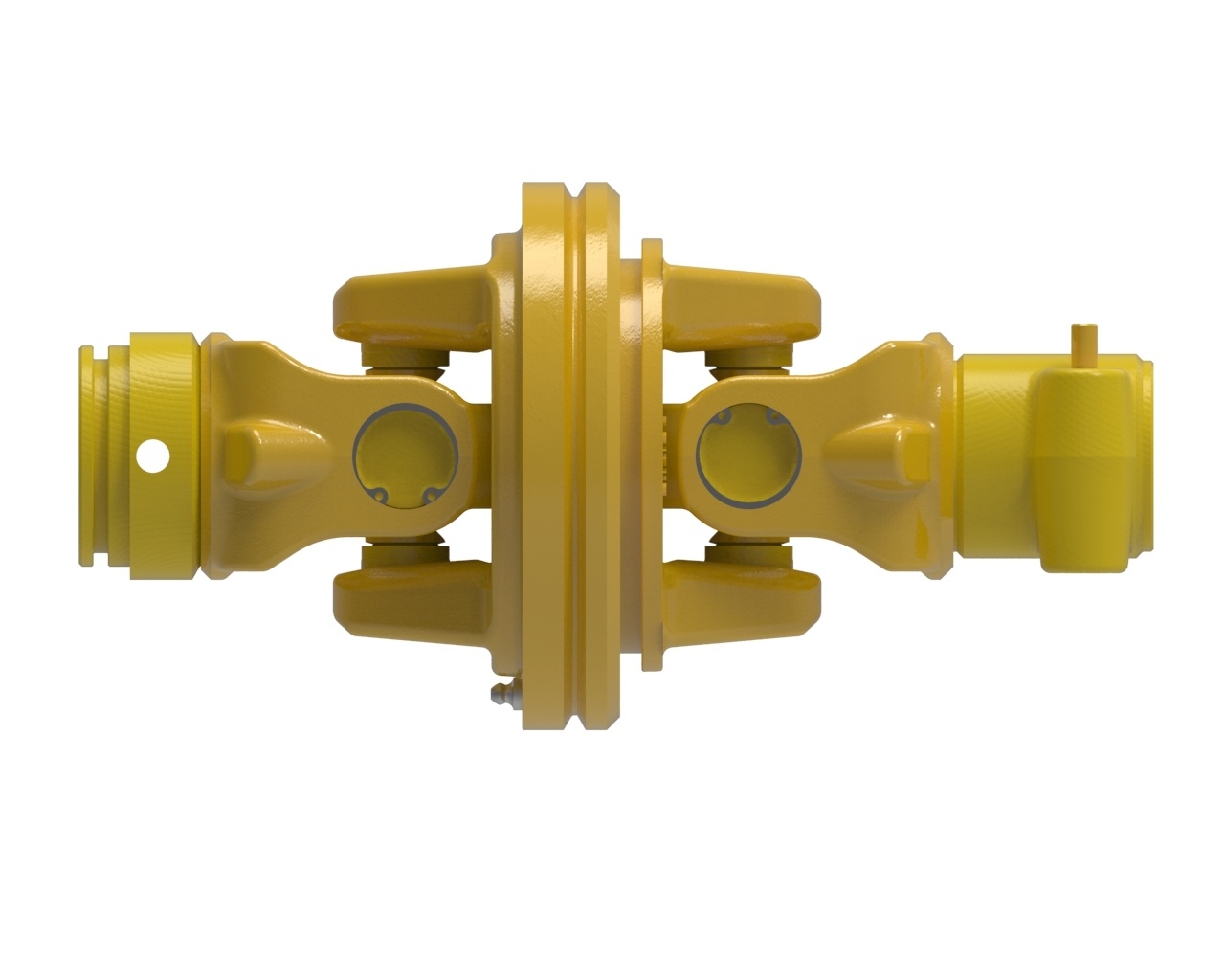

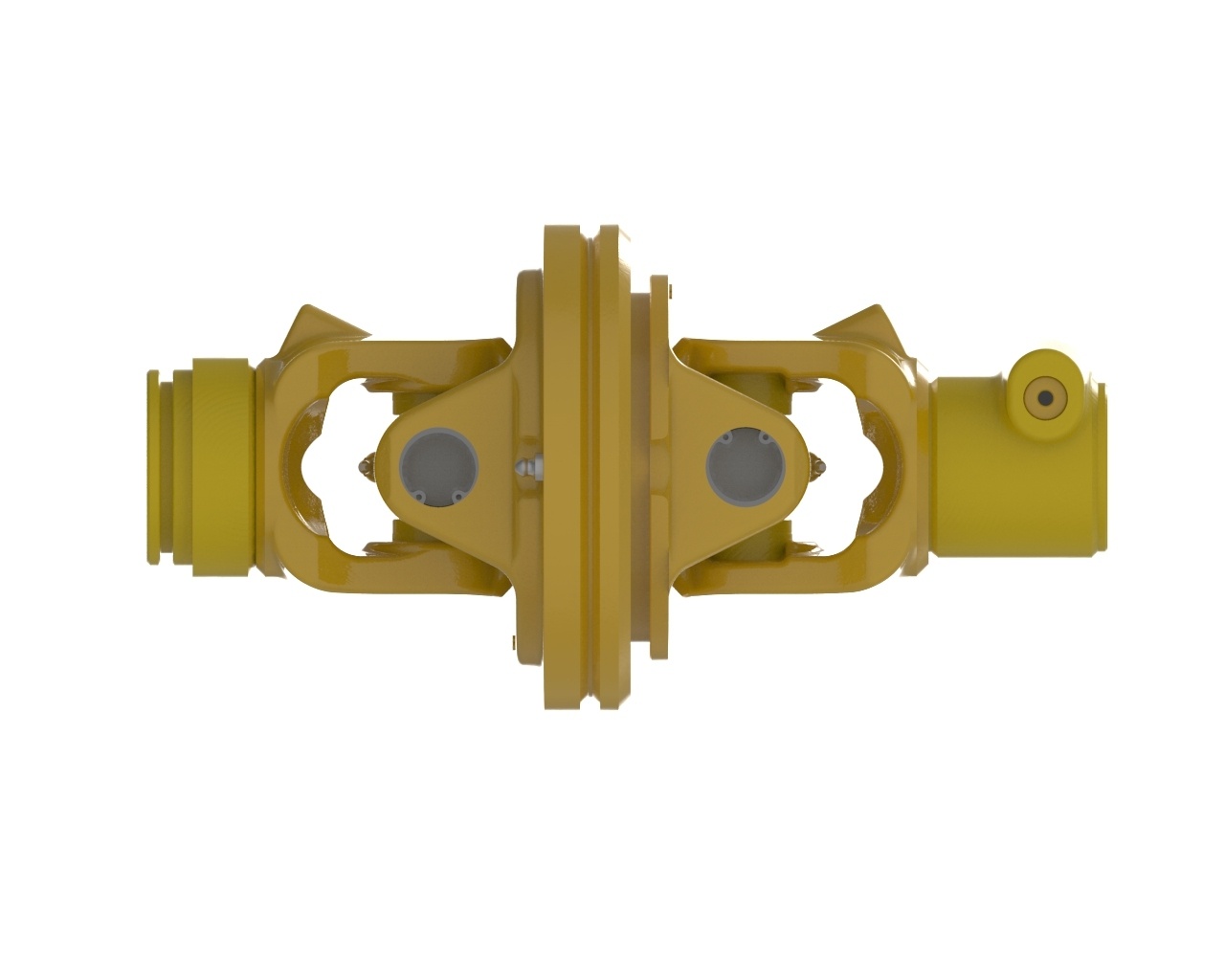

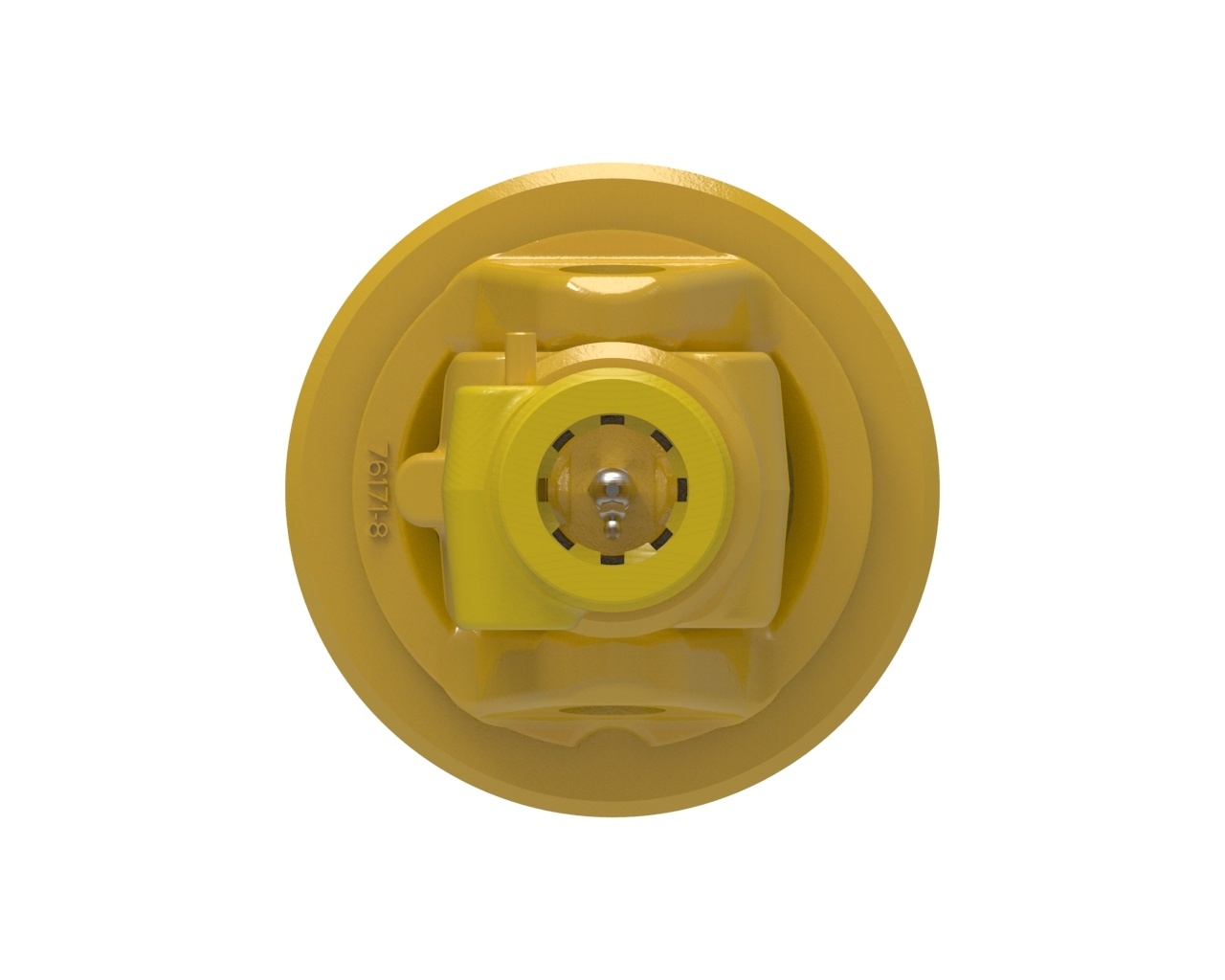

1551-6632-00CV WIDE ANGLE UNIVERSAL JOINT
AB6-80 Series CV Wide Angle Universal Joint
AB6-80 series CV wide angle universal joint with 1 1/2-8 spline, quick disconnect connection and 45 mm trilobe, roll pin connection
The CV Wide Angle Universal Joint is a component of the Weasler high performance CV Wide Angle PTO drive shafts, which are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler CV Wide Angle PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
Fits Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
Same component designs used for Weasler’s domestic and metric product lines.
|Bore 1||1.50 inches||38 mm|
|Bore 1||1 1/2-8 SPLINE|
|Bore 2||1.83 inches||46 mm|
|Bore 2||45 MM TRILOBE|
|Compressed (Closed) Length||4.09 inches||104 mm|
|Compressed Overall Length||12.86 inches||327 mm|
|Connection 1||QUICK DISCONNECT|
|Connection 2||ROLL PIN|
|Extended Length||4.09 inches||104 mm|
|Extended Overall Length||12.86 inches||327 mm|
|HP@1000RPM||87 HP||65 kilowatts|
|HP@540RPM||57 HP||43 kilowatts|
|Length||12.86 inches||327 mm|
|Outside Diameter||6.53 inches||166 mm|
|Shipping Dimensions||12.86" L × 6.535" H × 6.535" W||33cm L × 17cm H × 17cm W|
|Shipping Volume||549.20 in3||9000 cm3|
|Shipping Weight||23.08 pounds||10 kilograms|
|Weight||23.08 pounds||10 kilograms|
|Service Instructions - Lubricating 80 Deg CV.pdf||Maintenance Document||English|
|Service Instructions - CV Joint.pdf||Service Document||English|
|Lack of Grease - Cross & Brg Kit.pdf||Troubleshooting Document||English|
|80 deg CV Joint - Over Angle Operating.pdf||Troubleshooting Document||English|
|80 deg CV Joint - Over Angle NonOperating.pdf||Troubleshooting Document||English|
|WE0101003_1019_USL_80DegConstantVelocityJoint.pdf||Performance Benefits Document||English|
|WE0101011_0817_USL_EasyLockGuard.pdf||Performance Benefits Document||English|
