800-6524

AB5 Series Setscrew Yoke

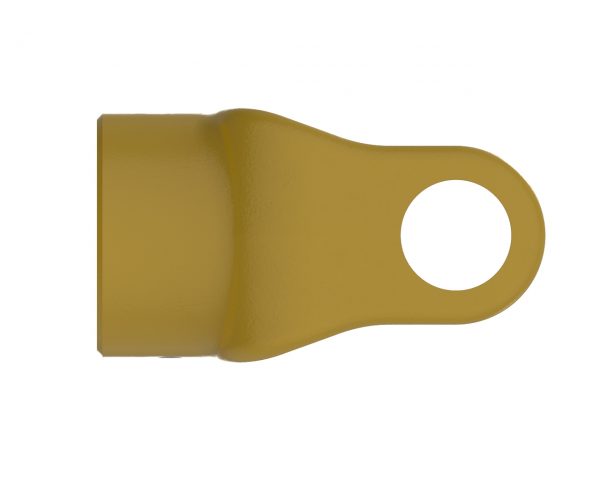

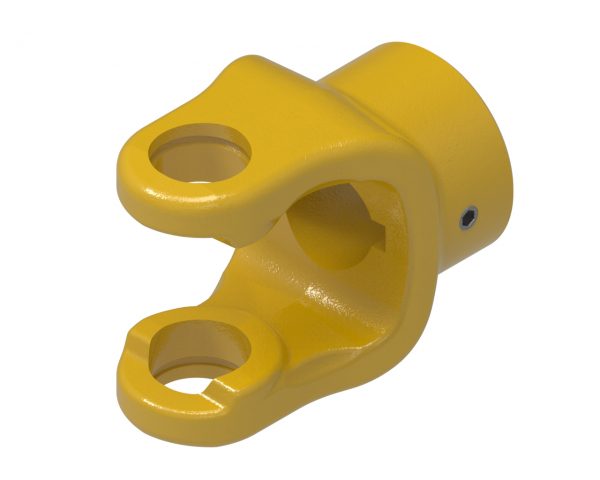

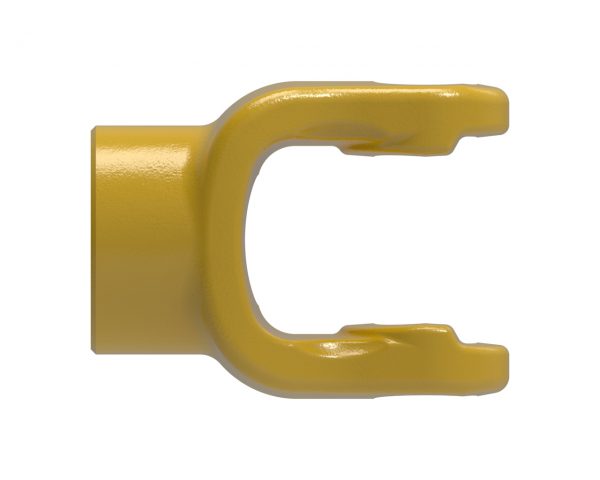

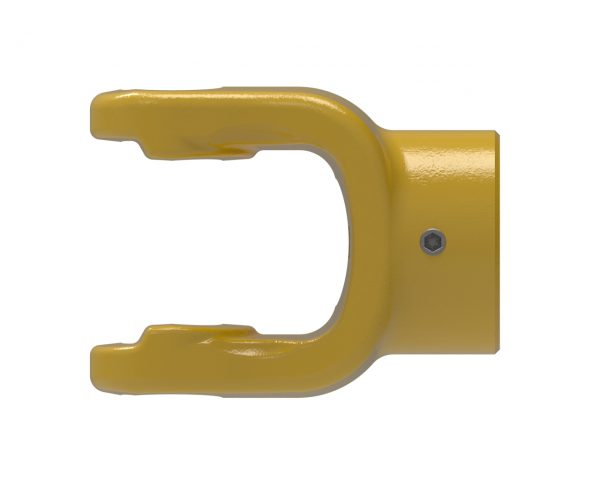

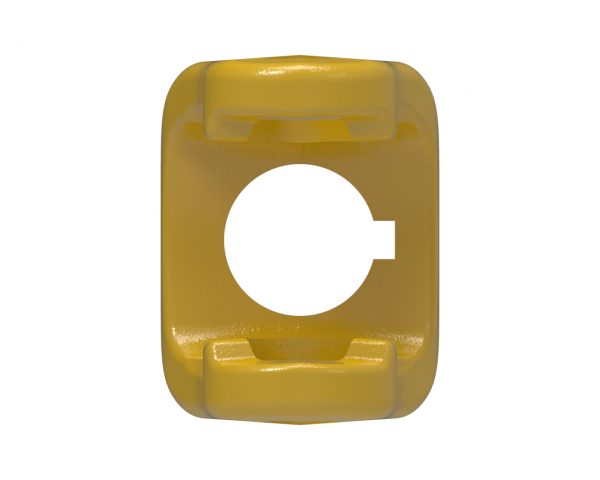

AB5 series yoke with round with keyway bore and setscrew connection

View My List

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.50 inches38 mm
Bore 1 ROUND WITH KEYWAY
Connection 1 SETSCREW
Height4.09 inches104 mm
HP@1000RPM100 HP75 kilowatts
HP@540RPM65 HP48 kilowatts
Keyway 10.37 inches9 mm
Length3.85 inches98 mm
Setscrew 3/8-16
Shipping Dimensions4.82" L  ×  4.09" H  ×  2.76" W12cm L  ×  10cm H  ×  7cm W
Shipping Volume54.41 in3892 cm3
Shipping Weight3.78 pounds2 kilograms
Weight3.78 pounds2 kilograms
Width2.76 inches70 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
