837-6506

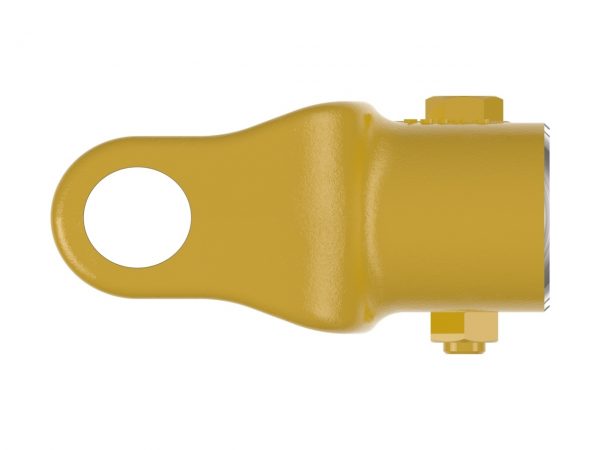

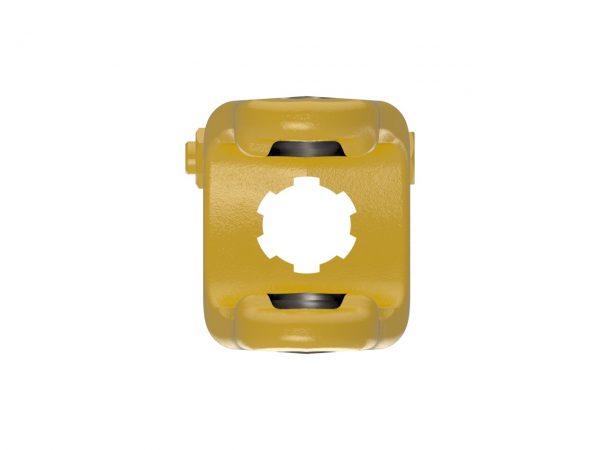

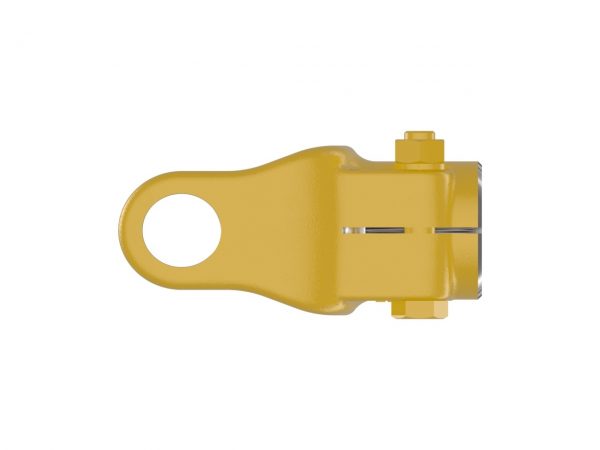

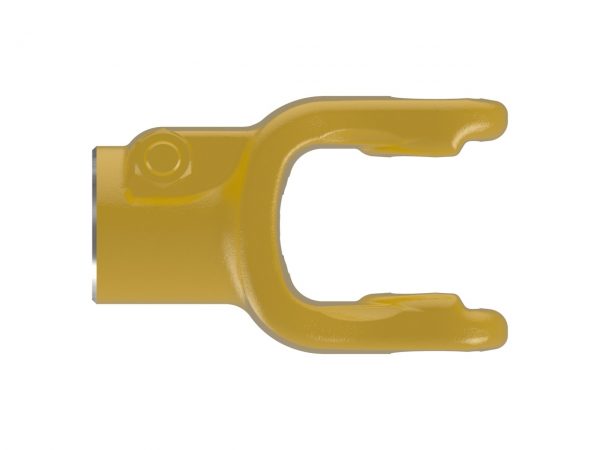

CLAMP YOKEAB5 Series Clamp Yoke
AB5 series yoke with 1 3/8-6 spline bore and clamp connection. Note: Image color may not represent actual part.
The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.37 inches | 35 mm |
Bore 1 | 1 3/8-6 SPLINE | |
Connection 1 | CLAMP | |
Height | 4.09 inches | 104 mm |
HP@1000RPM | 100 HP | 75 kilowatts |
HP@540RPM | 65 HP | 48 kilowatts |
Length | 4.57 inches | 116 mm |
Shipping Dimensions | 5.53" L × 4.09" H × 2.76" W | 14cm L × 10cm H × 7cm W |
Shipping Volume | 62.42 in3 | 1023 cm3 |
Shipping Weight | 4.79 pounds | 2 kilograms |
Weight | 4.79 pounds | 2 kilograms |
Width | 2.76 inches | 70 mm |
Downloads
Document Name | Type | Language |
---|---|---|
Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
Service Instructions - Universal Joint.pdf | Service Document | English |
Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
