802-8420

AB4,AW21 Series Pin Yoke

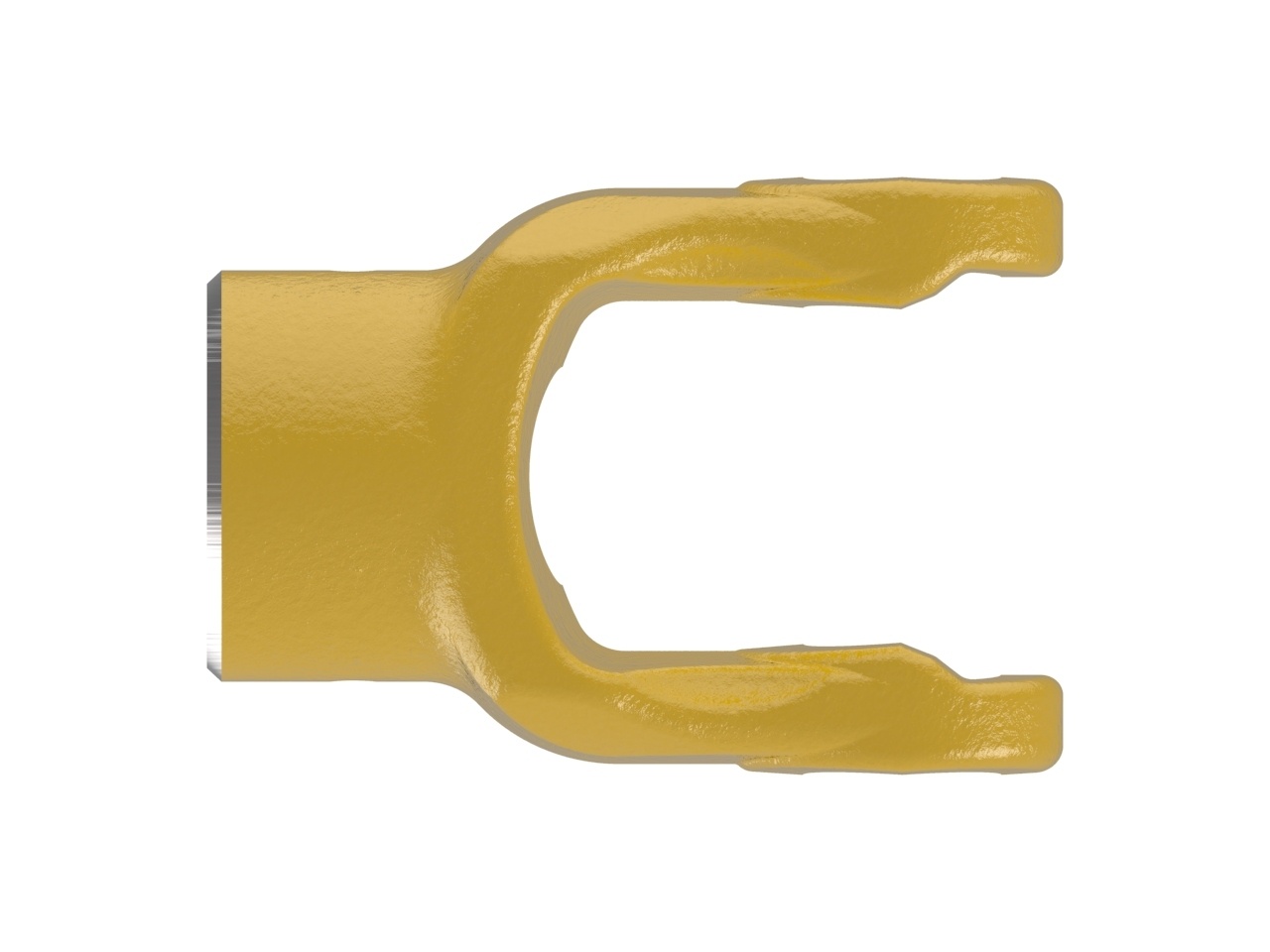

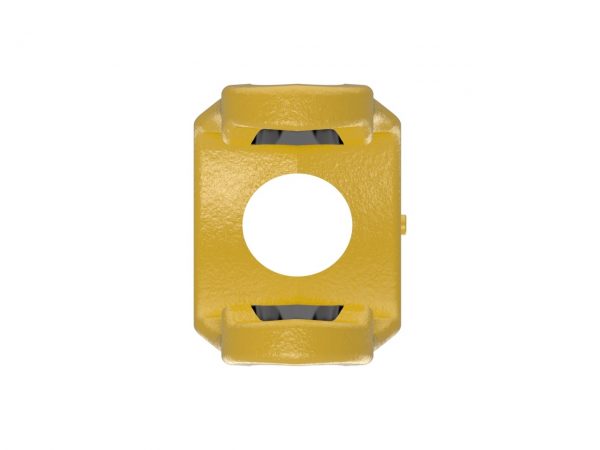

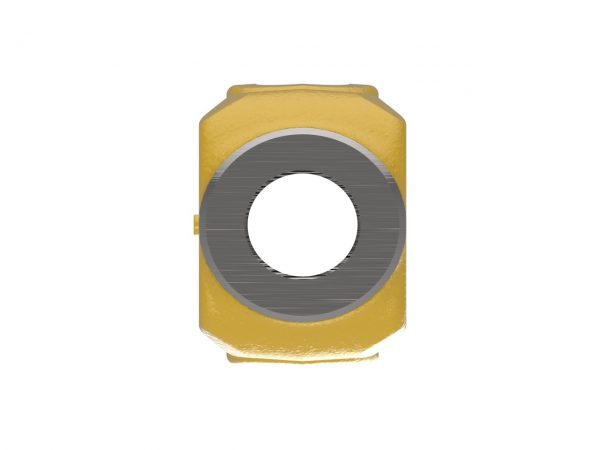

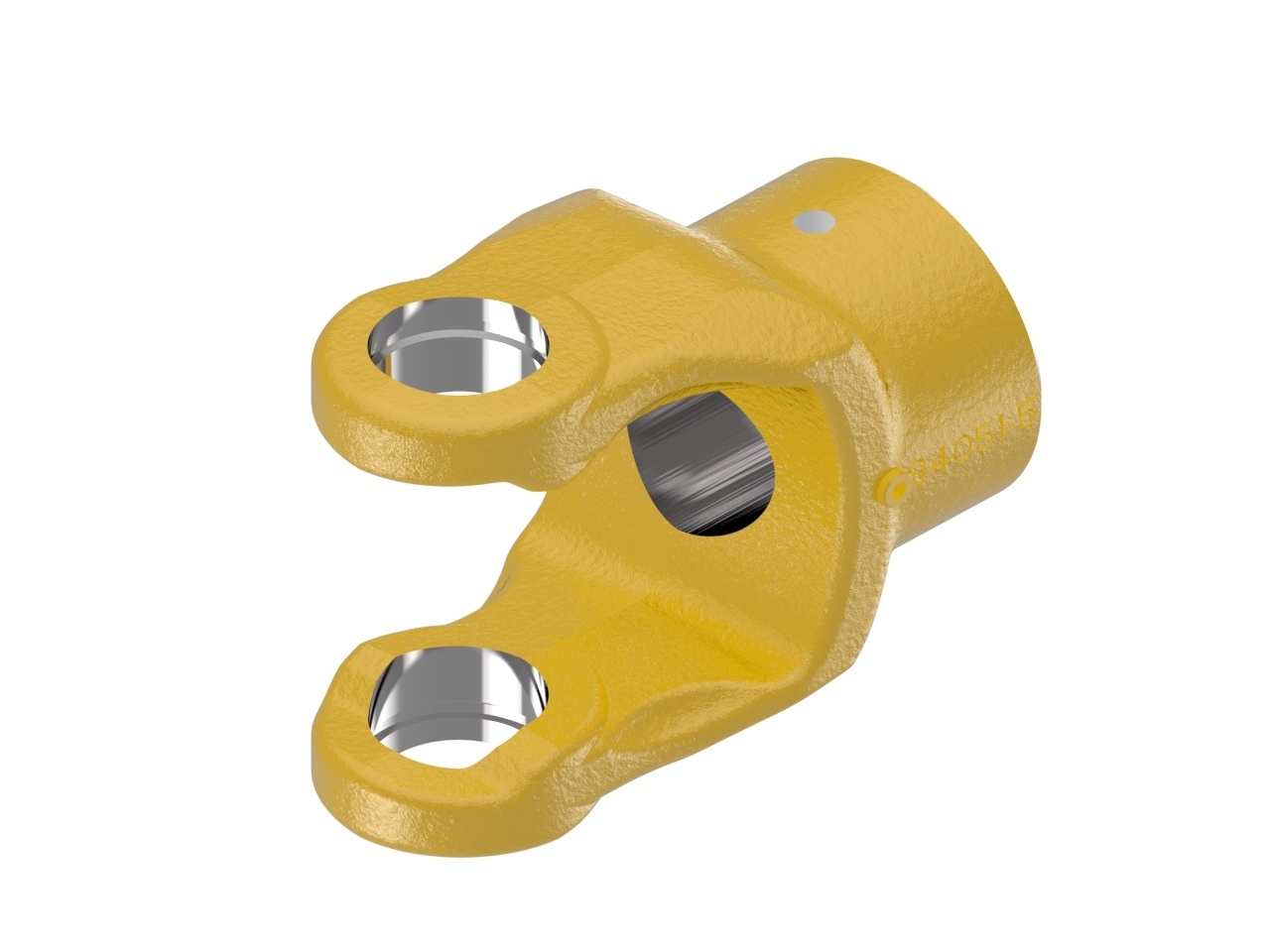

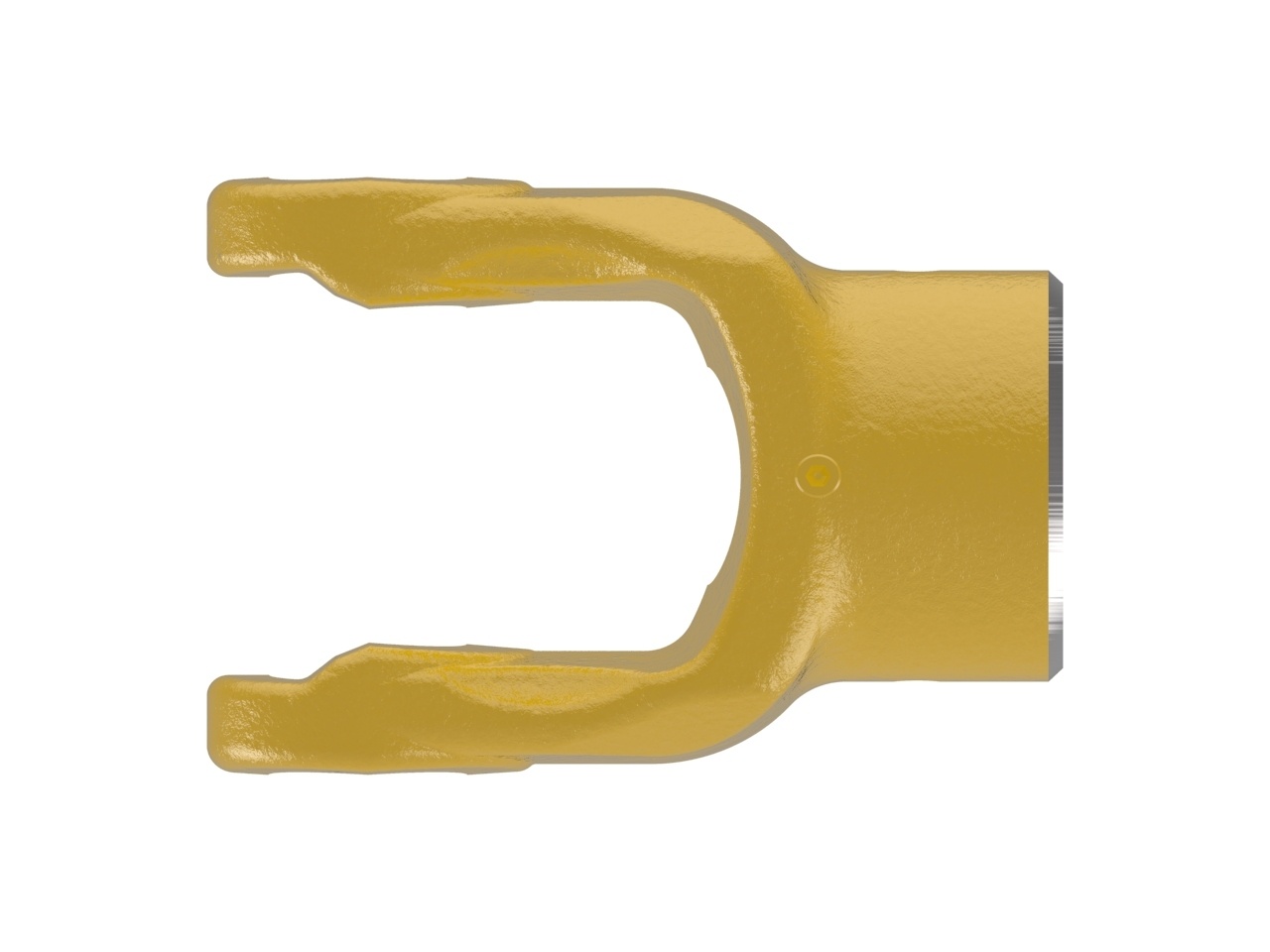

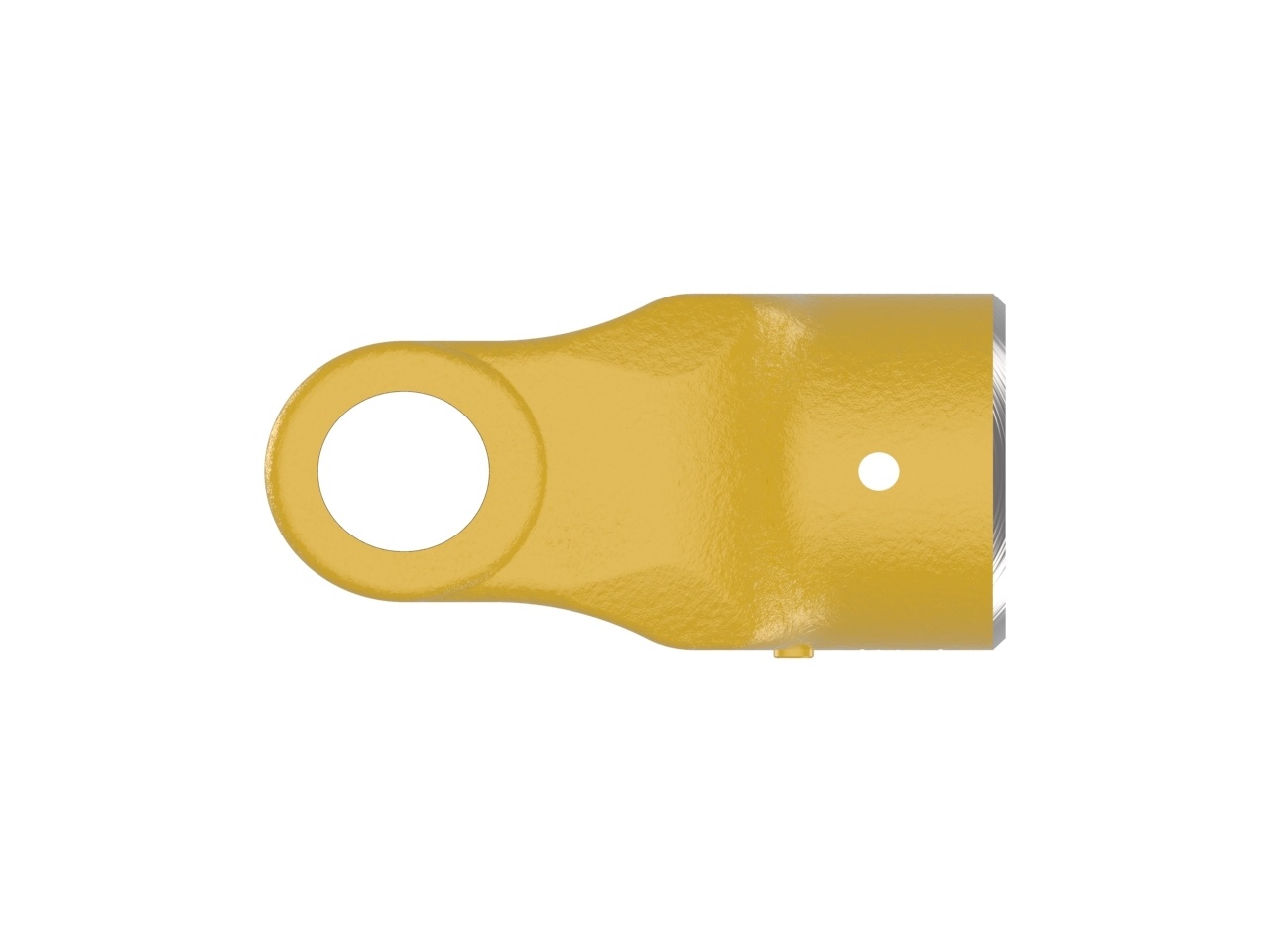

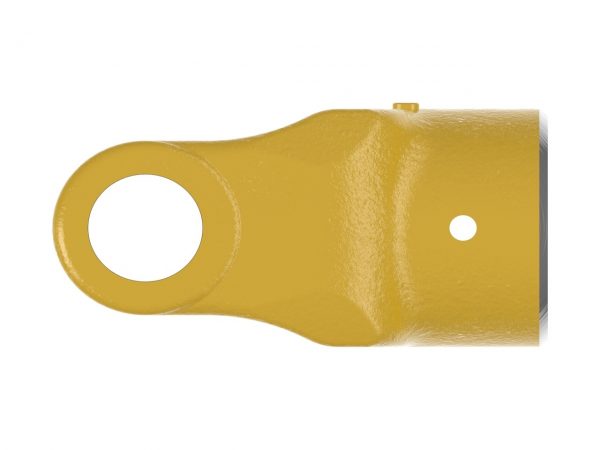

AB4,AW21 series yoke with round bore and pin connection

View My List

Weasler yokes are made to withstand robust conditions, and engineered for a precise fit. Weasler’s Shear Pin Yoke features a pin (bolt) that extends through the yoke and if broken during operation will spin. The compact, efficient design disconnects the power source from the drivetrain when overload occurs and helps prevent the generatation of damaging torque spikes or heat. Once the operator replaces the bolt, the machine can be restarted.

PERFORMANCE BENEFITS
• Implement overload protection.
• Minimal maintenance.
• No damaging heat generation for higher productivity.
• Repeatable overload disengagement setting.
• Smooth disengaged operation, no damaging torque spikes.
• Reduces possibility of damage.

Specifications

Spec. Imperial Metric
Bore 11.25 inches32 mm
Bore 1 ROUND
Connection 1 PIN
Height3.82 inches97 mm
HP@1000RPM70 HP52 kilowatts
HP@540RPM45 HP34 kilowatts
Length3.74 inches95 mm
Pin Hole0.25 inches6 mm
Shear Bolt (1) 1/4 Grade 8
Shipping Dimensions4.6" L  ×  3.82" H  ×  2.36" W12cm L  ×  10cm H  ×  6cm W
Shipping Volume41.47 in3680 cm3
Shipping Weight3.02 pounds1 kilograms
Torque1000010000
Weight3.02 pounds1 kilograms
Width2.36 inches60 mm
