FRICTION CLUTCH YOKEAB4,AW21 Series Friction Clutch Quick Disconnect Yoke

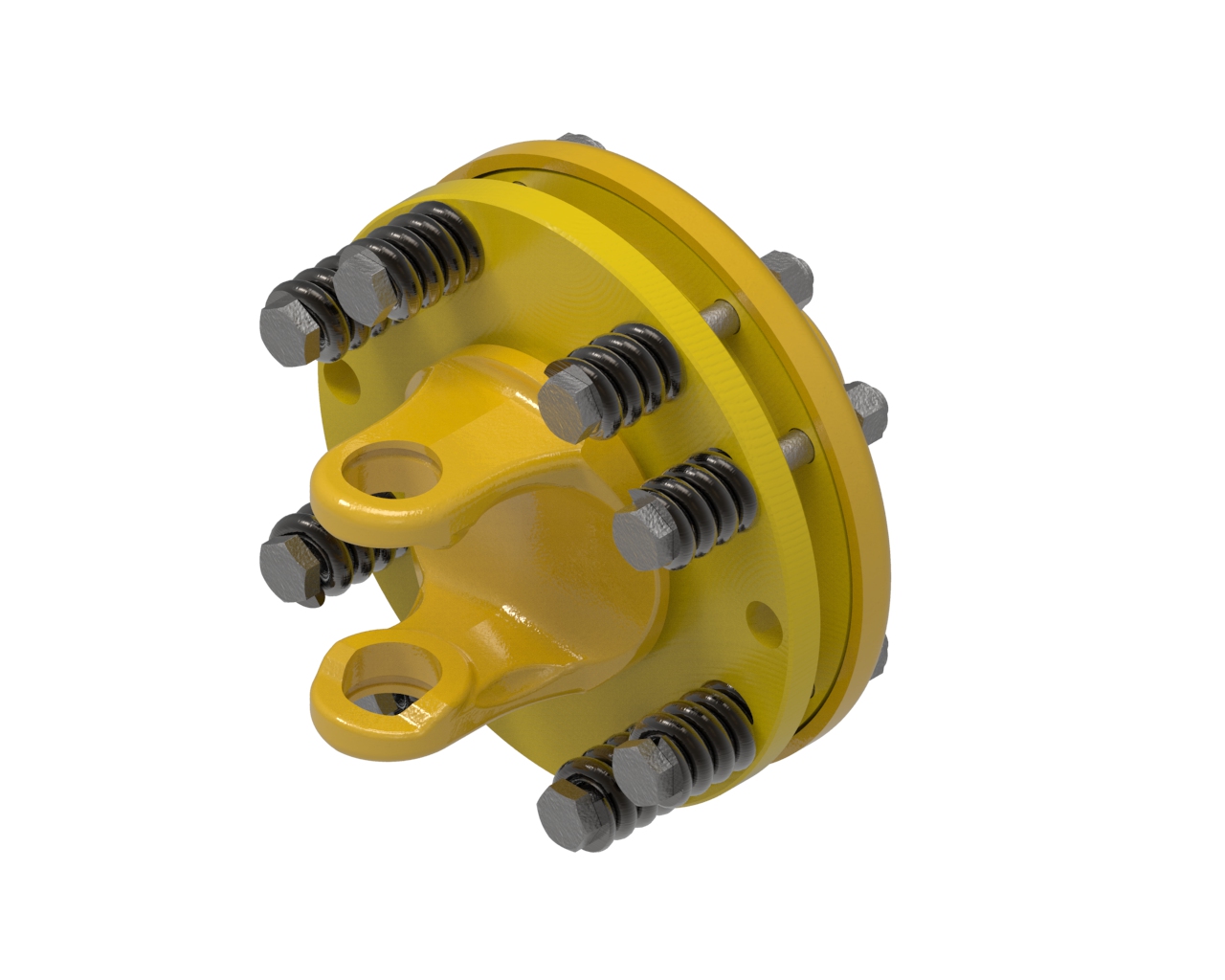

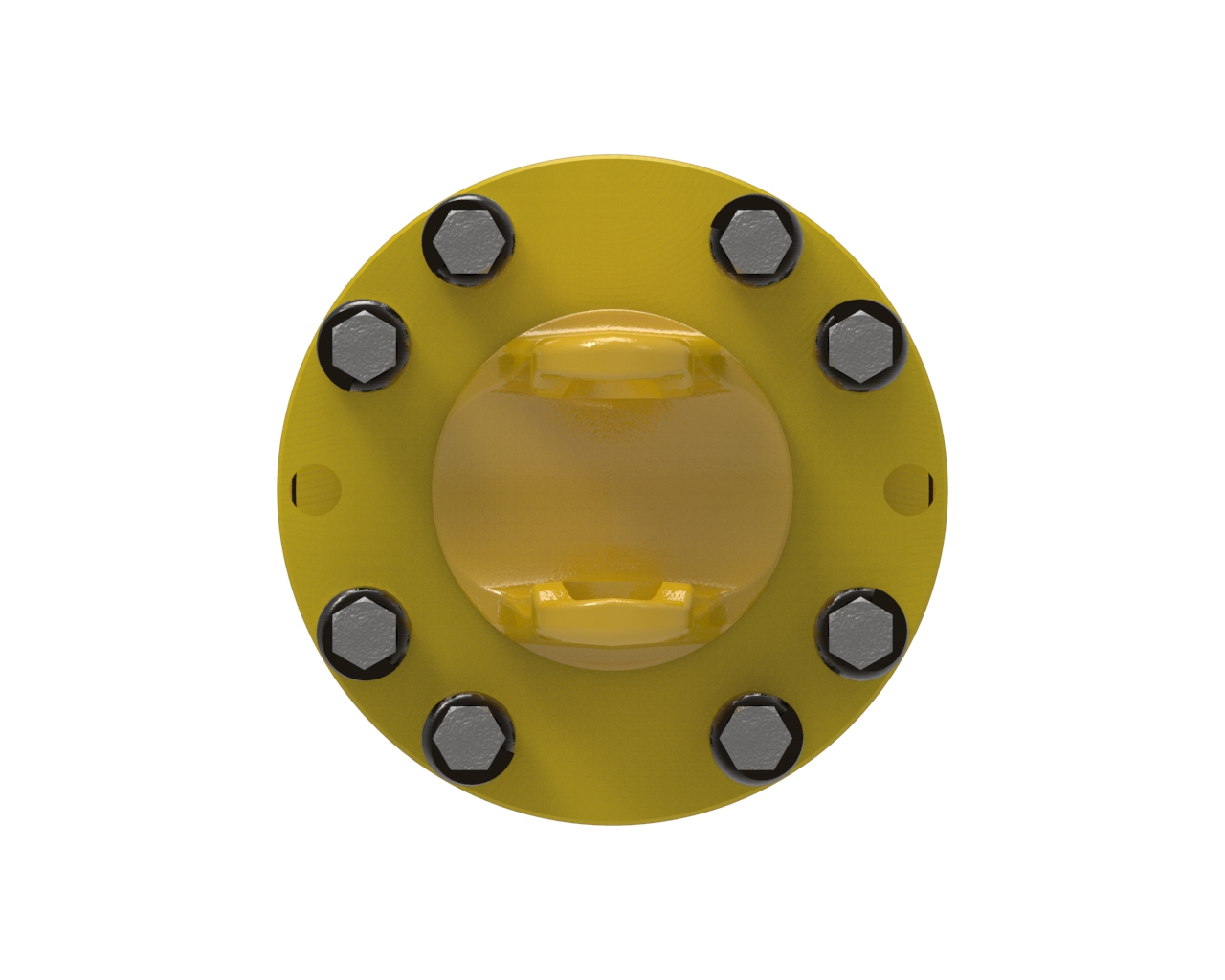

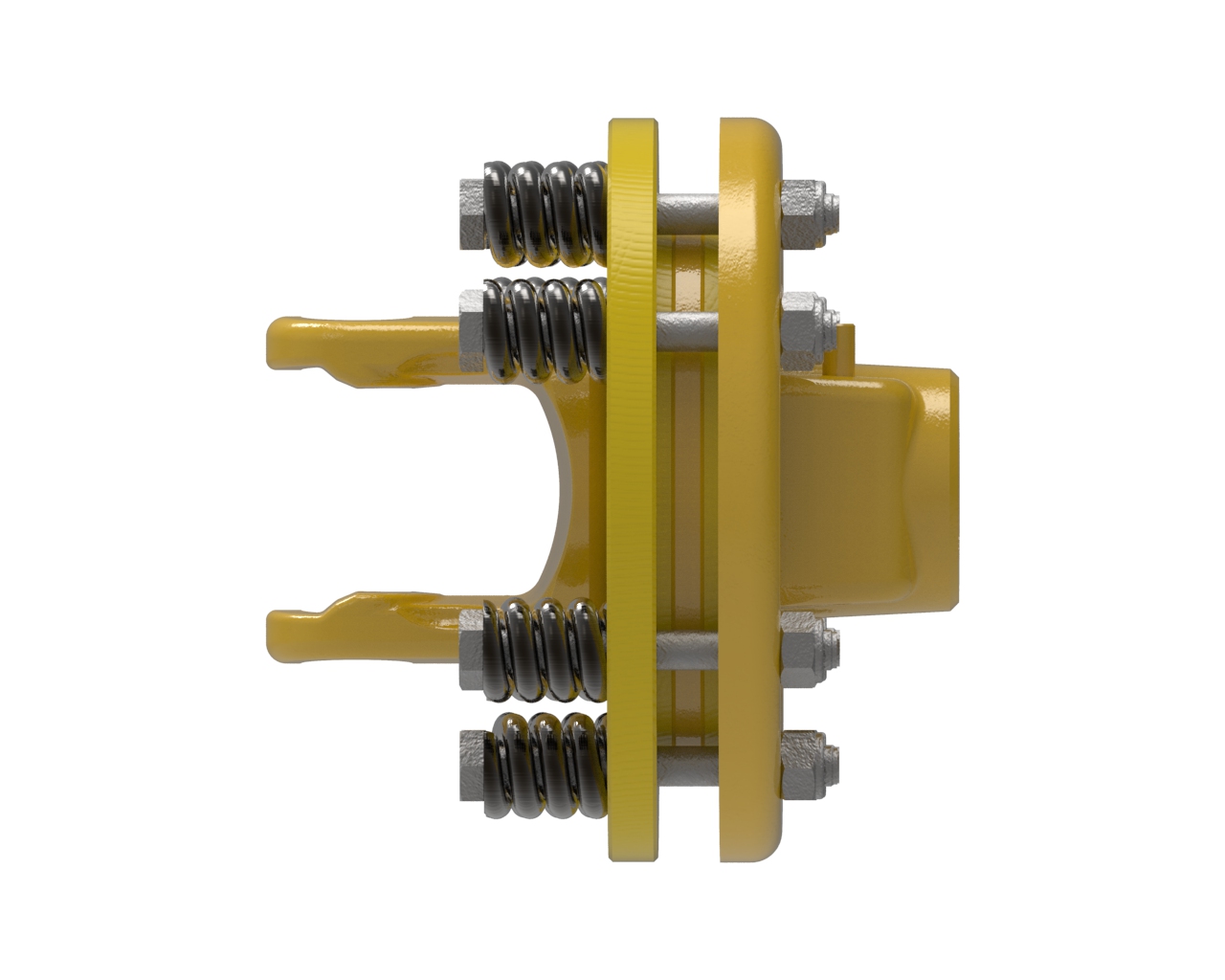

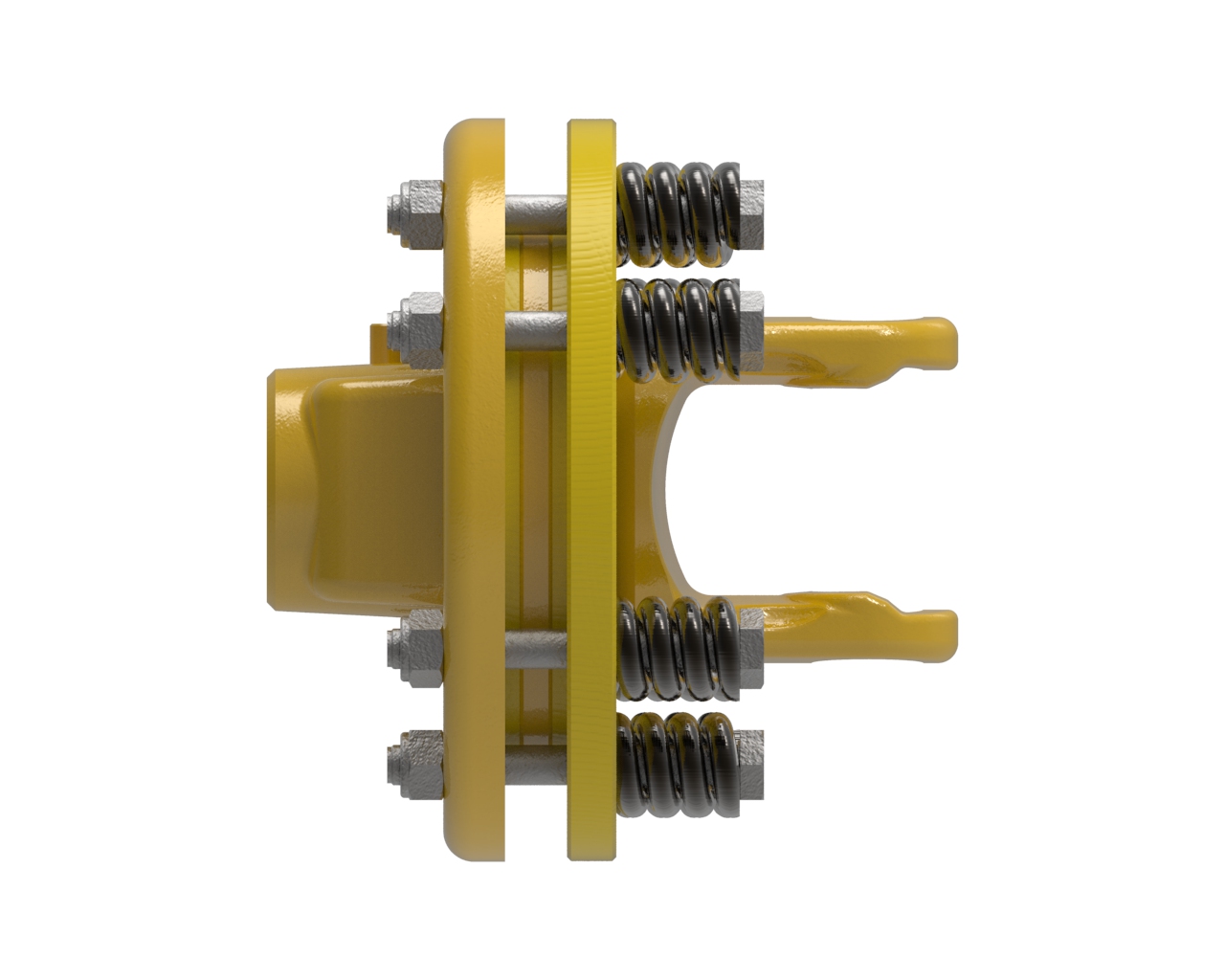

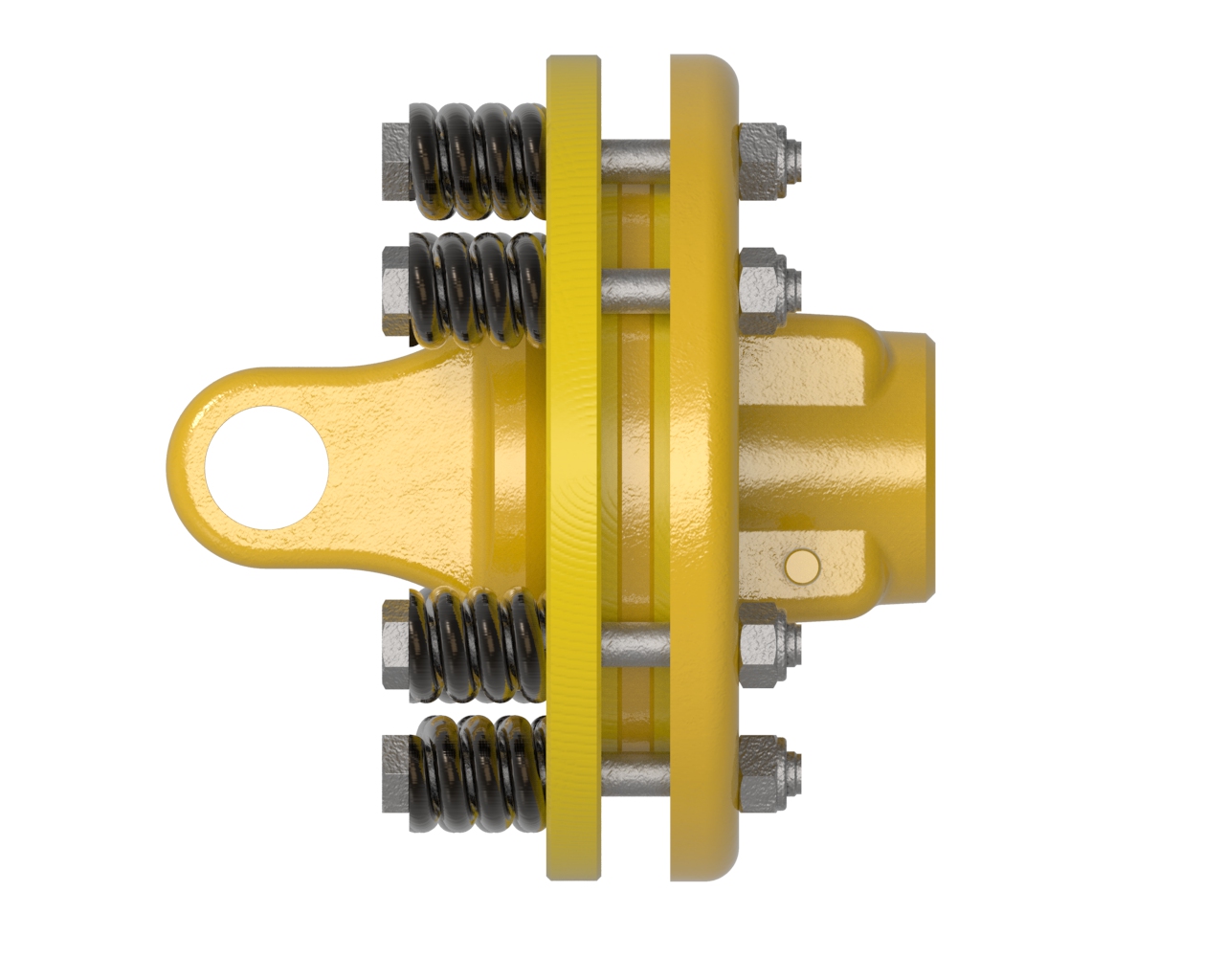

AB4,AW21 series friction clutch yoke with 1 3/8-6 spline bore and quick disconnect connection. Note: Image color may not represent actual part.
The Friction clutch is indispensable in certain agricultural implement applications. The friction clutch is the only torque limiter that has the ability to continuously transmit power (at a reduced level) while overloaded. This is valuable during startup of high inertia machines, as well as for leveling out torsional fluctuations due to high cyclic loads. The standard friction clutch with coil springs can be set in the field to the desired overload protection and must be readjusted after slipping.
PERFORMANCE BENEFITS
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bearing Diameter | 1.06 inches | 27 mm |
Bearing Span | 2.93 inches | 74 mm |
Bore 1 | 1.37 inches | 35 mm |
Bore 1 | 1 3/8-6 SPLINE | |
Connection 1 | QUICK DISCONNECT | |
HP@1000RPM | 70 HP | 52 kilowatts |
HP@540RPM | 45 HP | 34 kilowatts |
Length | 5.73 inches | 146 mm |
Outside Diameter | 7.08 inches | 180 mm |
Shipping Dimensions | 6.6" L × 7.087" H × 7.087" W | 17cm L × 18cm H × 18cm W |
Shipping Volume | 331.49 in3 | 5432 cm3 |
Shipping Weight | 16.22 pounds | 7 kilograms |
Torque | 8000 | 8000 |
Weight | 16.22 pounds | 7 kilograms |
