14006436PROFILE PTO DRIVE SHAFT
AB4 Series Profile PTO Drive Shaft

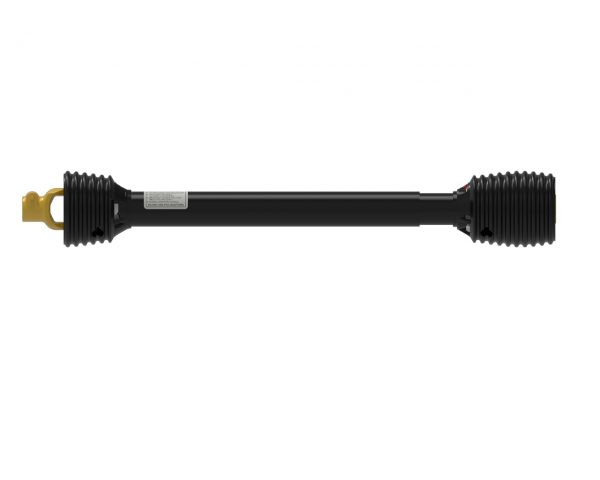

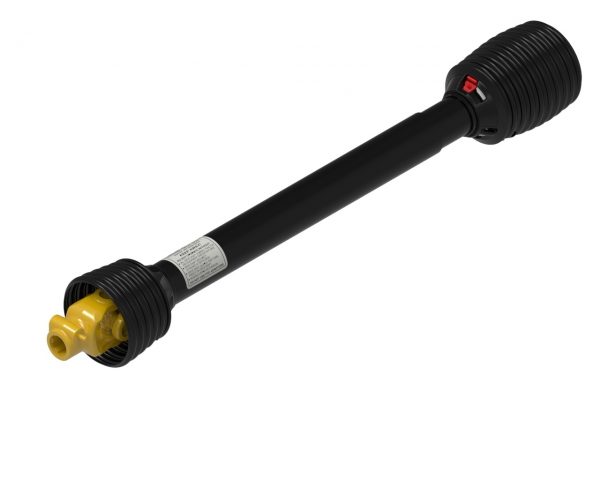

AB4 series profile PTO drive shaft with a 1 3/8-6 spline quick disconnect tractor connection and round pin implement connection
The Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
Design adjustability (cut-to-length) capabilities.
Interchangeability to fit with most competitor models.
Tri-lobe, lemon, and star shaft profiles available.
Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
Available Extended lubrication E-kits reduce downtime with lubrication intervals of 50-250
hours and the high temperature triple lip seal retains grease better.
Customer dedicated engineering and sales support.
Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
Same component designs used for Weasler’s domestic and metric product lines.
|Bore 1||1.37 inches||35 mm|
|Bore 1||1 3/8-6 SPLINE|
|Bore 2||1.37 inches||35 mm|
|Compressed (Closed) Length||27.95 inches||710 mm|
|Compressed Overall Length||35.90 inches||912 mm|
|Connection 1||QUICK DISCONNECT|
|Extended Length||42.13 inches||1070 mm|
|Extended Overall Length||50.08 inches||1272 mm|
|HP@1000RPM||56 HP||42 kilowatts|
|HP@540RPM||36 HP||27 kilowatts|
|Length||35.90 inches||912 mm|
|Outside Diameter||6.00 inches||152 mm|
|Pin Hole||0.51 inches||13 mm|
|Shipping Dimensions||35.9" L × 6" H × 6" W||91cm L × 15cm H × 15cm W|
|Shipping Volume||1292.40 in3||21179 cm3|
|Shipping Weight||23.00 pounds||10 kilograms|
|Weight||23.00 pounds||10 kilograms|
|Service Instructions - Universal Joint.pdf||Service Document||English|
|Service Instructions - Easy Lock Guards.pdf||Service Document||English|
|Lack of Grease - Cross & Brg Kit.pdf||Troubleshooting Document||English|
|WE0101032_1217_USL_MetricProfile.pdf||Performance Benefits Document||English|
