850-5522

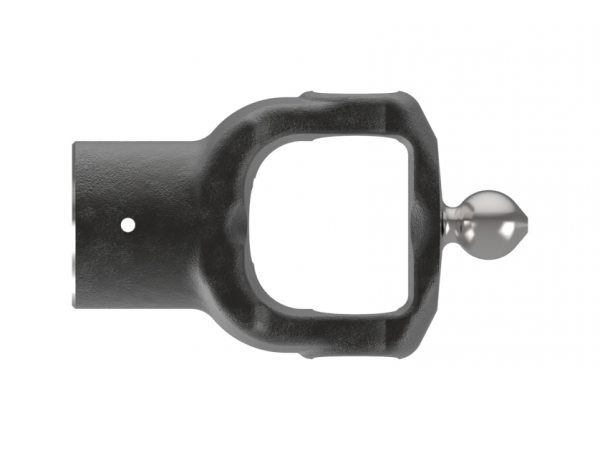

6-50 Series Pin, Setscrew Yoke

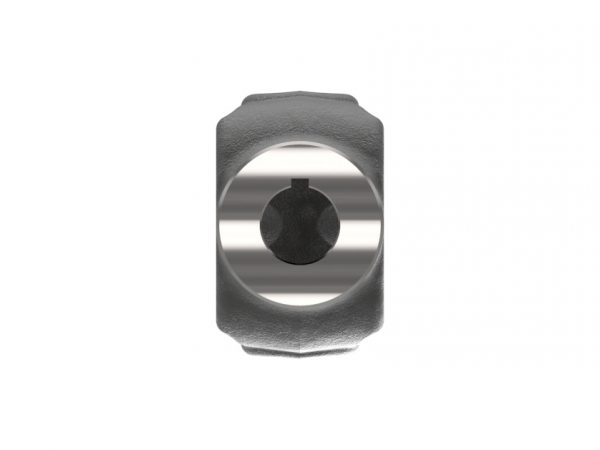

6-50 series yoke with round with keyway bore and pin, setscrew connection

View My List

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler CV wide angle implement yokes are provided in a variety of bore and mounting options.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 ROUND WITH KEYWAY
Connection 1 PIN, SETSCREW
Height5.12 inches130 mm
HP@1000RPM232 HP173 kilowatts
HP@540RPM151 HP113 kilowatts
Keyway 10.31 inches8 mm
Length5.06 inches129 mm
Pin Hole0.25 inches6 mm
Pin Hole 1.00
Setscrew 3/8-16
Shipping Dimensions8.15" L  ×  5.125" H  ×  3" W21cm L  ×  13cm H  ×  8cm W
Shipping Volume125.31 in32053 cm3
Shipping Weight0.00 pounds0 kilograms
Weight0.00 pounds0 kilograms
Width3.00 inches76 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating 50 Deg CV.pdf Maintenance Document English
Service Instructions - CV Joint.pdf Service Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
50 deg CV Joint - Over Angle.pdf Troubleshooting Document English
WE0101001_0118_USL_50DegConstantVelocityJoint.pdf Performance Benefits Document English

Support Videos

Performance Benefits Video
