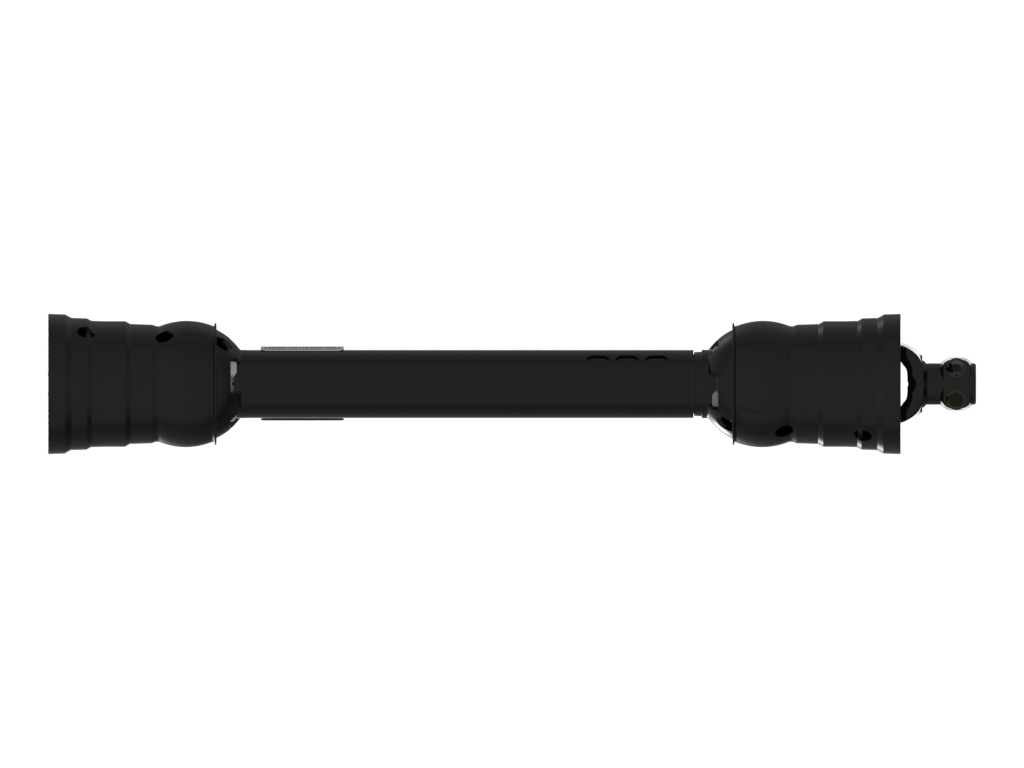

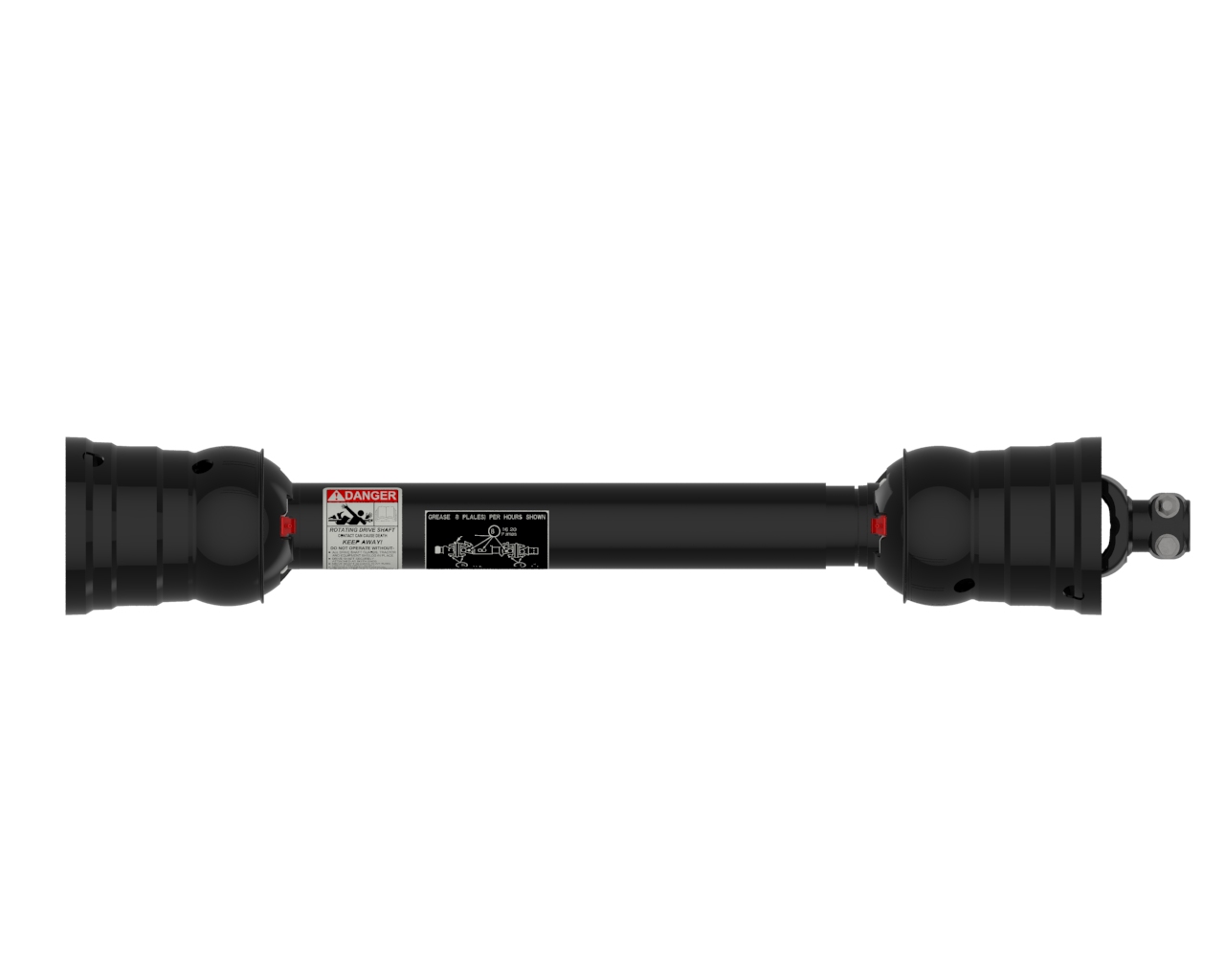

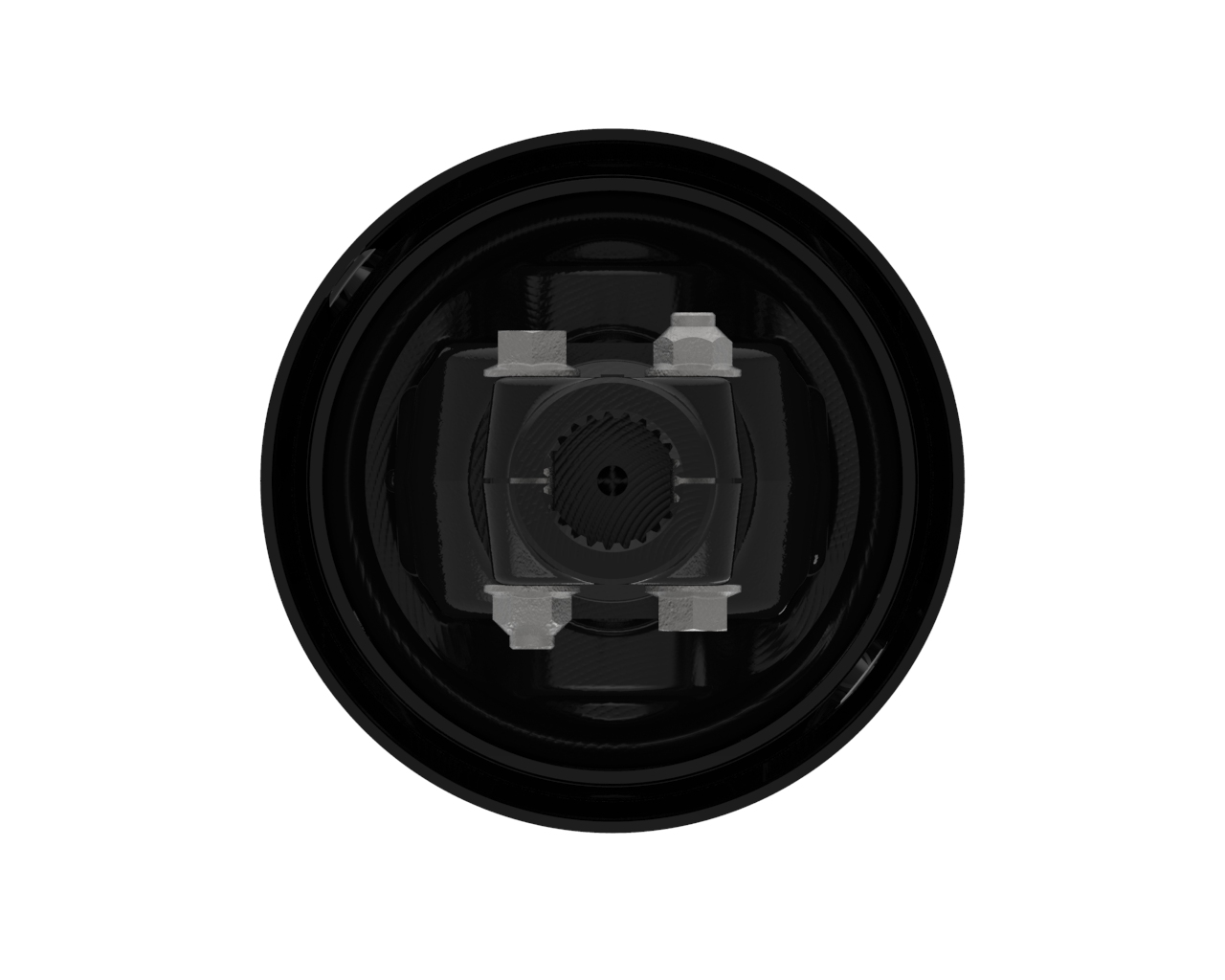

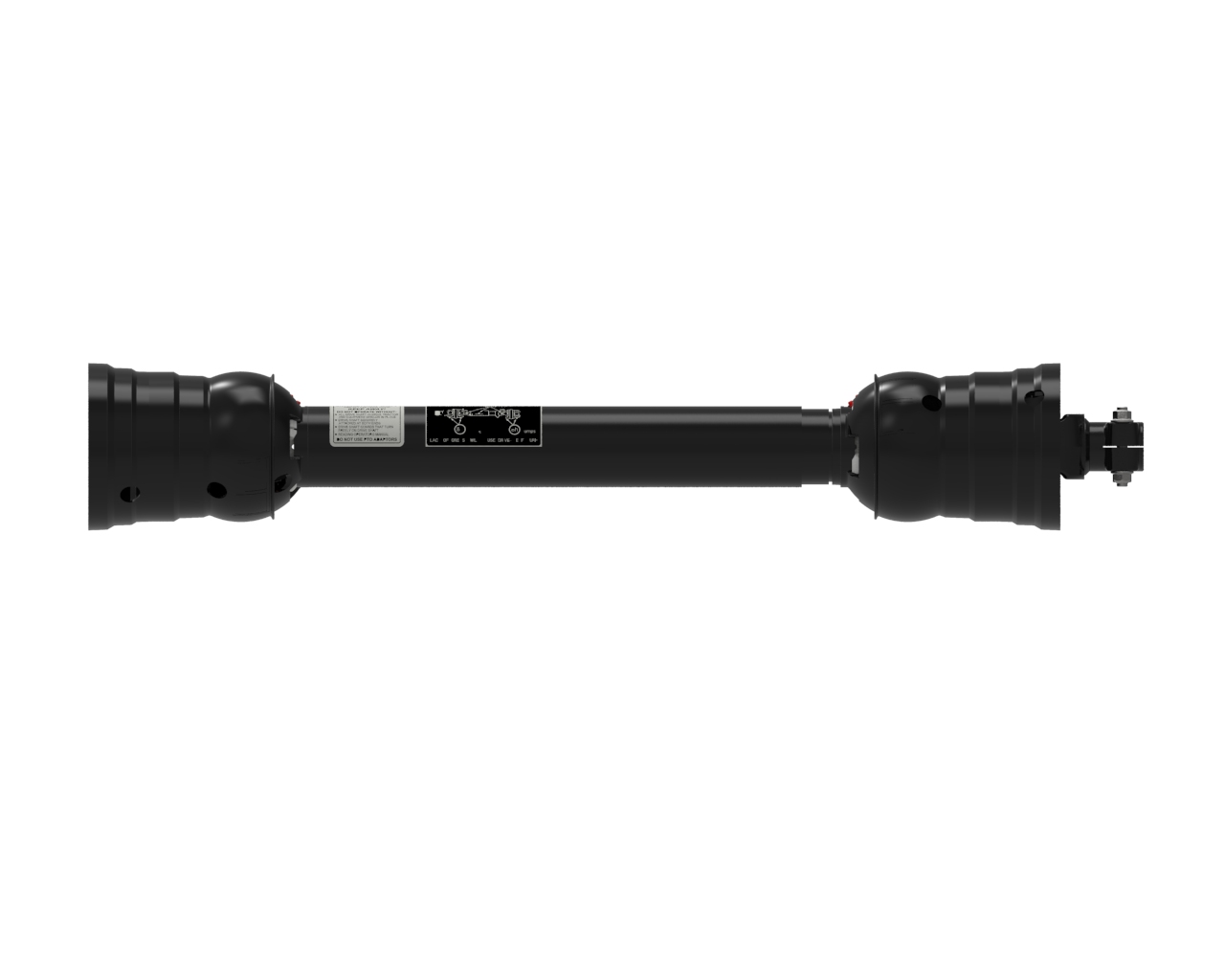

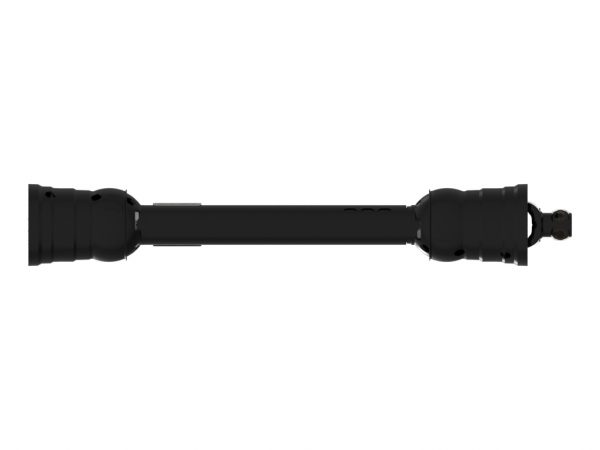

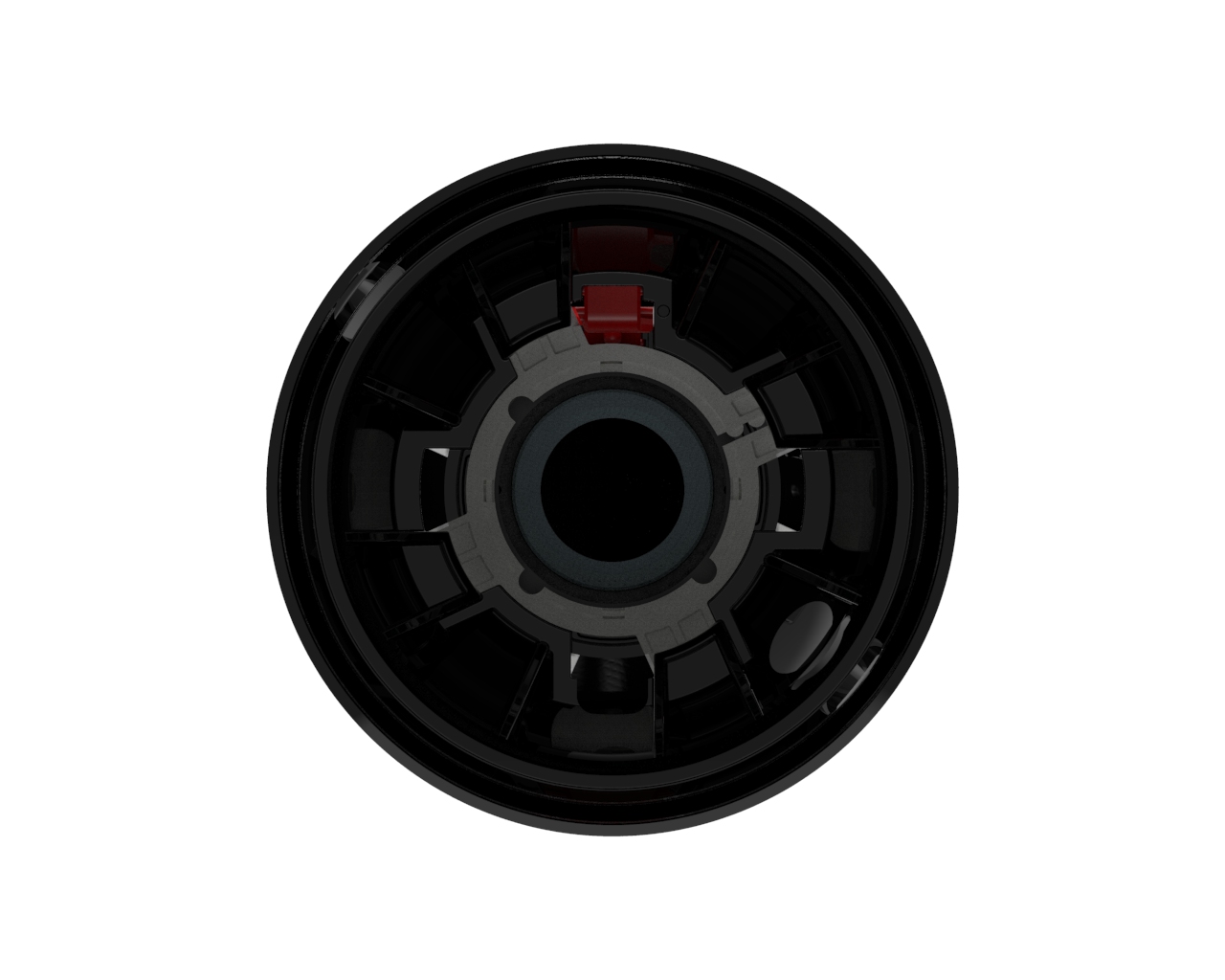

CV WIDE ANGLE UNIVERSAL JOINT AND TUBE WITH GUARD6-50 Series CV Wide Angle Universal Joint And Tube With Guard
6-50 series CV wide angle universal joint and tube with guard with 1 1/2-23 spline, clamp connection and 1 x 1 1/8 rectangle, telescoping connection
Constant velocity (CV) wide angle universal joint assemblies allow for smooth machine operation through a broad range of motion. The universal joints included allow the machine to be designed with the input shaft in the best operating position and yet allow the operator to maneuver as needed. The CV delivers constant power by self-canceling torque and speed fluctuations typically found in single cardan-type universal joints.
PERFORMANCE BENEFITS
DESIGN FEATURES
Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
Same component designs used for Weasler’s domestic and metric product lines.
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.50 inches | 38 mm |
Bore 1 | 1 1/2-23 SPLINE | |
Bore 2 | 1.68 inches | 43 mm |
Bore 2 | 1 X 1 1/8 RECTANGLE | |
Connection 1 | CLAMP | |
Connection 2 | TELESCOPING | |
HP@1000RPM | 179 HP | 133 kilowatts |
HP@540RPM | 117 HP | 87 kilowatts |
Length | 40.00 inches | 1016 mm |
Outside Diameter | 6.75 inches | 171 mm |
Shipping Dimensions | 40" L × 7.75" H × 7.75" W | 102cm L × 20cm H × 20cm W |
Shipping Volume | 2402.50 in3 | 39370 cm3 |
Shipping Weight | 43.00 pounds | 20 kilograms |
Weight | 43.00 pounds | 20 kilograms |
