807-5506

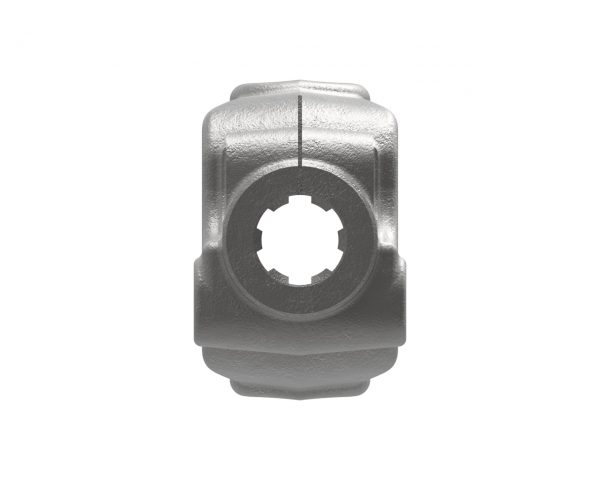

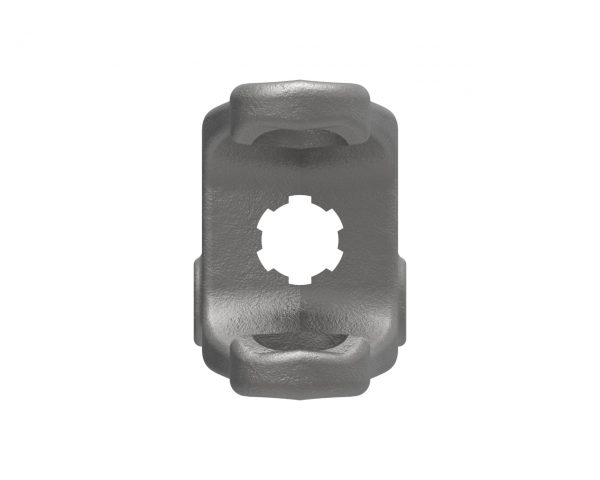

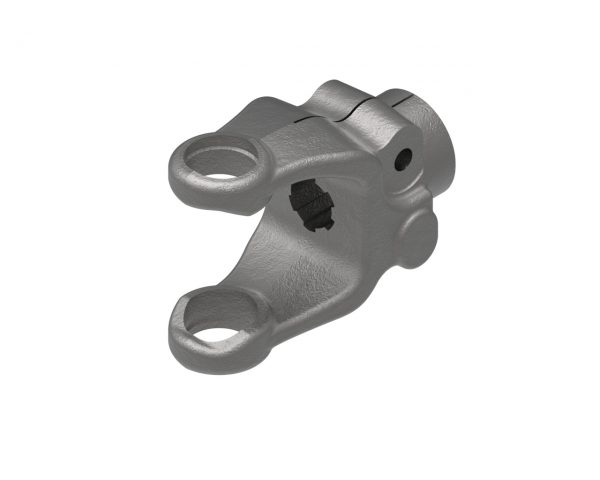

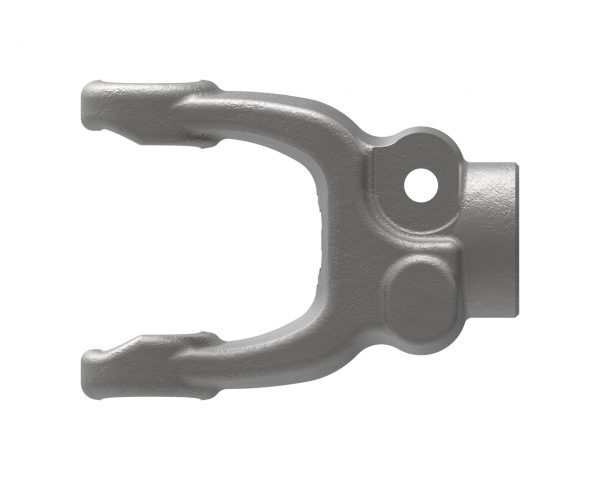

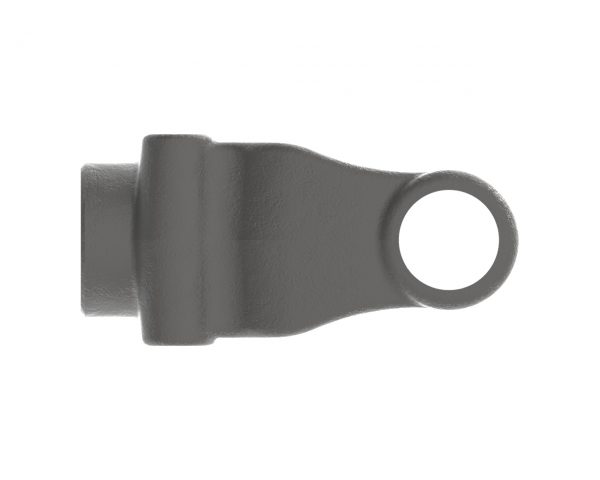

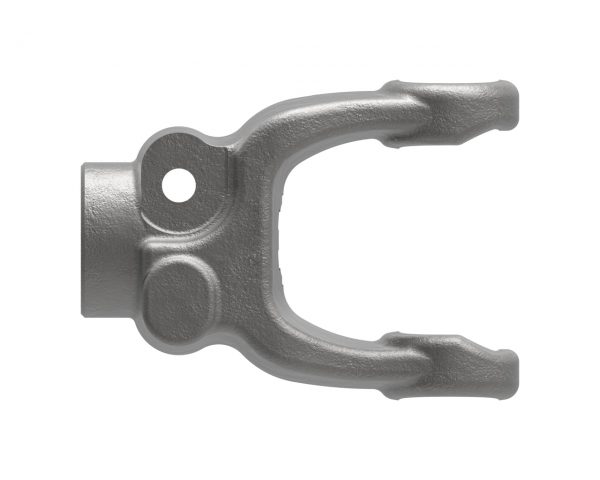

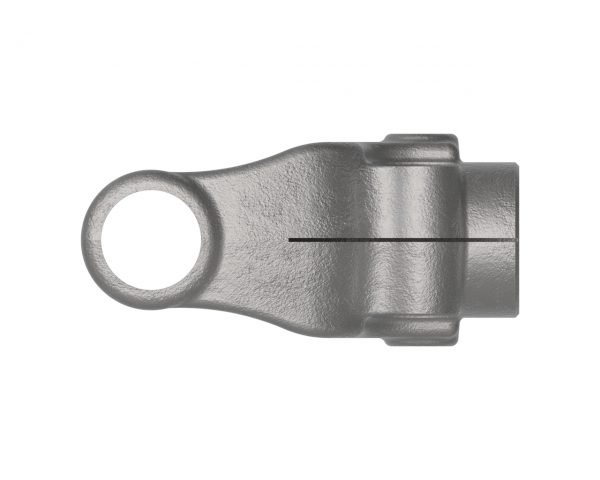

55 Series Clamp Yoke

55 series yoke with 1 3/8-6 spline bore and clamp connection

View My List

The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Connection 1 CLAMP
Height5.13 inches130 mm
HP@1000RPM211 HP157 kilowatts
HP@540RPM137 HP102 kilowatts
Length5.63 inches143 mm
Shipping Dimensions6.71" L  ×  5.13" H  ×  2.63" W17cm L  ×  13cm H  ×  7cm W
Shipping Volume90.53 in31484 cm3
Shipping Weight9.00 pounds4 kilograms
Weight9.00 pounds4 kilograms
Width2.63 inches67 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
