807-5527

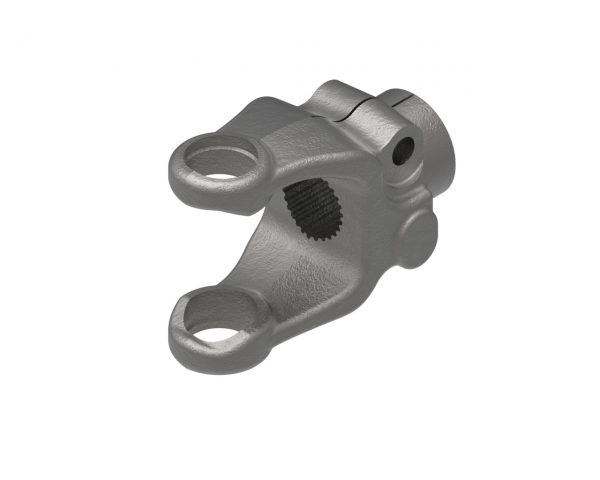

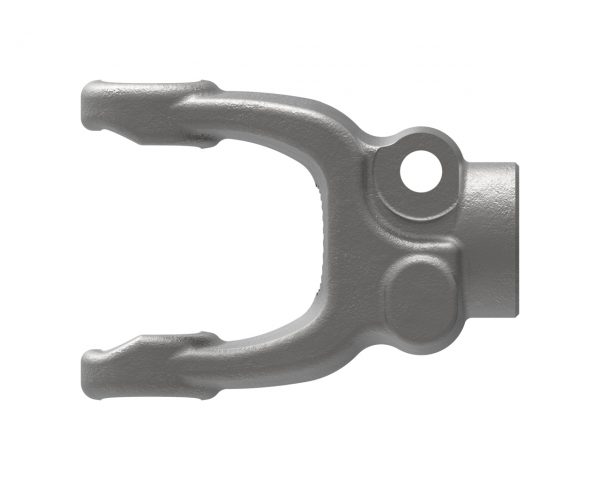

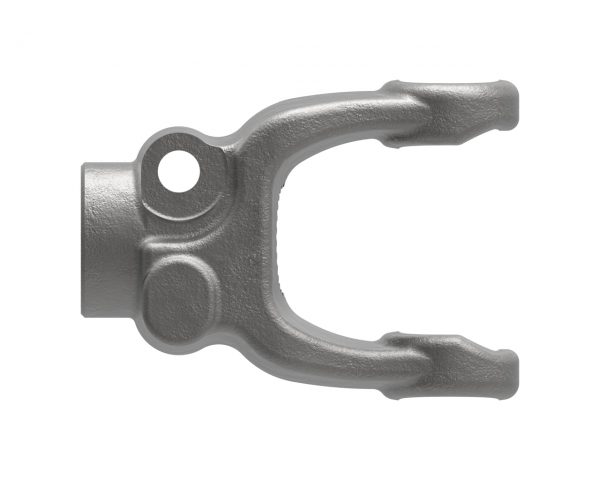

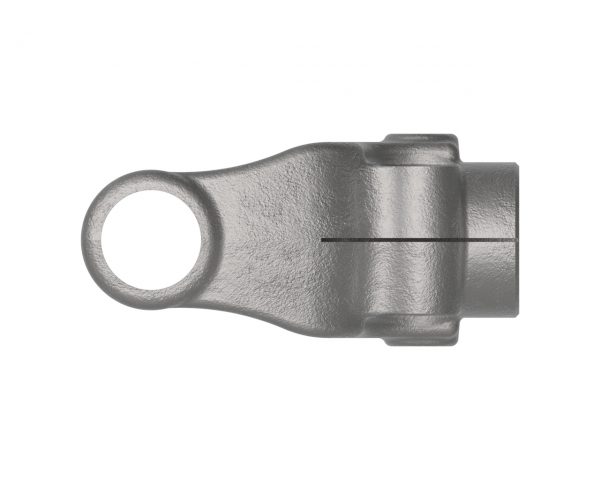

CLAMP YOKE55 Series Clamp Yoke

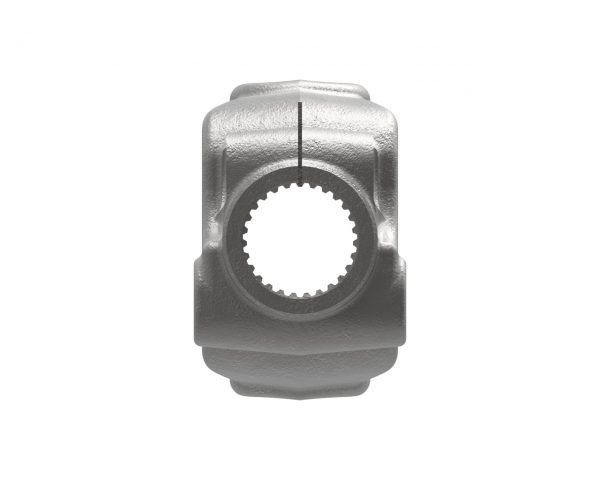

55 series yoke with 1 3/4-27 spline bore and clamp connection
The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.75 inches | 44 mm |
| Bore 1 | 1 3/4-27 SPLINE | |
| Connection 1 | CLAMP | |
| Height | 5.13 inches | 130 mm |
| HP@1000RPM | 211 HP | 157 kilowatts |
| HP@540RPM | 137 HP | 102 kilowatts |
| Length | 5.63 inches | 143 mm |
| Shipping Dimensions | 6.71" L × 5.13" H × 2.63" W | 17cm L × 13cm H × 7cm W |
| Shipping Volume | 90.53 in3 | 1484 cm3 |
| Shipping Weight | 8.00 pounds | 4 kilograms |
| Weight | 8.00 pounds | 4 kilograms |
| Width | 2.63 inches | 67 mm |
