807-3506

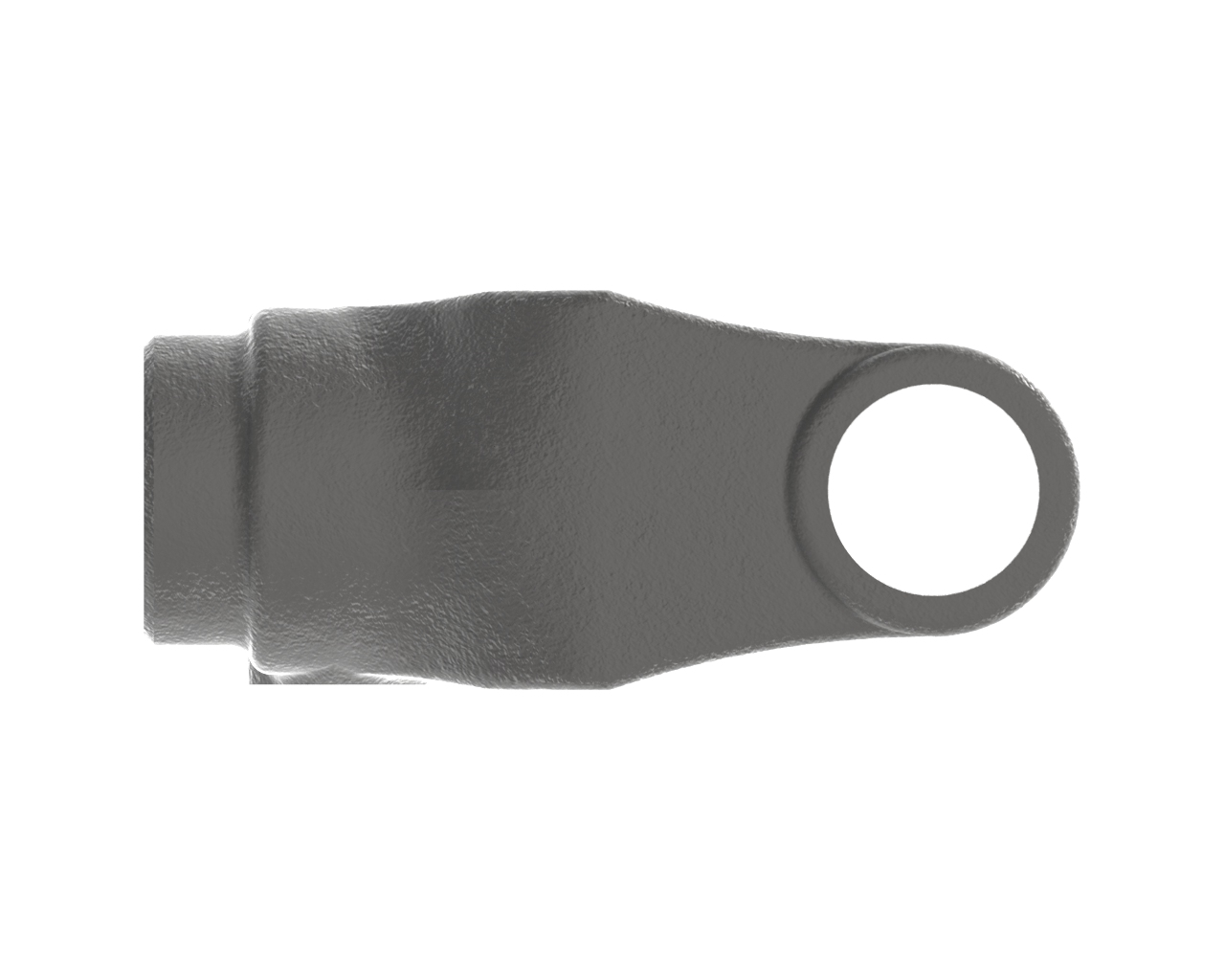

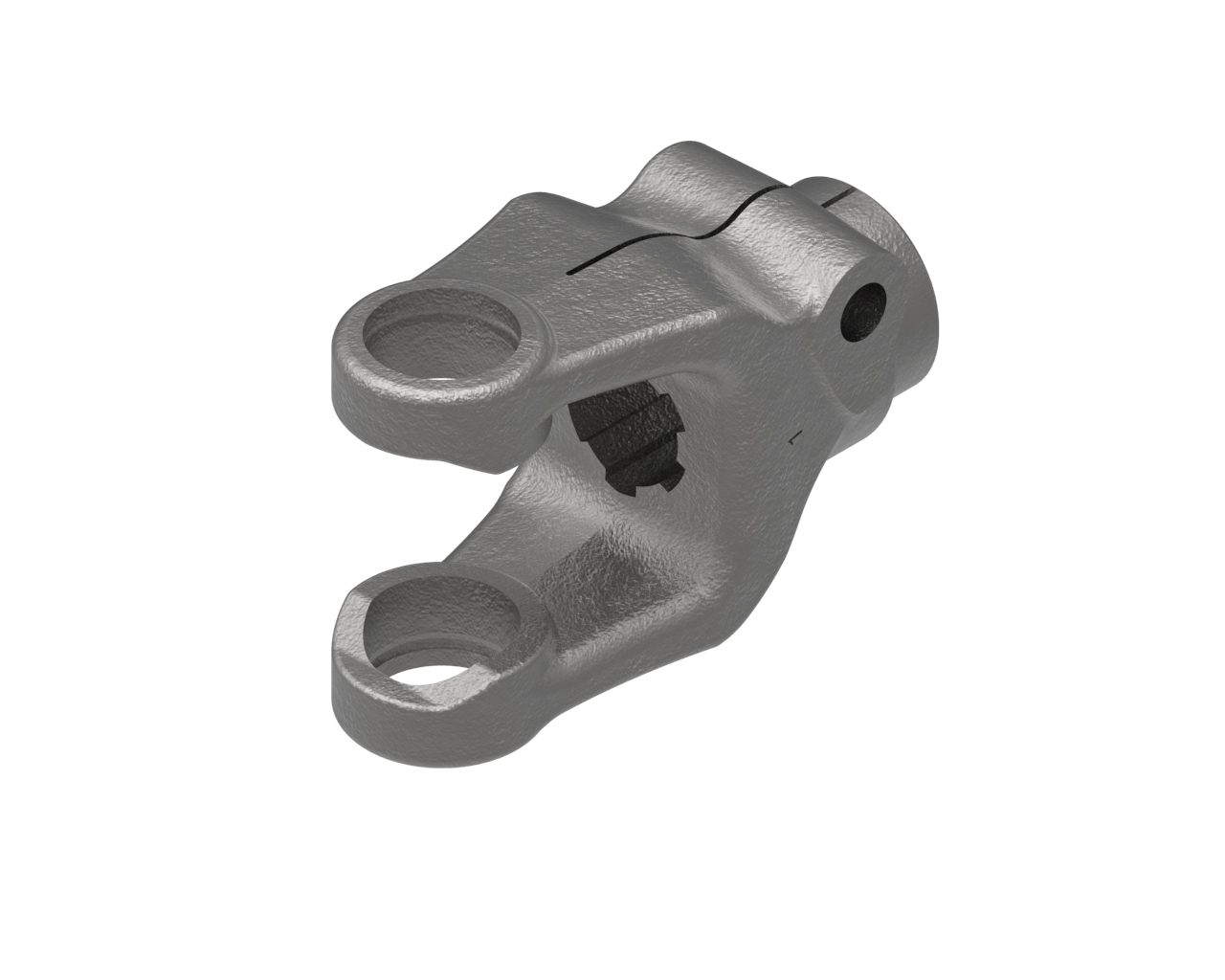

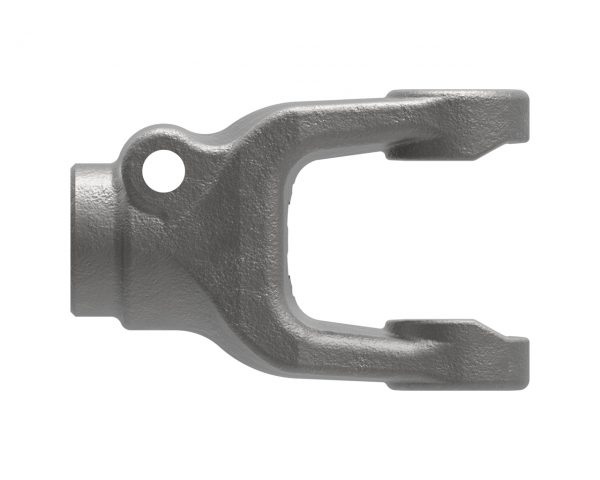

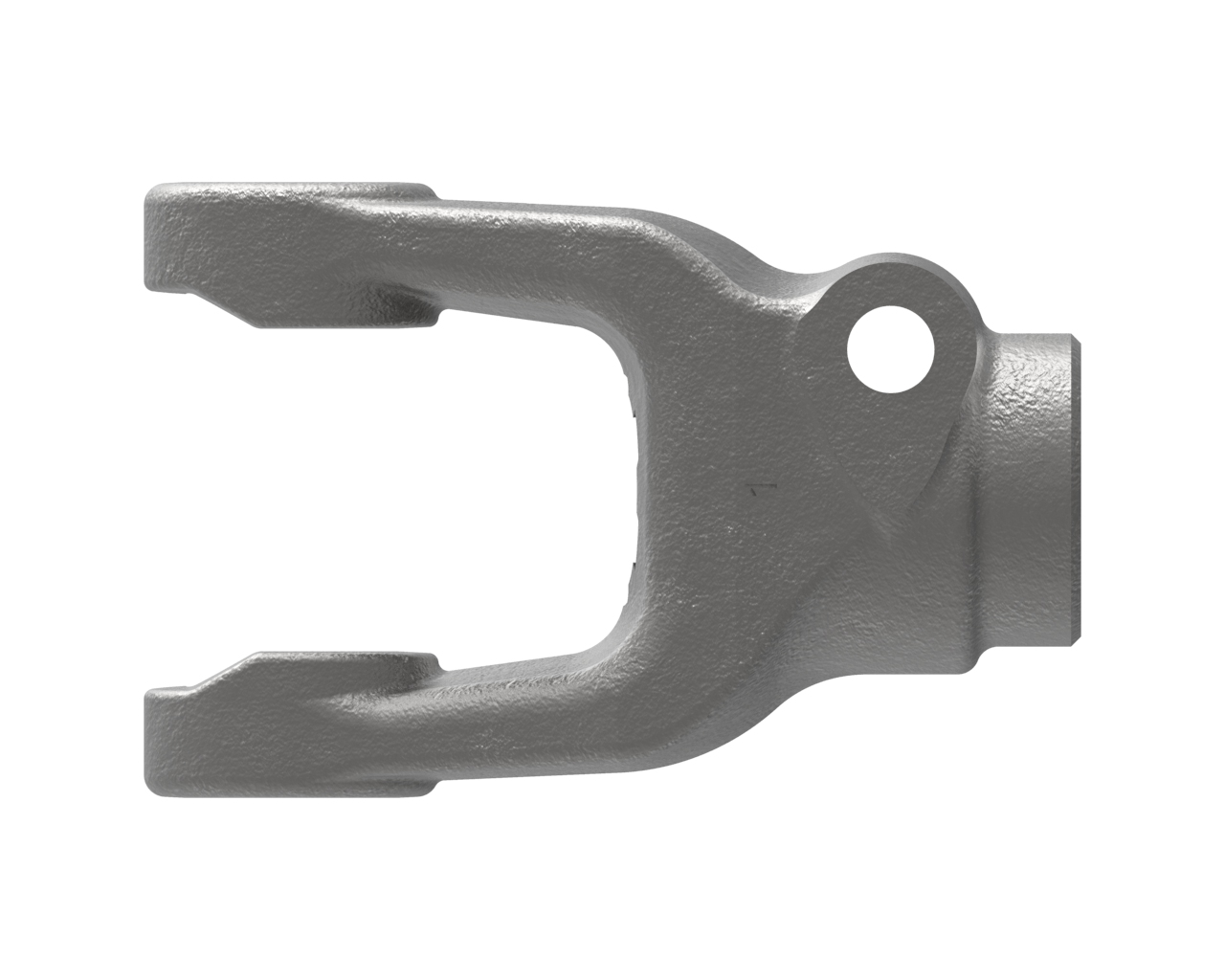

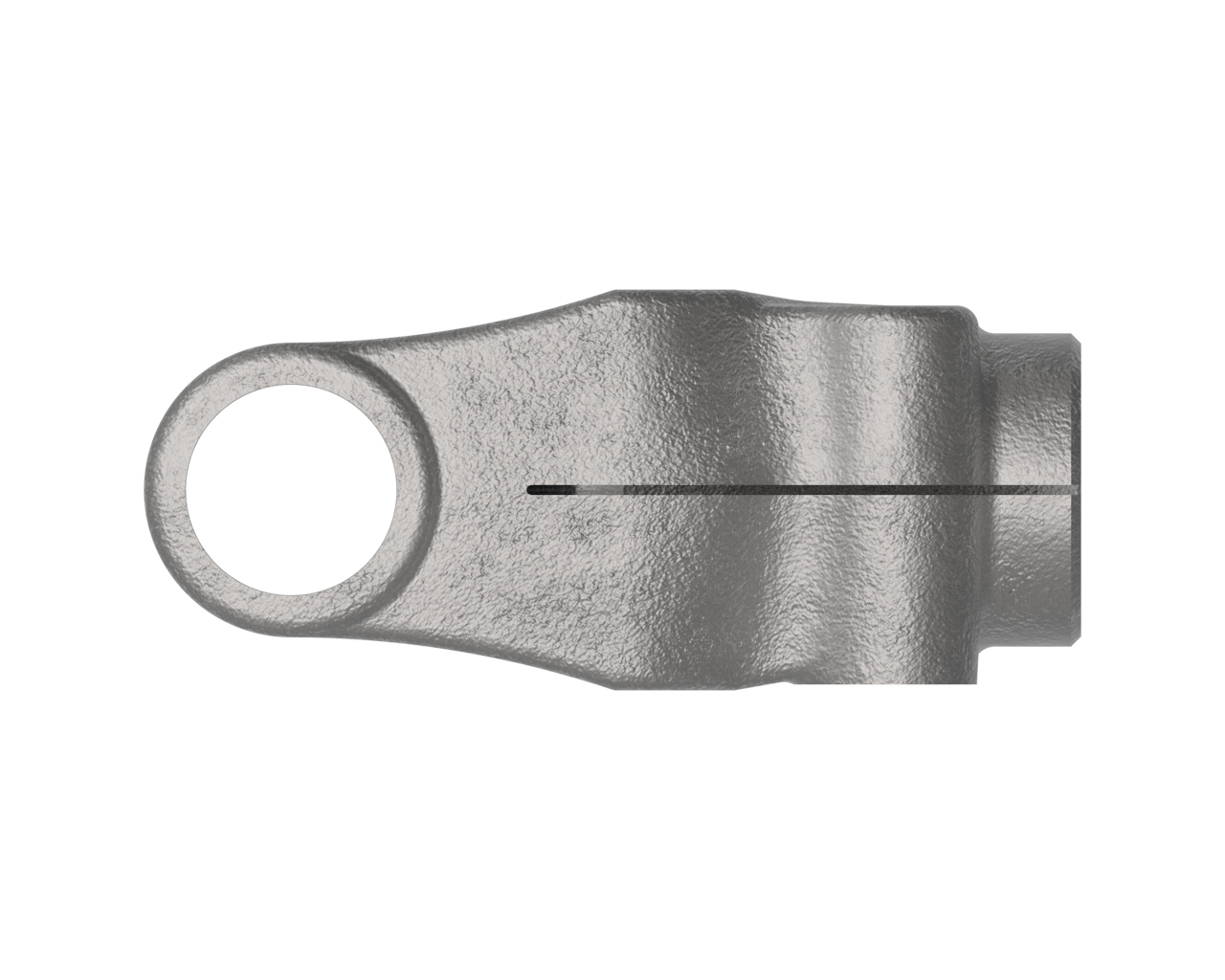

CLAMP YOKE35 Series Clamp Yoke

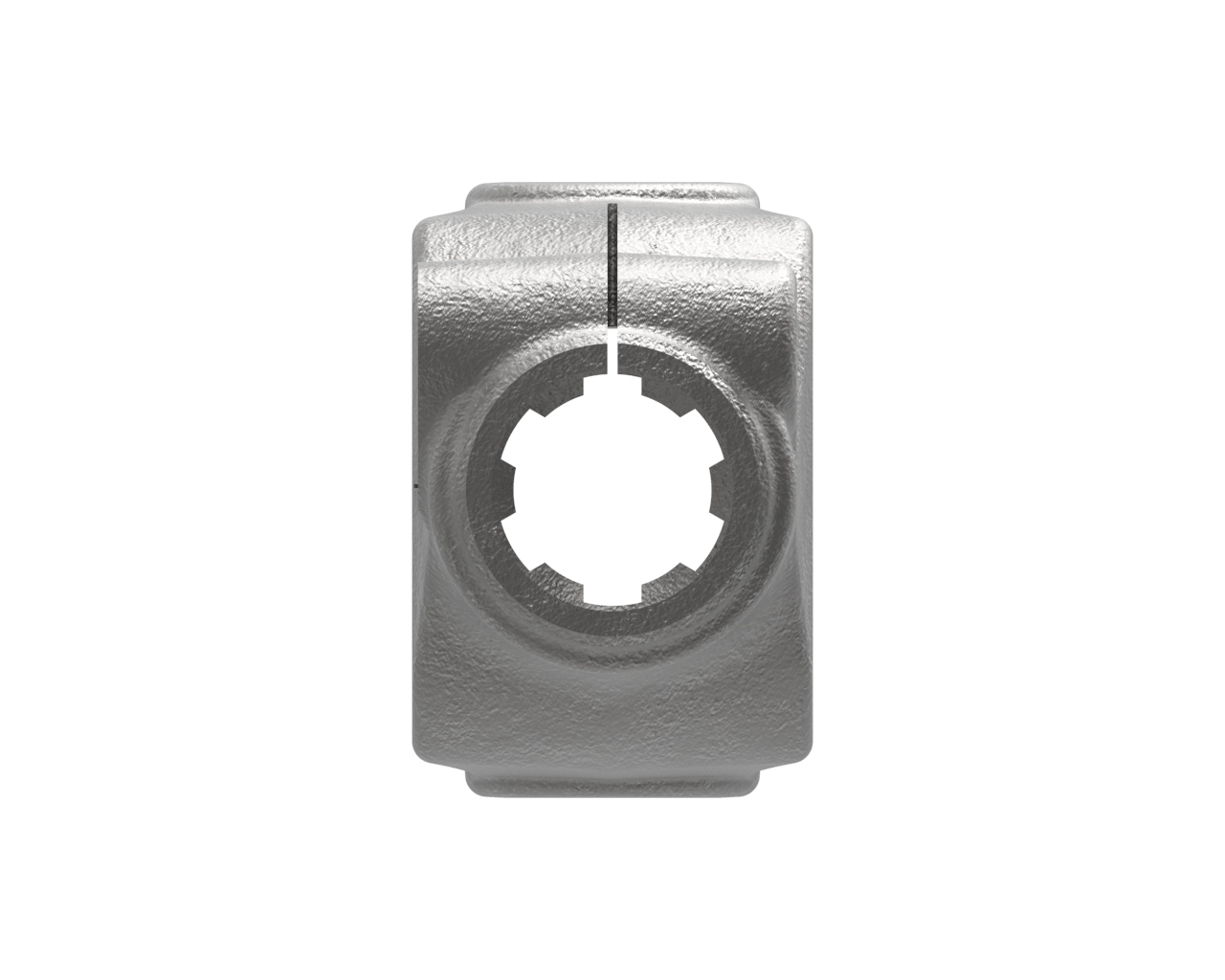

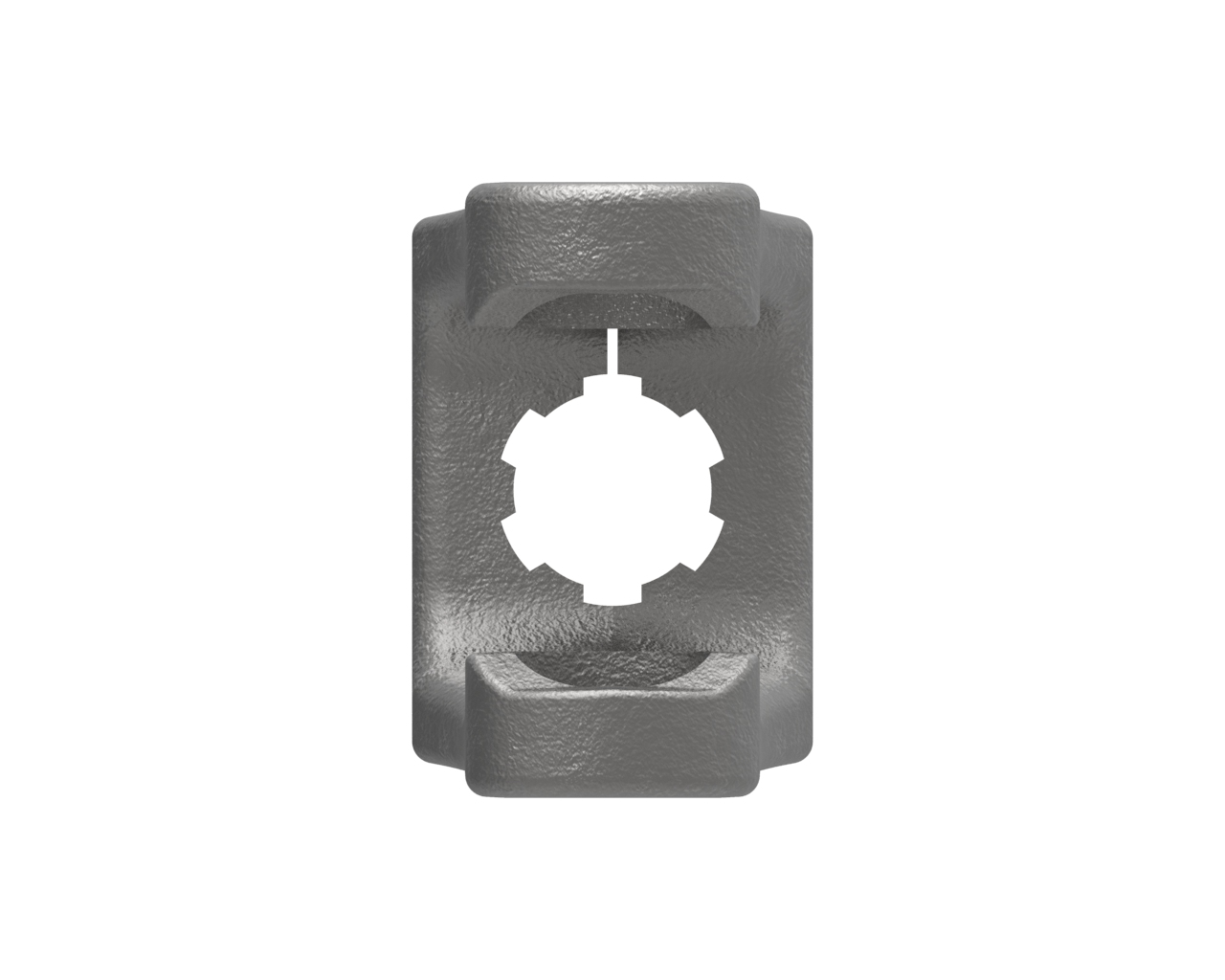

35 series yoke with 1 3/8-6 spline bore and clamp connection
The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.37 inches | 35 mm |
| Bore 1 | 1 3/8-6 SPLINE | |
| Connection 1 | CLAMP | |
| Height | 4.00 inches | 102 mm |
| HP@1000RPM | 108 HP | 81 kilowatts |
| HP@540RPM | 70 HP | 52 kilowatts |
| Length | 4.69 inches | 119 mm |
| Shipping Dimensions | 5.57" L × 4" H × 2.51" W | 14cm L × 10cm H × 6cm W |
| Shipping Volume | 55.92 in3 | 916 cm3 |
| Shipping Weight | 3.60 pounds | 2 kilograms |
| Weight | 3.60 pounds | 2 kilograms |
| Width | 2.51 inches | 64 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
