850-1420
CV WIDE ANGLE IMPLEMENT YOKE3-50 Series Setscrew Yoke

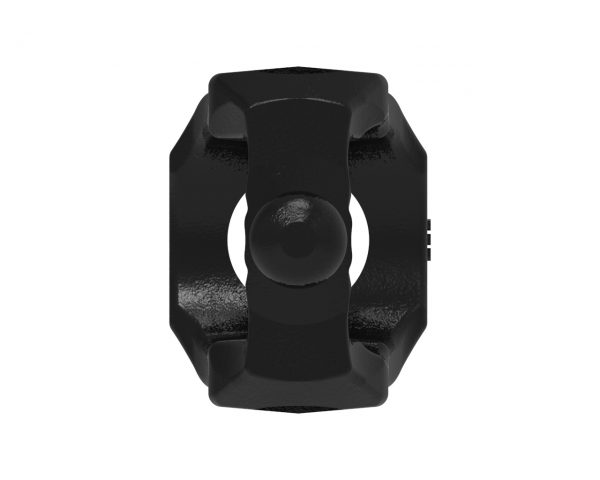

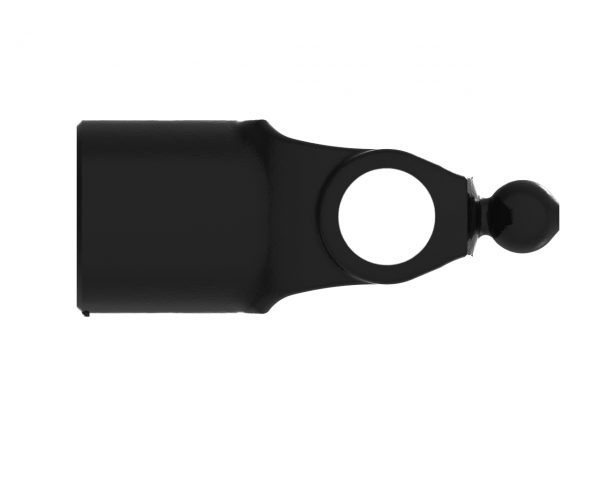

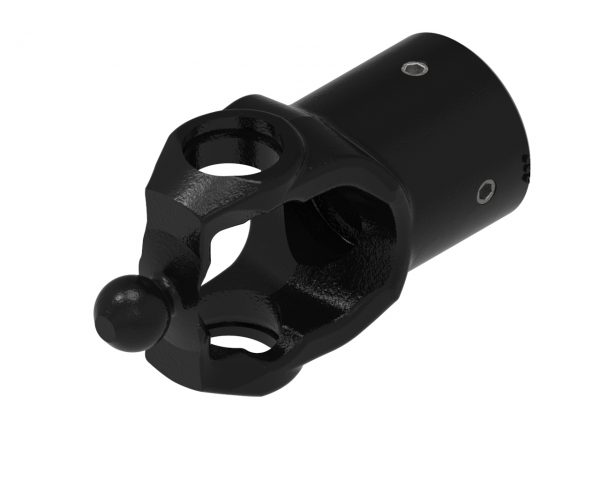

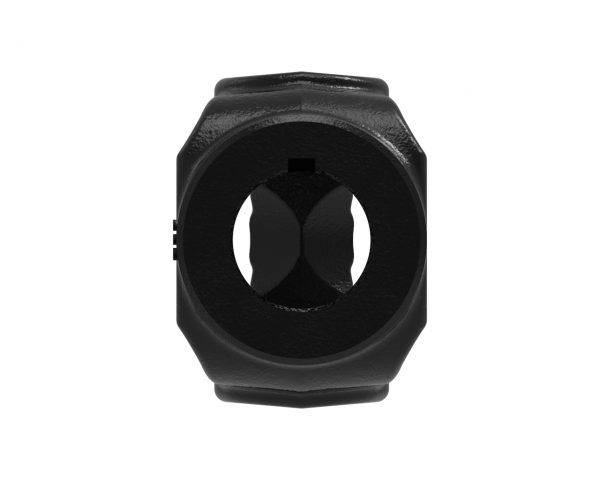

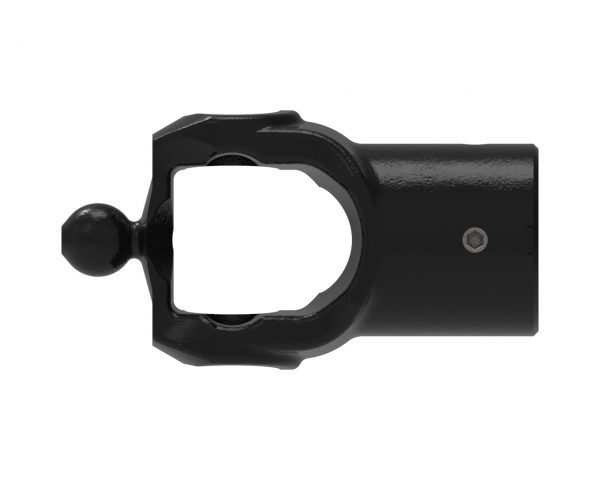

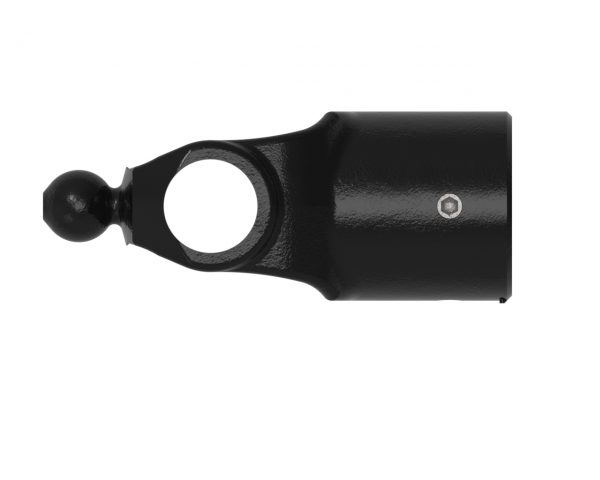

3-50 series yoke with round with keyway bore and setscrew connection. Note: Image color may not represent actual part.
PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler CV wide angle implement yokes are provided in a variety of bore and mounting options.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.25 inches | 32 mm |
| Bore 1 | ROUND WITH KEYWAY | |
| Connection 1 | SETSCREW | |
| Height | 3.07 inches | 78 mm |
| HP@1000RPM | 63 HP | 47 kilowatts |
| HP@540RPM | 41 HP | 31 kilowatts |
| Keyway 1 | 0.25 inches | 6 mm |
| Length | 3.63 inches | 92 mm |
| Setscrew | 3/8-16 | |
| Shipping Dimensions | 5.642" L × 3.07" H × 2.25" W | 14cm L × 8cm H × 6cm W |
| Shipping Volume | 38.97 in3 | 639 cm3 |
| Shipping Weight | 2.90 pounds | 1 kilograms |
| Weight | 2.90 pounds | 1 kilograms |
| Width | 2.25 inches | 57 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating 50 Deg CV.pdf | Maintenance Document | English |
| Service Instructions - CV Joint.pdf | Service Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
| 50 deg CV Joint - Over Angle.pdf | Troubleshooting Document | English |
| WE0101001_0118_USL_50DegConstantVelocityJoint.pdf | Performance Benefits Document | English |
Support Videos
Performance Benefits Video
