14310-1001

3-50 Series Auto-lok Yoke

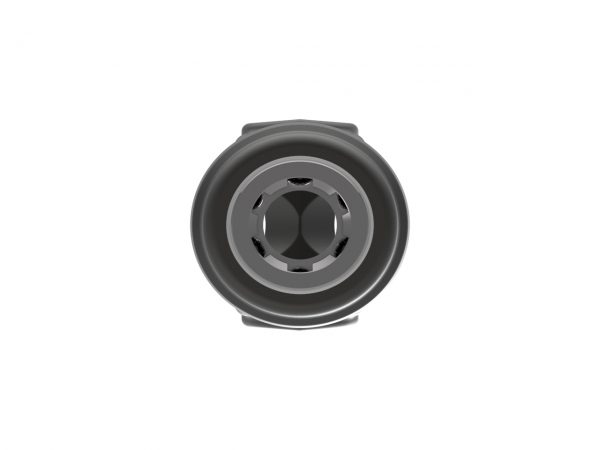

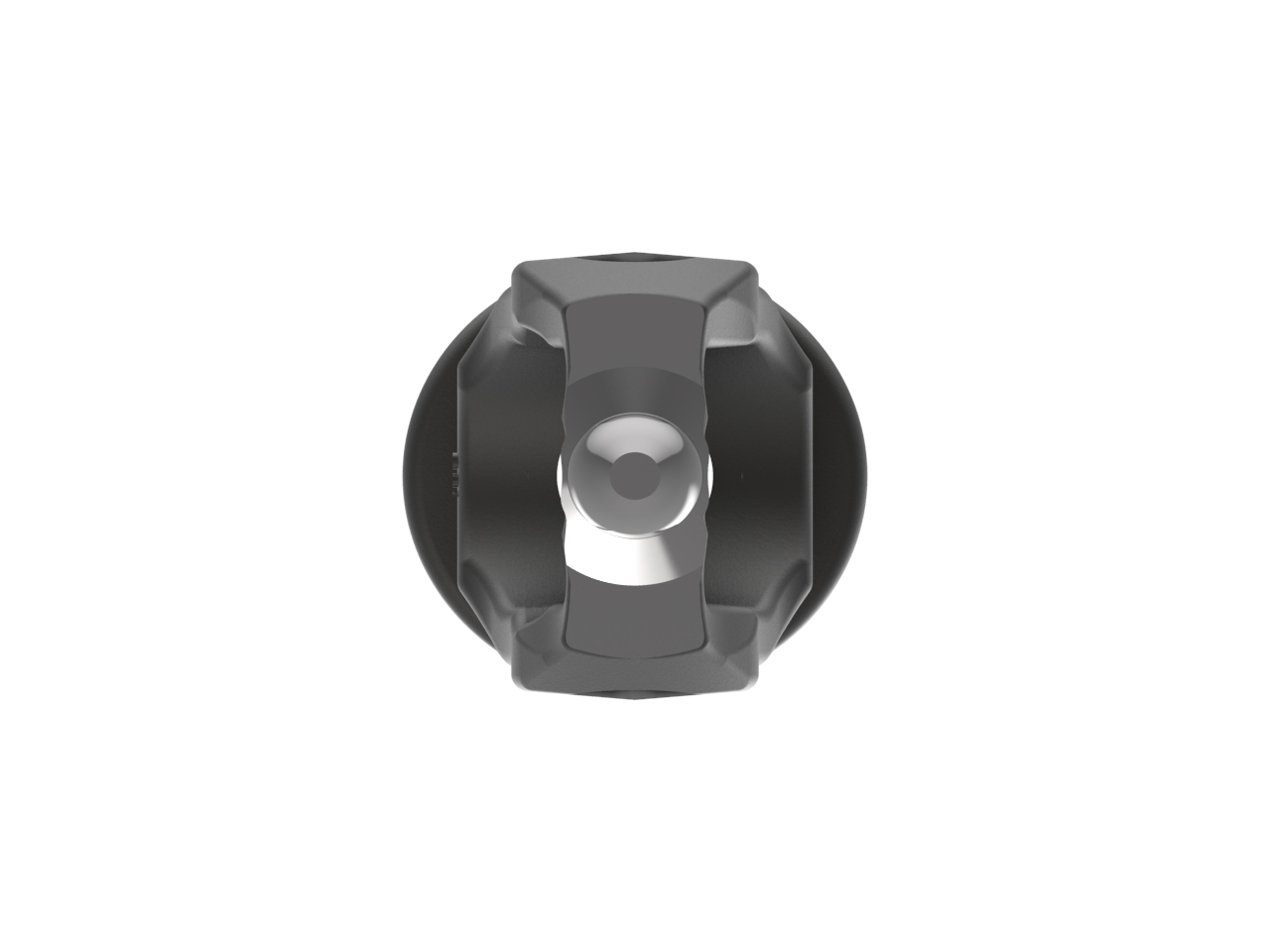

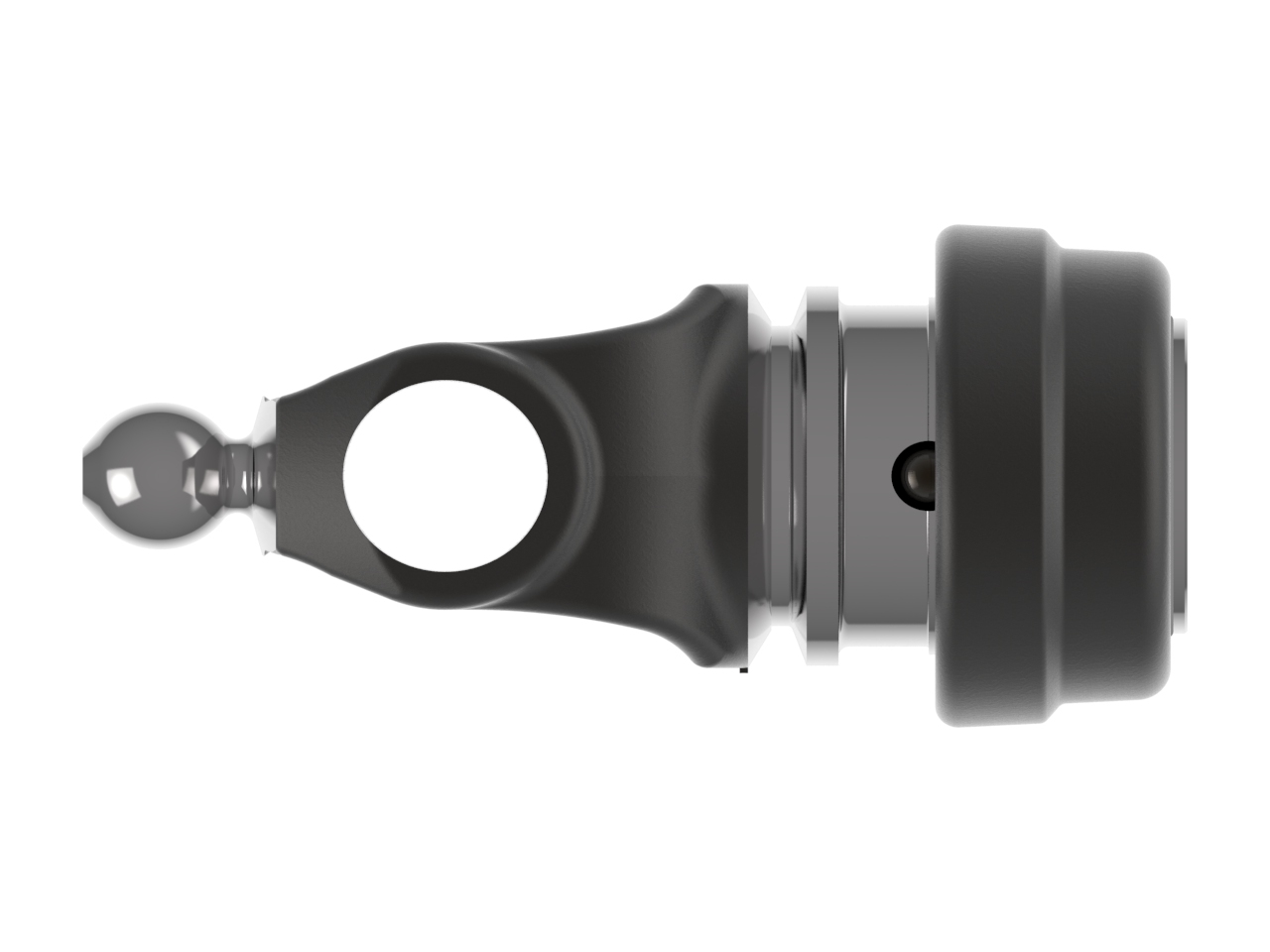

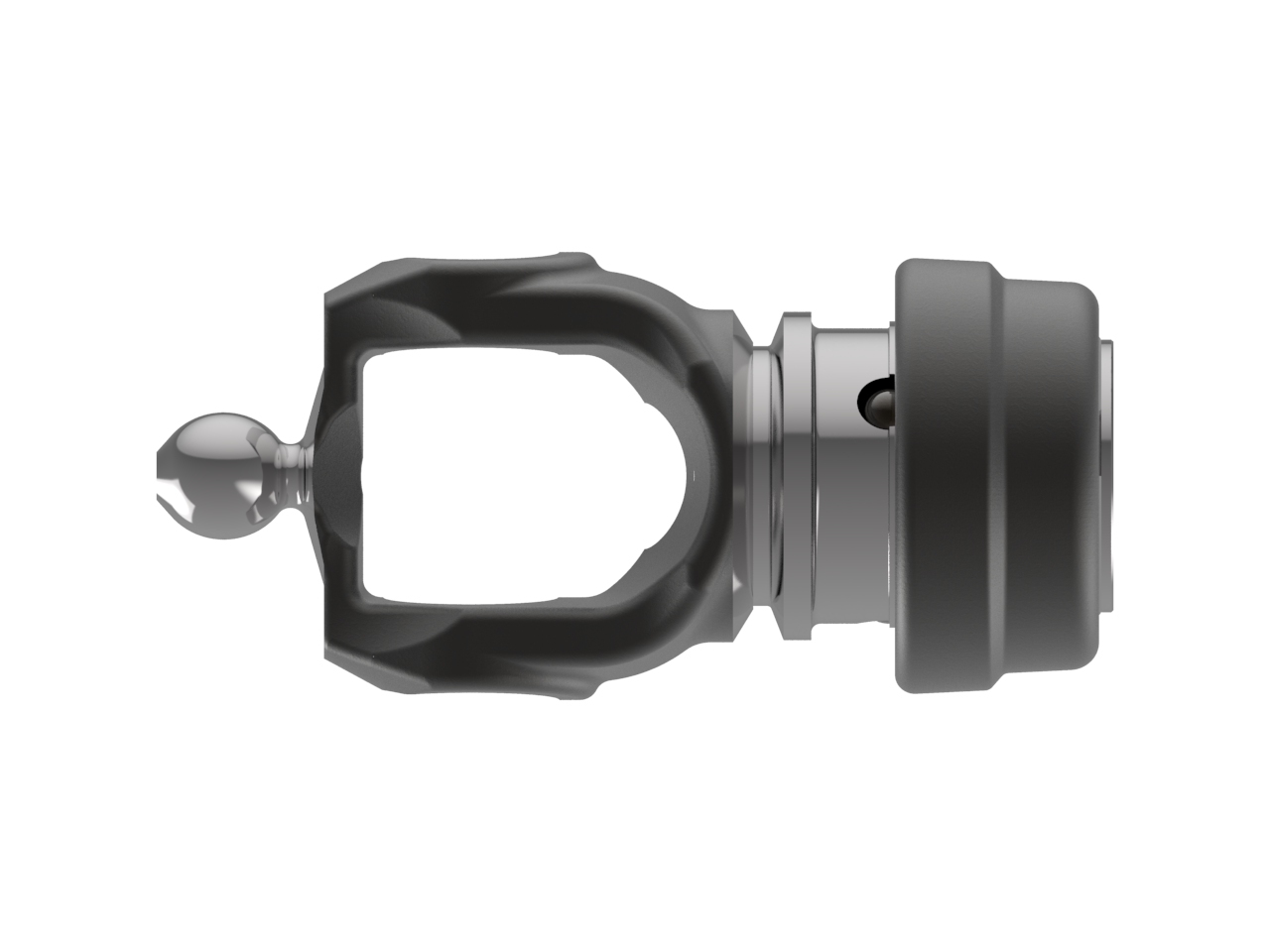

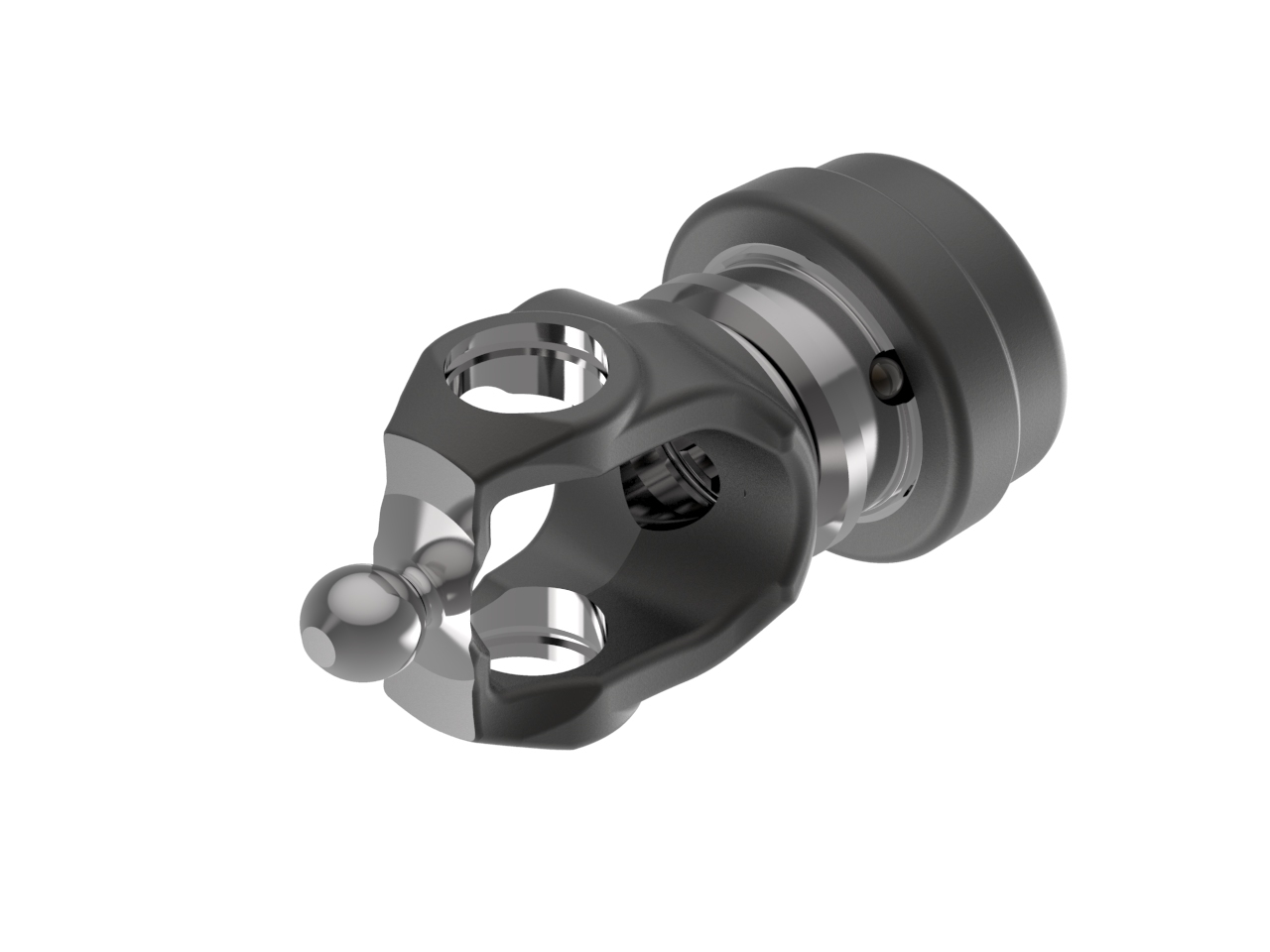

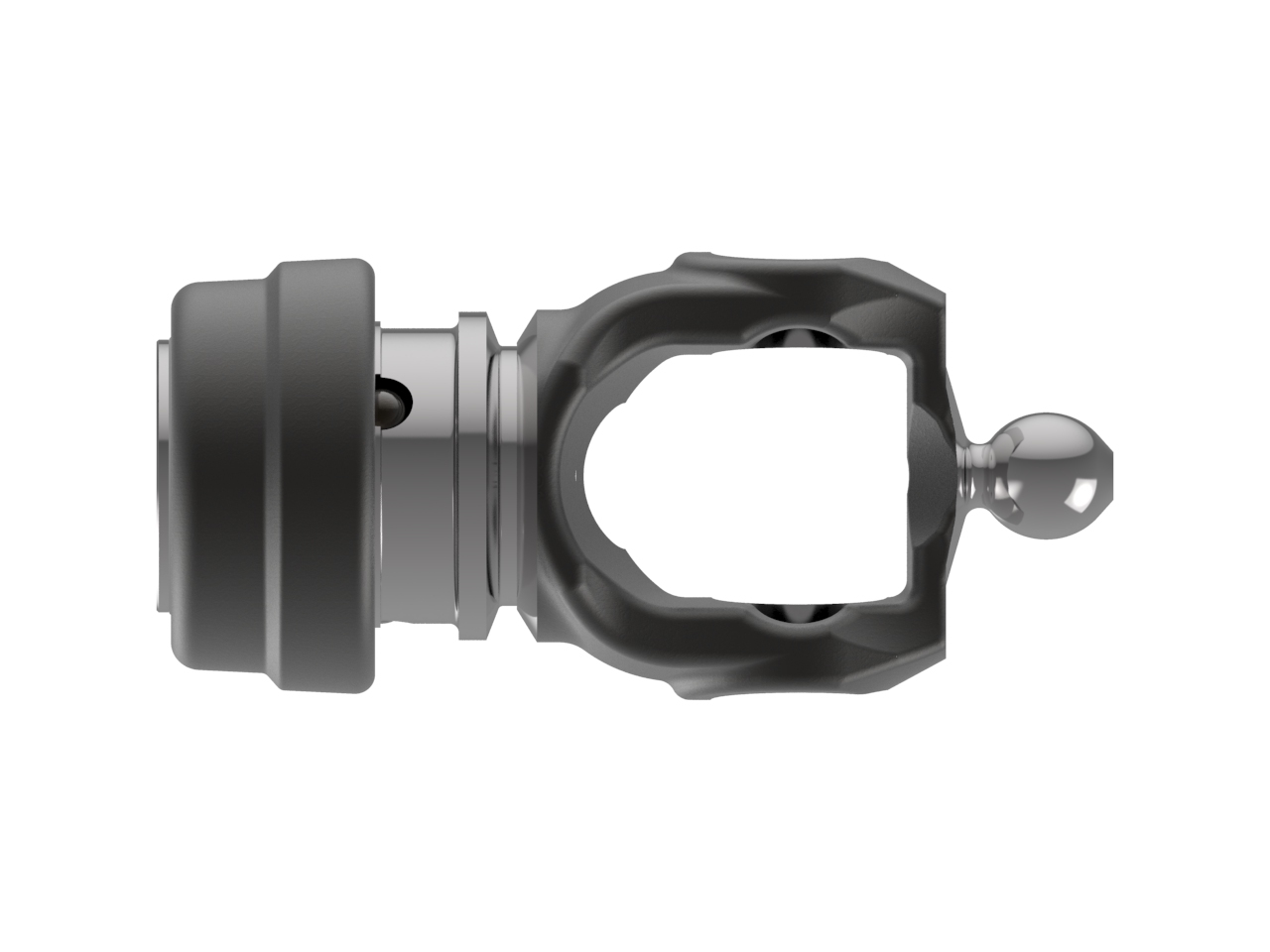

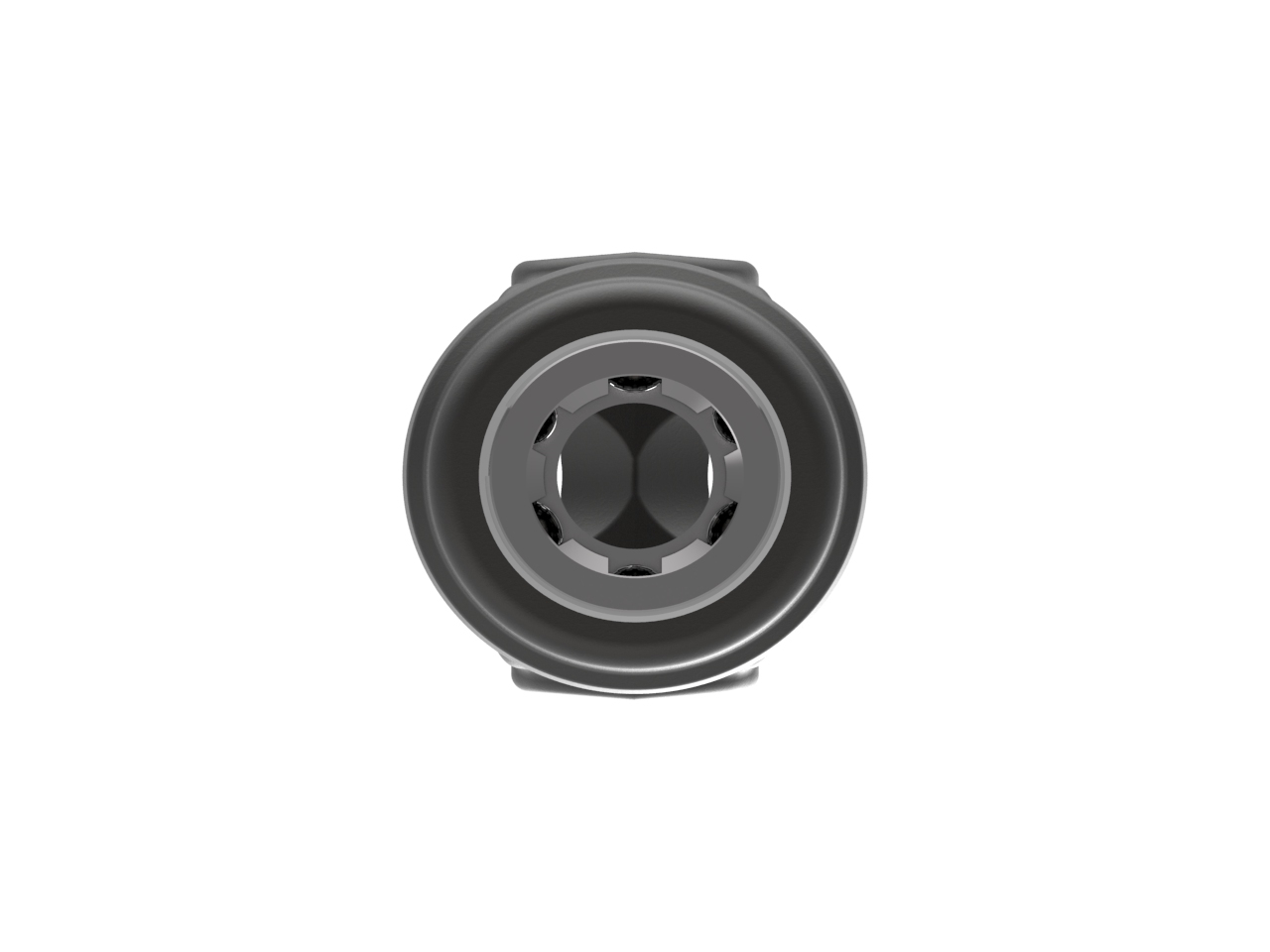

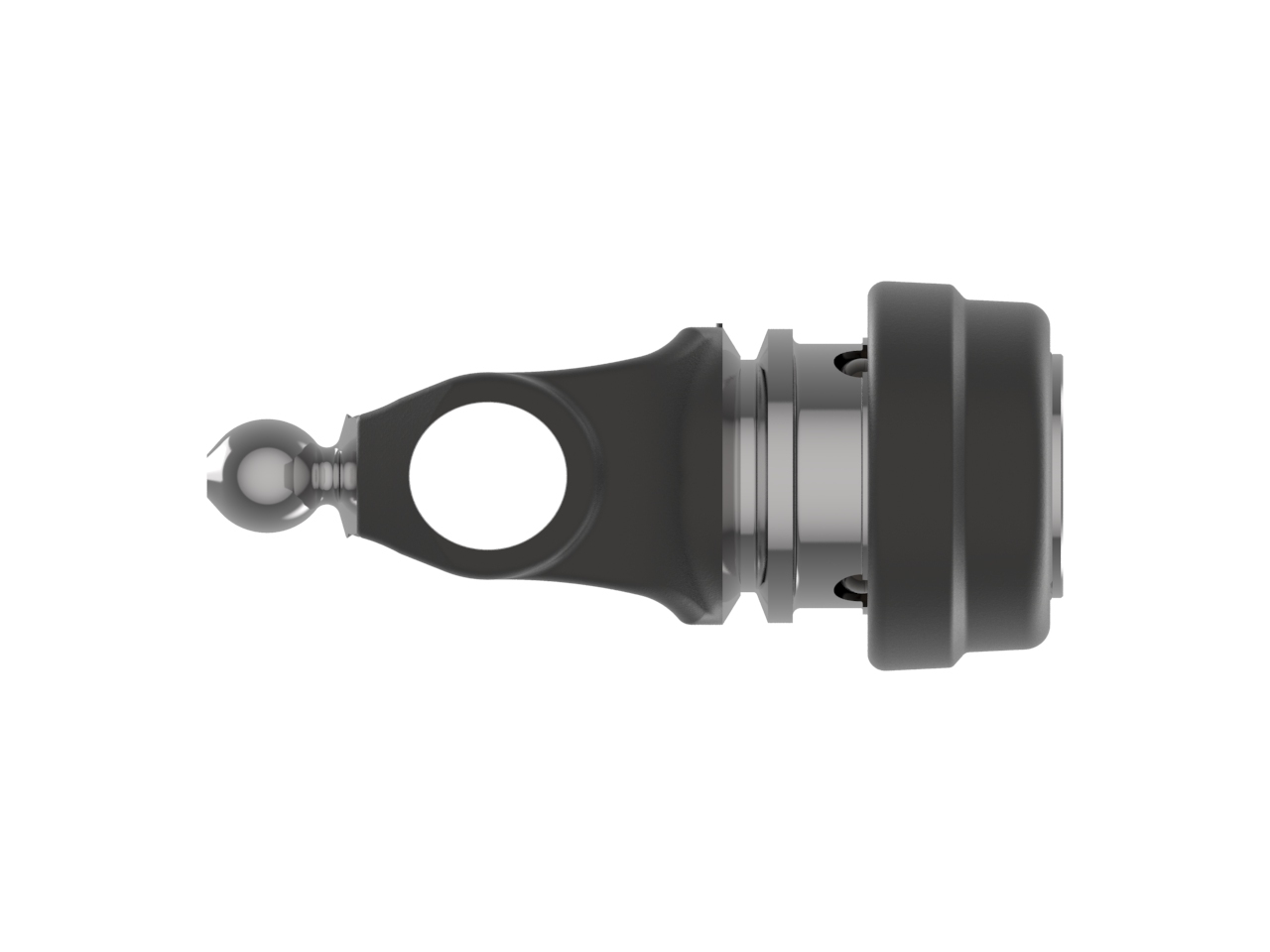

3-50 series yoke with 1 3/8-6 spline bore and auto-lok connection

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

PTO drive shafts begin with a tractor yoke, it is the leading connection between the the tractor and the driveline. Weasler provides the CV wide angle tractor yokes with auto-lok or safety slide lock connections, and all connection types can be included on a 50° CV or 80° CV drive shaft or assembly. All yokes are compliant with, ANSI/ASABE AD5673, ANSI/ASABE S604 and EN1265. Agricultural CV wide angle tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Connection 1 AUTO-LOK
HP@1000RPM63 HP47 kilowatts
HP@540RPM41 HP31 kilowatts
Shipping Dimensions0" L  ×  0" H  ×  0" W0cm L  ×  0cm H  ×  0cm W

Downloads

Document Name Type Language
Service Instructions - Lubricating 50 Deg CV.pdf Maintenance Document English
Service Instructions - CV Joint.pdf Service Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
50 deg CV Joint - Over Angle.pdf Troubleshooting Document English
WE0101001_0118_USL_50DegConstantVelocityJoint.pdf Performance Benefits Document English
