802-1420

14 Series Pin Yoke

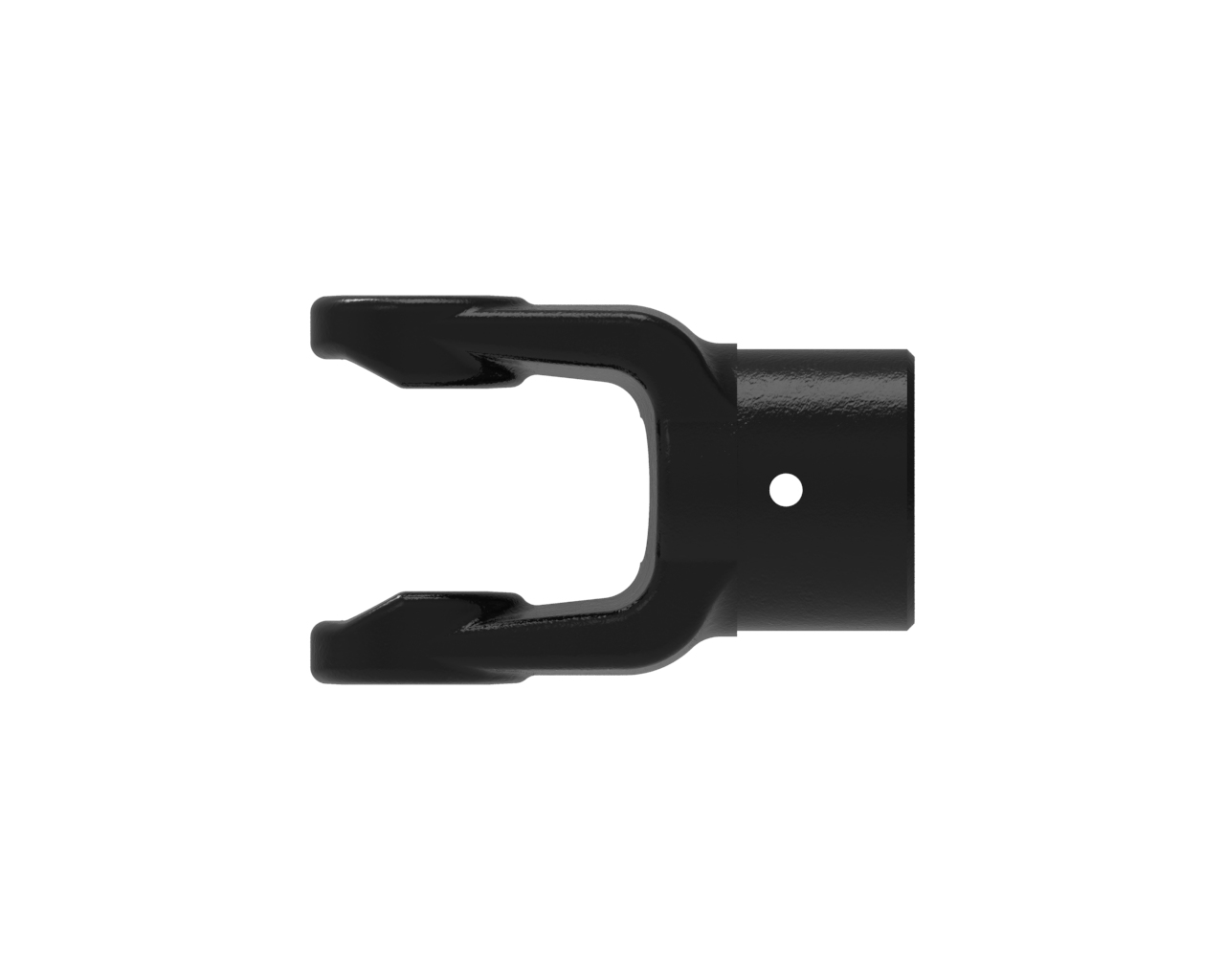

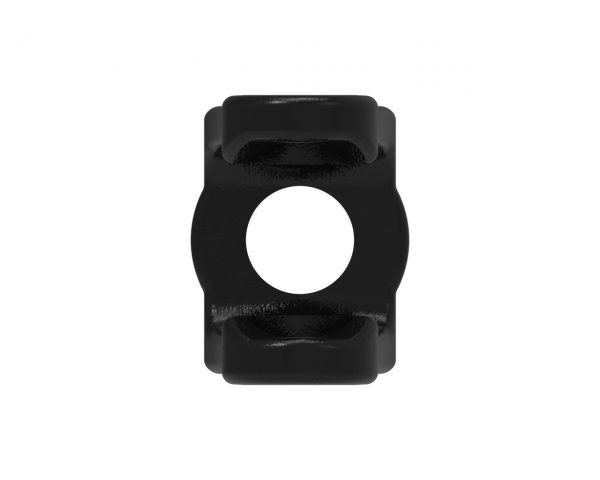

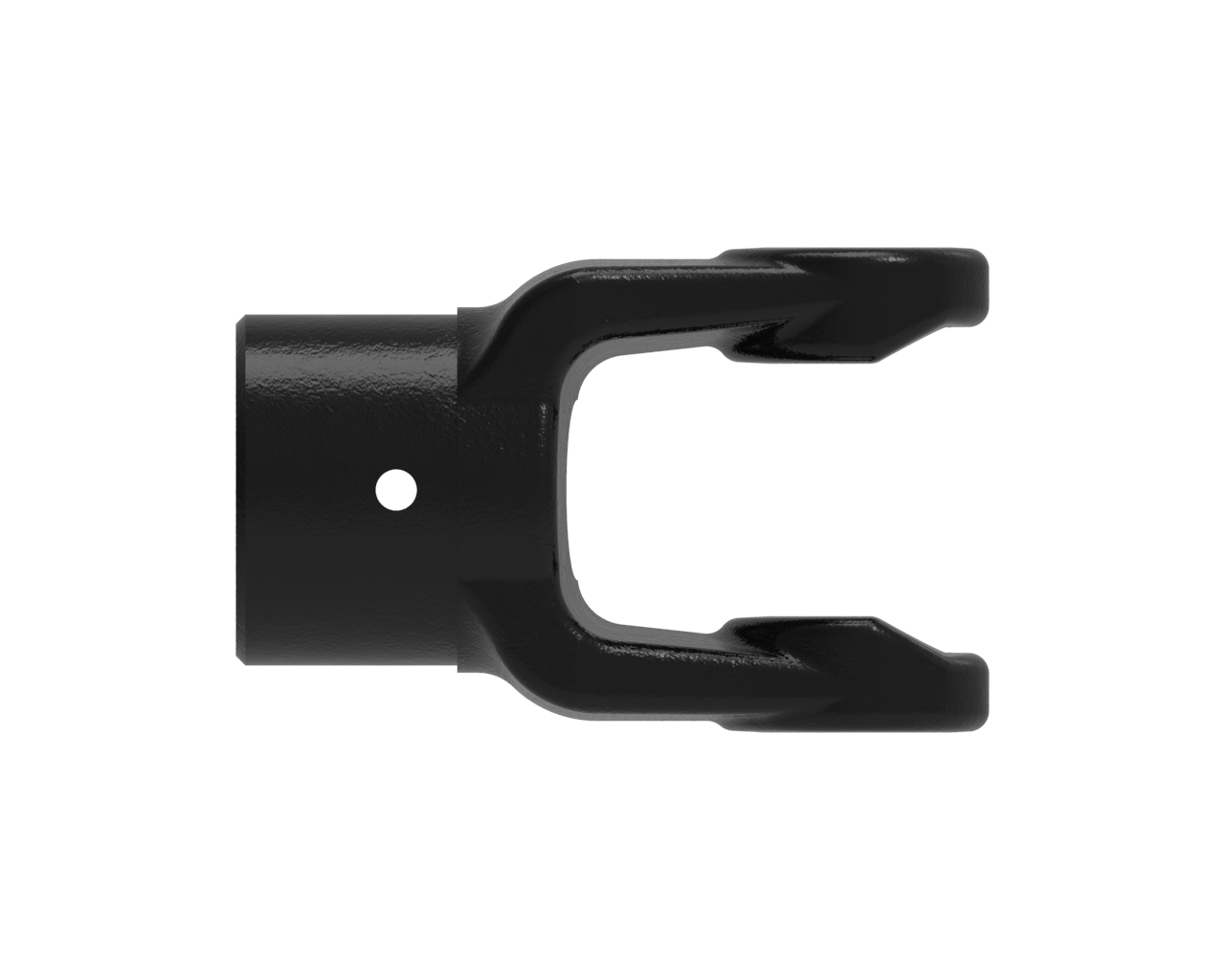

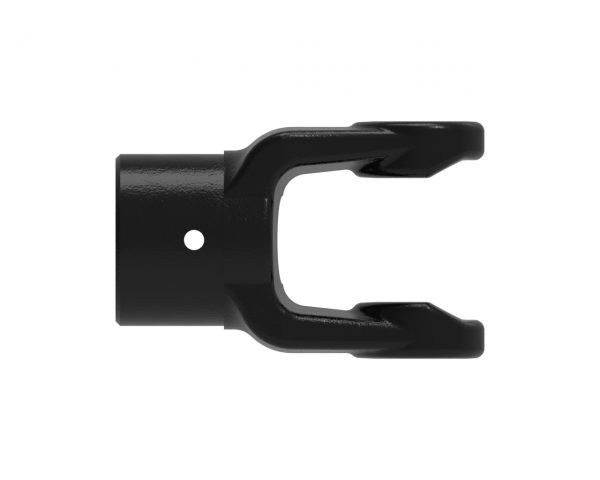

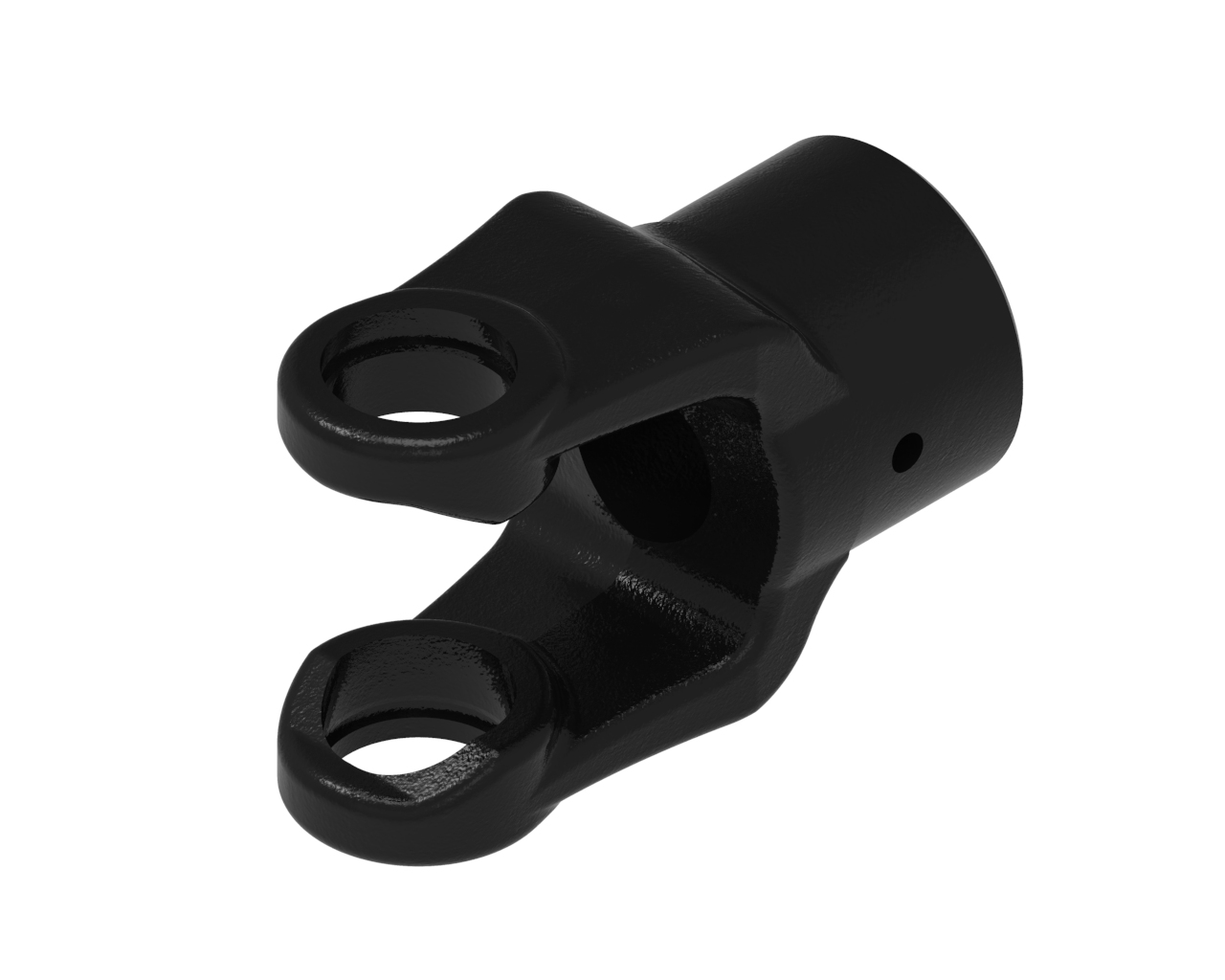

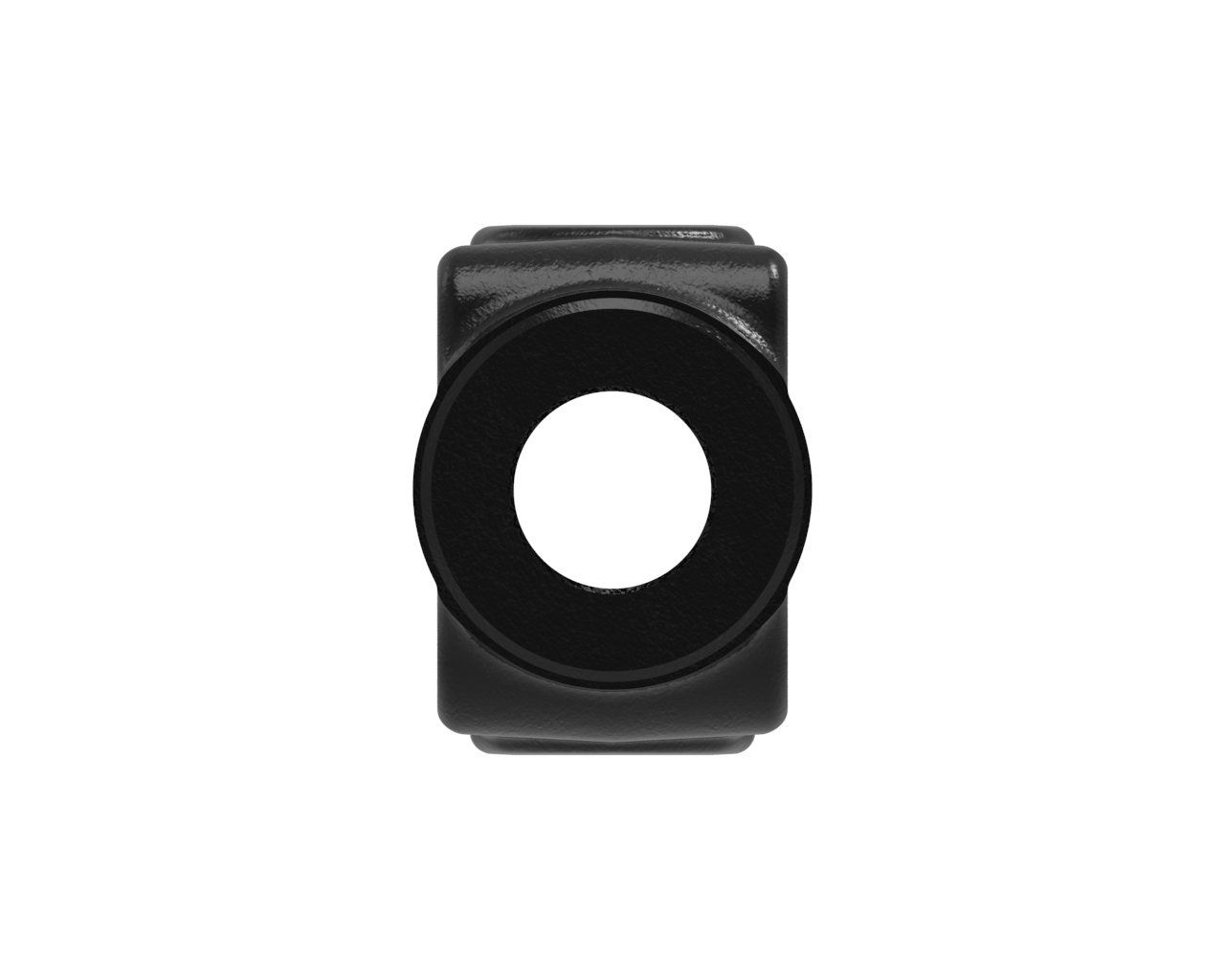

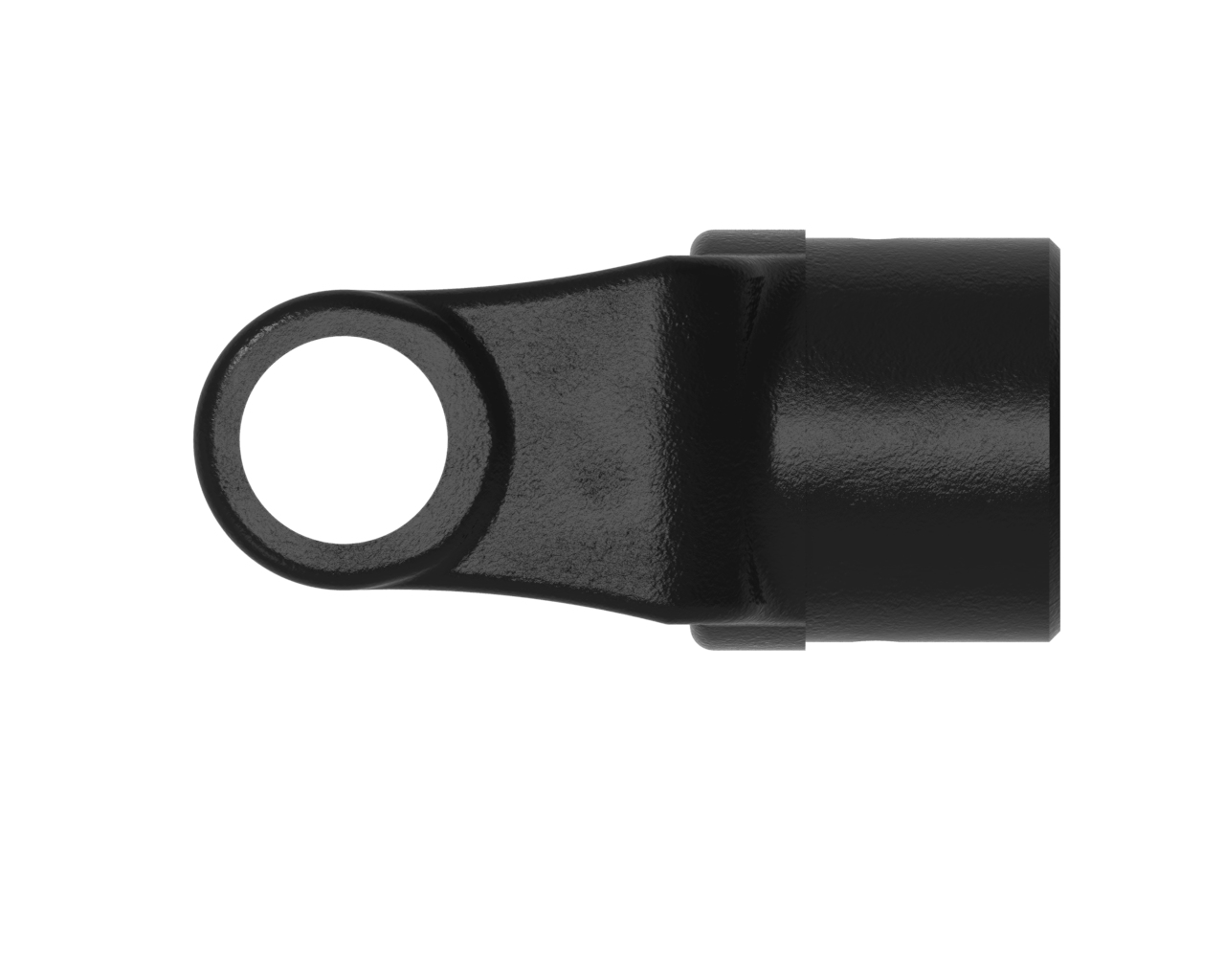

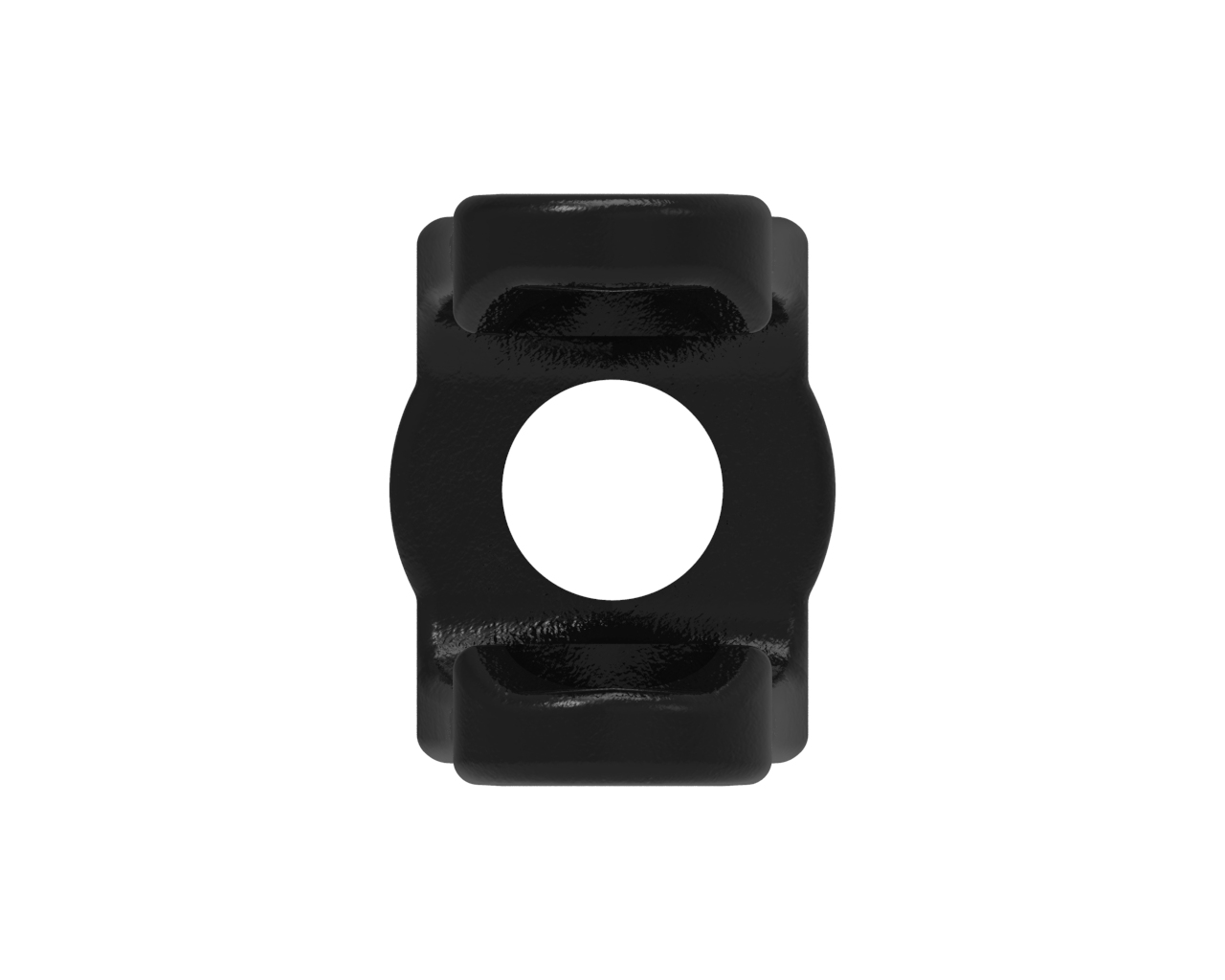

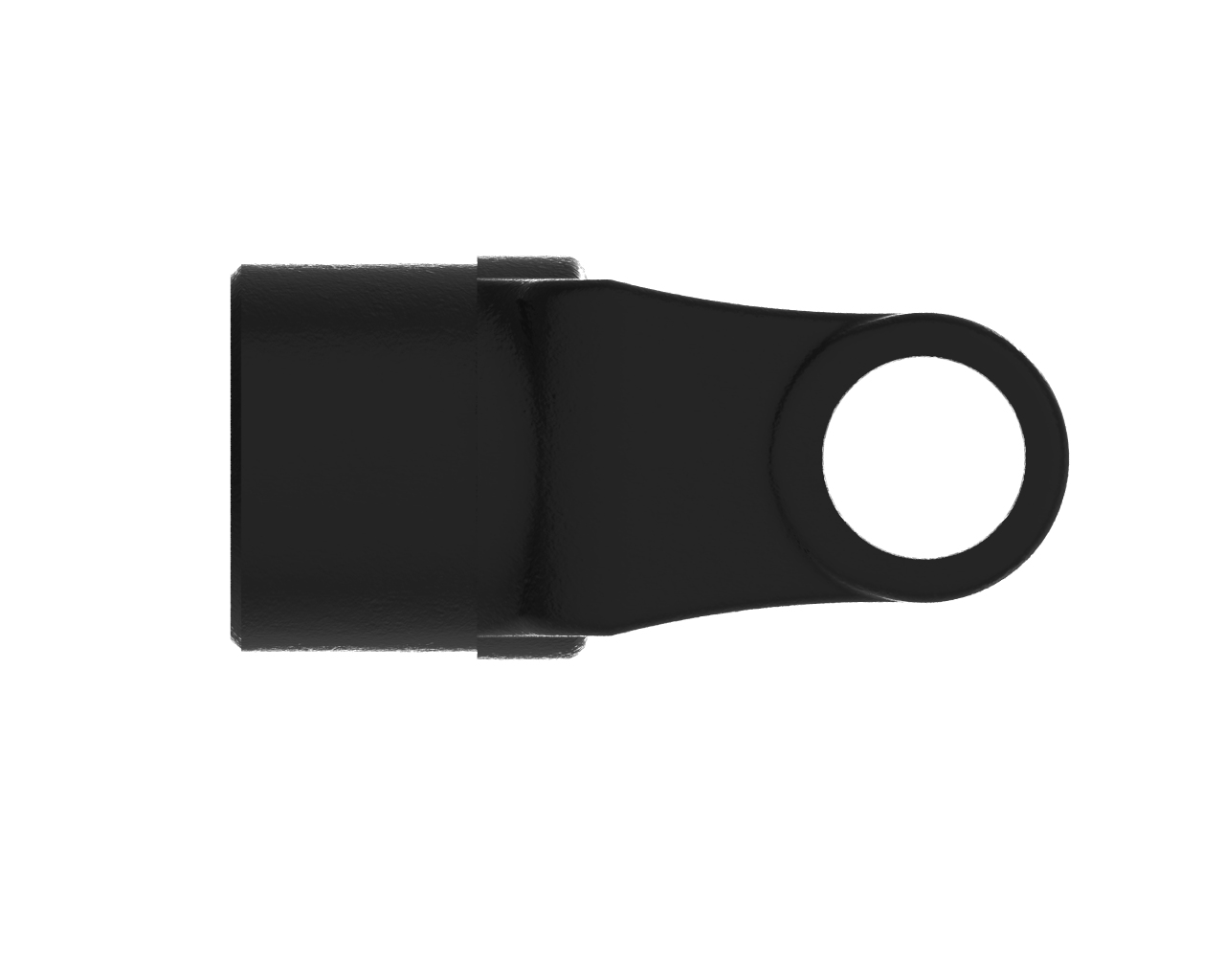

14 series yoke with round bore and pin connection

View My List

Weasler yokes are made to withstand robust conditions, and engineered for a precise fit. Weasler’s Shear Pin Yoke features a pin (bolt) that extends through the yoke and if broken during operation will spin. The compact, efficient design disconnects the power source from the drivetrain when overload occurs and helps prevent the generatation of damaging torque spikes or heat. Once the operator replaces the bolt, the machine can be restarted.

PERFORMANCE BENEFITS
• Implement overload protection.
• Minimal maintenance.
• No damaging heat generation for higher productivity.
• Repeatable overload disengagement setting.
• Smooth disengaged operation, no damaging torque spikes.
• Reduces possibility of damage.

Specifications

Spec. Imperial Metric
Bore 11.25 inches32 mm
Bore 1 ROUND
Connection 1 PIN
Height3.38 inches86 mm
HP@1000RPM58 HP43 kilowatts
HP@540RPM38 HP28 kilowatts
Length3.88 inches99 mm
Pin Hole0.25 inches6 mm
Shear Bolt (1) 1/4 Grade 8
Shipping Dimensions4.7" L  ×  3.38" H  ×  2.31" W12cm L  ×  9cm H  ×  6cm W
Shipping Volume36.70 in3601 cm3
Shipping Weight2.56 pounds1 kilograms
Torque1000010000
Weight2.56 pounds1 kilograms
Width2.31 inches59 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
