A-11544

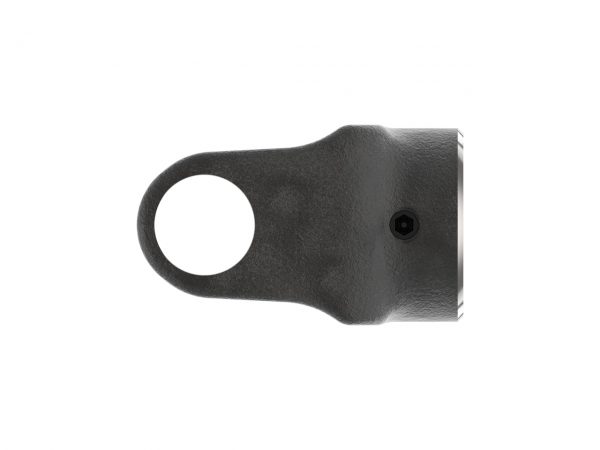

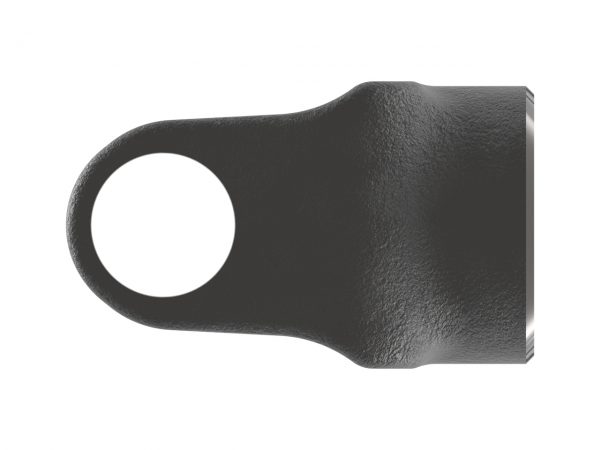

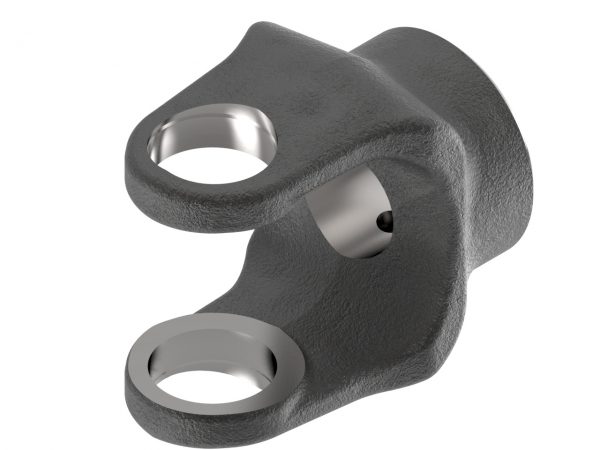

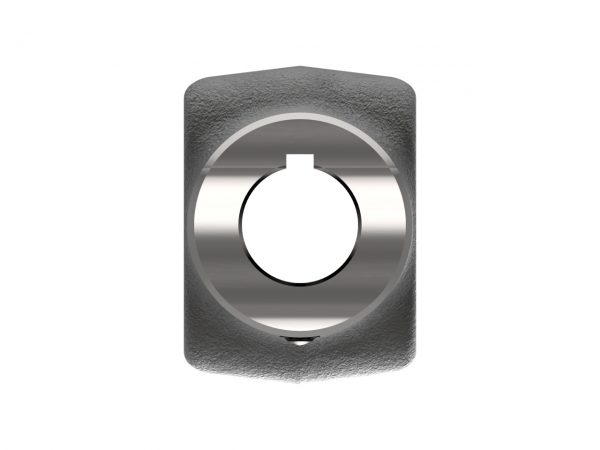

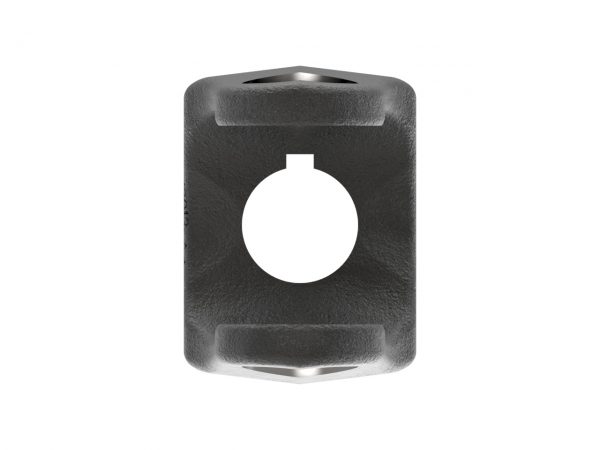

12 Series Setscrew Yoke

12 series yoke with round with keyway bore and setscrew connection

View My List

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.06 inches27 mm
Bore 1 ROUND WITH KEYWAY
Connection 1 SETSCREW
Height3.00 inches76 mm
HP@1000RPM40 HP30 kilowatts
HP@540RPM26 HP19 kilowatts
Keyway 10.25 inches6 mm
Length2.75 inches70 mm
Setscrew 3/8-16
Shipping Dimensions3.545" L  ×  3" H  ×  2.06" W9cm L  ×  8cm H  ×  5cm W
Shipping Volume21.91 in3359 cm3
Shipping Weight1.63 pounds1 kilograms
Weight1.63 pounds1 kilograms
Width2.06 inches52 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
