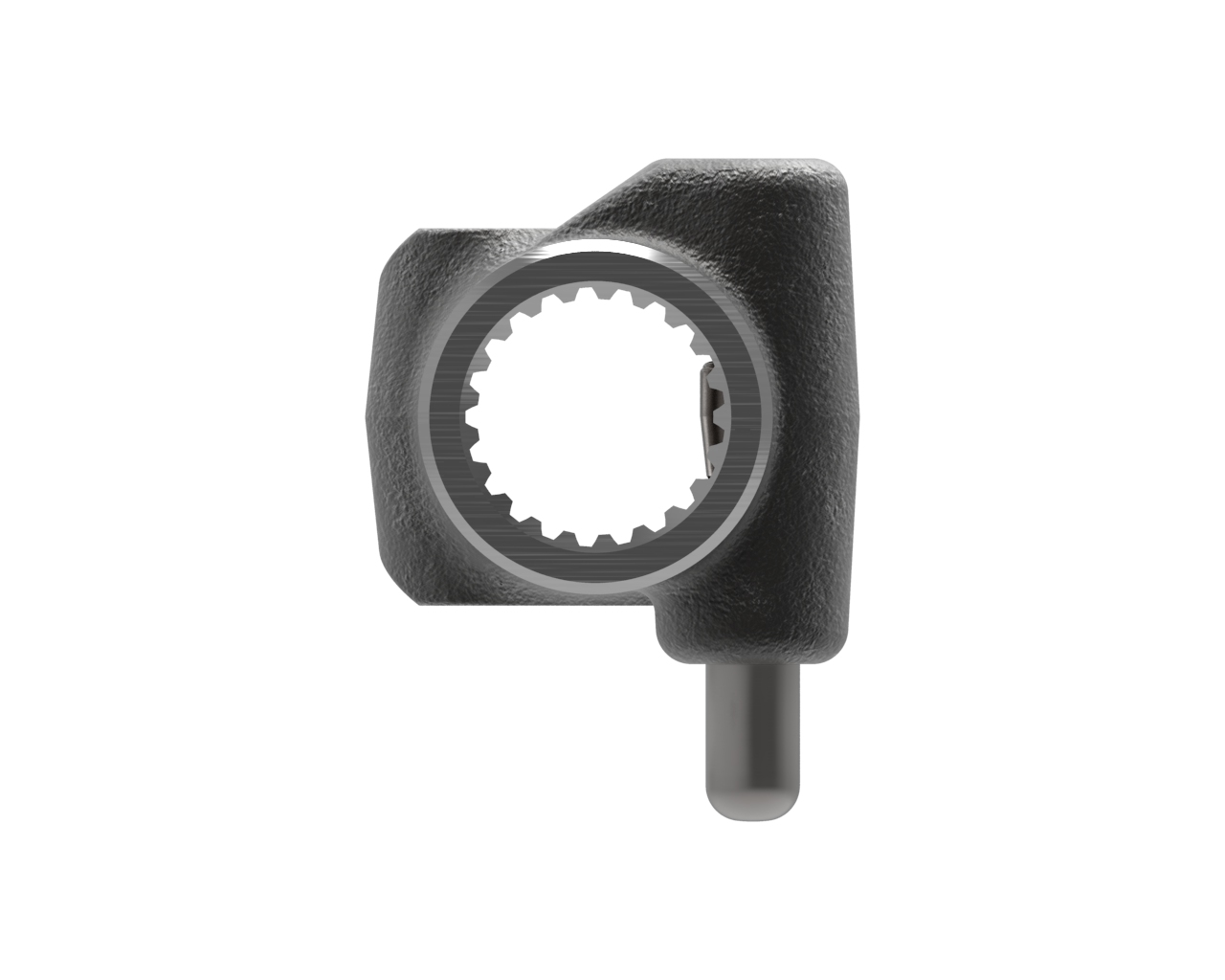

1000 Series Quick Disconnect Yoke
1000 series yoke with 1 3/8-21 spline bore and quick disconnect connection
PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2″ 8-spline and 1 3/4″ 6-spline options are available. Lawn & Turf tractor yokes are offered in 1″ 10-spline and 1″ 15-spline.
PERFORMANCE BENEFITS
Specifications
Part Number: 102-1021
Product Series: 1000
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 0.94 (15/16) in | 24 mm |
| Bearing Cap to Cap Span | 2.36 (2 23/64) in | 60 mm |
| Yoke Bore | 1 3/8-21 SPLINE | |
| Connection 1 Type | QUICK DISCONNECT | |
| HP@1000RPM | 22 HP | 16 kilowatts |
| HP@540RPM | 15 HP | 11 kilowatts |
| Centerline to End Dim | 3.88 (3 7/8) in | 99 mm |
| Weight | 2.00 pounds | 1 kilograms |
Related Products
| Product | Part Number |
|---|---|
| Cross & Bearing Kit | 200-1000 |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-PTO-Drive-Shaft | Maintenance Document | English |
| Service-Instructions-Universal-Joint | Service Document | English |
| Lack-of-Grease-Cross-Brg-Kit | Troubleshooting Document | English |
| WE0101004_0817_USL_AutoLokYoke | Performance Benefits Document | English |
