102-0506

0675 Series Quick Disconnect Yoke

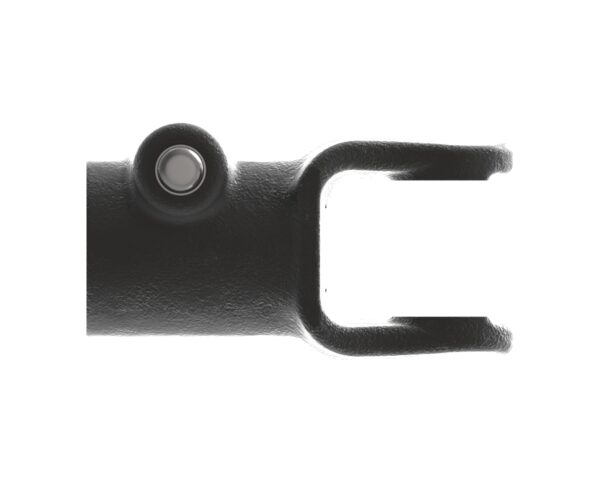

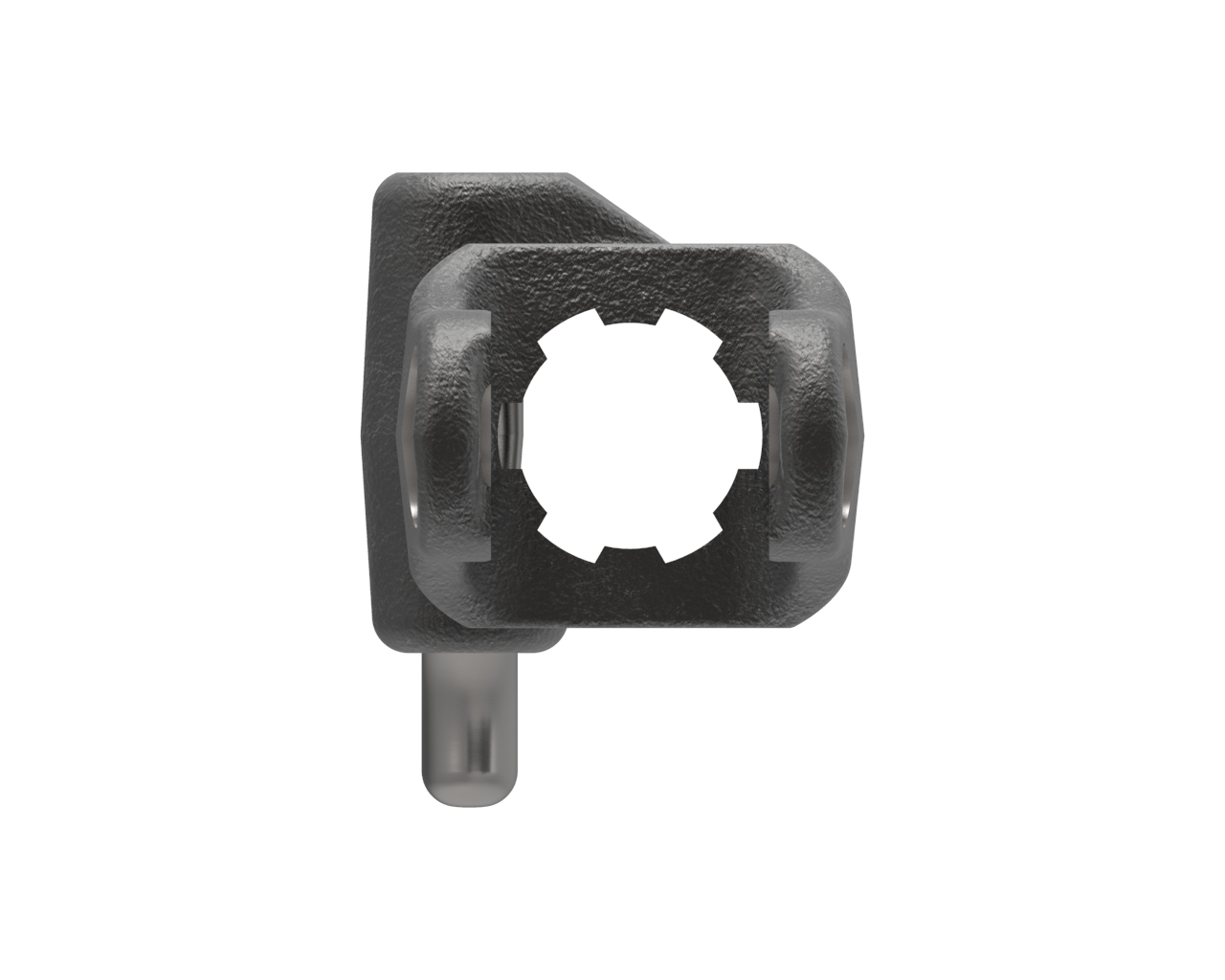

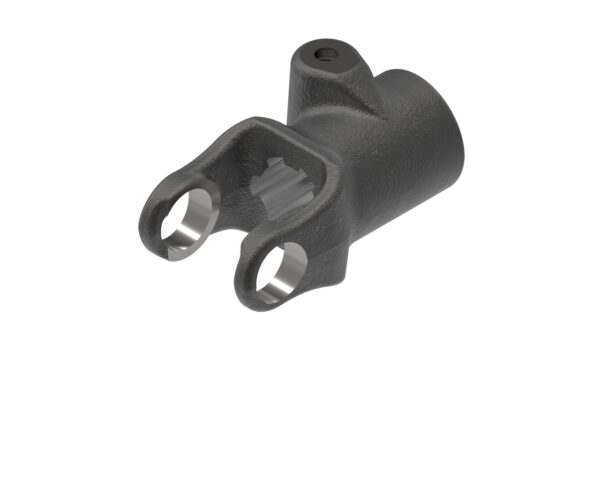

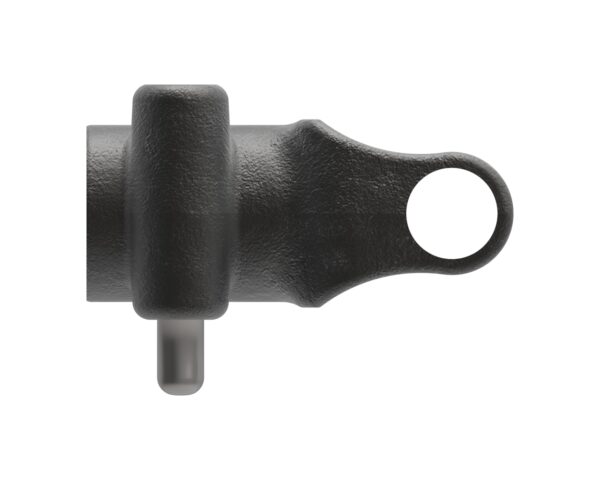

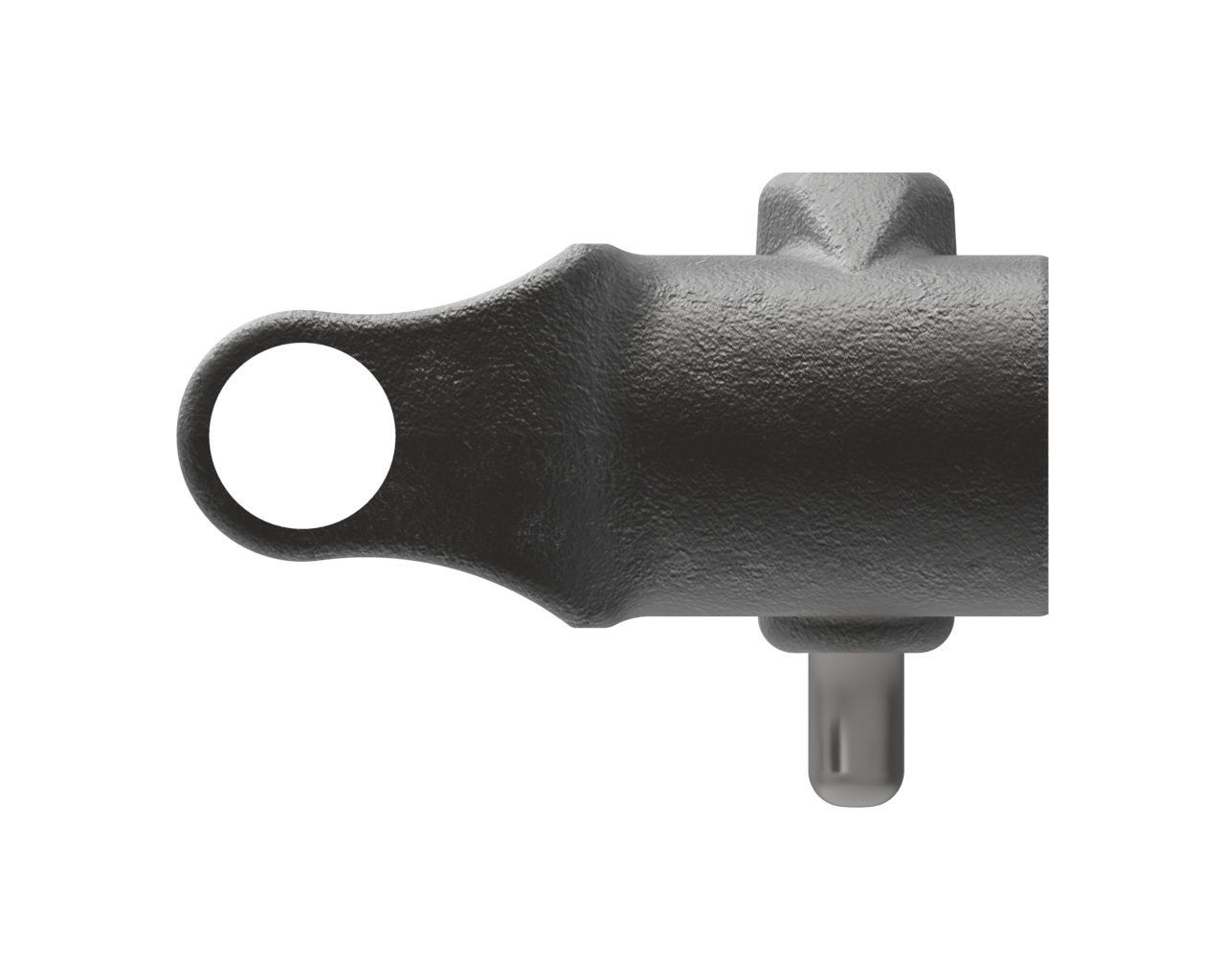

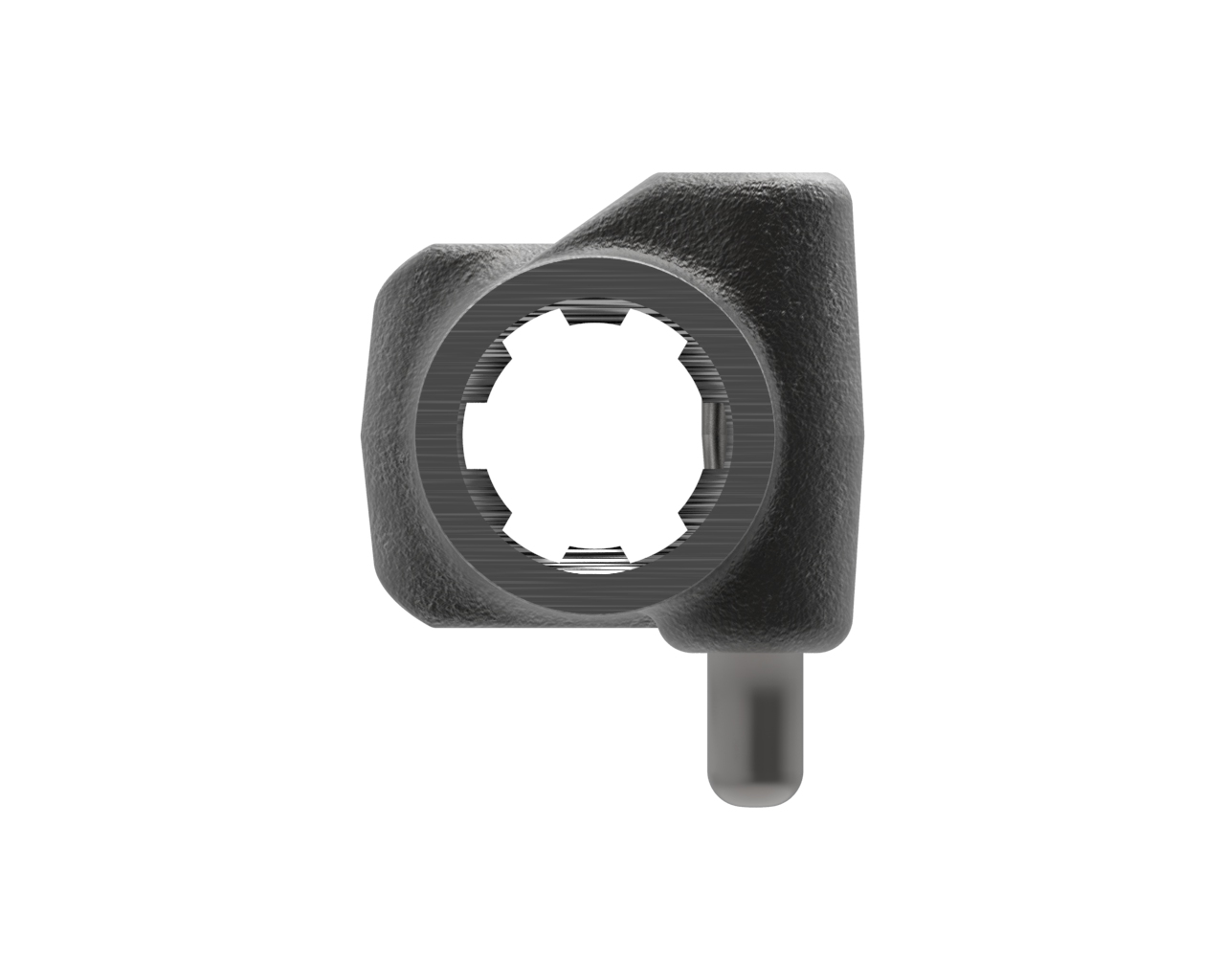

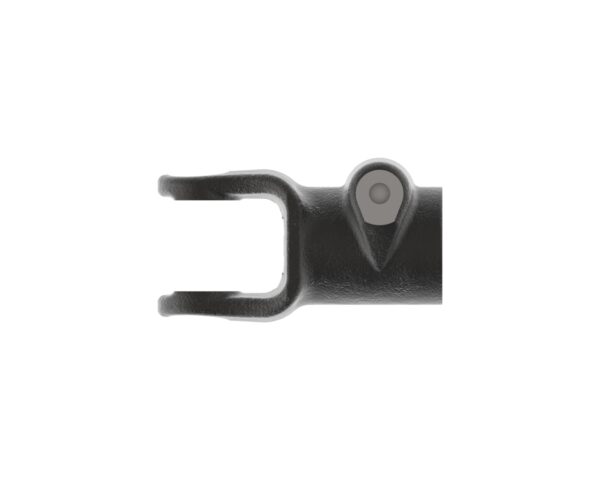

0675 series yoke with 1 3/8-6 spline bore and quick disconnect connection

View My List

PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2″ 8-spline and 1 3/4″ 6-spline options are available. Lawn & Turf tractor yokes are offered in 1″ 10-spline and 1″ 15-spline.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Connection 1 QUICK DISCONNECT
Height2.50 inches64 mm
HP@1000RPM22 HP16 kilowatts
HP@540RPM15 HP11 kilowatts
Length3.88 inches99 mm
Shipping Dimensions4.55" L  ×  2.5" H  ×  2" W12cm L  ×  6cm H  ×  5cm W
Shipping Volume22.75 in3373 cm3
Shipping Weight1.94 pounds1 kilograms
Weight1.94 pounds1 kilograms
Width2.00 inches51 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
WE0101004_0817_USL_AutoLokYoke.pdf Performance Benefits Document English
