801-0506

0675 Series Pin Yoke

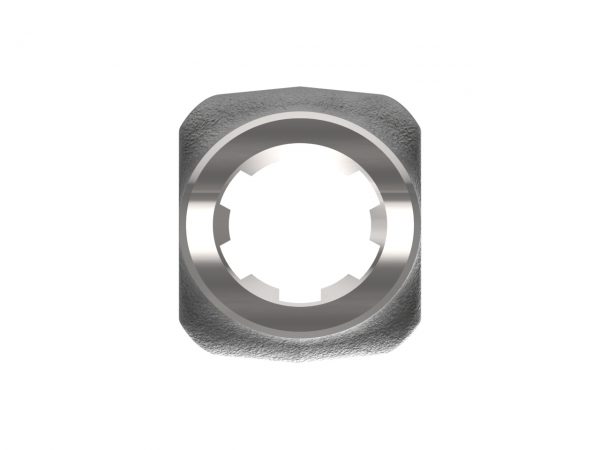

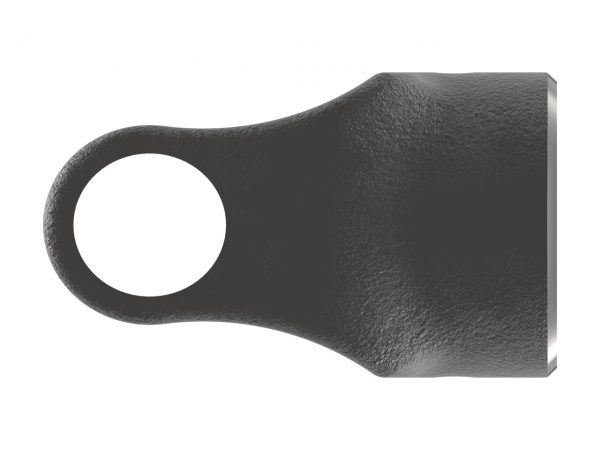

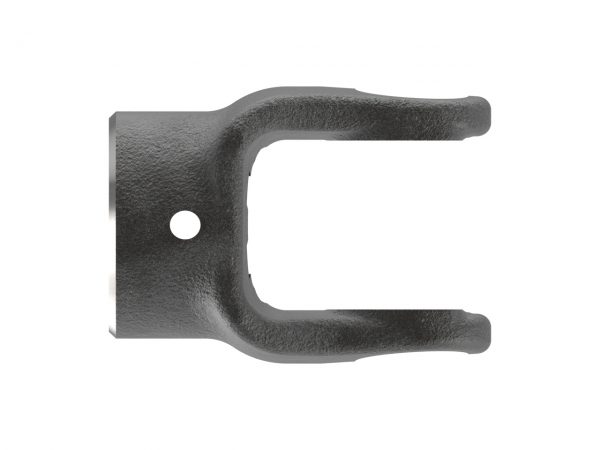

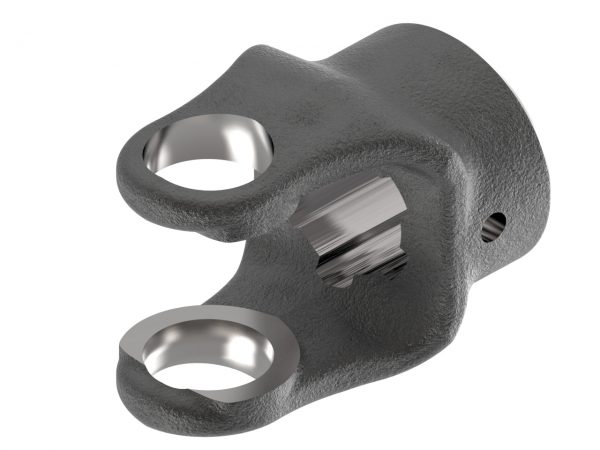

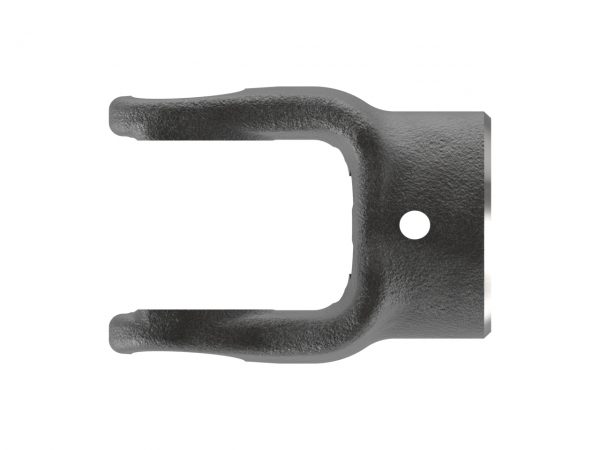

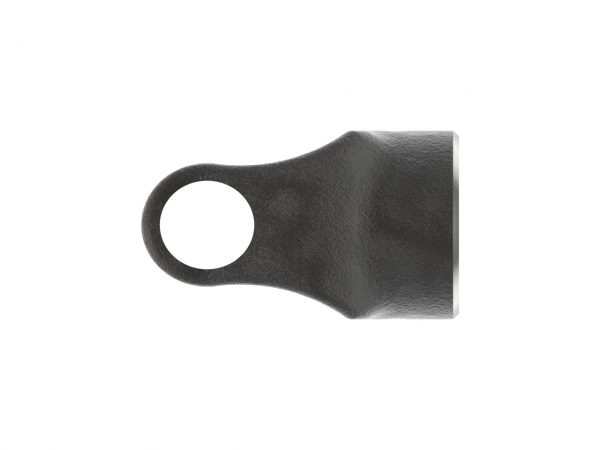

0675 series yoke with 1 3/8-6 spline bore and pin connection

View My List

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Connection 1 PIN
Height2.50 inches64 mm
HP@1000RPM22 HP16 kilowatts
HP@540RPM15 HP11 kilowatts
Length2.50 inches64 mm
Pin Hole0.25 inches6 mm
Shipping Dimensions3.17" L  ×  2.5" H  ×  2" W8cm L  ×  6cm H  ×  5cm W
Shipping Volume15.85 in3260 cm3
Shipping Weight1.08 pounds0 kilograms
Weight1.08 pounds0 kilograms
Width2.00 inches51 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
