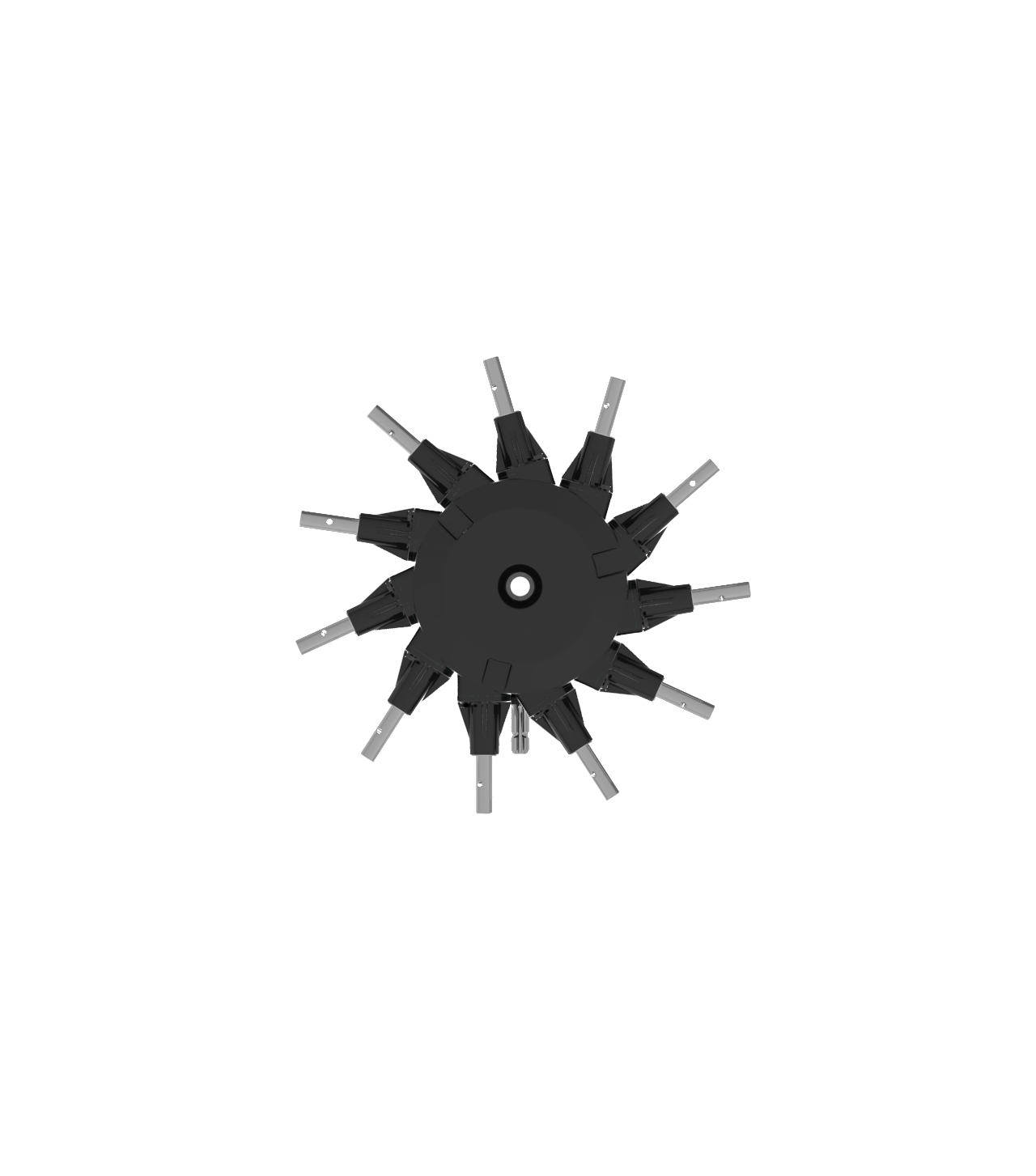

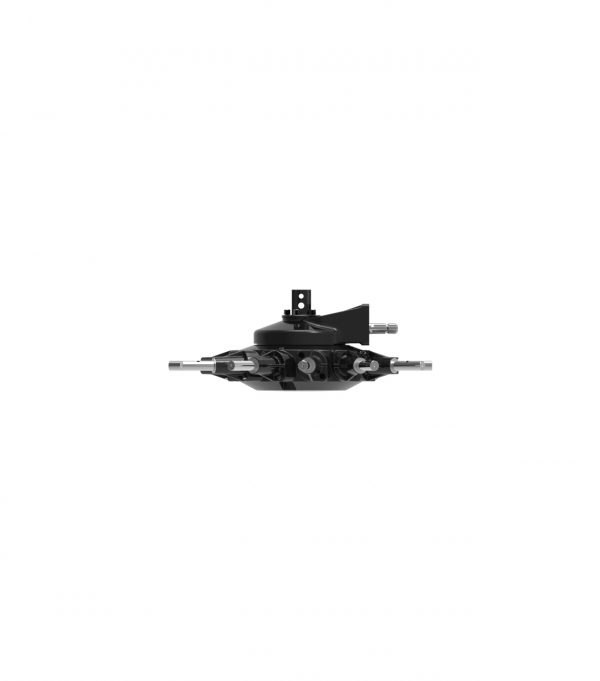

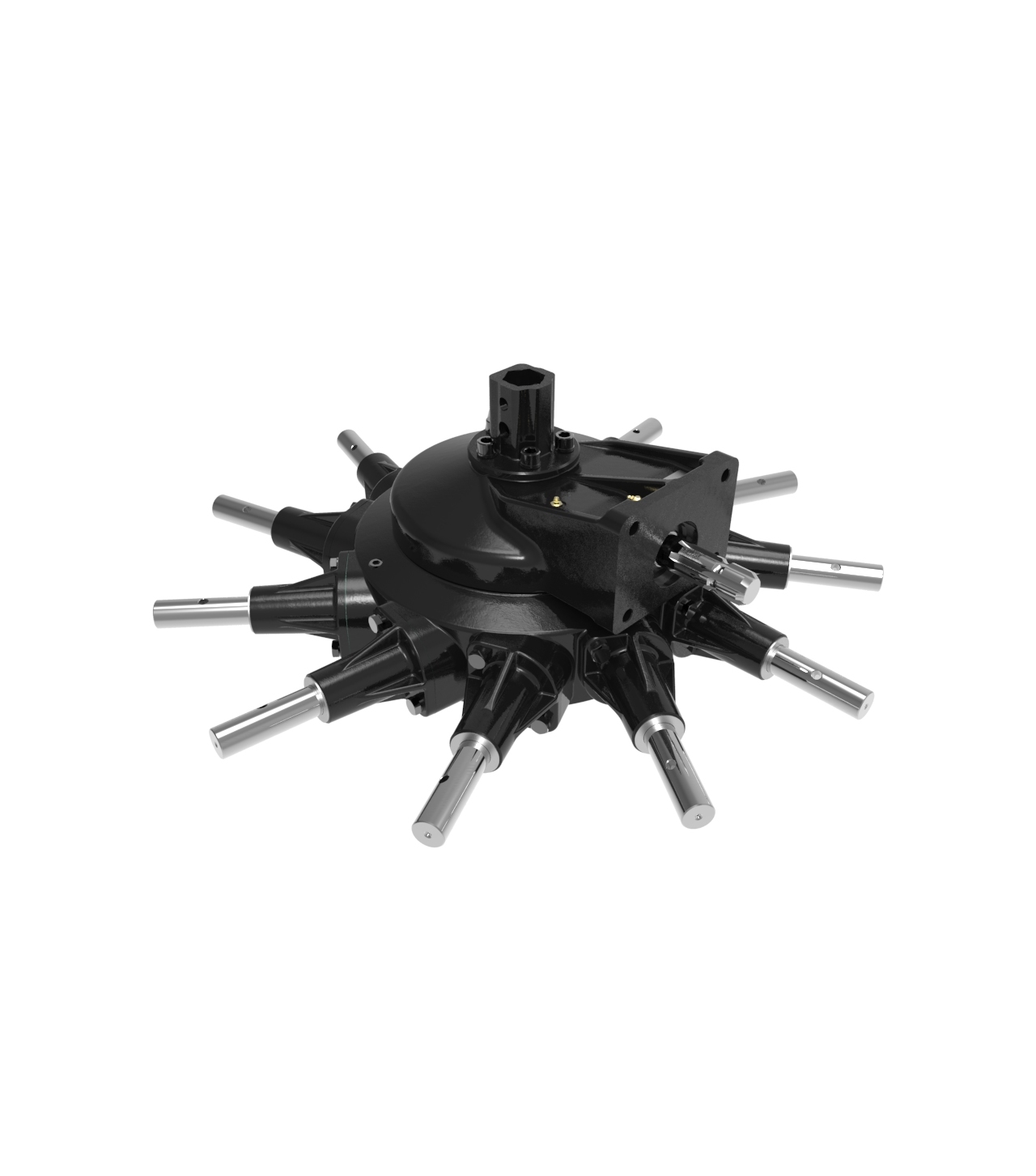

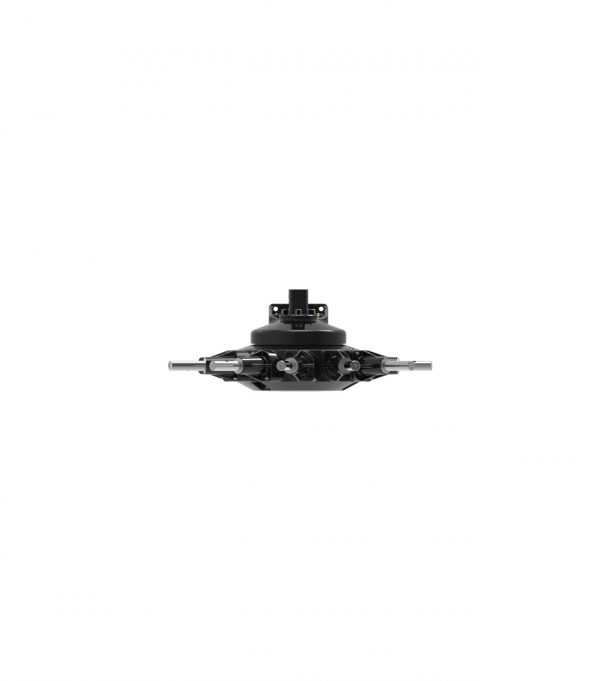

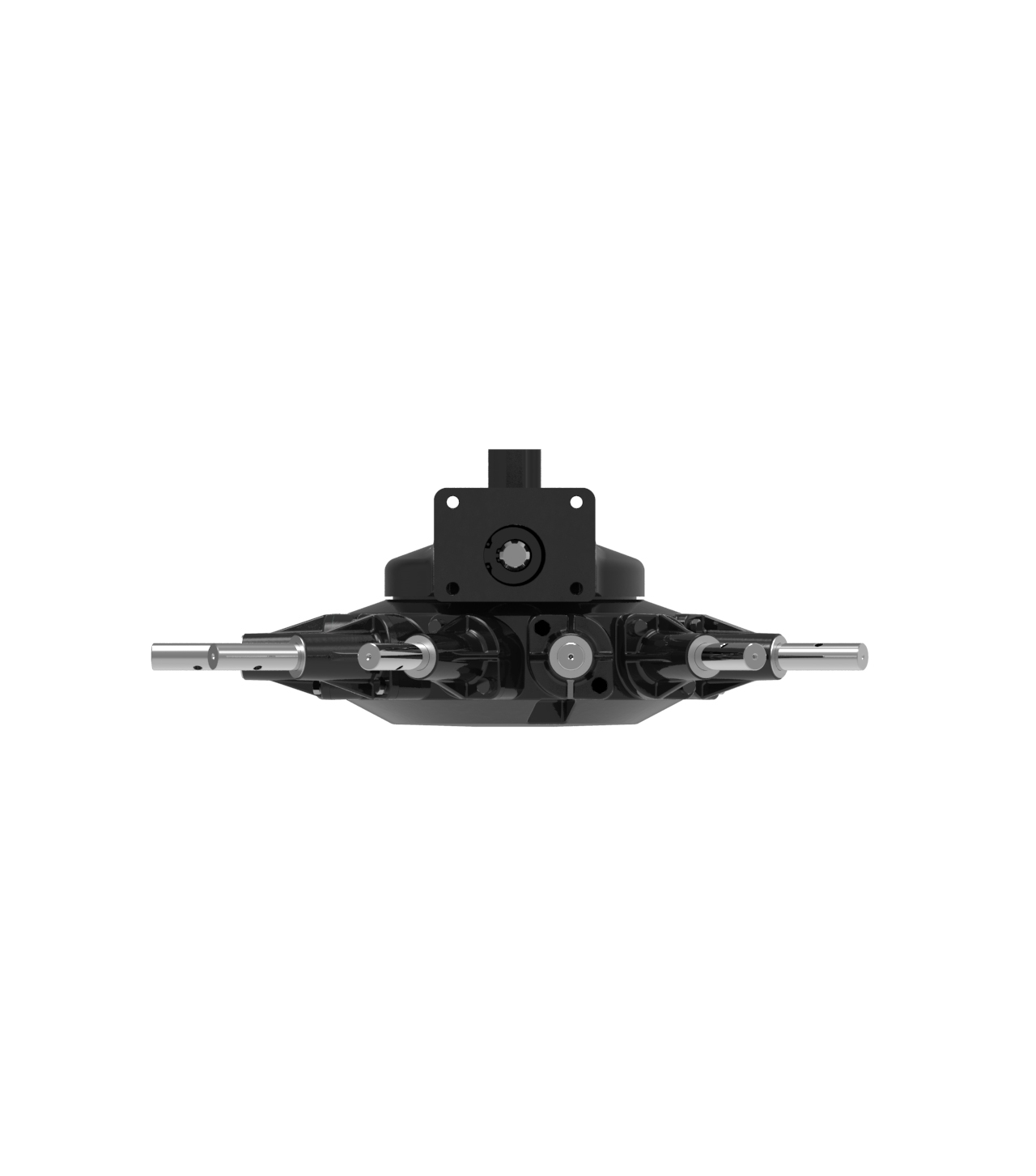

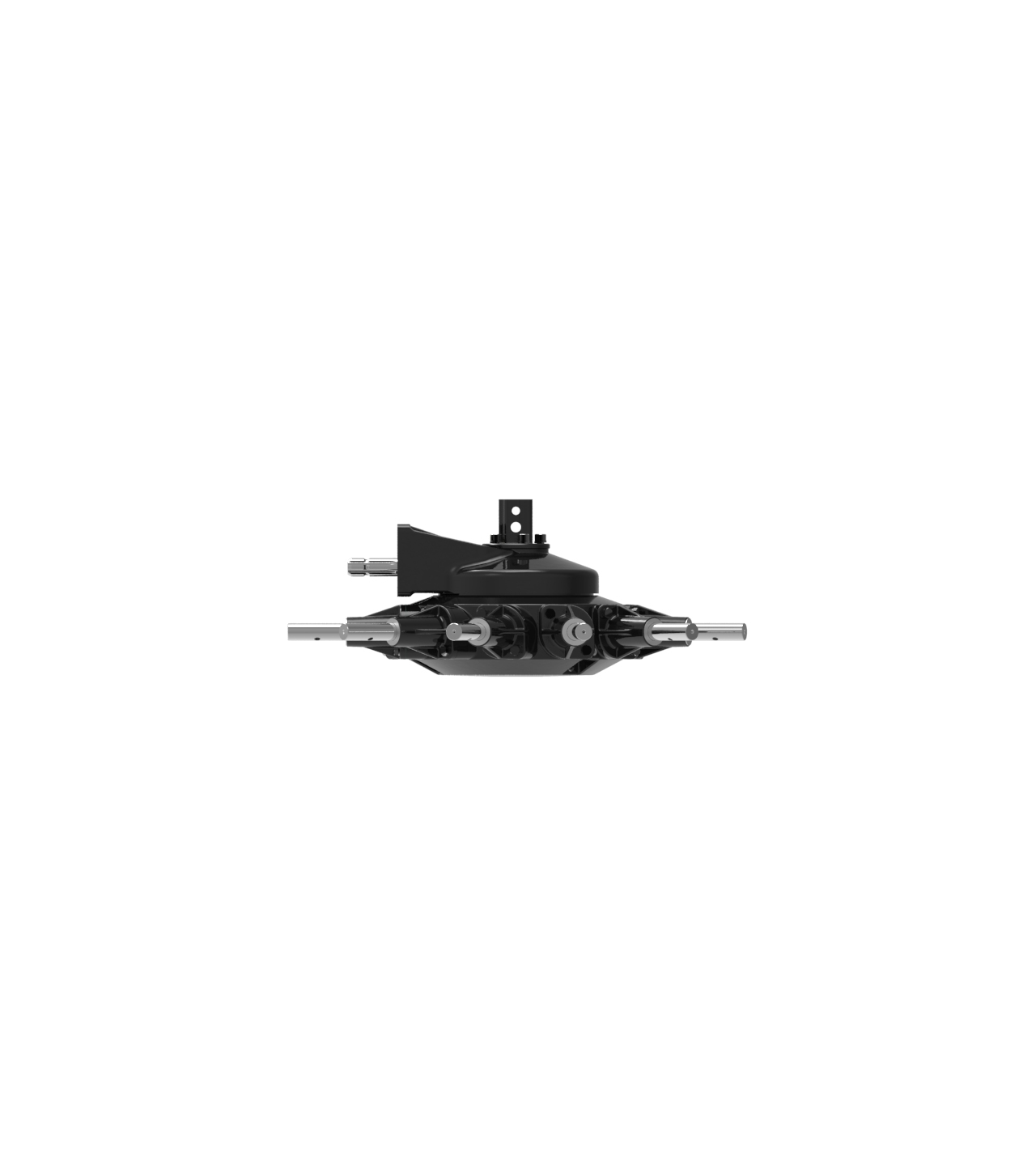

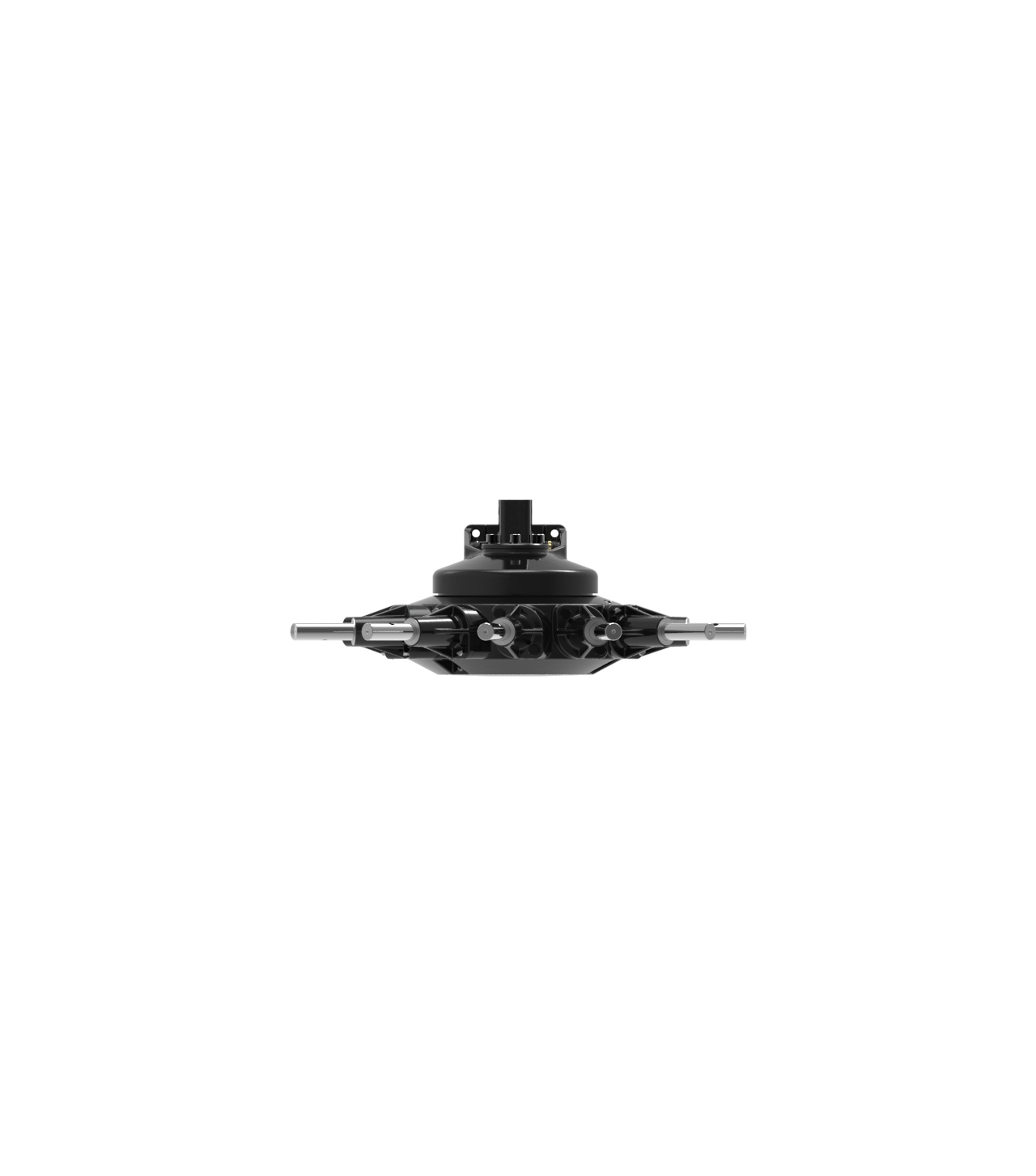

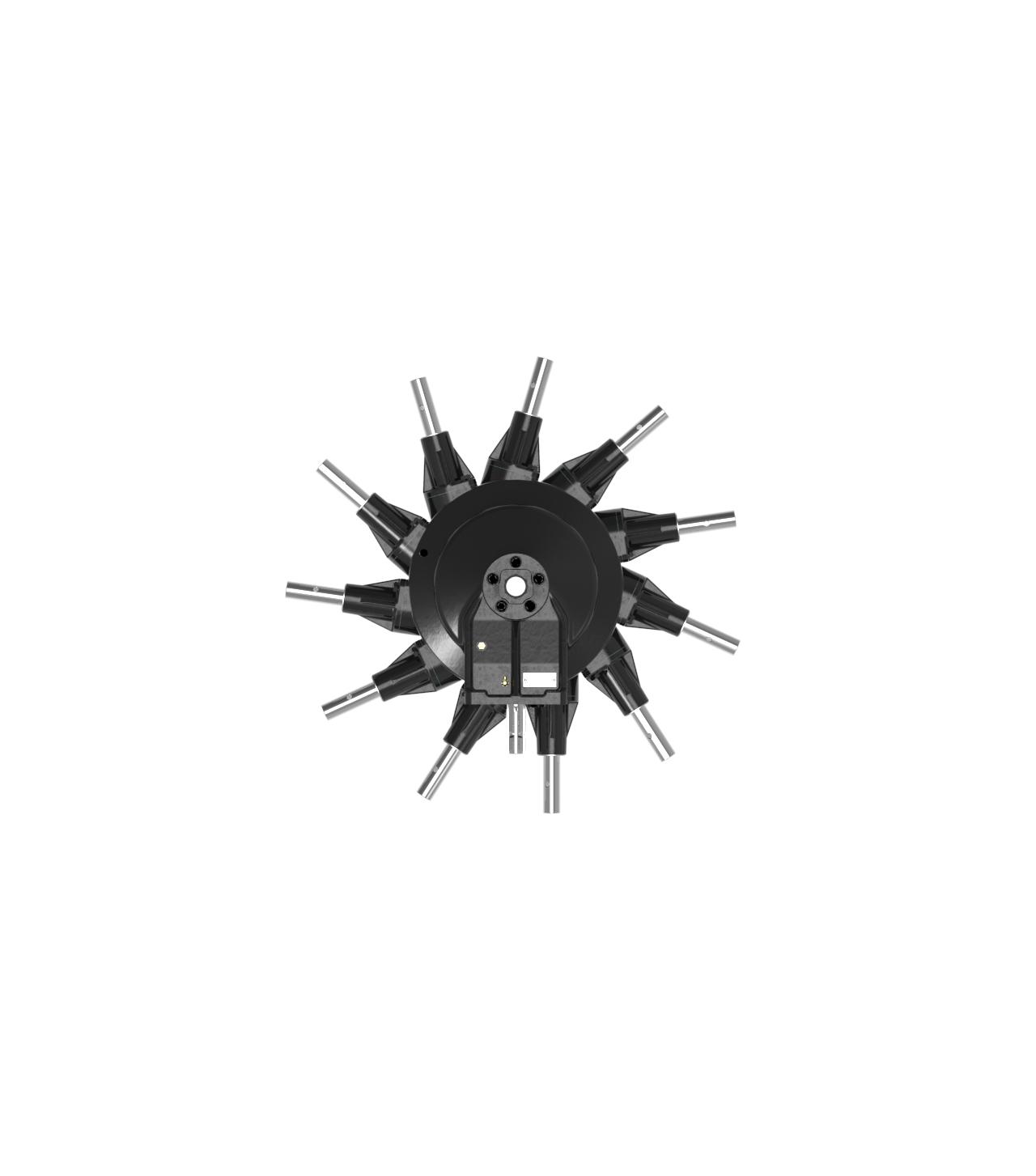

SPECIALTY BEVEL GEARBOX – ROTARY RAKE – 9790 SERIES

90 degree bevel gearbox designed and developed for rotary rakes

This is a Weasler custom-engineered component, which is not available through our aftermarket distribution network. For more information on this product or to discuss a custom solution for your unique OEM application, contact the Weasler engineering team now.

Weasler Engineering’s rotary rake gearbox has been rigorously lab and field tested to meet the most demanding load requirements. The spiral bevel gear set provides unmatched power. Choose from existing shaft configurations or customize them to meet your application needs. Our Application Engineers will work with you to understand your application requirements and size the appropriate gearbox for your application. If your application requires a custom drive solution, our engineers will work you to design a bevel gearbox that meets your exact application to minimize stress and wear on your equipment and extend service life.

DESIGN FEATURES:
• Customizable shaft configurations up to 1.375” [35 mm] diameter on input shaft and 1.25” [30 mm] on output shaft
• Available ratios – 10:1
• Max HP rating
• 540 rpm = 10 HP
• 1000 rpm = 16 HP
• Rugged cast iron housings
• Spiral bevel gear set
• High capacity ball bearings support internal cam
• Double lip spring loaded seals

Available Options:
• Viton seals
• Dust/trash shields

Application examples:
• Rotary Rake
