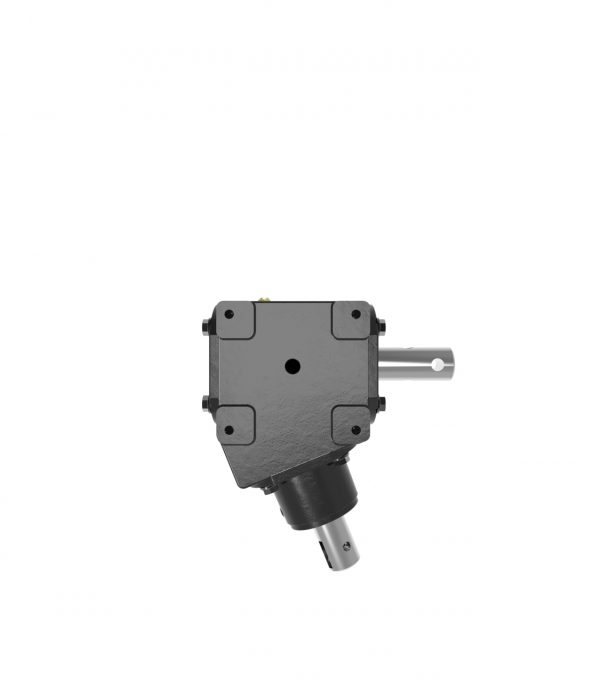

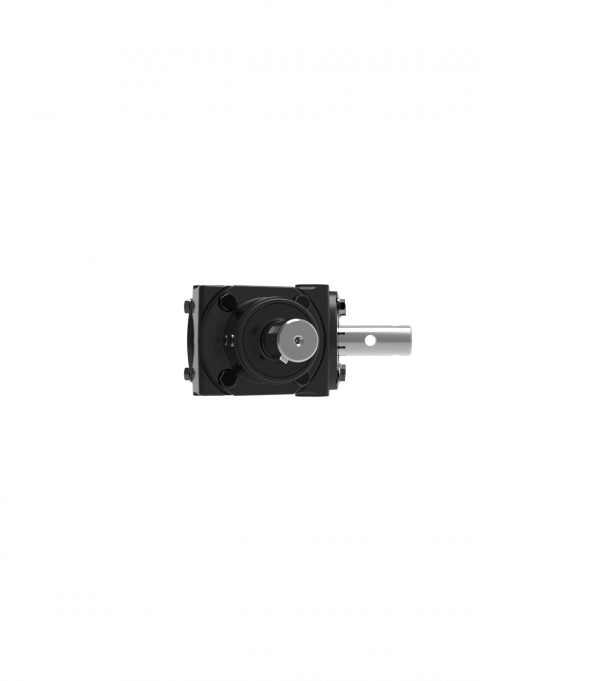

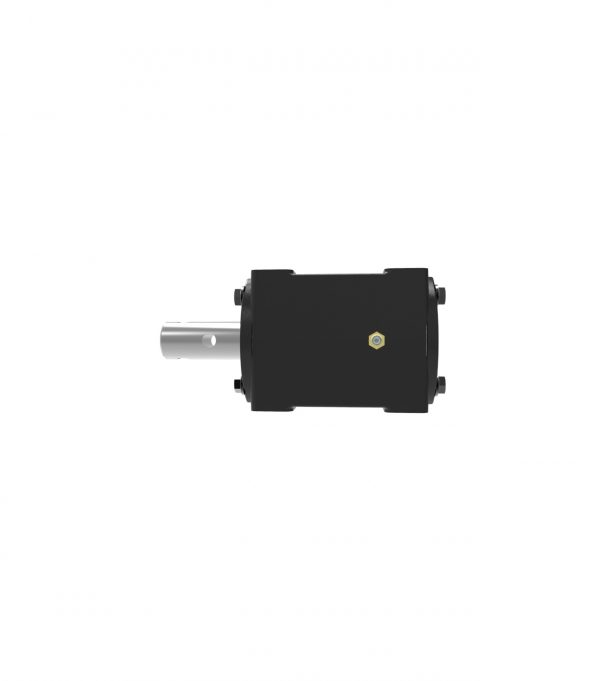

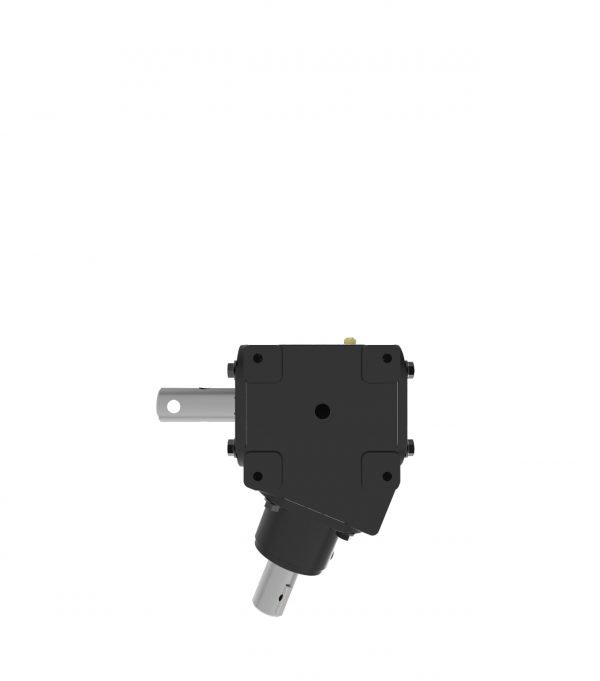

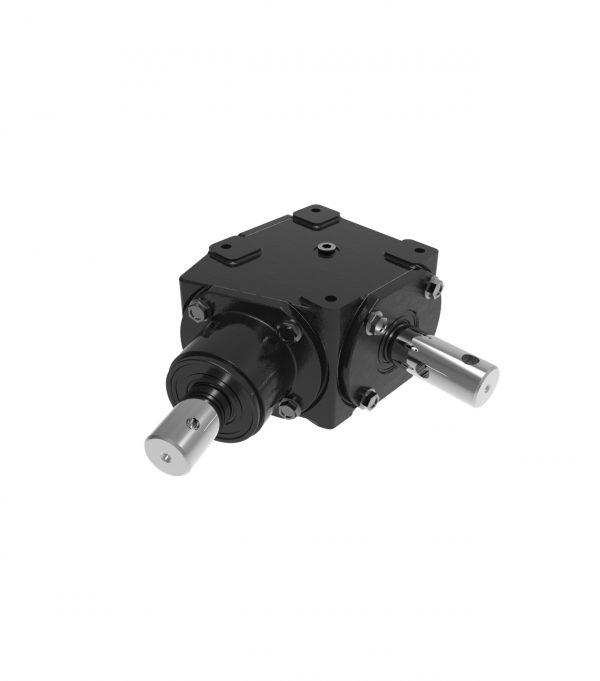

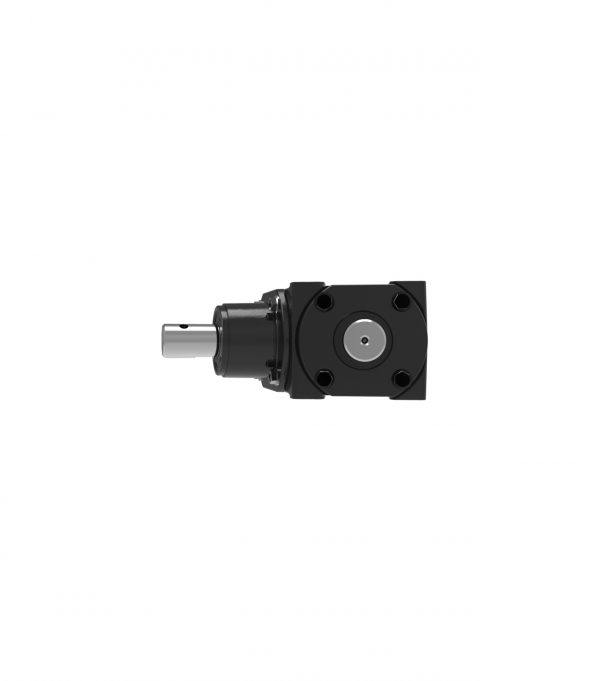

SPECIALTY BEVEL GEARBOX – PORTABLE AUGERS – 2168 SERIES

68 degree bevel gearbox designed and developed for portable augers

This is a Weasler custom-engineered component, which is not available through our aftermarket distribution network. For more information on this product or to discuss a custom solution for your unique OEM application, contact the Weasler engineering team now.

Weasler Engineering’s 2168 gearboxes have been rigorously field tested to meet the most demanding portable auger requirements. Choose from existing ratios and shaft configurations or customize them to meet your application needs. Our Application Engineers will work with you to understand your application requirements and size the appropriate gearbox for your application. If your application requires a custom drive solution, our engineers will work you to design a bevel gearbox that meets your exact application to minimize stress and wear on your equipment and extend service life.

DESIGN FEATURES:
• Customizable shaft configurations up to 1.25” [30 mm] diameter
• Available ratios
• Straight bevel – 1:1, 1.18:1
• Max HP rating
• 540 rpm = 17 HP
• 1000 rpm = 30 HP
• Rugged cast iron design
• Forged straight bevel gears
• Tapered roller bearings
• Double lip spring loaded seals

Available Options:
• Left/Right/T shaft configurations
• Viton seals
• Pressure relief
• Dust/trash shield
• Sealed chamber nose cone with grease zerk for vertical installations

Application examples:
• Portable Augers
