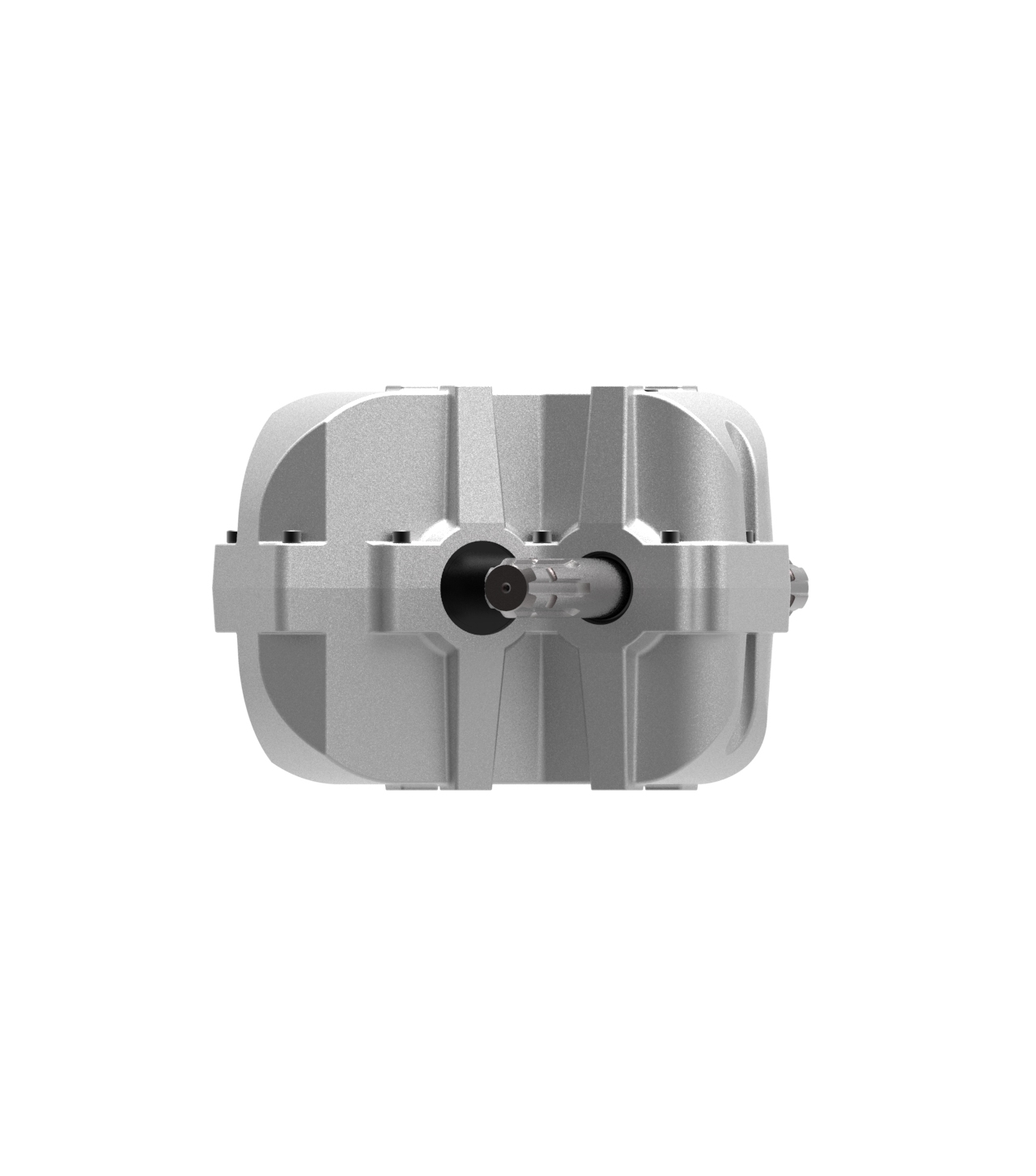

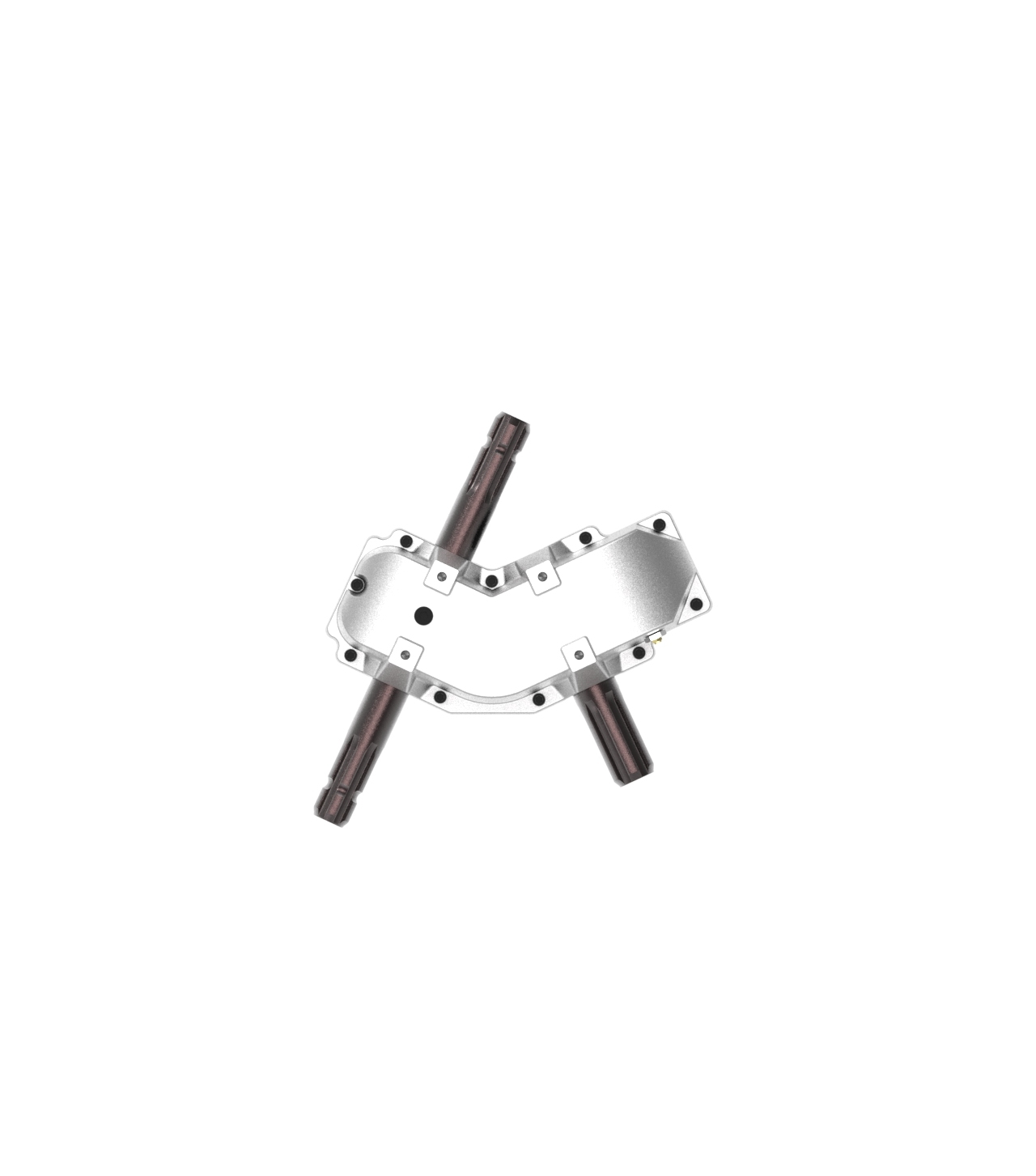

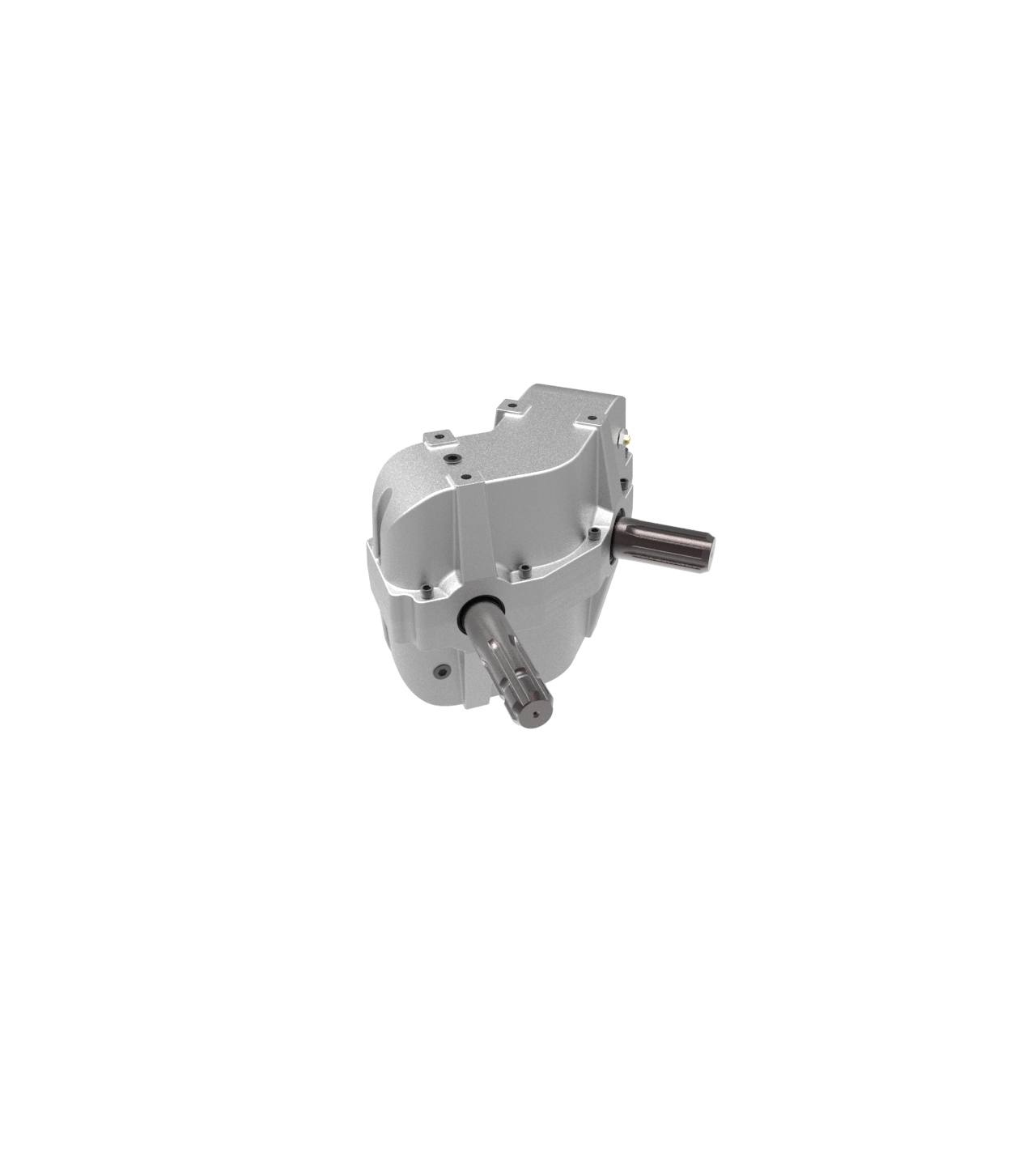

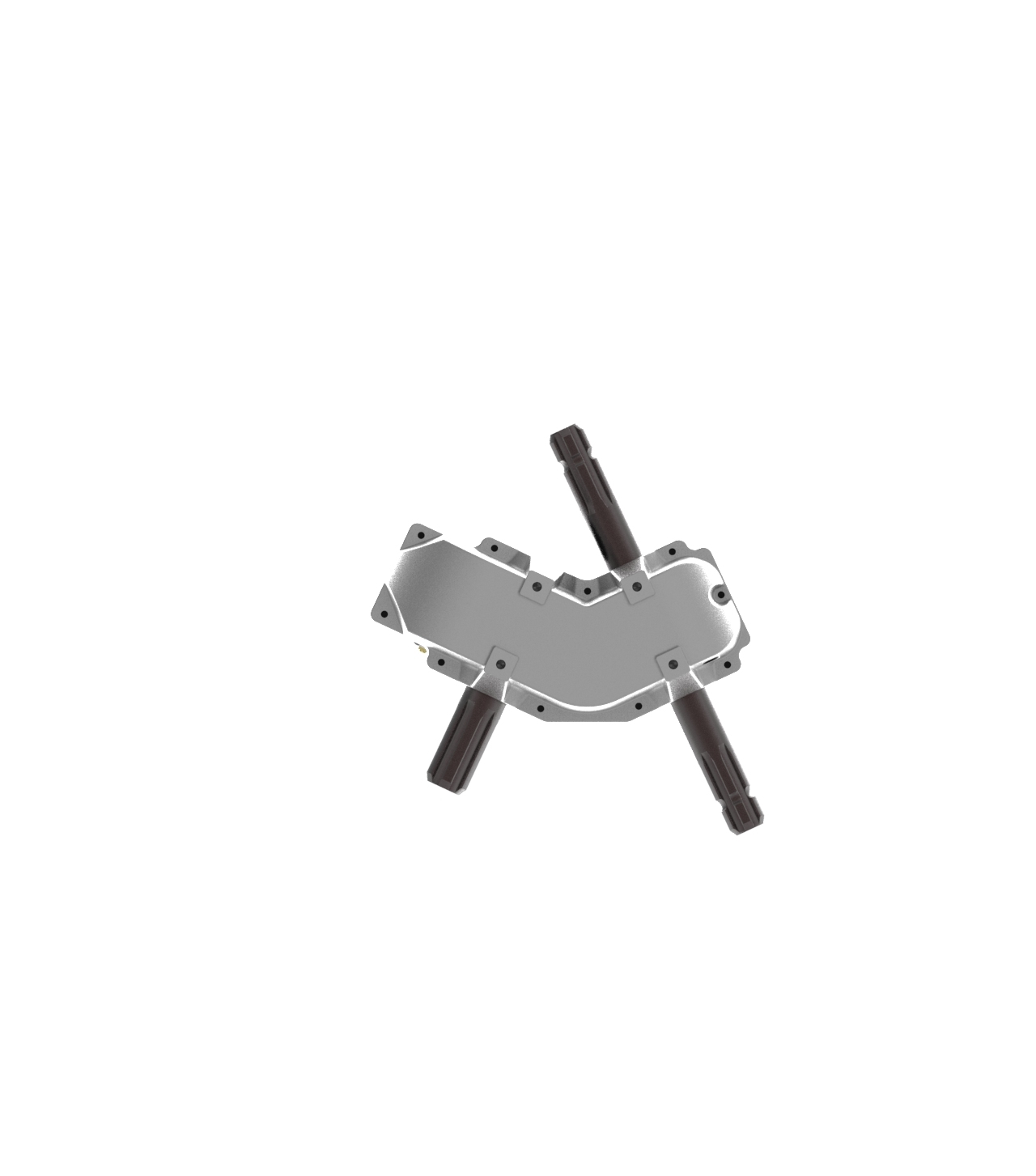

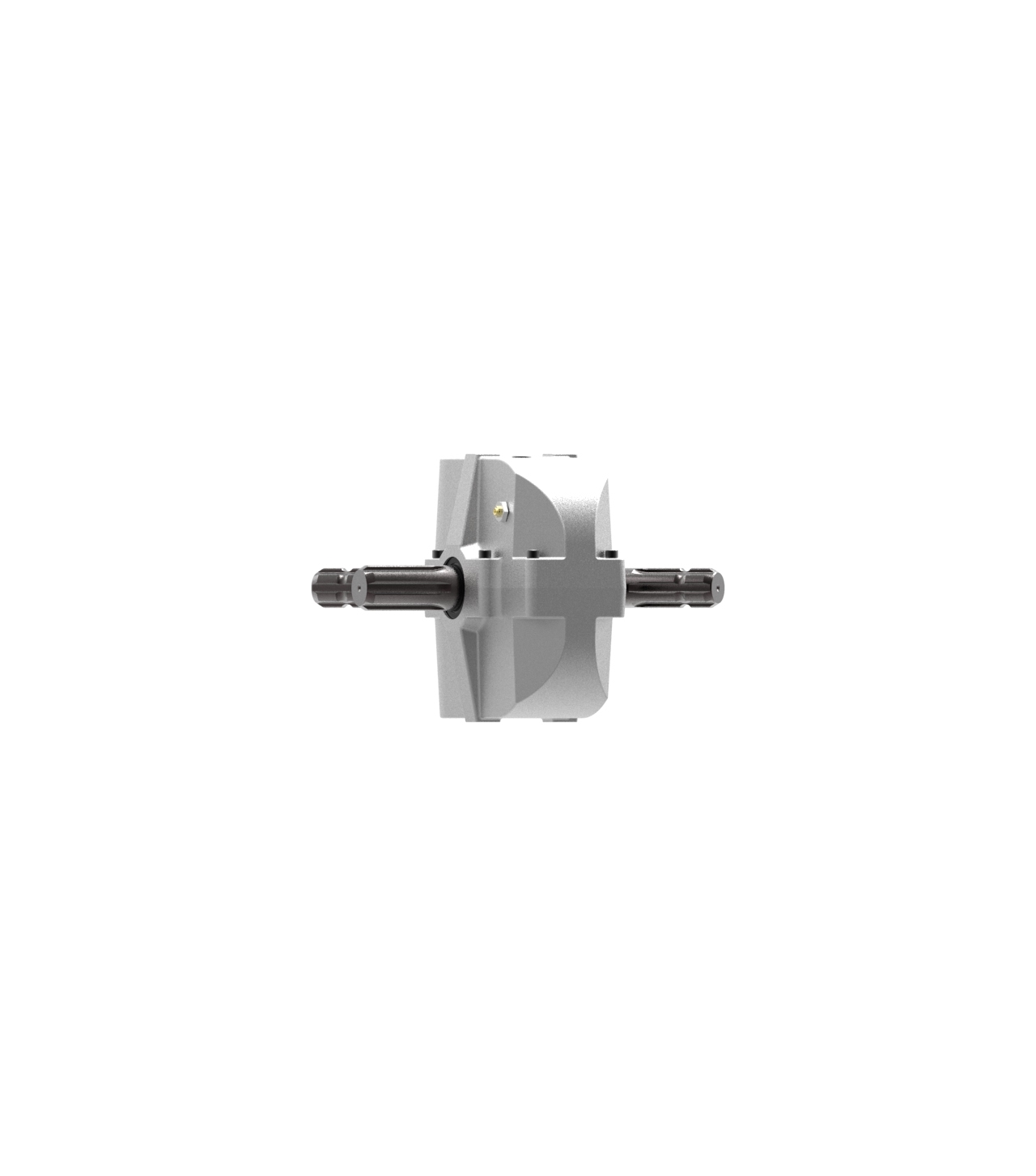

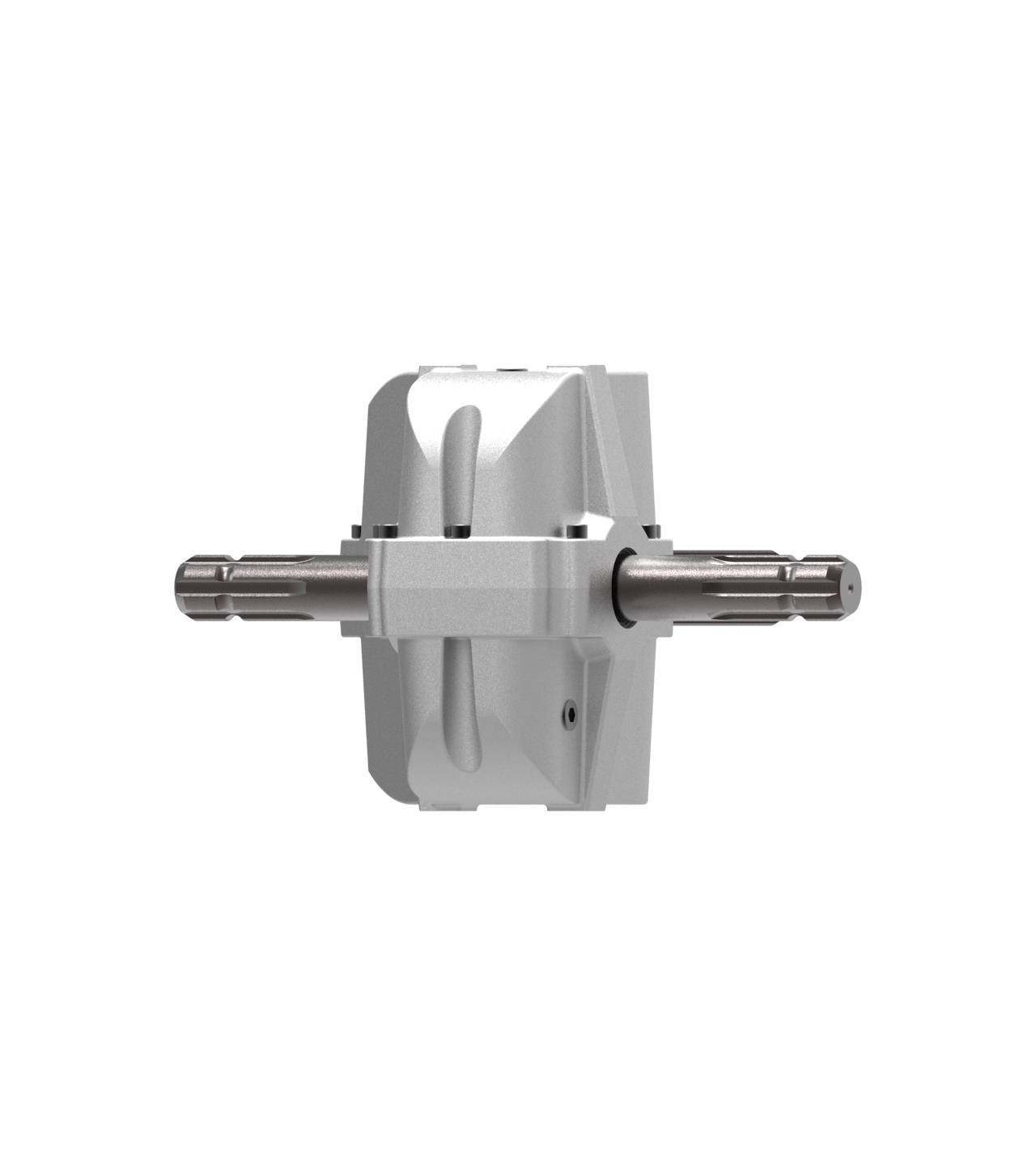

SPECIALTY BEVEL GEARBOX – GRAIN CARTS – 6050 SERIES

50 degree bevel gearbox designed and developed for grain carts

Weasler Engineering’s 6050 gearboxes have been rigorously field tested to meet the most demanding grain cart requirements. The high capacity forged gears provide unmatched power transmission and the large tapered roller bearings can handle highs thrust loads. Choose from existing shaft configurations or customize them to meet your application needs. Our Application Engineers will work with you to understand your application requirements and size the appropriate gearbox for your application. If your application requires a custom drive solution, our engineers will work you to design a bevel gearbox that meets your exact application to minimize stress and wear on your equipment and extend service life.

DESIGN FEATURES:
• Customizable shaft configurations up to 1.75” [45 mm] diameter on input shaft and 2.00” [50 mm] on output shaft
• Available ratios – 2:1
• Max HP rating
• 540 rpm = 170 HP
• 1000 rpm = 303 HP
• Lightweight aluminum housings
• Forged straight bevel gears
• High capacity tapered roller bearings
• Double lip spring loaded seals

Available Options:
• Through shaft in input
• Viton seals
• Pressure relief
• Dust/trash shield

Application examples:
• Grain Carts
