508-0860

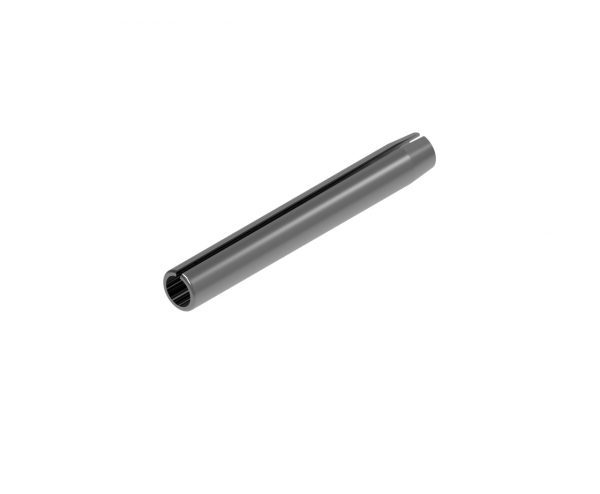

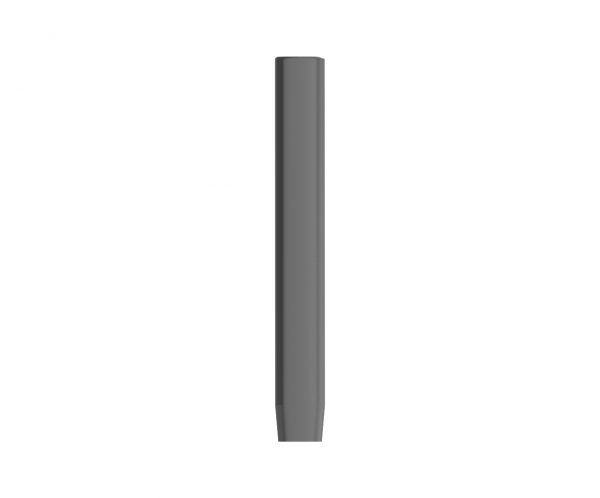

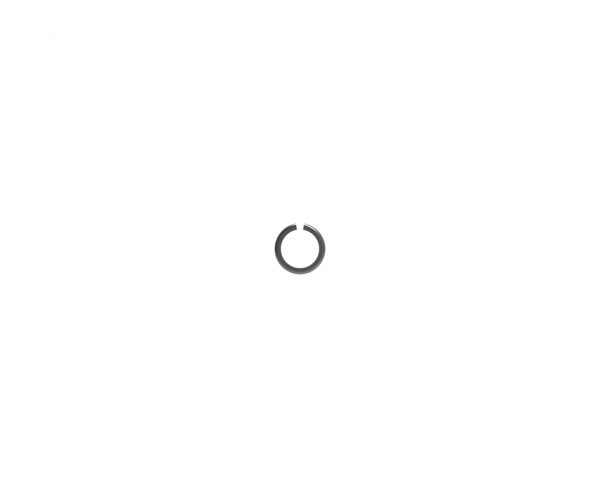

ROLL PINMultiple Series Roll Pin
Multiple series roll pin with press connection
A roll pin is utilized to connect a shaft yoke (inner profile yoke) to the inner profile tube, and a second roll pin is utilized to connect the outer profile tube to a tube yoke (outer profile yoke).
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Length | 2.36 inches | 60 mm |
| Outside Diameter | 0.31 inches | 8 mm |
| Pin Hole | 0.31 inches | 8 mm |
| Shipping Dimensions | 2.362" L × 0.315" H × 0.315" W | 6cm L × 1cm H × 1cm W |
| Shipping Volume | 0.23 in3 | 4 cm3 |
| Shipping Weight | 0.04 pounds | 0 kilograms |
| Weight | 0.04 pounds | 0 kilograms |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
