29012500-121

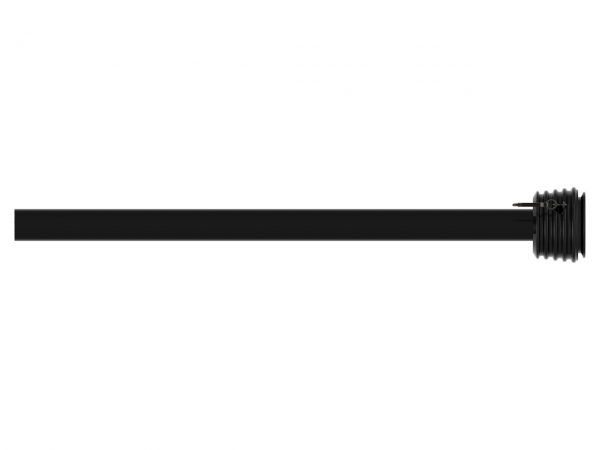

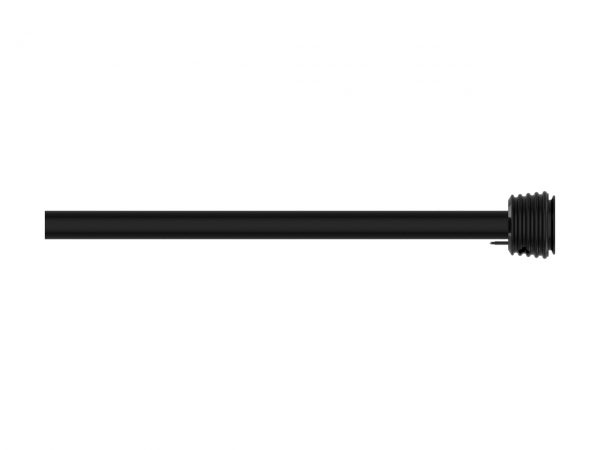

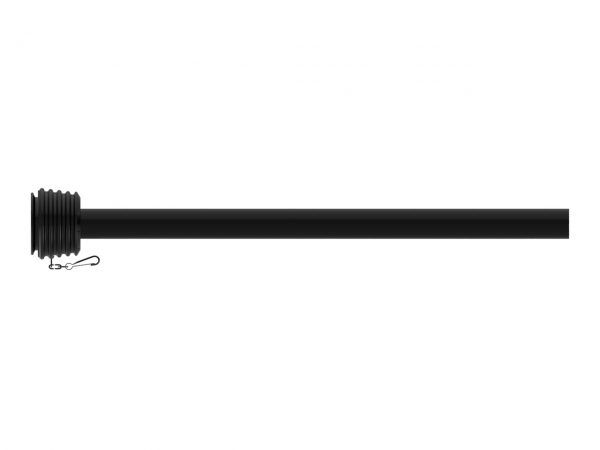

Easy Lock Guard Half

Multiple series easy lock guard half

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

Guard halves are one half of the entire guard set. Guard halves will either include the implement half or the tractor half of the set, and will not cover an entire PTO drive shaft. Weasler guard halves are interchangeable with other Weasler guard halves, it will not interchange with other guard halves in the market.All Weasler guards are designed according to ANSI/ASABE AD5673 and meet strength and wear requirements of ANSI/ASABE AD 5674. Guards can be certified to CE requirements as an option.

PERFORMANCE BENEFITS
• Easy Lock system allows for quick and easy assembly without tools; A simple tool such as a key, coin or screwdrive can be used to remove the guard.
• Easy Lock clip includes a zerk for ease of lubrication.
• Easier lubrication of the PTO drive shaft through grease access holes so the guard does not need to be removed for lubrication.
• Black guard color is durable against ultraviolet light and ozone.

DESIGN FEATURES
• Easy Lock Guard System: Provides full coverage at maximum angles.
• Full 360° friction weld on guard bell.
• Black coloring that is durable against ultraviolet light and ozone.
• Cold weather impact rated to -35°C.
• Meets and exceeds all applicable safety standards.
• Quick and easy process for removal and installation.

Specifications

Spec. Imperial Metric
Length47.63 inches1210 mm
Outside Diameter5.94 inches151 mm
Shipping Dimensions47.63" L  ×  5.94" H  ×  5.94" W121cm L  ×  15cm H  ×  15cm W
Shipping Volume1680.56 in327540 cm3
Shipping Weight1.61 pounds1 kilograms
Tube Size2.50 inches64 mm
Weight1.61 pounds1 kilograms

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Easy Lock Guards.pdf Service Document English
WE0101011_0817_USL_EasyLockGuard.pdf Performance Benefits Document English

Support Videos

Service Video
Performance Benefits Video
