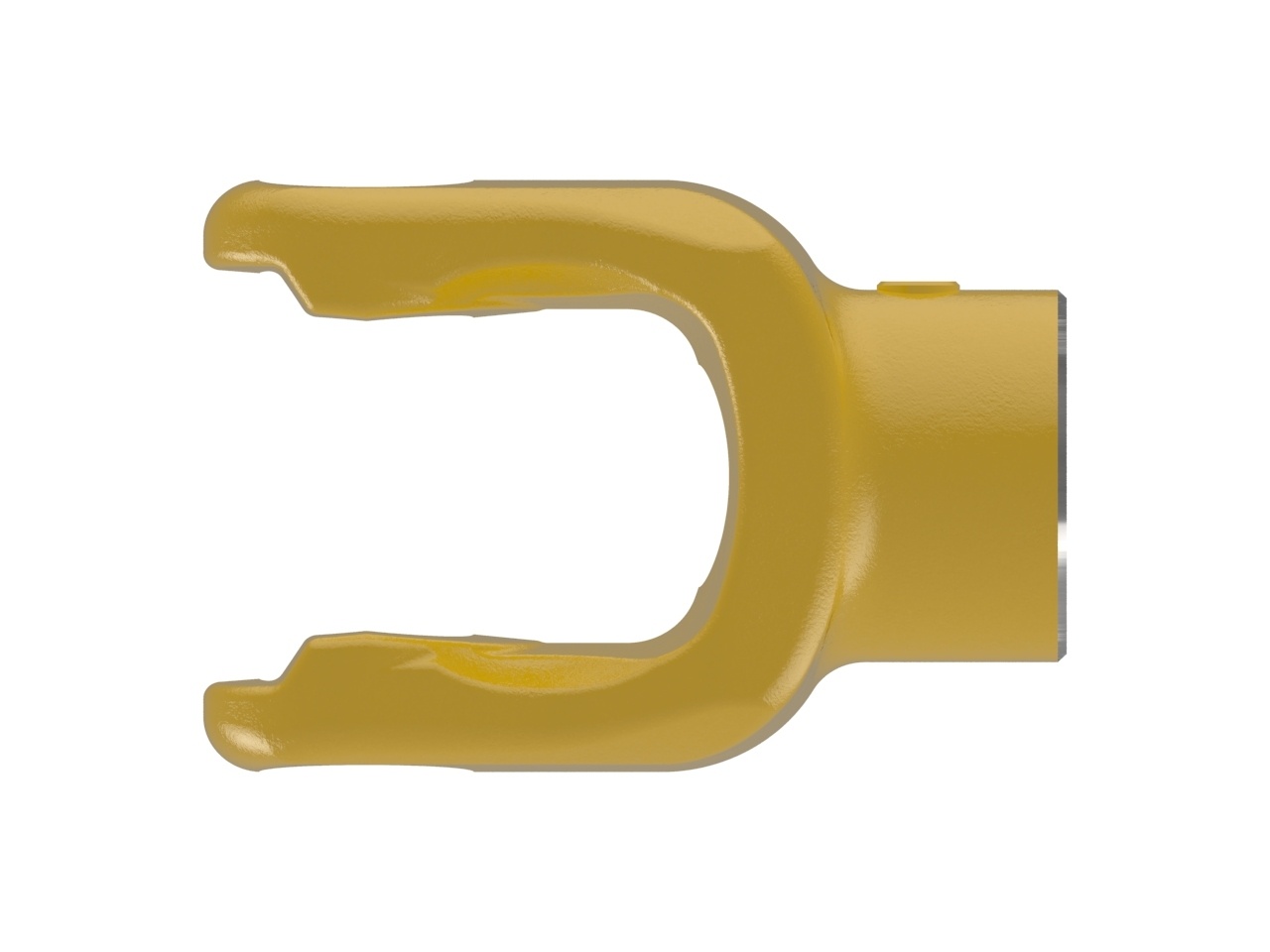

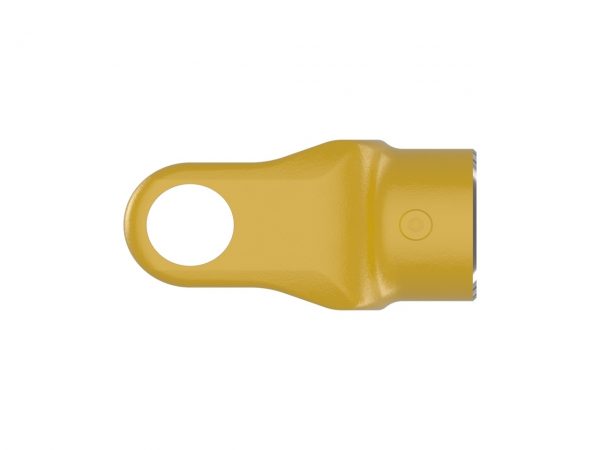

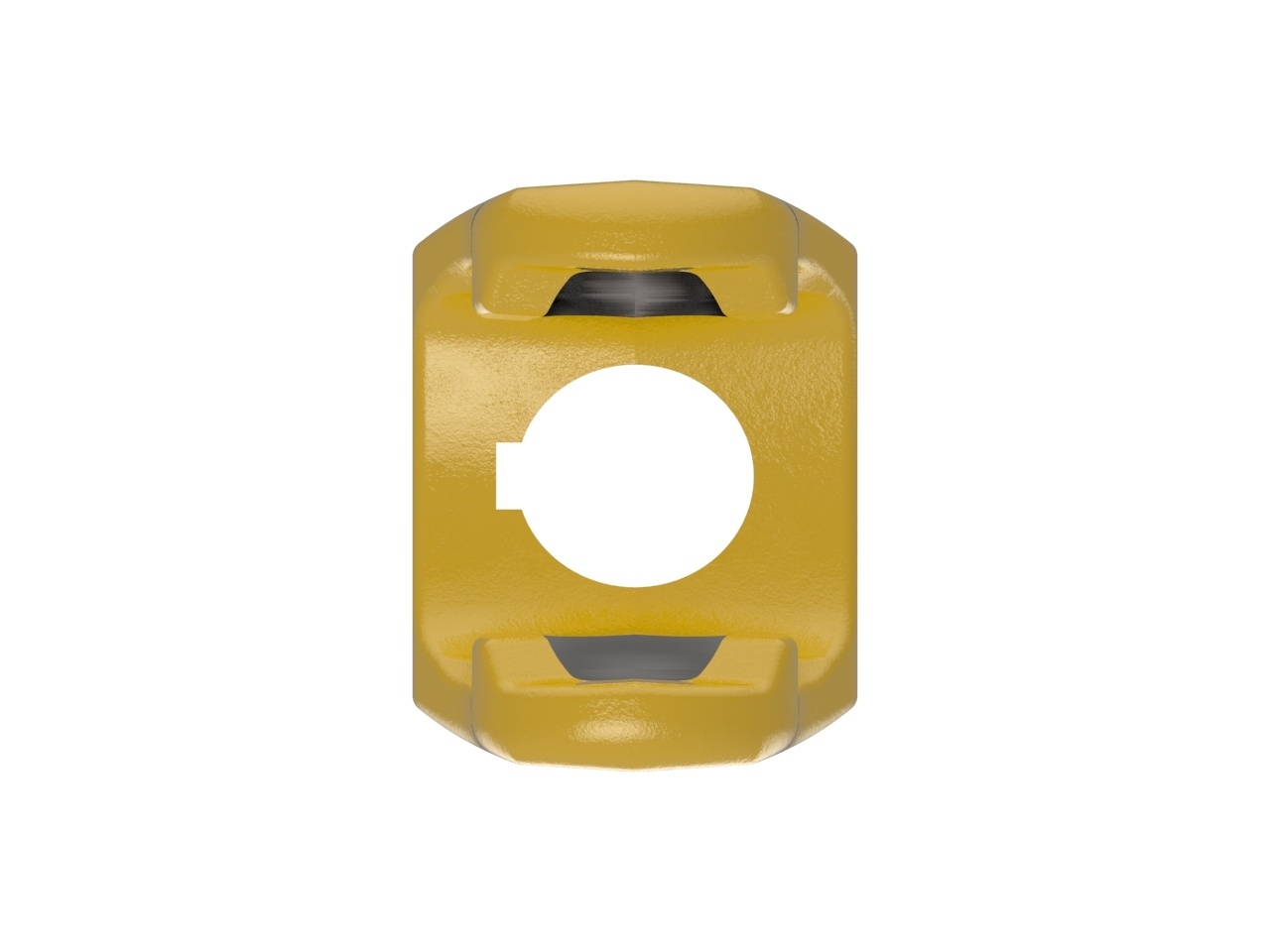

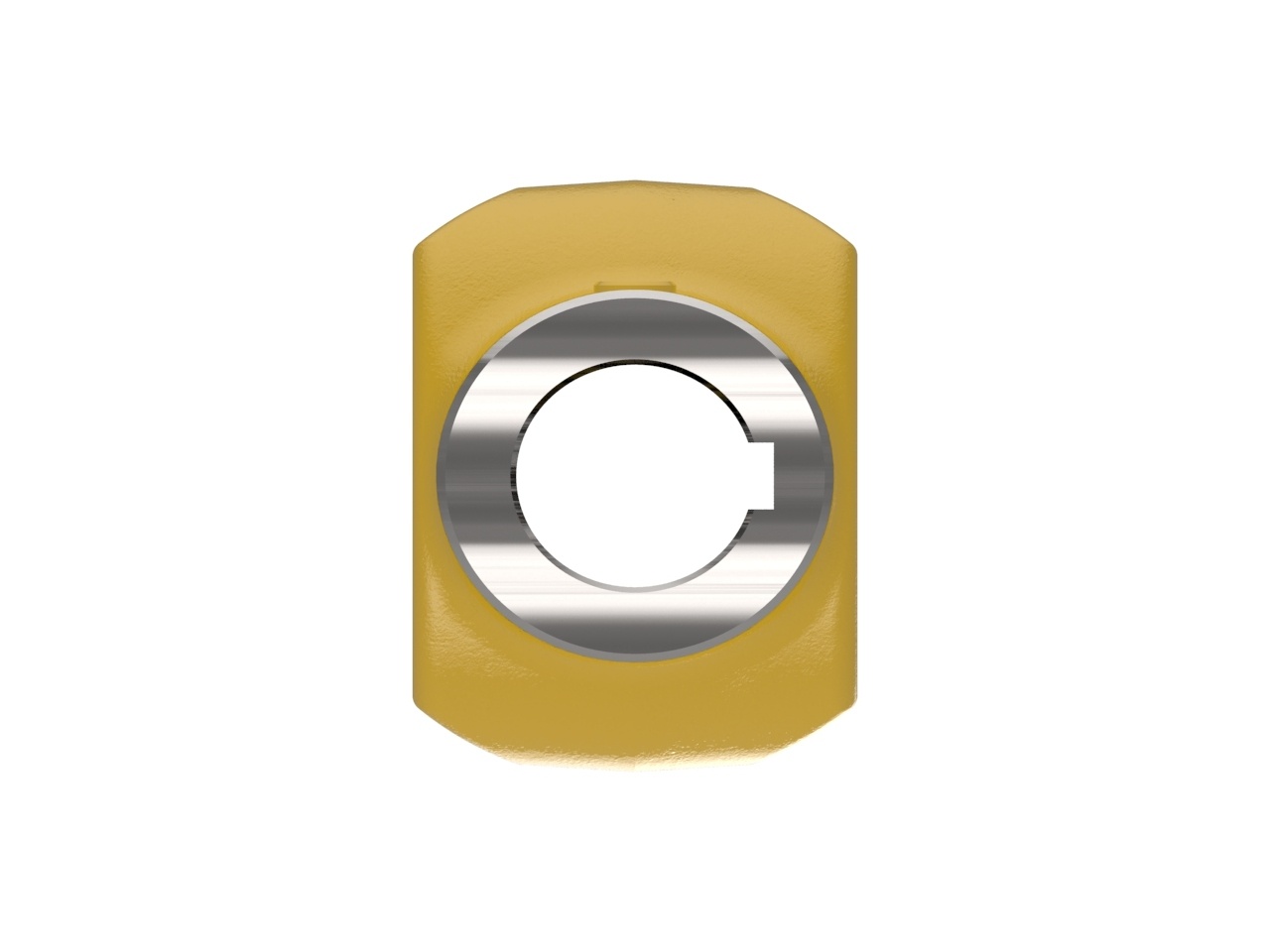

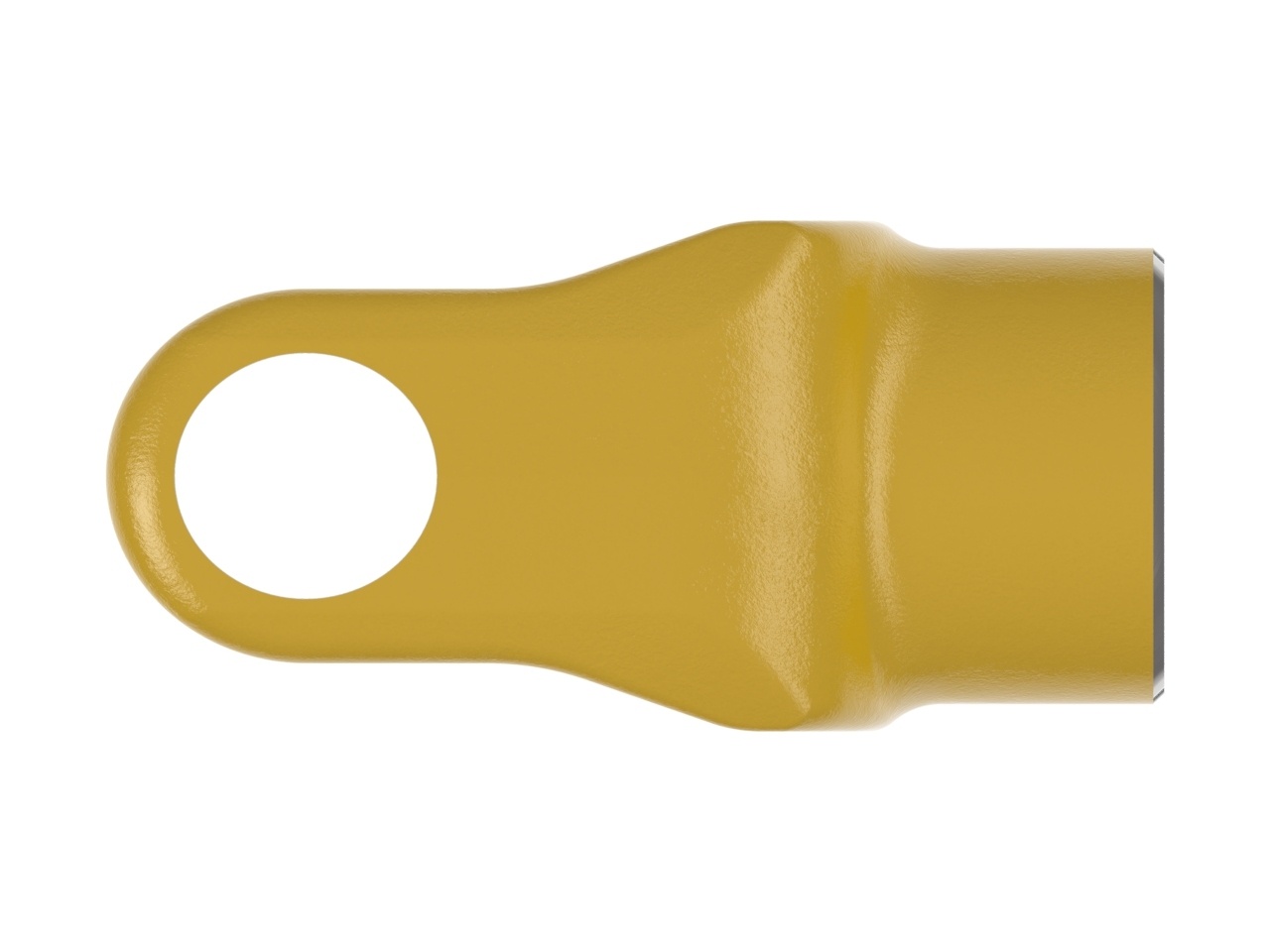

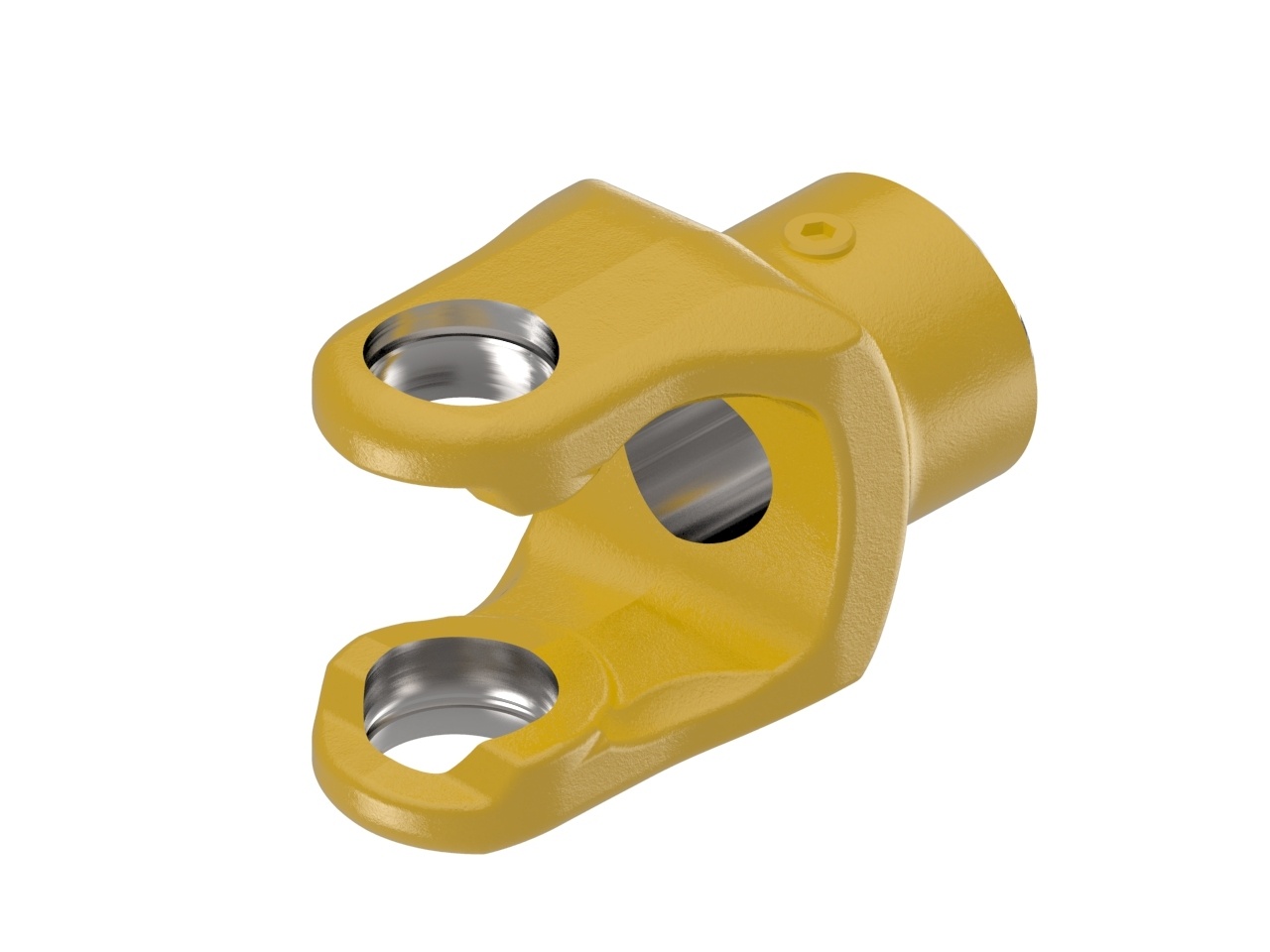

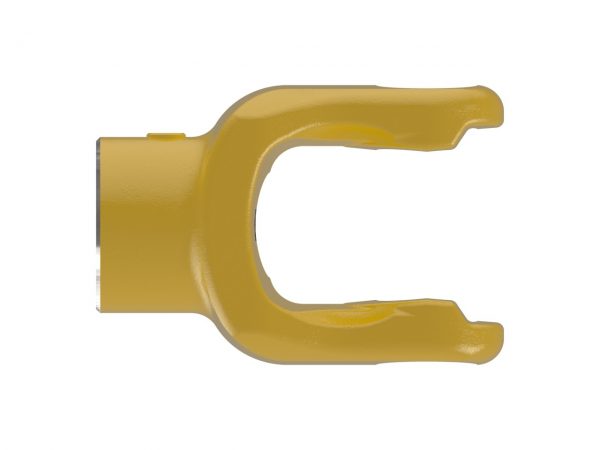

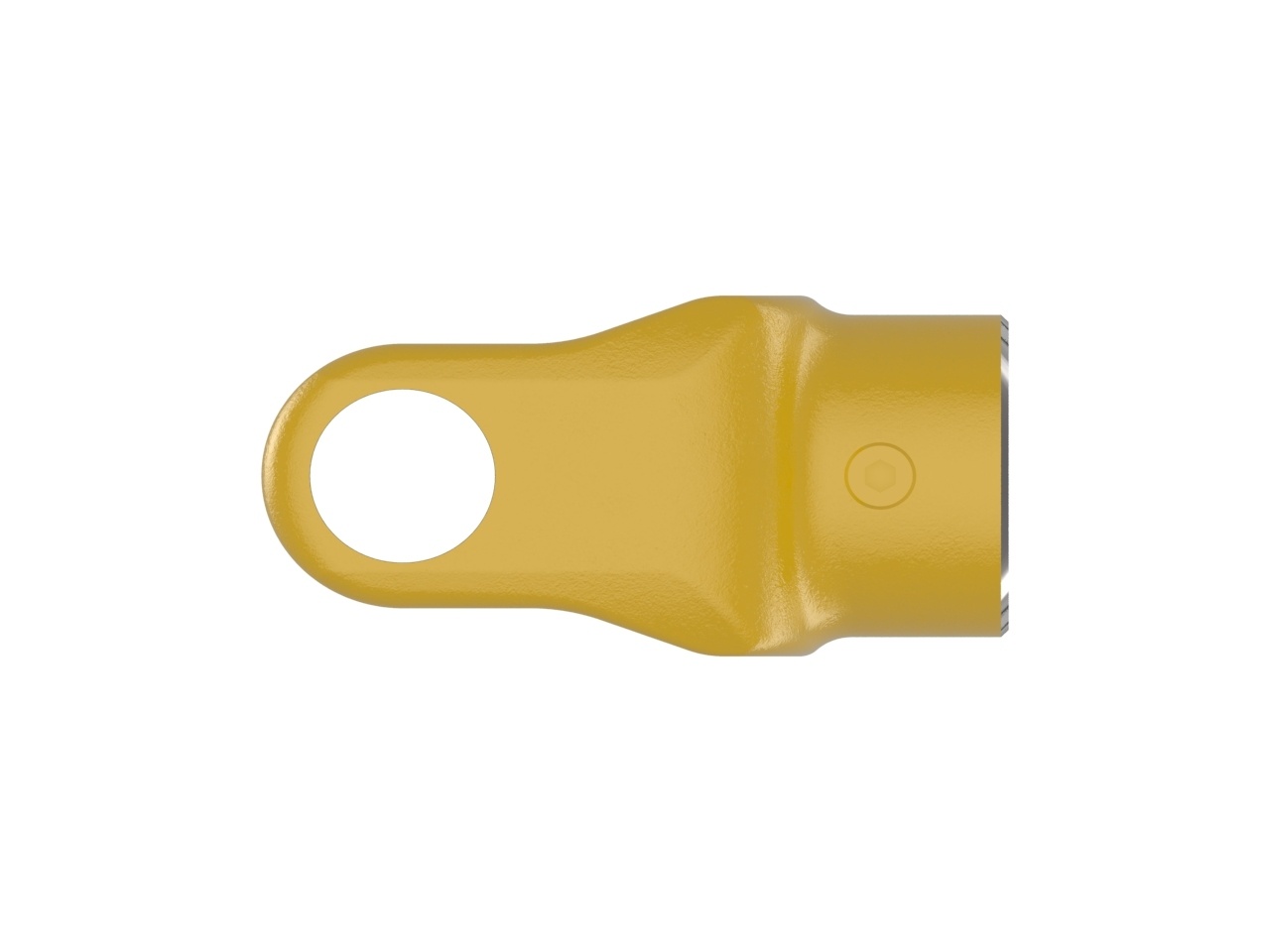

AW36 Series Setscrew Yoke

AW36 series yoke with round with keyway bore and setscrew connection

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.



Spec. Imperial Metric
Bore 11.57 inches40 mm
Connection 1 SETSCREW
Height4.72 inches120 mm
HP@1000RPM144 HP107 kilowatts
HP@540RPM94 HP70 kilowatts
Keyway 10.47 inches12 mm
Length4.65 inches118 mm
Setscrew M14x14
Shipping Dimensions5.733" L  ×  4.72" H  ×  2.95275590551" W15cm L  ×  12cm H  ×  8cm W
Shipping Volume79.90 in31309 cm3
Shipping Weight5.08 pounds2 kilograms
Weight5.08 pounds2 kilograms
Width2.95 inches75 mm


Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
