1600-7999-151PROFILE PTO DRIVE SHAFT

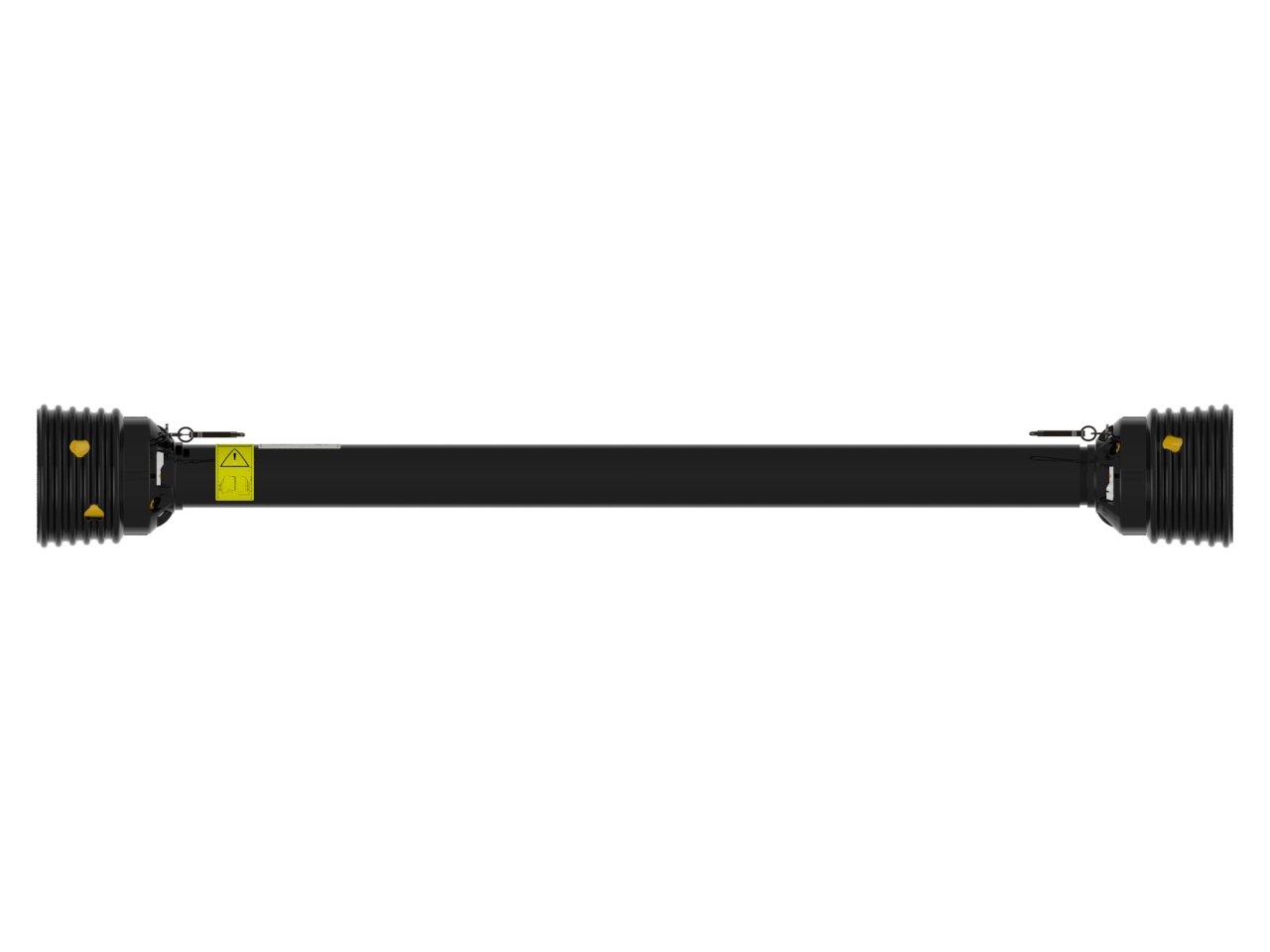

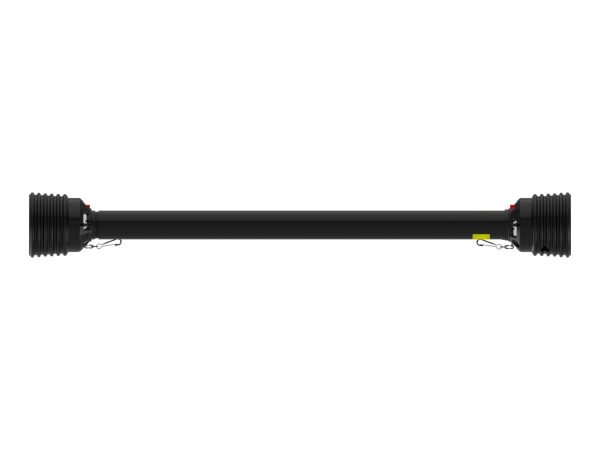

AW36 Series Profile PTO Drive Shaft
AW36 series profile PTO drive shaft minus end yoke, cross and bearing kit needed for tractor connection and minus end yoke, cross and bearing kit needed for implement connection
The Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
Design adjustability (cut-to-length) capabilities.
Interchangeability to fit with most competitor models.
Tri-lobe, lemon, and star shaft profiles available.
Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
Available Extended lubrication E-kits reduce downtime with lubrication intervals of 50-250
hours and the high temperature triple lip seal retains grease better.
Customer dedicated engineering and sales support.

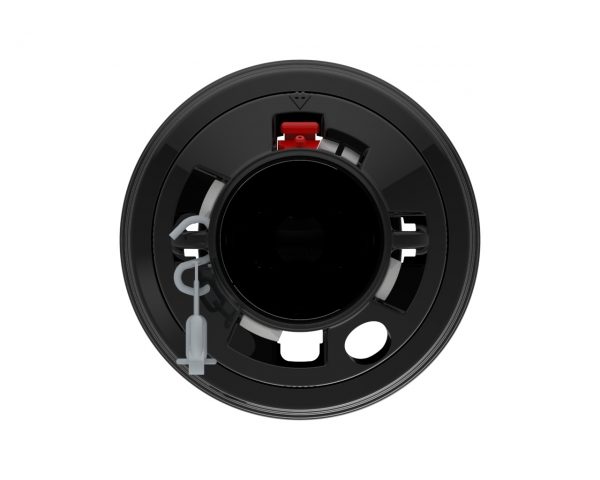

Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.

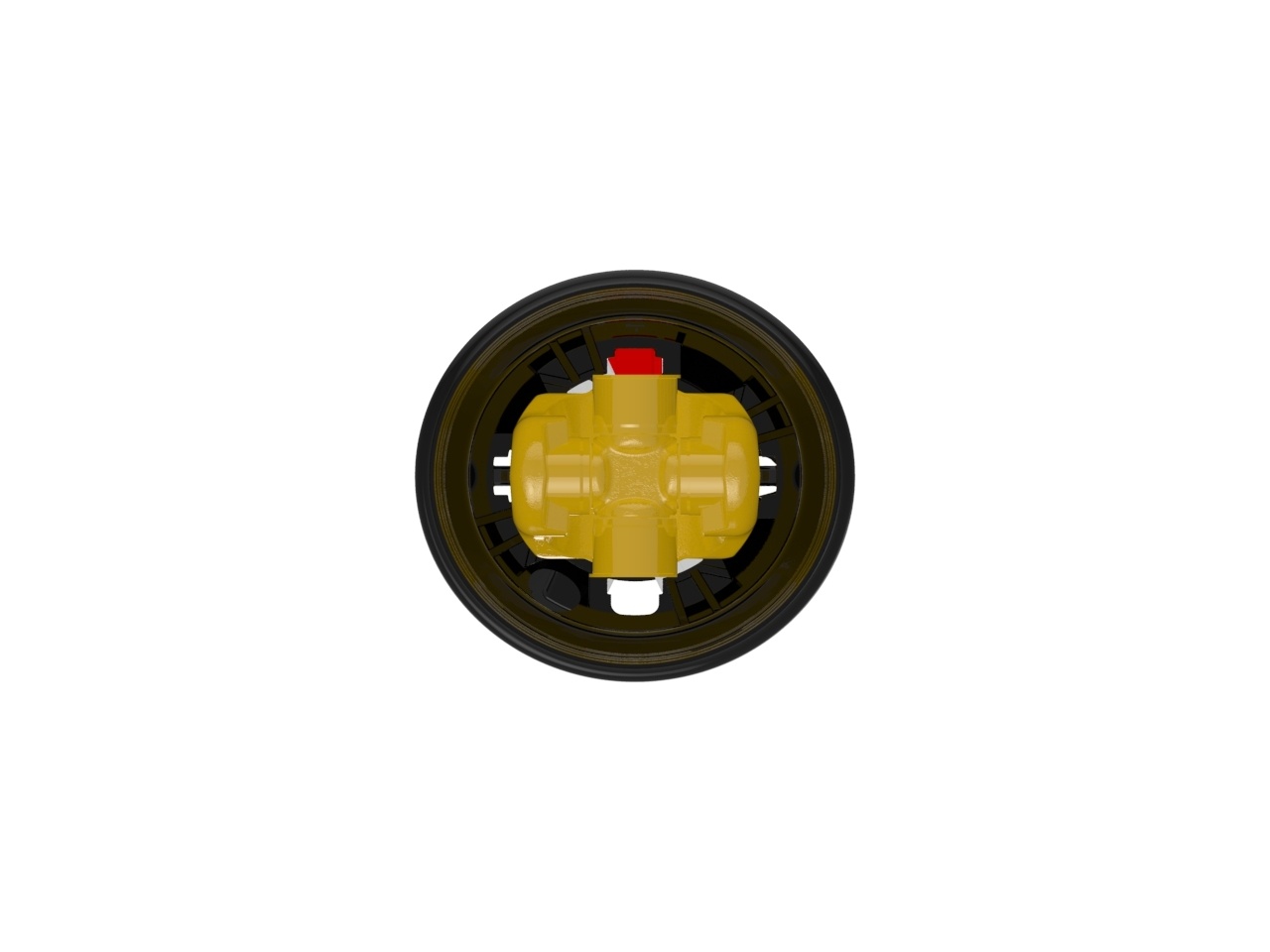

Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
Same component designs used for Weasler’s domestic and metric product lines.
|Bore 1||Minus End Yoke|
|Bore 2||Minus End Yoke|
|Compressed (Closed) Length||59.45 inches||1510 mm|
|Compressed Overall Length||70.31 inches||1786 mm|
|Connection 1||YOKE ARMS|
|Connection 2||YOKE ARMS|
|Extended Length||88.00 inches||2235 mm|
|Extended Overall Length||98.86 inches||2511 mm|
|HP@1000RPM||124 HP||92 kilowatts|
|HP@540RPM||80 HP||60 kilowatts|
|Length||70.31 inches||1786 mm|
|Outside Diameter||7.36 inches||187 mm|
|Shipping Dimensions||59.45" L × 7.36" H × 7.36" W||151cm L × 19cm H × 19cm W|
|Shipping Volume||3220.38 in3||52773 cm3|
|Shipping Weight||57.08 pounds||26 kilograms|
|Weight||57.08 pounds||26 kilograms|
|Service Instructions - Universal Joint.pdf||Service Document||English|
|Service Instructions - Easy Lock Guards.pdf||Service Document||English|
|Lack of Grease - Cross & Brg Kit.pdf||Troubleshooting Document||English|
|WE0101032_1217_USL_MetricProfile.pdf||Performance Benefits Document||English|
