802-7924

AW36 Series Pin Yoke

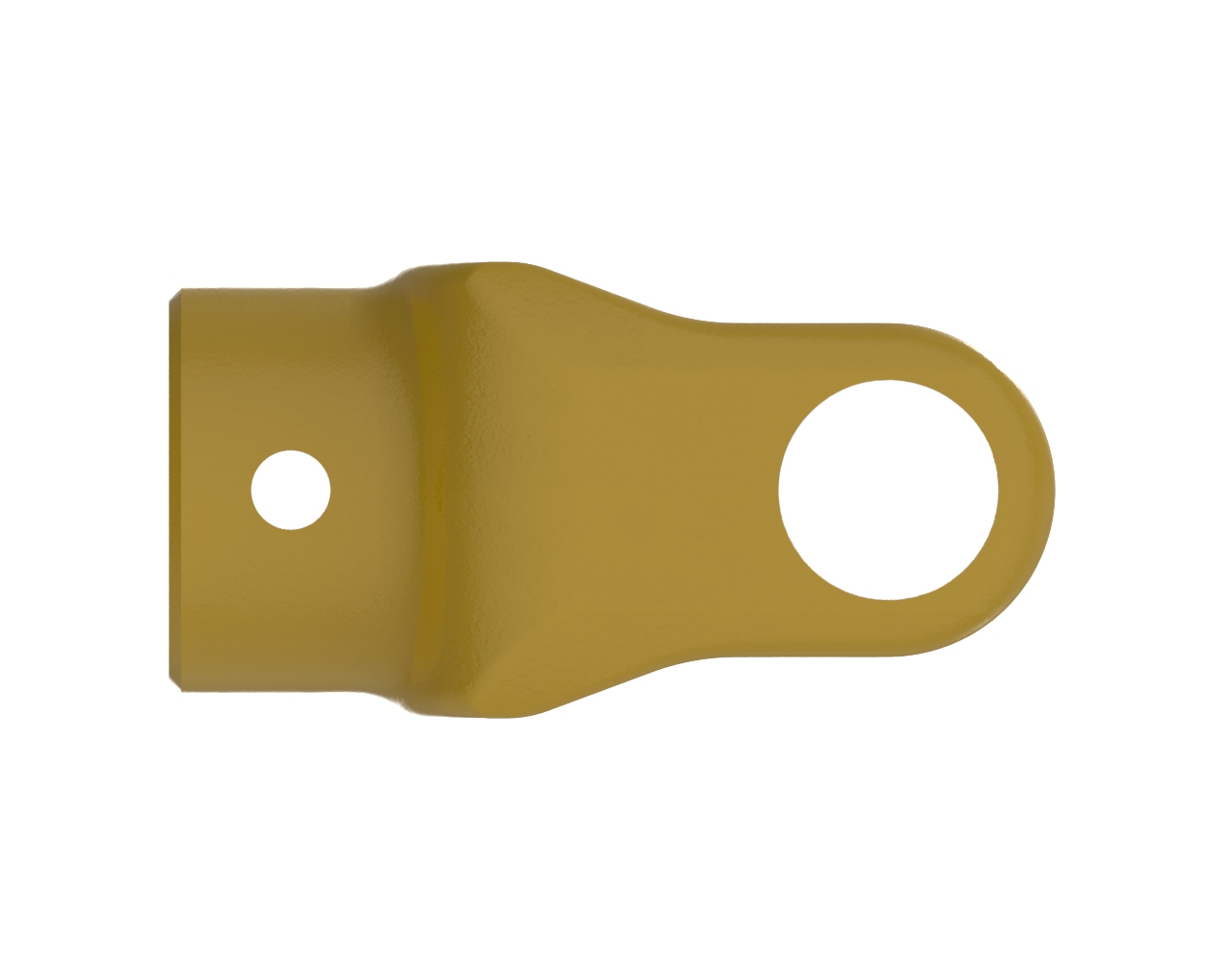

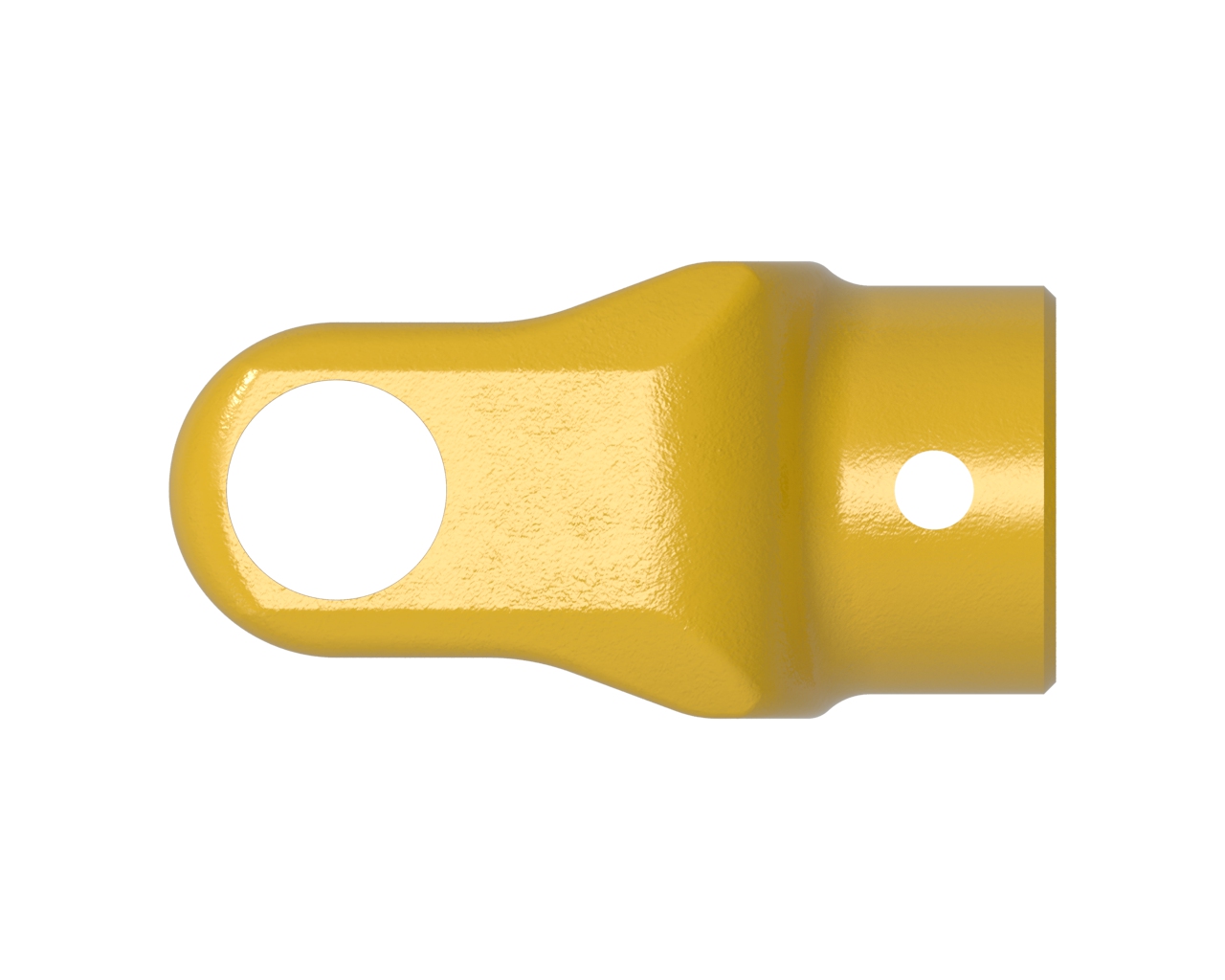

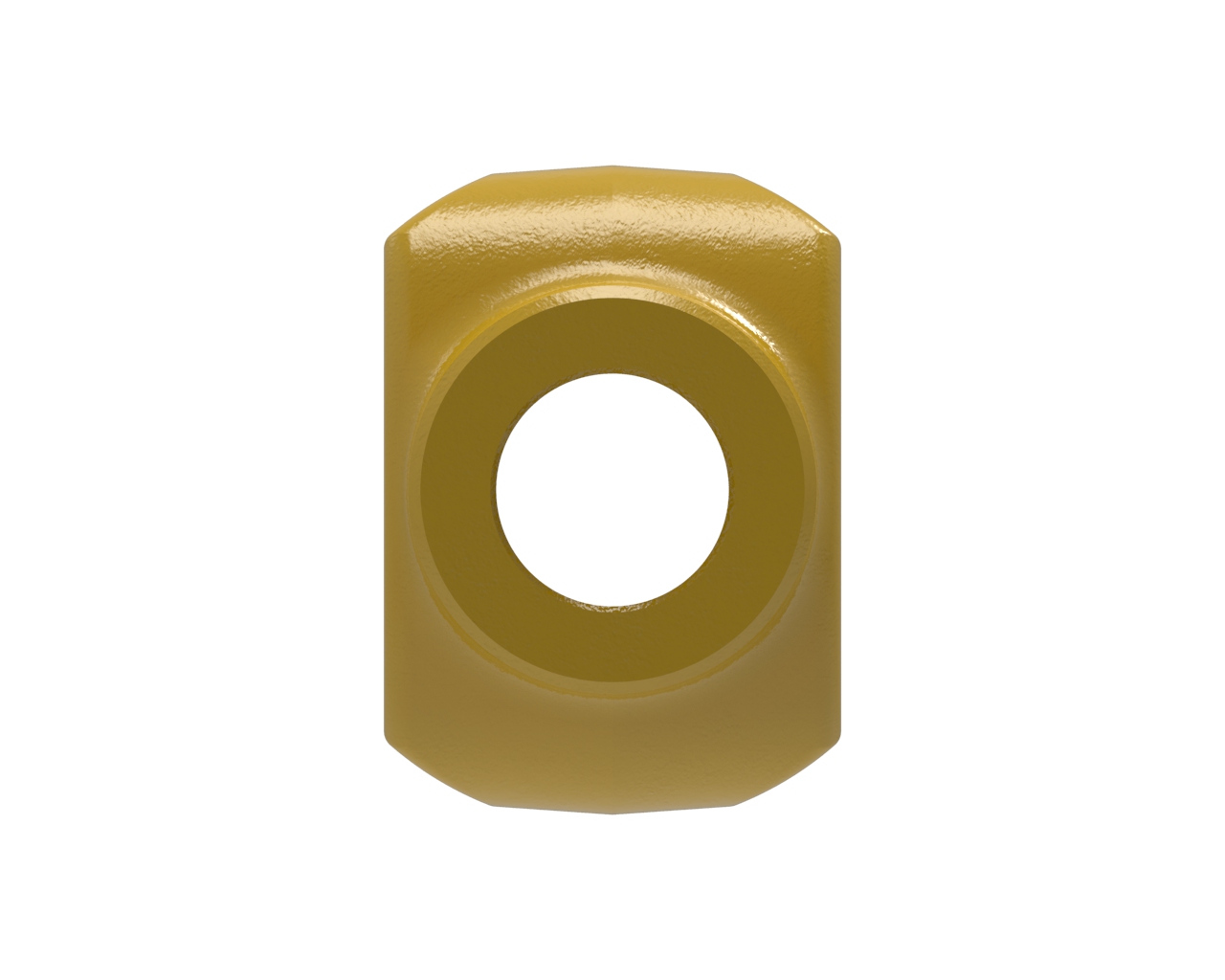

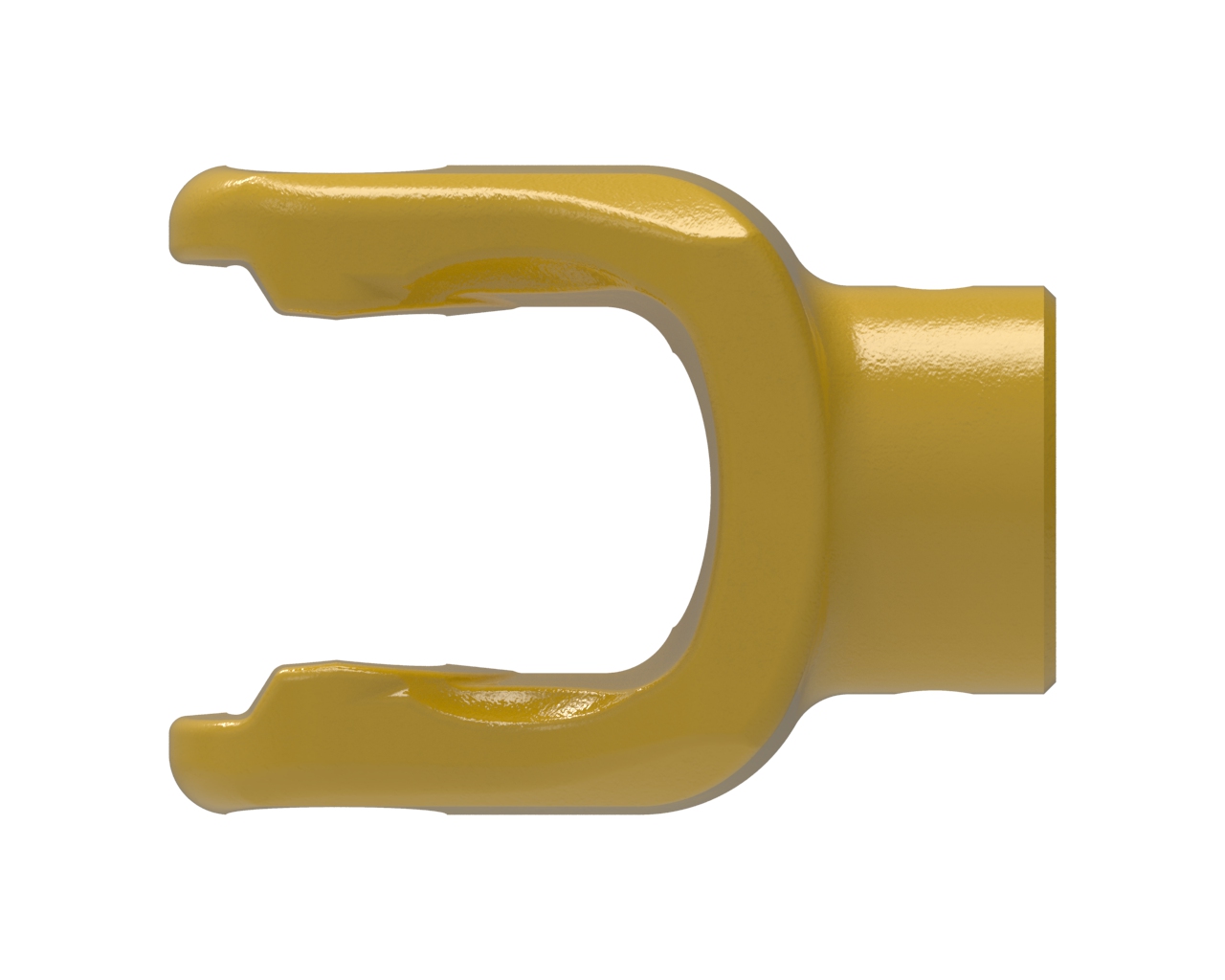

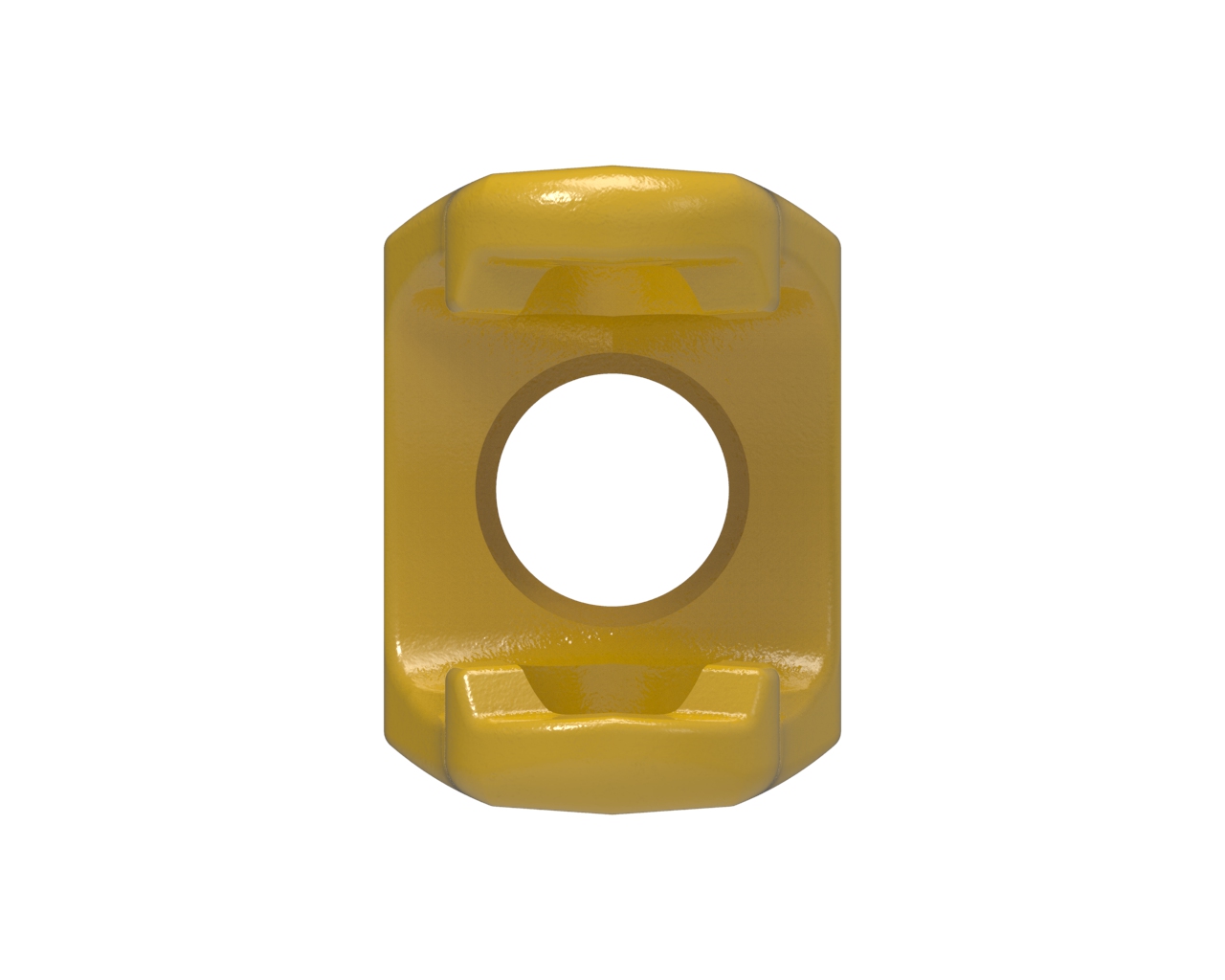

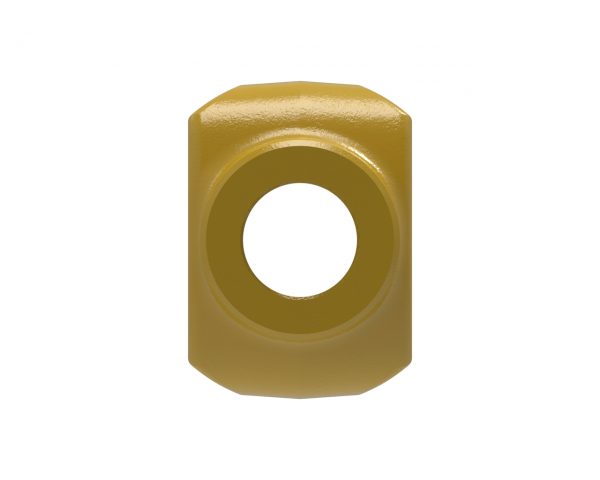

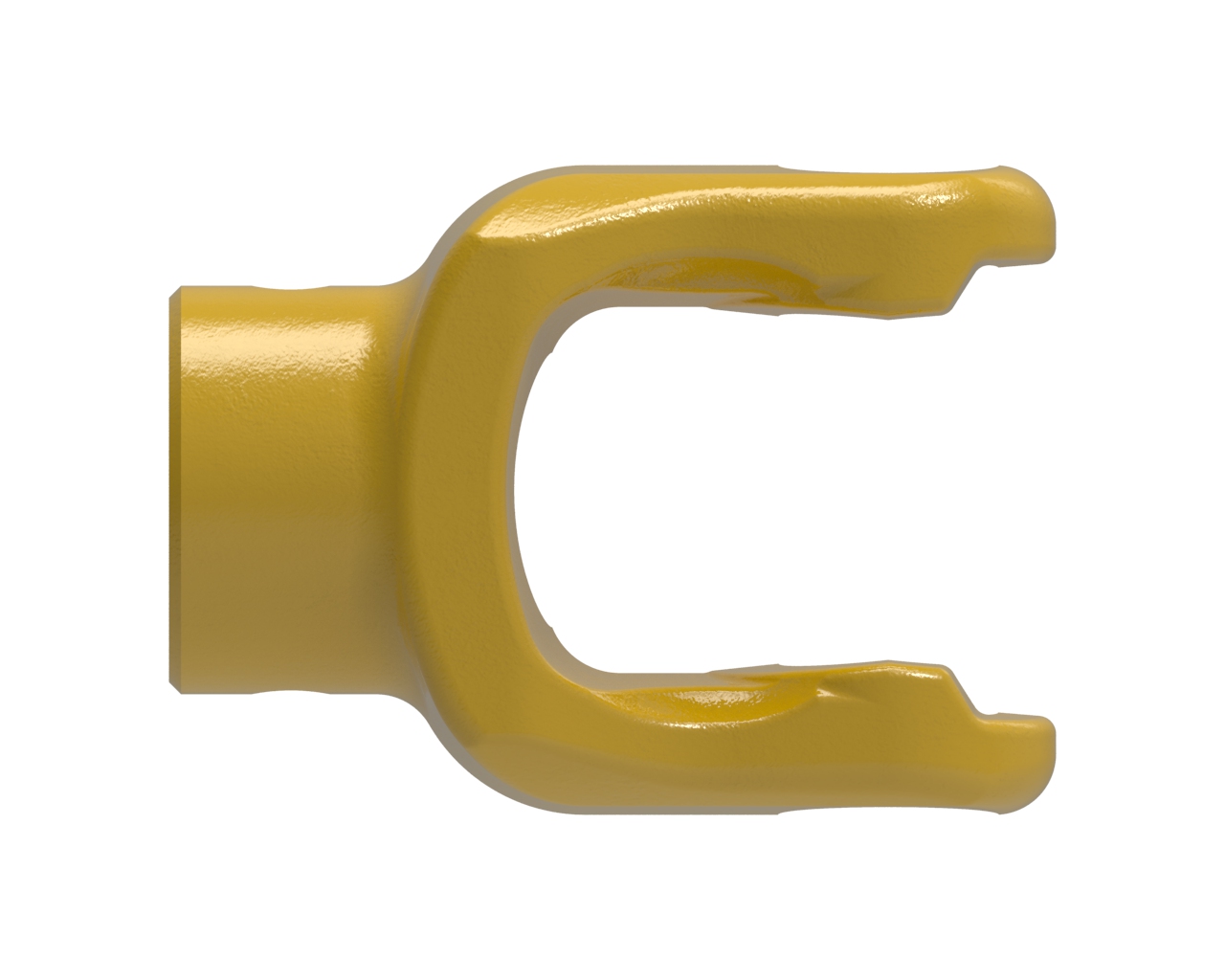

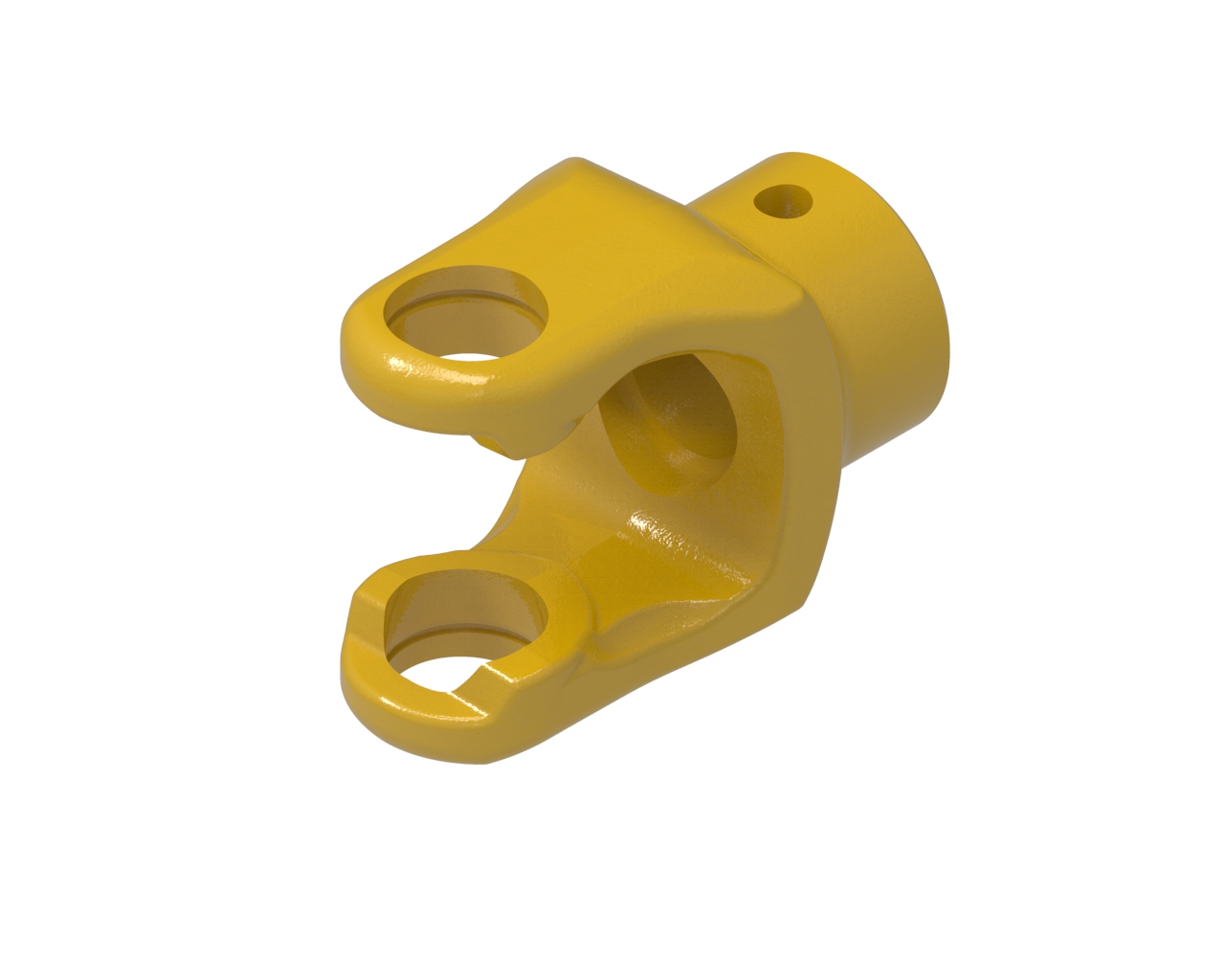

AW36 series yoke with round bore and pin connection. Note: Image color may not represent actual part.

View My List

Weasler yokes are made to withstand robust conditions, and engineered for a precise fit. Weasler’s Shear Pin Yoke features a pin (bolt) that extends through the yoke and if broken during operation will spin. The compact, efficient design disconnects the power source from the drivetrain when overload occurs and helps prevent the generatation of damaging torque spikes or heat. Once the operator replaces the bolt, the machine can be restarted.

PERFORMANCE BENEFITS
• Implement overload protection.
• Minimal maintenance.
• No damaging heat generation for higher productivity.
• Repeatable overload disengagement setting.
• Smooth disengaged operation, no damaging torque spikes.
• Reduces possibility of damage.

Specifications

Spec. Imperial Metric
Bore 11.50 inches38 mm
Bore 1 ROUND
Connection 1 PIN
Height4.72 inches120 mm
HP@1000RPM144 HP107 kilowatts
HP@540RPM94 HP70 kilowatts
Length4.65 inches118 mm
Pin Hole0.51 inches13 mm
Shear Bolt (1) 1/2 Grade 5
Shipping Dimensions5.73" L  ×  4.72" H  ×  2.95" W15cm L  ×  12cm H  ×  7cm W
Shipping Volume79.78 in31307 cm3
Shipping Weight4.62 pounds2 kilograms
Torque4030040300
Weight4.62 pounds2 kilograms
Width2.95 inches75 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
