803-7908
FLANGE YOKEAW36 Series Flange Yoke

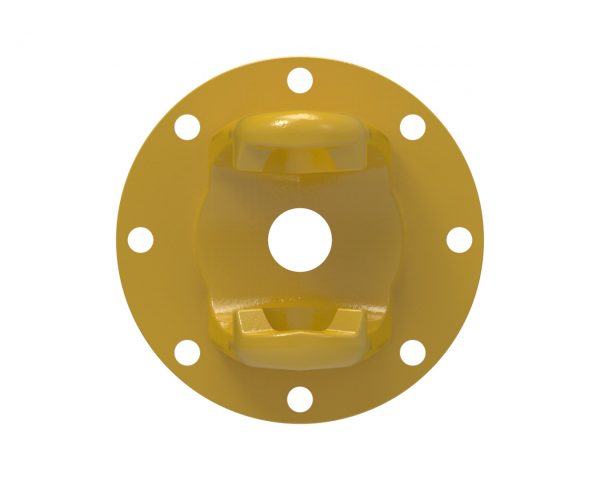

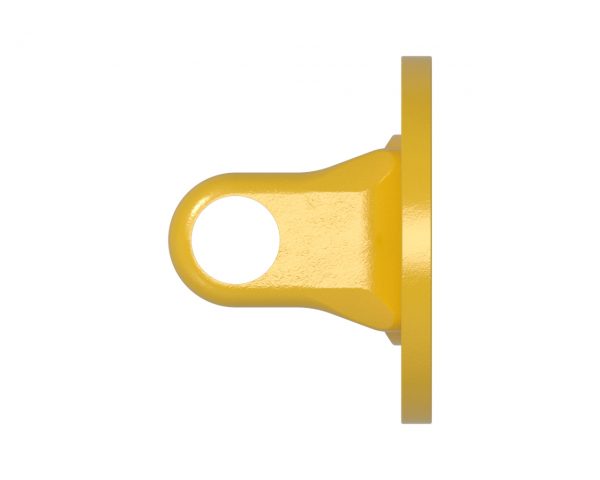

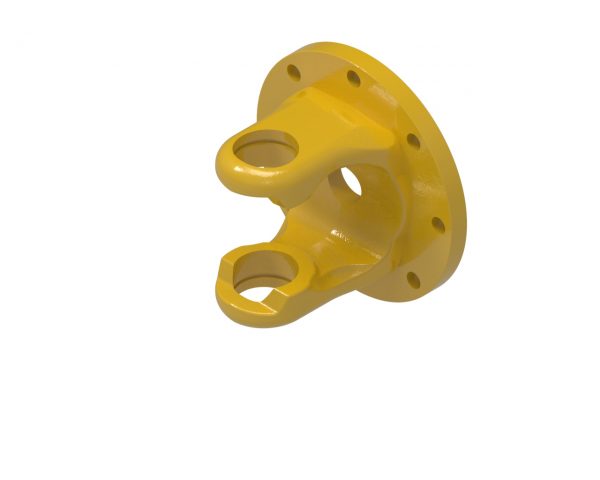

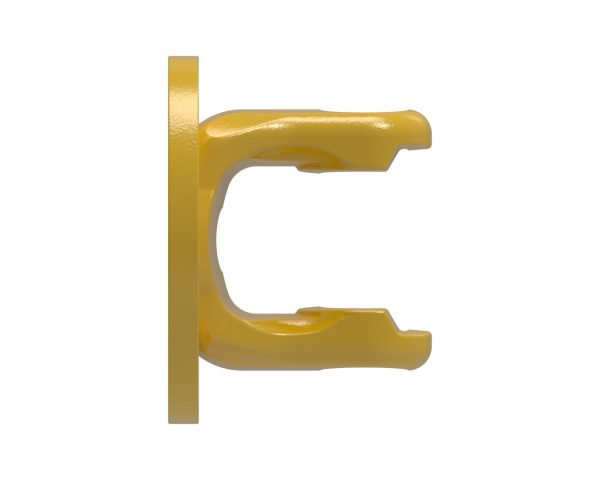

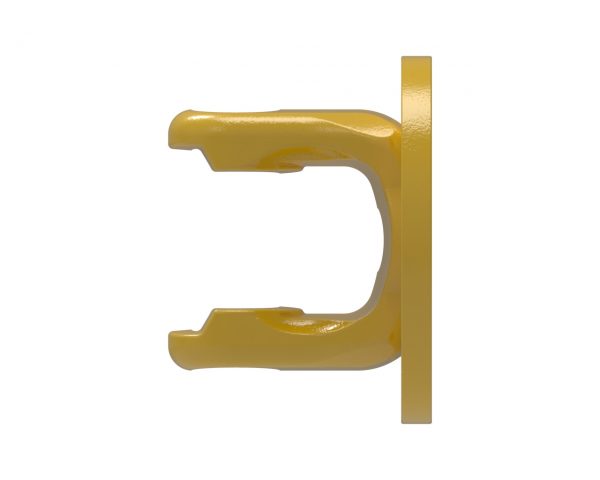

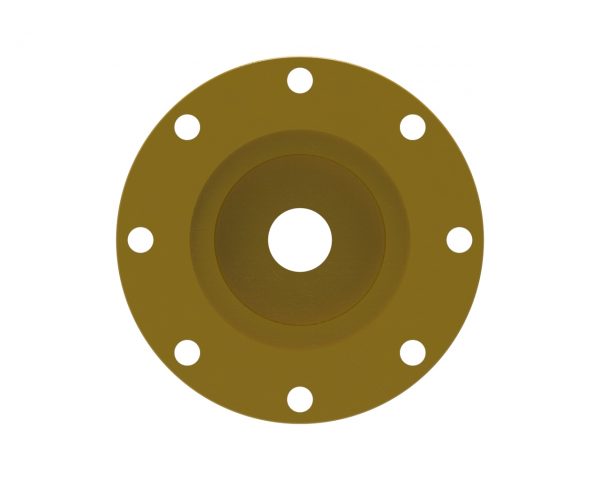

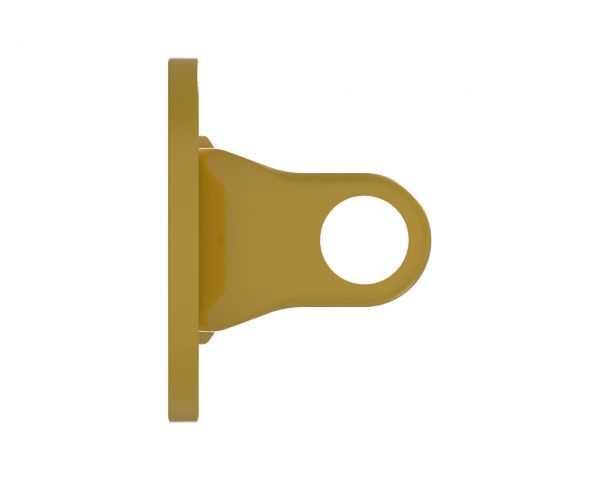

AW36 series yoke with 8 x 10 mm bolt circle bore and flange connection. Note: Image color may not represent actual part.
The flange yoke allows for a bolted connection to a mating flange to eliminate fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 3.15 inches | 80 mm |
| Bore 1 | 8 X 10 MM BOLT CIRCLE | |
| Connection 1 | FLANGE | |
| HP@1000RPM | 144 HP | 107 kilowatts |
| HP@540RPM | 94 HP | 70 kilowatts |
| Length | 3.15 inches | 80 mm |
| Outside Diameter | 5.91 inches | 150 mm |
| Shipping Dimensions | 4.23" L × 5.91" H × 5.91" W | 11cm L × 15cm H × 15cm W |
| Shipping Volume | 147.75 in3 | 2421 cm3 |
| Shipping Weight | 6.00 pounds | 3 kilograms |
| Weight | 6.00 pounds | 3 kilograms |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
