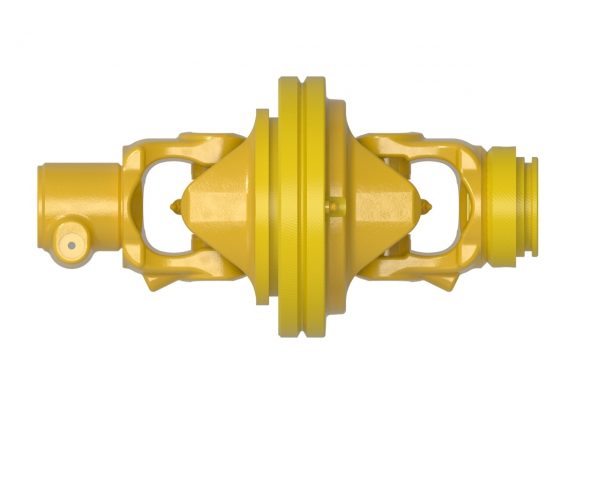

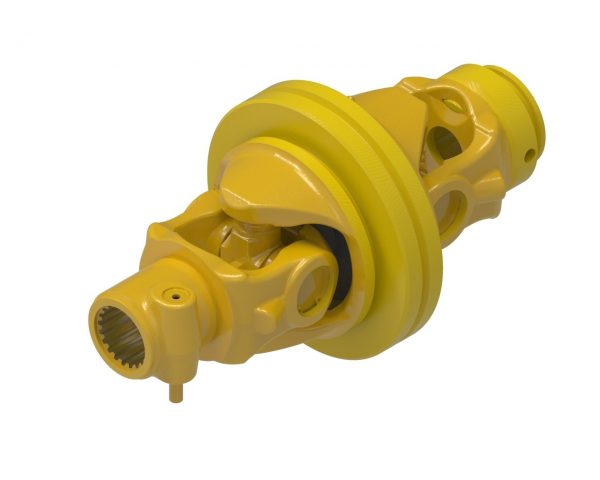

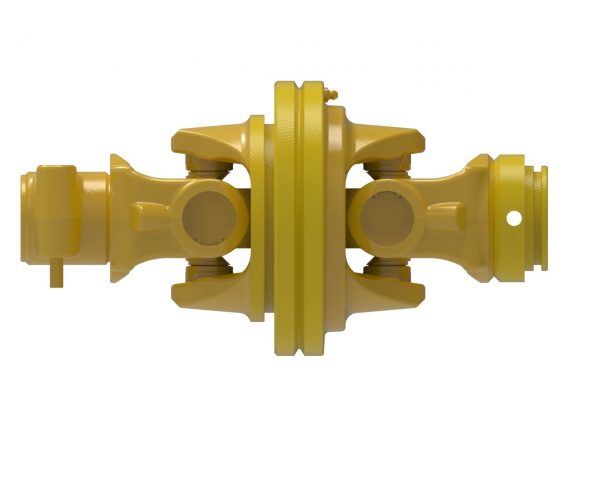

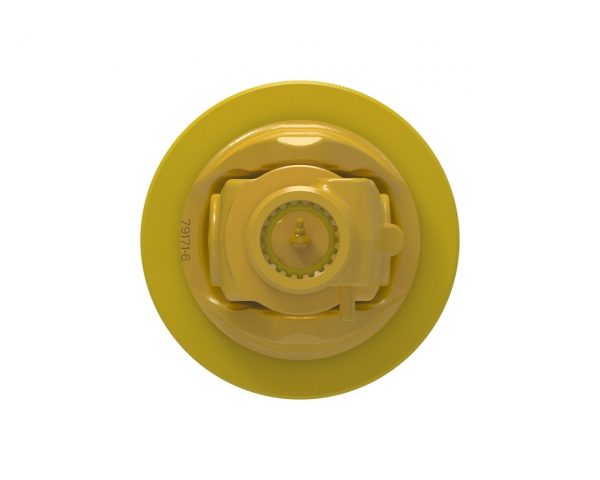

AW36-80 Series CV Wide Angle Universal Joint

AW36-80 series CV wide angle universal joint with 1 3/4-20 spline, quick disconnect connection and 51 mm star, roll pin connection. Note: Image color may not represent actual part.

View My List

The CV Wide Angle Universal Joint is a component of the Weasler high performance CV Wide Angle PTO drive shafts, which are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler CV Wide Angle PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.

PERFORMANCE BENEFITS

DESIGN FEATURES
• Fits Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
• Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
• Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
• Same component designs used for Weasler’s domestic and metric product lines.

Specifications

Spec. Imperial Metric
Bore 11.75 inches44 mm
Bore 1 1 3/4-20 SPLINE
Bore 22.00 inches51 mm
Bore 2 51 MM STAR
Compressed (Closed) Length4.65 inches118 mm
Compressed Overall Length13.80 inches351 mm
Connection 1 QUICK DISCONNECT
Connection 2 ROLL PIN
HP@1000RPM119 HP89 kilowatts
HP@540RPM77 HP57 kilowatts
Length13.80 inches351 mm
Outside Diameter6.65 inches169 mm
Shipping Dimensions13.8" L  ×  6.65" H  ×  6.65" W35cm L  ×  17cm H  ×  17cm W
Shipping Volume610.27 in310001 cm3
Shipping Weight34.02 pounds15 kilograms
Weight34.02 pounds15 kilograms

Downloads

Document Name Type Language
Service Instructions - Lubricating 80 Deg CV.pdf Maintenance Document English
Service Instructions - CV Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle Operating.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle NonOperating.pdf Troubleshooting Document English
WE0101003_1019_USL_80DegConstantVelocityJoint.pdf Performance Benefits Document English
WE0101011_0817_USL_EasyLockGuard.pdf Performance Benefits Document English
