807-7622

AW35 Series Clamp Yoke

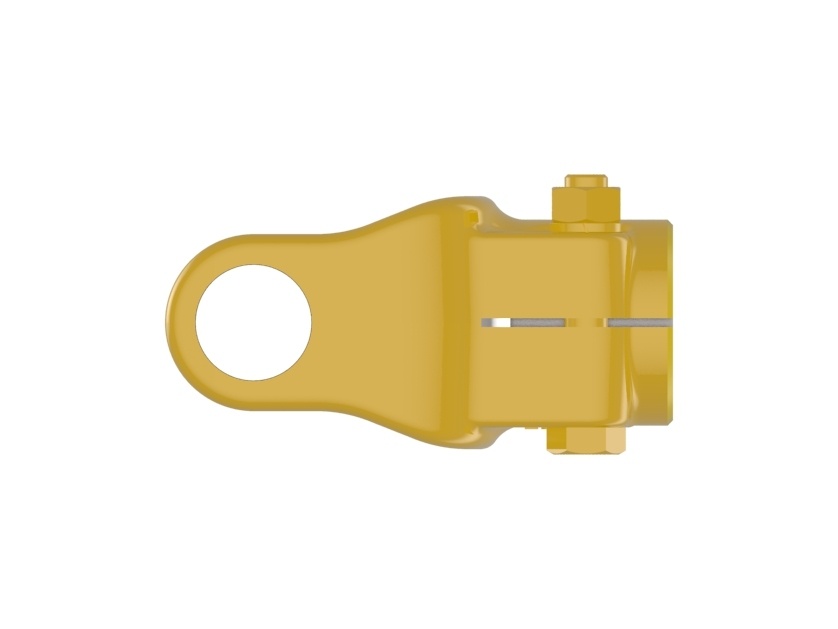

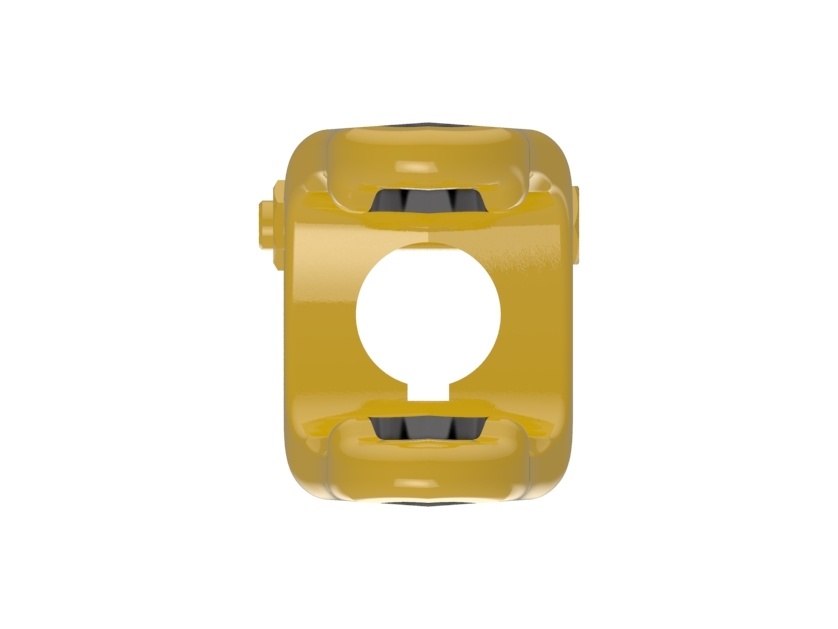

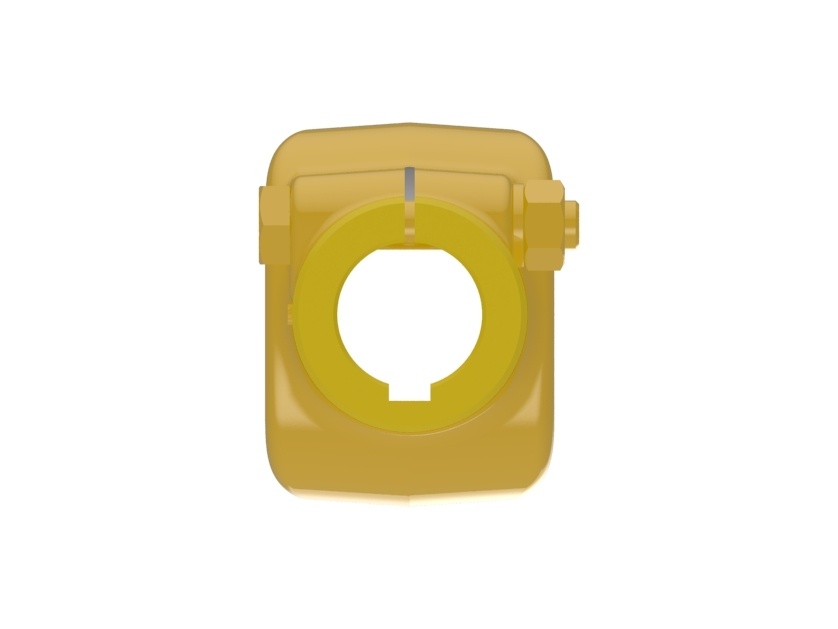

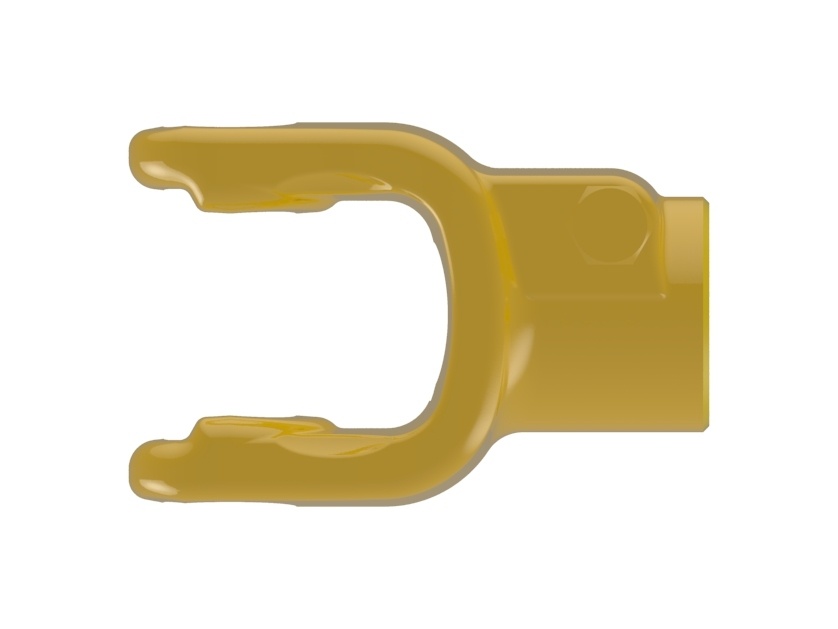

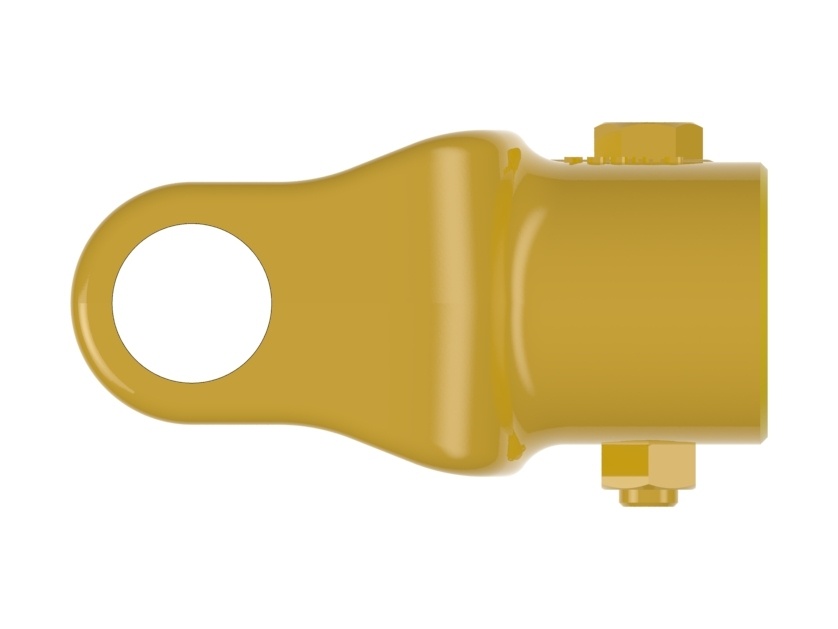

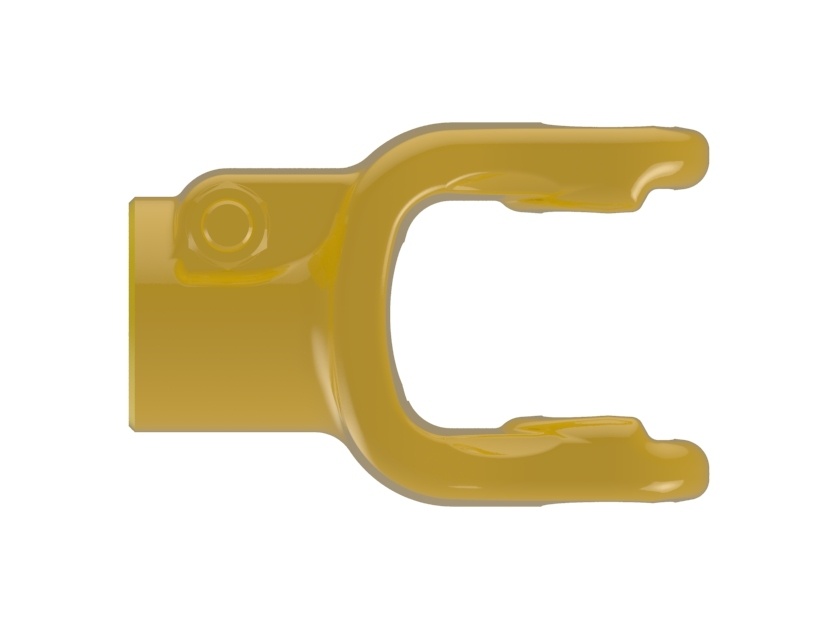

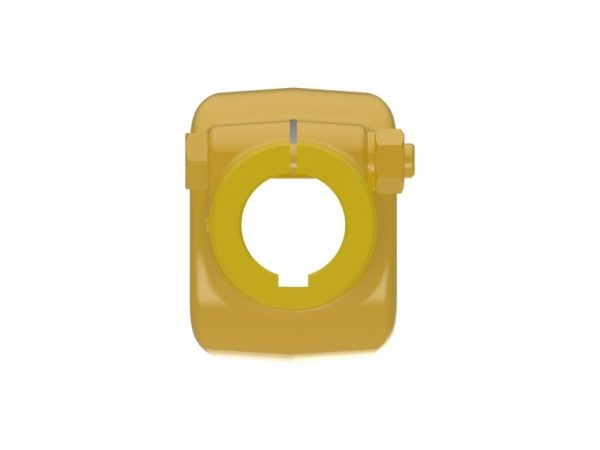

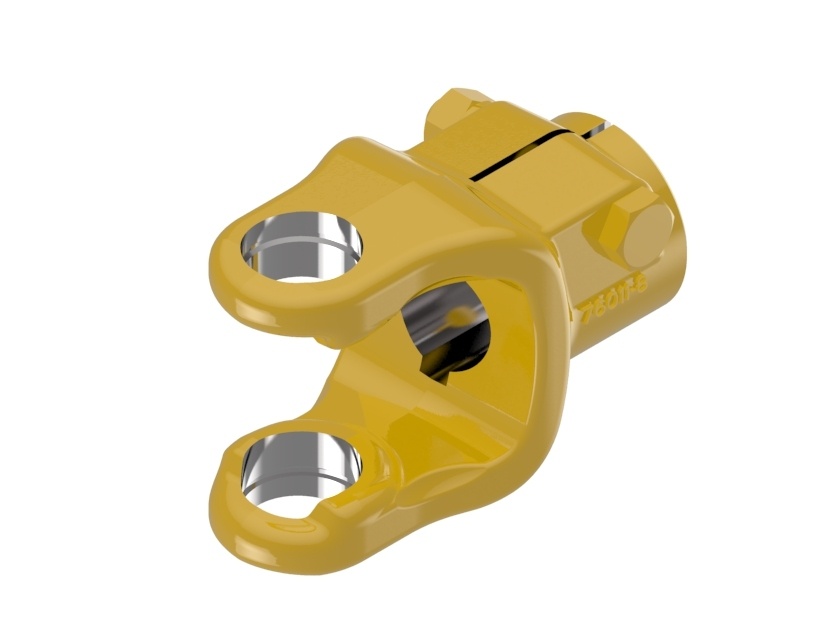

AW35 series yoke with round with keyway bore and clamp connection. Note: Image color may not represent actual part.

View My List

The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 ROUND WITH KEYWAY
Connection 1 CLAMP
Height4.09 inches104 mm
HP@1000RPM102 HP76 kilowatts
HP@540RPM66 HP49 kilowatts
Keyway 10.39 inches10 mm
Length4.57 inches116 mm
Shipping Dimensions5.53" L  ×  4.09" H  ×  2.76" W14cm L  ×  10cm H  ×  7cm W
Shipping Volume62.42 in31023 cm3
Shipping Weight4.55 pounds2 kilograms
Weight4.55 pounds2 kilograms
Width2.76 inches70 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
